Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

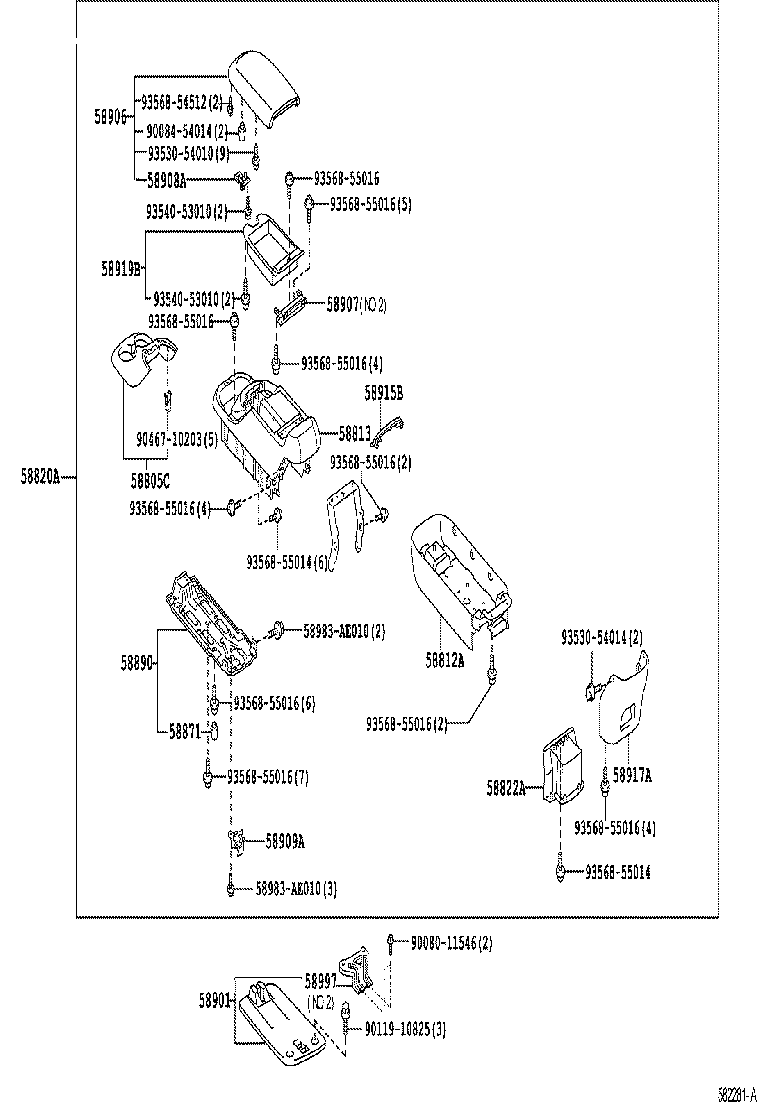

Exploded illustration 582281A 9354053010 — not listed in this catalogue 9046710203 — not listed in this catalogue 58983AE010 — not listed in this catalogue 58983AE010 — not listed in this catalogue 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 9354053010 — not listed in this catalogue 9008454014 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9353054014 — not listed in this catalogue 58919B — PLATE, CONSOLE BOX (2 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (2 parts) 58907 — HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR (5 parts) 58906 — DOOR SUB-ASSY, UPPER CONSOLE (5 parts) 58915B — COVER, CONSOLE COMPARTMENT DOOR BOX, REAR (4 parts) 58909A — STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR (2 parts) 58820A — BOX ASSY, CONSOLE COMPARTMENT (6 parts) 58812A — BOX, CONSOLE, LOWER (5 parts) 58822A — PANEL, CONSOLE, UPPER REAR (4 parts) 58917A — COVER, CONSOLE BOX, REAR (5 parts) 58805C — PANEL SUB-ASSY, CONSOLE, UPPER REAR (3 parts) 58890 — BOX ASSY, TRASH (2 parts) 58871 — CUSHION, CONSOLE BOX (2 parts) 58813 — BOX, CONSOLE, UPPER (5 parts) 58901 — PANEL SUB-ASSY, BOX (5 parts) 58997 — BRACKET, CONSOLE BOX MOUNTING, NO.3 (4 parts) 9008011546 — not listed in this catalogue 9011910825 — not listed in this catalogue 9353054010 — not listed in this catalogue 9356854512 — not listed in this catalogue
582281A · 16 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
58805C — Panel Sub-assy, Console, Upper Rear
58805-0C030 note Panel Sub-assy, Console, Upper Rear
2004-08 → —
UCK35,45 LIMD —
58805-0C050 Panel Sub-assy, Console, Upper Rear
2005-08 → —
UCK35,45 SR5 —
58805-0C050 Panel Sub-assy, Console, Upper Rear
2006-06 → —
UCK35,45 LIMD —
58812A — Box, Console, Lower
58812-0C010-B0 note Box, Console, Lower
2004-08 → —
UCK35,45 LIMD —
58812-0C010-B0 note Box, Console, Lower
2005-08 → —
UCK35,45 SR5 —
58812-0C010-E0 note Box, Console, Lower
2004-08 → —
UCK35,45 LIMD —
58812-0C010-E0 note Box, Console, Lower
2005-08 → —
UCK35,45 SR5 —
58812-0C010-E0 note Box, Console, Lower
2006-06 → —
UCK35,45 LIMD —
58813 — Box, Console, Upper
58813-0C010-B0 note Box, Console, Upper
2004-08 → —
UCK35,45 LIMD —
58813-0C010-B0 note Box, Console, Upper
2005-08 → —
UCK35,45 SR5 —
58813-0C010-E0 note Box, Console, Upper
2004-08 → —
UCK35,45 LIMD —
58813-0C010-E0 note Box, Console, Upper
2005-08 → —
UCK35,45 SR5 —
58813-0C010-E0 note Box, Console, Upper
2006-06 → —
UCK35,45 LIMD —
58820A — Box Assy, Console Compartment
58820-0C010-B0 note Box Assy, Console Compartment
2004-08 → —
UCK35,45 LIMD —
58820-0C010-E0 note Box Assy, Console Compartment
2004-08 → —
UCK35,45 LIMD —
58820-0C020-B0 note Box Assy, Console Compartment
2005-08 → —
UCK35,45 SR5 —
58820-0C020-B0 note Box Assy, Console Compartment
2006-06 → —
UCK35,45 LIMD —
58820-0C020-E0 note Box Assy, Console Compartment
2005-08 → —
UCK35,45 SR5 —
58820-0C020-E0 note Box Assy, Console Compartment
2006-06 → —
UCK35,45 LIMD —
58822A — Panel, Console, Upper Rear
58822-0C010-B0 note Panel, Console, Upper Rear
2004-08 → —
UCK35,45 LIMD —
58822-0C010-B0 note Panel, Console, Upper Rear
2005-08 → —
UCK35,45 SR5 —
58822-0C010-E0 note Panel, Console, Upper Rear
2004-08 → —
UCK35,45 LIMD —
58822-0C010-E0 note Panel, Console, Upper Rear
2005-08 → —
UCK35,45 SR5 —
58871 — Cushion, Console Box
58871-0C030 Cushion, Console Box
2004-08 → —
UCK35,45 LIMD —
58871-0C030 Cushion, Console Box
2005-08 → —
UCK35,45 SR5 —
58890 — Box Assy, Trash
58890-0C010 Box Assy, Trash
2004-08 → —
UCK35,45 LIMD —
58890-0C010 Box Assy, Trash
2005-08 → —
UCK35,45 SR5 —
58901 — Panel Sub-assy, Box
58901-0C020-B0 note Panel Sub-assy, Box
2004-08 → —
UCK35,45 LIMD —
58901-0C020-B0 note Panel Sub-assy, Box
2005-08 → —
UCK35,45 SR5 —
58901-0C020-E0 note Panel Sub-assy, Box
2006-06 → —
UCK35,45 LIMD —
58901-0C020-E0 note Panel Sub-assy, Box
2005-08 → —
UCK35,45 SR5 —
58901-0C020-E0 note Panel Sub-assy, Box
2004-08 → —
UCK35,45 LIMD —
58906 — Door Sub-assy, Upper Console
58906-0C020-B0 note Door Sub-assy, Upper Console
2004-08 → —
UCK35,45 LIMD —
58906-0C020-B0 note Door Sub-assy, Upper Console
2005-08 → —
UCK35,45 SR5 —
58906-0C020-E0 note Door Sub-assy, Upper Console
2004-08 → —
UCK35,45 LIMD —
58906-0C020-E0 note Door Sub-assy, Upper Console
2005-08 → —
UCK35,45 SR5 —
58906-0C020-E0 note Door Sub-assy, Upper Console
2006-06 → —
UCK35,45 LIMD —
58907 — Hinge Sub-assy, Console Compartment Door
58907-0C010 Hinge Sub-assy, Console Compartment Door
2000-09 → 2004-08 ended
UCK35,45 —
58907-0C010 note Hinge Sub-assy, Console Compartment Door
2004-08 → 2006-05 ended
UCK35,45 —
58907-0C010 note Hinge Sub-assy, Console Compartment Door
2006-06 → —
UCK35,45 —
58907-0C020 note Hinge Sub-assy, Console Compartment Door
2004-08 → —
UCK35,45 LIMD —
58907-0C020 note Hinge Sub-assy, Console Compartment Door
2005-08 → —
UCK35,45 SR5 —
58908A — Lock Sub-assy, Console Compartment Door
58908-32050 Lock Sub-assy, Console Compartment Door
2000-09 → 2004-08 ended
UCK35,45 —
58908-32050 Lock Sub-assy, Console Compartment Door
2004-08 → —
UCK35,45 —
58909A — Stopper Sub-assy, Console Compartment Door
58909-0C020 Stopper Sub-assy, Console Compartment Door
2004-08 → —
UCK35,45 LIMD —
58909-0C020 Stopper Sub-assy, Console Compartment Door
2005-08 → —
UCK35,45 SR5 —
58915B — Cover, Console Compartment Door Box, Rear
58915-0C020-B0 note Cover, Console Compartment Door Box, Rear
2004-08 → —
UCK35,45 LIMD —
58915-0C020-B0 note Cover, Console Compartment Door Box, Rear
2005-08 → —
UCK35,45 SR5 —
58915-0C020-E0 note Cover, Console Compartment Door Box, Rear
2004-08 → —
UCK35,45 LIMD —
58915-0C020-E0 note Cover, Console Compartment Door Box, Rear
2005-08 → —
UCK35,45 SR5 —
58917A — Cover, Console Box, Rear
58917-0C020-B0 note Cover, Console Box, Rear
2004-08 → —
UCK35,45 LIMD —
58917-0C020-B0 note Cover, Console Box, Rear
2005-08 → —
UCK35,45 SR5 —
58917-0C020-E0 note Cover, Console Box, Rear
2004-08 → —
UCK35,45 LIMD —
58917-0C020-E0 note Cover, Console Box, Rear
2005-08 → —
UCK35,45 SR5 —
58917-0C020-E0 note Cover, Console Box, Rear
2006-06 → —
UCK35,45 LIMD —
58919B — Plate, Console Box
58919-0C040 Plate, Console Box
2004-08 → —
UCK35,45 LIMD —
58919-0C040 Plate, Console Box
2005-08 → —
UCK35,45 SR5 —
58997 — Bracket, Console Box Mounting, NO.3
58997-0C010 Bracket, Console Box Mounting, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
58997-0C010 note Bracket, Console Box Mounting, NO.3
2004-08 → —
UCK35,45 —
58997-0C030 note Bracket, Console Box Mounting, NO.3
2004-08 → —
UCK35,45 LIMD —
58997-0C030 note Bracket, Console Box Mounting, NO.3
2005-08 → —
UCK35,45 SR5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
