Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

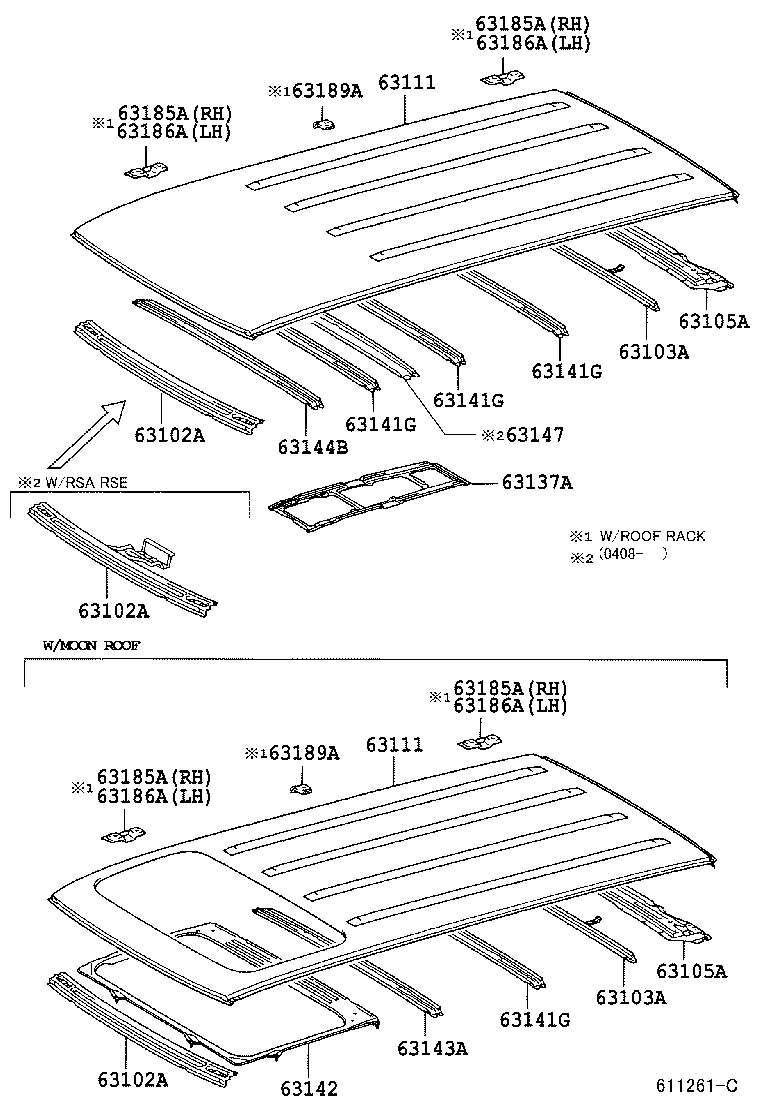

Exploded illustration 611261C 63185A — BRACKET, ROOF RACK, FRONT RH (2 parts) 63186A — BRACKET, ROOF RACK, FRONT LH (2 parts) 63111 — PANEL, ROOF (5 parts) 63189A — BRACKET, ROOF RACK, CENTER (2 parts) 63185A — BRACKET, ROOF RACK, FRONT RH (2 parts) 63186A — BRACKET, ROOF RACK, FRONT LH (2 parts) 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (4 parts) 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (4 parts) 63103A — REINFORCEMENT SUB-ASSY, ROOF PANEL (2 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (3 parts) 63147 — BRACKET, ROOF PANEL REINFORCEMENT (1 parts) 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (4 parts) 63144B — REINFORCEMENT, ROOF PANEL, NO.4 (2 parts) 63137A — BRACKET, DOME LAMP, NO.1 (2 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (2 parts) 63185A — BRACKET, ROOF RACK, FRONT RH (2 parts) 63185A — BRACKET, ROOF RACK, FRONT RH (2 parts) 63186A — BRACKET, ROOF RACK, FRONT LH (2 parts) 63186A — BRACKET, ROOF RACK, FRONT LH (2 parts) 63189A — BRACKET, ROOF RACK, CENTER (2 parts) 63111 — PANEL, ROOF (5 parts) 63141G — REINFORCEMENT, ROOF PANEL, NO.1 (4 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (3 parts) 63103A — REINFORCEMENT SUB-ASSY, ROOF PANEL (2 parts) 63143A — REINFORCEMENT, ROOF PANEL (2 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (2 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (2 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (2 parts)
611261C · 28 callouts Full size ↗
31 parts on this figure
Part number Description Fitment Price
63102A — Panel Sub-assy, Windshield Header
63102-0C900 Panel Sub-assy, Windshield Header
2000-09 → 2004-08 ended
UCK35,45 —
63102-0C905 Panel Sub-assy, Windshield Header
2004-08 → —
UCK35,45 —
63103A — Reinforcement Sub-assy, Roof Panel
63103-0C010 Reinforcement Sub-assy, Roof Panel
2000-09 → 2004-08 ended
UCK35,45 —
63103-0C010 Reinforcement Sub-assy, Roof Panel
2004-08 → —
UCK35,45 —
63105A — Frame Sub-assy, Back Door Opening
63105-0C900 Frame Sub-assy, Back Door Opening
2000-09 → 2003-06 ended
UCK35,45 —
63105-0C901 Frame Sub-assy, Back Door Opening
2003-06 → 2004-08 ended
UCK35,45 —
63105-0C902 Frame Sub-assy, Back Door Opening
2004-08 → —
UCK35,45 —
63111 — Panel, Roof
63111-0C030 Panel, Roof
2000-09 → 2004-08 ended
UCK35,45 LIMD —
63111-0C030 note Panel, Roof
2000-09 → 2004-08 ended
UCK35,45 SR5 —
63111-0C040 note Panel, Roof
2000-09 → 2004-08 ended
UCK35,45 —
63111-0C030 Panel, Roof
2004-08 → —
UCK35,45 —
63111-0C040 note Panel, Roof
2004-08 → —
UCK35,45 —
63137A — Bracket, Dome Lamp, NO.1
63137-0C020 Bracket, Dome Lamp, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
63137-0C020 Bracket, Dome Lamp, NO.1
2004-08 → —
UCK35,45 —
63141G — Reinforcement, Roof Panel, NO.1
63141-0C030 Reinforcement, Roof Panel, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
63141-0C030 note Reinforcement, Roof Panel, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
63141-0C030 note Reinforcement, Roof Panel, NO.1
2004-08 → —
UCK35,45 —
63141-0C030 Reinforcement, Roof Panel, NO.1
2004-08 → —
UCK35,45 —
63142 — Reinforcement, Roof Panel, NO.2
63142-0C010 Reinforcement, Roof Panel, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
63142-0C010 Reinforcement, Roof Panel, NO.2
2004-08 → —
UCK35,45 —
63143A — Reinforcement, Roof Panel
63143-0C010 Reinforcement, Roof Panel
2000-09 → 2004-08 ended
UCK35,45 —
63143-0C010 Reinforcement, Roof Panel
2004-08 → —
UCK35,45 —
63144B — Reinforcement, Roof Panel, NO.4
63144-0C010 Reinforcement, Roof Panel, NO.4
2000-09 → 2004-08 ended
UCK35,45 —
63144-0C010 Reinforcement, Roof Panel, NO.4
2004-08 → —
UCK35,45 —
63147 — Bracket, Roof Panel Reinforcement
63147-34030 Bracket, Roof Panel Reinforcement
2004-08 → —
UCK35,45 —
63185A — Bracket, Roof Rack, Front RH
63185-0C010 Bracket, Roof Rack, Front RH
2000-09 → 2004-08 ended
UCK35,45 —
63185-0C010 Bracket, Roof Rack, Front RH
2004-08 → —
UCK35,45 —
63186A — Bracket, Roof Rack, Front LH
63185-0C010 Bracket, Roof Rack, Front LH
2000-09 → 2004-08 ended
UCK35,45 —
63185-0C010 Bracket, Roof Rack, Front LH
2004-08 → —
UCK35,45 —
63189A — Bracket, Roof Rack, Center
63189-0C010 Bracket, Roof Rack, Center
2000-09 → 2004-08 ended
UCK35,45 —
63189-0C010 Bracket, Roof Rack, Center
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
