Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

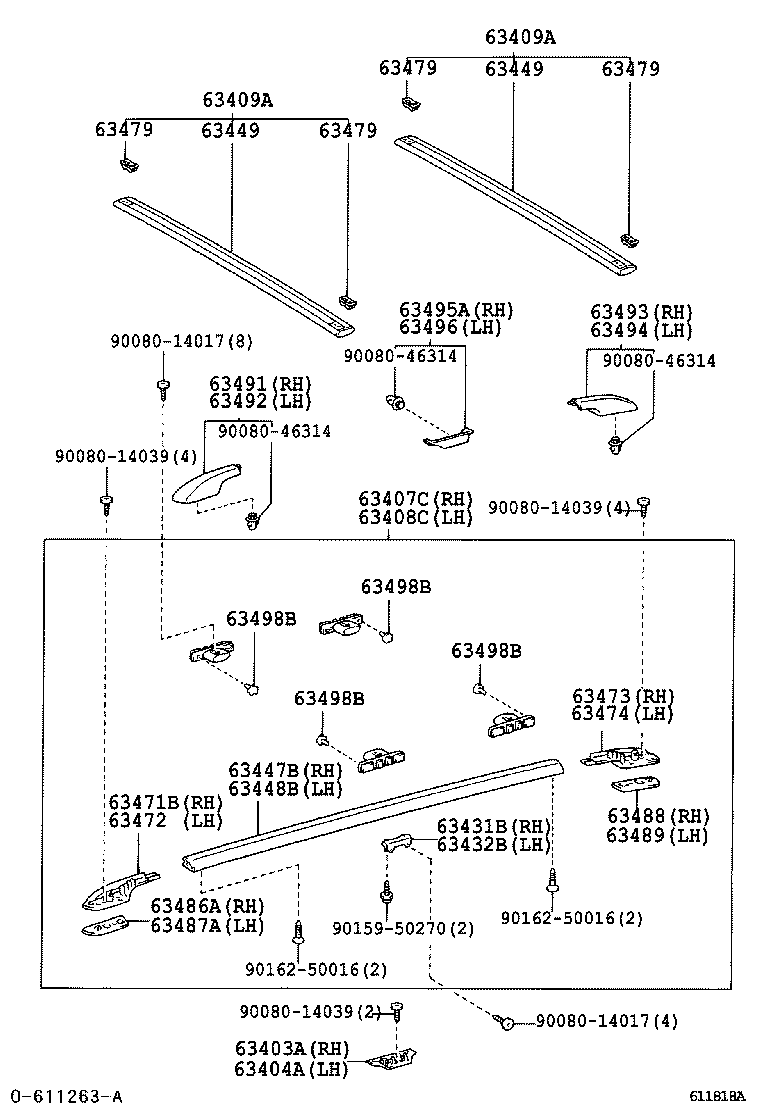

Exploded illustration 611818A 63479 — RETAINER, ROOF INNER RACK (2 parts) 63449 — BAR, ROOF CARRIER SIDE (3 parts) 63409A — SUPPORT SUB-ASSY, ROOF RACK, CENTER (3 parts) 9008014039 — not listed in this catalogue 63479 — RETAINER, ROOF INNER RACK (2 parts) 63479 — RETAINER, ROOF INNER RACK (2 parts) 63449 — BAR, ROOF CARRIER SIDE (3 parts) 63409A — SUPPORT SUB-ASSY, ROOF RACK, CENTER (3 parts) 9008014017 — not listed in this catalogue 63479 — RETAINER, ROOF INNER RACK (2 parts) 63493 — COVER, ROOF RACK LEG, REAR RH (3 parts) 63494 — COVER, ROOF RACK LEG, REAR LH (3 parts) 9008046314 — not listed in this catalogue 9008014039 — not listed in this catalogue 63491 — COVER, ROOF RACK LEG, FRONT RH (3 parts) 63498B — CAP, ROOF CARRIER (2 parts) 63473 — LEG, ROOF RACK, REAR RH (3 parts) 63474 — LEG, ROOF RACK, REAR LH (3 parts) 63488 — CUSHION, ROOF RACK LEG, REAR RH (2 parts) 63489 — CUSHION, ROOF RACK LEG, REAR LH (2 parts) 9016250016 — not listed in this catalogue 63431B — BRACKET, ROOF INNER RACK, NO.1 RH (2 parts) 63432B — BRACKET, ROOF INNER RACK, NO.1 LH (2 parts) 9008014017 — not listed in this catalogue 9015950270 — not listed in this catalogue 9016250016 — not listed in this catalogue 9008014039 — not listed in this catalogue 63403A — SUPPORT SUB-ASSY, ROOF RACK, CENTER RH (3 parts) 63404A — SUPPORT SUB-ASSY, ROOF RACK, CENTER LH (3 parts) 63486A — CUSHION, ROOF RACK LEG, FRONT RH (2 parts) 63487A — CUSHION, ROOF RACK LEG, FRONT LH (2 parts) 63471B — LEG, ROOF RACK, FRONT RH (3 parts) 63472 — LEG, ROOF RACK, FRONT LH (3 parts) 63447B — BAR, ROOF CARRIER, RH (3 parts) 63448B — BAR, ROOF CARRIER, LH (3 parts) 9008046314 — not listed in this catalogue 63498B — CAP, ROOF CARRIER (2 parts) 63498B — CAP, ROOF CARRIER (2 parts) 63498B — CAP, ROOF CARRIER (2 parts) 63496 — COVER, ROOF RACK LEG, CENTER LH (3 parts) 63495A — COVER, ROOF RACK LEG, CENTER (3 parts) 63407C — CARRIER SUB-ASSY, ROOF, RH (3 parts) 63408C — CARRIER SUB-ASSY, ROOF, LH (3 parts) 9008046314 — not listed in this catalogue 63492 — COVER, ROOF RACK LEG, FRONT LH (3 parts)
611818A · 34 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
63403A — Support Sub-assy, Roof Rack, Center RH
63403-0C010 Support Sub-assy, Roof Rack, Center RH
2000-09 → 2003-01 ended
UCK35,45 —
63403-0C011 Support Sub-assy, Roof Rack, Center RH
2003-01 → 2004-08 ended
UCK35,45 —
63403-0C011 Support Sub-assy, Roof Rack, Center RH
2004-08 → —
UCK35,45 —
63404A — Support Sub-assy, Roof Rack, Center LH
63404-0C010 Support Sub-assy, Roof Rack, Center LH
2000-09 → 2003-01 ended
UCK35,45 —
63404-0C011 Support Sub-assy, Roof Rack, Center LH
2003-01 → 2004-08 ended
UCK35,45 —
63404-0C011 Support Sub-assy, Roof Rack, Center LH
2004-08 → —
UCK35,45 —
63407C — Carrier Sub-assy, Roof, RH
63407-0C010 Carrier Sub-assy, Roof, RH
2000-09 → 2003-01 ended
UCK35,45 —
63407-0C011 Carrier Sub-assy, Roof, RH
2003-01 → 2004-08 ended
UCK35,45 —
63407-0C011 Carrier Sub-assy, Roof, RH
2004-08 → —
UCK35,45 —
63408C — Carrier Sub-assy, Roof, LH
63408-0C010 Carrier Sub-assy, Roof, LH
2000-09 → 2003-01 ended
UCK35,45 —
63408-0C011 Carrier Sub-assy, Roof, LH
2003-01 → 2004-08 ended
UCK35,45 —
63408-0C011 Carrier Sub-assy, Roof, LH
2004-08 → —
UCK35,45 —
63409A — Support Sub-assy, Roof Rack, Center
63409-0C010 Support Sub-assy, Roof Rack, Center
2000-09 → 2003-01 ended
UCK35,45 —
63409-0C011 Support Sub-assy, Roof Rack, Center
2003-01 → 2004-08 ended
UCK35,45 —
63409-0C011 Support Sub-assy, Roof Rack, Center
2004-08 → —
UCK35,45 —
63431B — Bracket, Roof Inner Rack, NO.1 RH
63431-0C010 Bracket, Roof Inner Rack, NO.1 RH
2003-01 → 2004-08 ended
UCK35,45 —
63431-0C010 Bracket, Roof Inner Rack, NO.1 RH
2004-08 → —
UCK35,45 —
63432B — Bracket, Roof Inner Rack, NO.1 LH
63431-0C010 Bracket, Roof Inner Rack, NO.1 LH
2003-01 → 2004-08 ended
UCK35,45 —
63431-0C010 Bracket, Roof Inner Rack, NO.1 LH
2004-08 → —
UCK35,45 —
63447B — Bar, Roof Carrier, RH
63447-0C010 Bar, Roof Carrier, RH
2000-09 → 2003-01 ended
UCK35,45 —
63447-0C011 Bar, Roof Carrier, RH
2003-01 → 2004-08 ended
UCK35,45 —
63447-0C011 Bar, Roof Carrier, RH
2004-08 → —
UCK35,45 —
63448B — Bar, Roof Carrier, LH
63448-0C010 Bar, Roof Carrier, LH
2000-09 → 2003-01 ended
UCK35,45 —
63448-0C011 Bar, Roof Carrier, LH
2003-01 → 2004-08 ended
UCK35,45 —
63448-0C011 Bar, Roof Carrier, LH
2004-08 → —
UCK35,45 —
63449 — Bar, Roof Carrier Side
63449-0C010 Bar, Roof Carrier Side
2000-09 → 2003-01 ended
UCK35,45 —
63449-0C011 Bar, Roof Carrier Side
2003-01 → 2004-08 ended
UCK35,45 —
63449-0C011 Bar, Roof Carrier Side
2004-08 → —
UCK35,45 —
63471B — Leg, Roof Rack, Front RH
63471-0C010 Leg, Roof Rack, Front RH
2000-09 → 2003-01 ended
UCK35,45 —
63471-0C011 Leg, Roof Rack, Front RH
2003-01 → 2004-08 ended
UCK35,45 —
63471-0C011 Leg, Roof Rack, Front RH
2004-08 → —
UCK35,45 —
63472 — Leg, Roof Rack, Front LH
63472-0C010 Leg, Roof Rack, Front LH
2000-09 → 2003-01 ended
UCK35,45 —
63472-0C011 Leg, Roof Rack, Front LH
2003-01 → 2004-08 ended
UCK35,45 —
63472-0C011 Leg, Roof Rack, Front LH
2004-08 → —
UCK35,45 —
63473 — Leg, Roof Rack, Rear RH
63473-0C010 Leg, Roof Rack, Rear RH
2000-09 → 2003-01 ended
UCK35,45 —
63473-0C011 Leg, Roof Rack, Rear RH
2003-01 → 2004-08 ended
UCK35,45 —
63473-0C011 Leg, Roof Rack, Rear RH
2004-08 → —
UCK35,45 —
63474 — Leg, Roof Rack, Rear LH
63474-0C010 Leg, Roof Rack, Rear LH
2000-09 → 2003-01 ended
UCK35,45 —
63474-0C011 Leg, Roof Rack, Rear LH
2003-01 → 2004-08 ended
UCK35,45 —
63474-0C011 Leg, Roof Rack, Rear LH
2004-08 → —
UCK35,45 —
63479 — Retainer, Roof Inner Rack
63479-0C010 Retainer, Roof Inner Rack
2003-01 → 2004-08 ended
UCK35,45 —
63479-0C010 Retainer, Roof Inner Rack
2004-08 → —
UCK35,45 —
63486A — Cushion, Roof Rack Leg, Front RH
63486-0C010 Cushion, Roof Rack Leg, Front RH
2003-01 → 2004-08 ended
UCK35,45 —
63486-0C010 Cushion, Roof Rack Leg, Front RH
2004-08 → —
UCK35,45 —
63487A — Cushion, Roof Rack Leg, Front LH
63487-0C010 Cushion, Roof Rack Leg, Front LH
2003-01 → 2004-08 ended
UCK35,45 —
63487-0C010 Cushion, Roof Rack Leg, Front LH
2004-08 → —
UCK35,45 —
63488 — Cushion, Roof Rack Leg, Rear RH
63488-0C010 Cushion, Roof Rack Leg, Rear RH
2003-01 → 2004-08 ended
UCK35,45 —
63488-0C010 Cushion, Roof Rack Leg, Rear RH
2004-08 → —
UCK35,45 —
63489 — Cushion, Roof Rack Leg, Rear LH
63489-0C010 Cushion, Roof Rack Leg, Rear LH
2003-01 → 2004-08 ended
UCK35,45 —
63489-0C010 Cushion, Roof Rack Leg, Rear LH
2004-08 → —
UCK35,45 —
63491 — Cover, Roof Rack Leg, Front RH
63491-0C010 Cover, Roof Rack Leg, Front RH
2000-09 → 2003-01 ended
UCK35,45 —
63491-0C011 Cover, Roof Rack Leg, Front RH
2003-01 → 2004-08 ended
UCK35,45 —
63491-0C011 Cover, Roof Rack Leg, Front RH
2004-08 → —
UCK35,45 —
63492 — Cover, Roof Rack Leg, Front LH
63492-0C010 Cover, Roof Rack Leg, Front LH
2000-09 → 2003-01 ended
UCK35,45 —
63492-0C011 Cover, Roof Rack Leg, Front LH
2003-01 → 2004-08 ended
UCK35,45 —
63492-0C011 Cover, Roof Rack Leg, Front LH
2004-08 → —
UCK35,45 —
63493 — Cover, Roof Rack Leg, Rear RH
63493-0C010 Cover, Roof Rack Leg, Rear RH
2000-09 → 2003-01 ended
UCK35,45 —
63493-0C011 Cover, Roof Rack Leg, Rear RH
2003-01 → 2004-08 ended
UCK35,45 —
63493-0C011 Cover, Roof Rack Leg, Rear RH
2004-08 → —
UCK35,45 —
63494 — Cover, Roof Rack Leg, Rear LH
63494-0C010 Cover, Roof Rack Leg, Rear LH
2000-09 → 2003-01 ended
UCK35,45 —
63494-0C011 Cover, Roof Rack Leg, Rear LH
2003-01 → 2004-08 ended
UCK35,45 —
63494-0C011 Cover, Roof Rack Leg, Rear LH
2004-08 → —
UCK35,45 —
63495A — Cover, Roof Rack Leg, Center
63495-0C010 Cover, Roof Rack Leg, Center
2000-09 → 2003-01 ended
UCK35,45 —
63495-0C011 Cover, Roof Rack Leg, Center
2003-01 → 2004-08 ended
UCK35,45 —
63495-0C011 Cover, Roof Rack Leg, Center
2004-08 → —
UCK35,45 —
63496 — Cover, Roof Rack Leg, Center LH
63496-0C010 Cover, Roof Rack Leg, Center LH
2000-09 → 2003-01 ended
UCK35,45 —
63496-0C011 Cover, Roof Rack Leg, Center LH
2003-01 → 2004-08 ended
UCK35,45 —
63496-0C011 Cover, Roof Rack Leg, Center LH
2004-08 → —
UCK35,45 —
63498B — Cap, Roof Carrier
63498-0C010 Cap, Roof Carrier
2000-09 → 2004-08 ended
UCK35,45 —
63498-0C010 Cap, Roof Carrier
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
