Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

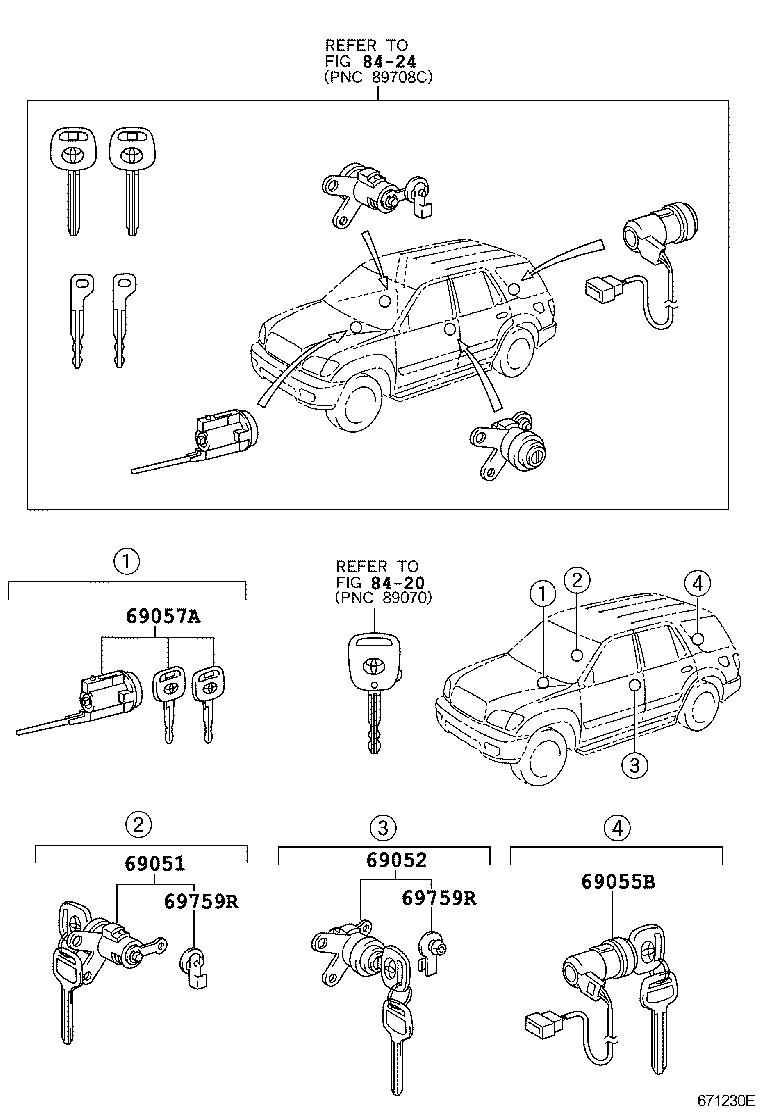

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-34040 |
Cylinder & Key Set, Door Lock, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 69051-34040 |
Cylinder & Key Set, Door Lock, RH
2004-08 → —
|
UCK35,45 | — | |
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-34040 |
Cylinder & Key Set, Door Lock, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 69052-34040 |
Cylinder & Key Set, Door Lock, LH
2004-08 → —
|
UCK35,45 | — | |
| 69055B — Cylinder & Key Set, Back Door Lock | ||||
| 69055-34020 |
Cylinder & Key Set, Back Door Lock
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 69055-34020 |
Cylinder & Key Set, Back Door Lock
2004-08 → —
|
UCK35,45 | — | |
| 69057A — Cylinder & Key Set, Ignition Switch Lock | ||||
| 69057-34040 |
Cylinder & Key Set, Ignition Switch Lock
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 69057-34040 |
Cylinder & Key Set, Ignition Switch Lock
2004-08 → 2007-11
ended
|
UCK35,45 | — | |
| 69759R — Snap, Front Door Lock Cylinder | ||||
| 69759-22080 note |
Snap, Front Door Lock Cylinder
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 69759-22090 note |
Snap, Front Door Lock Cylinder
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 69759-22080 note |
Snap, Front Door Lock Cylinder
2004-08 → —
|
UCK35,45 | — | |
| 69759-22090 note |
Snap, Front Door Lock Cylinder
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
