Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

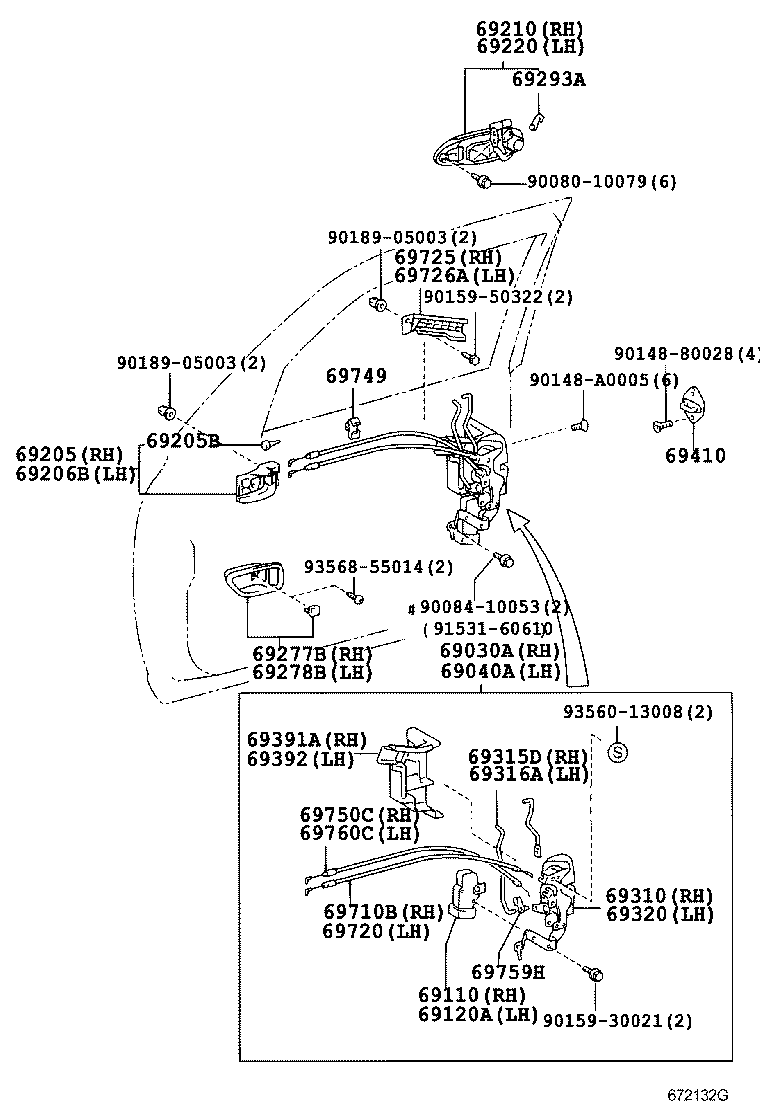

Exploded illustration 672132G 9018905003 — not listed in this catalogue 69725 — PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH (2 parts) 69726A — PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH (2 parts) 69749 — CLAMP, FRONT DOOR LOCK LINK (2 parts) 9015950322 — not listed in this catalogue 90148A0005 — not listed in this catalogue 9014880028 — not listed in this catalogue 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (2 parts) 9153160610 — not listed in this catalogue 9356013008 — not listed in this catalogue 9356855014 — not listed in this catalogue 69030A — LOCK ASSY, FRONT DOOR W/MOTOR, RH (3 parts) 69040A — LOCK ASSY, FRONT DOOR W/MOTOR, LH (2 parts) 69277B — BEZEL, FRONT DOOR INSIDE HANDLE, RH (4 parts) 69278B — BEZEL, FRONT DOOR INSIDE HANDLE, LH (4 parts) 69391A — COVER, FRONT DOOR LOCK, OUTER RH (2 parts) 69392 — COVER, FRONT DOOR LOCK, OUTER LH (2 parts) 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (3 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (2 parts) 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (2 parts) 69720 — LINK ASSY, FRONT DOOR OPEN CONTROL, LH (2 parts) 69110 — ACTUATOR ASSY, FRONT DOOR LOCK, RH (2 parts) 69120A — ACTUATOR ASSY, FRONT DOOR LOCK, LH (2 parts) 69759H — SNAP, DOOR LOCK CONTROL LINK, NO.2 (4 parts) 9015930021 — not listed in this catalogue 69320 — LOCK ASSY, FRONT DOOR, LH (2 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (3 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (4 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (4 parts) 69315D — LINK, FRONT DOOR OUTSIDE LOCKING, RH (2 parts) 69316A — LINK, FRONT DOOR OUTSIDE LOCKING, LH (2 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (21 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (21 parts) 69293A — SNAP, FRONT DOOR OUTSIDE HANDLE (4 parts) 9008010079 — not listed in this catalogue 9018905003 — not listed in this catalogue 69205B — CUSHION(FOR FRONT DOOR INSIDE HANDLE) (2 parts) 9008410053 — not listed in this catalogue
672132G · 27 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
107 parts on this figure
Part number Description Fitment Price
69030A — Lock Assy, Front Door W/Motor, RH
69030-0C020 Lock Assy, Front Door W/Motor, RH
2000-09 → 2001-08 ended
UCK35,45 4HC —
69030-0C021 Lock Assy, Front Door W/Motor, RH
2001-08 → 2004-08 ended
UCK35,45 —
69030-0C021 Lock Assy, Front Door W/Motor, RH
2004-08 → —
UCK35,45 —
69040A — Lock Assy, Front Door W/Motor, LH
69040-0C020 Lock Assy, Front Door W/Motor, LH
2000-09 → 2004-08 ended
UCK35,45 —
69040-0C020 Lock Assy, Front Door W/Motor, LH
2004-08 → —
UCK35,45 —
69110 — Actuator Assy, Front Door Lock, RH
69110-06010 Actuator Assy, Front Door Lock, RH
2000-09 → 2004-08 ended
UCK35,45 —
69110-06010 Actuator Assy, Front Door Lock, RH
2004-08 → —
UCK35,45 —
69120A — Actuator Assy, Front Door Lock, LH
69120-06010 Actuator Assy, Front Door Lock, LH
2000-09 → 2004-08 ended
UCK35,45 —
69120-06010 Actuator Assy, Front Door Lock, LH
2004-08 → —
UCK35,45 —
69205 — Handle Sub-assy, Front Door Inside, RH
69205-0C030-B0 note Handle Sub-assy, Front Door Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
69205-0C030-E0 note Handle Sub-assy, Front Door Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
69205-0C030-B0 note Handle Sub-assy, Front Door Inside, RH
2004-08 → —
UCK35,45 —
69205-0C030-E1 note Handle Sub-assy, Front Door Inside, RH
2004-08 → —
UCK35,45 —
69205B — Cushion(FOR FRONT DOOR INSIDE HANDLE)
90080-54005 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2000-09 → 2004-08 ended
UCK35,45 —
90080-54005 Cushion(FOR FRONT DOOR INSIDE HANDLE)
2004-08 → —
UCK35,45 —
69206B — Handle Sub-assy, Front Door Inside, LH
69206-0C030-B0 note Handle Sub-assy, Front Door Inside, LH
2000-09 → 2004-08 ended
UCK35,45 —
69206-0C030-E0 note Handle Sub-assy, Front Door Inside, LH
2000-09 → 2004-08 ended
UCK35,45 —
69206-0C030-B0 note Handle Sub-assy, Front Door Inside, LH
2004-08 → —
UCK35,45 —
69206-0C030-E1 note Handle Sub-assy, Front Door Inside, LH
2004-08 → —
UCK35,45 —
69210 — Handle Assy, Front Door, Outside RH
69210-34050-A0 note Handle Assy, Front Door, Outside RH
2000-09 → 2004-08 ended
UCK35,45 —
69210-34050-B0 note Handle Assy, Front Door, Outside RH
2000-09 → 2002-09 ended
UCK35,45 —
69210-34050-B1 note Handle Assy, Front Door, Outside RH
2000-09 → 2004-08 ended
UCK35,45 —
69210-34050-B2 note Handle Assy, Front Door, Outside RH
2002-09 → 2004-08 ended
UCK35,45 —
69210-34050-C0 note Handle Assy, Front Door, Outside RH
2000-09 → 2004-08 ended
UCK35,45 —
69210-34050-D0 note Handle Assy, Front Door, Outside RH
2000-09 → 2002-09 ended
UCK35,45 SR5 —
69210-34050-D1 note Handle Assy, Front Door, Outside RH
2002-09 → 2004-08 ended
UCK35,45 SR5 —
69210-34050-E0 note Handle Assy, Front Door, Outside RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
69210-34050-E1 note Handle Assy, Front Door, Outside RH
2000-09 → 2001-08 ended
UCK35,45 SR5 —
69210-34050-G0 note Handle Assy, Front Door, Outside RH
2000-09 → 2004-08 ended
UCK35,45 —
69210-34050-J0 note Handle Assy, Front Door, Outside RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
69210-34050-A0 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 —
69210-34050-A1 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 LIMD —
69210-34050-A2 note Handle Assy, Front Door, Outside RH
2005-12 → —
UCK35,45 —
69210-34050-B1 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 —
69210-34050-B2 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 —
69210-34050-C0 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 —
69210-34050-D1 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 —
69210-34050-E0 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 —
69210-34050-G1 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 —
69210-34050-J3 note Handle Assy, Front Door, Outside RH
2004-08 → —
UCK35,45 —
69220 — Handle Assy, Front Door Outside, LH
69220-34050-A0 note Handle Assy, Front Door Outside, LH
2000-09 → 2004-08 ended
UCK35,45 —
69220-34050-B0 note Handle Assy, Front Door Outside, LH
2000-09 → 2002-09 ended
UCK35,45 —
69220-34050-B1 note Handle Assy, Front Door Outside, LH
2000-09 → 2004-08 ended
UCK35,45 —
69220-34050-B2 note Handle Assy, Front Door Outside, LH
2002-09 → 2004-08 ended
UCK35,45 —
69220-34050-C0 note Handle Assy, Front Door Outside, LH
2000-09 → 2004-08 ended
UCK35,45 —
69220-34050-D0 note Handle Assy, Front Door Outside, LH
2000-09 → 2002-09 ended
UCK35,45 SR5 —
69220-34050-D1 note Handle Assy, Front Door Outside, LH
2002-09 → 2004-08 ended
UCK35,45 SR5 —
69220-34050-E0 note Handle Assy, Front Door Outside, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
69220-34050-E1 note Handle Assy, Front Door Outside, LH
2000-09 → 2001-08 ended
UCK35,45 SR5 —
69220-34050-G0 note Handle Assy, Front Door Outside, LH
2000-09 → 2004-08 ended
UCK35,45 —
69220-34050-J0 note Handle Assy, Front Door Outside, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
69220-34050-A0 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 —
69220-34050-A1 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 LIMD —
69220-34050-A2 note Handle Assy, Front Door Outside, LH
2005-12 → —
UCK35,45 —
69220-34050-B1 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 —
69220-34050-B2 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 —
69220-34050-C0 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 —
69220-34050-D1 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 —
69220-34050-E0 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 —
69220-34050-G1 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 —
69220-34050-J3 note Handle Assy, Front Door Outside, LH
2004-08 → —
UCK35,45 —
69277B — Bezel, Front Door Inside Handle, RH
69277-AC010-B1 note Bezel, Front Door Inside Handle, RH
2000-09 → 2004-08 ended
UCK35,45 —
69277-AC010-E1 note Bezel, Front Door Inside Handle, RH
2000-09 → 2004-08 ended
UCK35,45 —
69277-AC010-B1 note Bezel, Front Door Inside Handle, RH
2004-08 → —
UCK35,45 —
69277-AC010-E0 note Bezel, Front Door Inside Handle, RH
2004-08 → —
UCK35,45 —
69278B — Bezel, Front Door Inside Handle, LH
69278-AC010-B1 note Bezel, Front Door Inside Handle, LH
2000-09 → 2004-08 ended
UCK35,45 —
69278-AC010-E1 note Bezel, Front Door Inside Handle, LH
2000-09 → 2004-08 ended
UCK35,45 —
69278-AC010-B1 note Bezel, Front Door Inside Handle, LH
2004-08 → —
UCK35,45 —
69278-AC010-E0 note Bezel, Front Door Inside Handle, LH
2004-08 → —
UCK35,45 —
69293A — Snap, Front Door Outside Handle
69293-12030 note Snap, Front Door Outside Handle
2000-09 → 2004-08 ended
UCK35,45 —
69293-12040 note Snap, Front Door Outside Handle
2000-09 → 2004-08 ended
UCK35,45 —
69293-12030 note Snap, Front Door Outside Handle
2004-08 → —
UCK35,45 —
69293-12040 note Snap, Front Door Outside Handle
2004-08 → —
UCK35,45 —
69310 — Lock Assy, Front Door, RH
69303-0C010 Lock Assy, Front Door, RH
2000-09 → 2001-08 ended
UCK35,45 4HC —
69303-0C011 Lock Assy, Front Door, RH
2001-08 → 2004-08 ended
UCK35,45 —
69303-0C011 Lock Assy, Front Door, RH
2004-08 → —
UCK35,45 —
69315D — Link, Front Door Outside Locking, RH
69315-0C020 Link, Front Door Outside Locking, RH
2000-09 → 2004-08 ended
UCK35,45 —
69315-0C020 Link, Front Door Outside Locking, RH
2004-08 → —
UCK35,45 —
69316A — Link, Front Door Outside Locking, LH
69316-0C020 Link, Front Door Outside Locking, LH
2000-09 → 2004-08 ended
UCK35,45 —
69316-0C020 Link, Front Door Outside Locking, LH
2004-08 → —
UCK35,45 —
69320 — Lock Assy, Front Door, LH
69304-0C010 Lock Assy, Front Door, LH
2000-09 → 2004-08 ended
UCK35,45 —
69304-0C010 Lock Assy, Front Door, LH
2004-08 → —
UCK35,45 —
69391A — Cover, Front Door Lock, Outer RH
69391-0C010 Cover, Front Door Lock, Outer RH
2000-09 → 2004-08 ended
UCK35,45 —
69391-0C010 Cover, Front Door Lock, Outer RH
2004-08 → —
UCK35,45 —
69392 — Cover, Front Door Lock, Outer LH
69392-0C010 Cover, Front Door Lock, Outer LH
2000-09 → 2004-08 ended
UCK35,45 —
69392-0C010 Cover, Front Door Lock, Outer LH
2004-08 → —
UCK35,45 —
69410 — Plate Assy, Front Door Lock Striker
69410-0C020 Plate Assy, Front Door Lock Striker
2000-09 → 2004-08 ended
UCK35,45 —
69410-0C020 Plate Assy, Front Door Lock Striker
2004-08 → —
UCK35,45 —
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-0C020 Cable Assy, Front Door Lock Remote Control, RH
2000-09 → 2004-08 ended
UCK35,45 —
69710-0C020 Cable Assy, Front Door Lock Remote Control, RH
2004-08 → —
UCK35,45 —
69720 — Link Assy, Front Door Open Control, LH
69720-0C010 Link Assy, Front Door Open Control, LH
2000-09 → 2004-08 ended
UCK35,45 —
69720-0C010 Link Assy, Front Door Open Control, LH
2004-08 → —
UCK35,45 —
69725 — Protector, Front Door Inside Locking Link, RH
69725-0C020 Protector, Front Door Inside Locking Link, RH
2000-09 → 2004-08 ended
UCK35,45 —
69725-0C020 Protector, Front Door Inside Locking Link, RH
2004-08 → —
UCK35,45 —
69726A — Protecter, Front Door Inside Locking Link, LH
69726-0C020 Protecter, Front Door Inside Locking Link, LH
2000-09 → 2004-08 ended
UCK35,45 —
69726-0C020 Protecter, Front Door Inside Locking Link, LH
2004-08 → —
UCK35,45 —
69749 — Clamp, Front Door Lock Link
69749-32040 Clamp, Front Door Lock Link
2000-09 → 2004-08 ended
UCK35,45 —
69749-32040 Clamp, Front Door Lock Link
2004-08 → —
UCK35,45 —
69750C — Cable Assy, Front Door Inside Locking, RH
69750-0C020 Cable Assy, Front Door Inside Locking, RH
2000-09 → 2001-08 ended
UCK35,45 4HC —
69750-0C021 Cable Assy, Front Door Inside Locking, RH
2001-08 → 2004-08 ended
UCK35,45 —
69750-0C021 Cable Assy, Front Door Inside Locking, RH
2004-08 → —
UCK35,45 —
69759H — Snap, Door Lock Control Link, NO.2
69759-24080 note Snap, Door Lock Control Link, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
69759-24090 note Snap, Door Lock Control Link, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
69759-24080 note Snap, Door Lock Control Link, NO.2
2004-08 → —
UCK35,45 —
69759-24090 note Snap, Door Lock Control Link, NO.2
2004-08 → —
UCK35,45 —
69760C — Cable Assy, Front Door Inside Locking LH
69760-0C020 Cable Assy, Front Door Inside Locking LH
2000-09 → 2004-08 ended
UCK35,45 —
69760-0C020 Cable Assy, Front Door Inside Locking LH
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
