Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

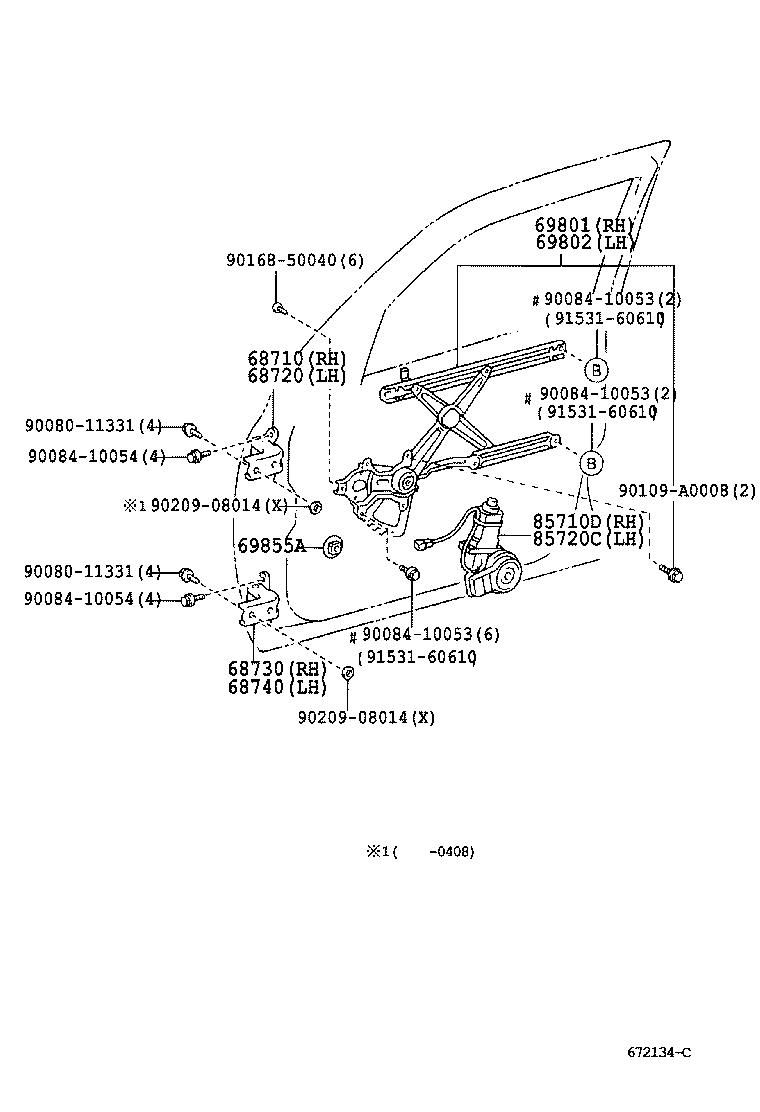

Exploded illustration 672134C 9016850040 — not listed in this catalogue 68720 — HINGE ASSY, FRONT DOOR, UPPER LH (2 parts) 68710 — HINGE ASSY, FRONT DOOR, UPPER RH (2 parts) 9008011331 — not listed in this catalogue 9008011331 — not listed in this catalogue 9008410054 — not listed in this catalogue 9020908014 — not listed in this catalogue 69855A — COVER, DOOR WINDOW REGULATOR GEAR (2 parts) 9008410054 — not listed in this catalogue 68730 — HINGE ASSY, FRONT DOOR, LOWER RH (2 parts) 68740 — HINGE ASSY, FRONT DOOR, LOWER LH (2 parts) 9020908014 — not listed in this catalogue 9008410053 — not listed in this catalogue 85720C — MOTOR ASSY, POWER WINDOW REGULATOR, LH (2 parts) 85710D — MOTOR ASSY, POWER WINDOW REGULATOR, RH (2 parts) 9008410053 — not listed in this catalogue 9008410053 — not listed in this catalogue 69802 — REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH (2 parts) 69801 — REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH (2 parts) 9153160610 — not listed in this catalogue 9153160610 — not listed in this catalogue 9153160610 — not listed in this catalogue 90109A0008 — not listed in this catalogue
672134C · 9 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
68710 — Hinge Assy, Front Door, Upper RH
68710-0C010 Hinge Assy, Front Door, Upper RH
2000-09 → 2004-08 ended
UCK35,45 —
68710-0C010 Hinge Assy, Front Door, Upper RH
2004-08 → —
UCK35,45 —
68720 — Hinge Assy, Front Door, Upper LH
68720-0C010 Hinge Assy, Front Door, Upper LH
2000-09 → 2004-08 ended
UCK35,45 —
68720-0C010 Hinge Assy, Front Door, Upper LH
2004-08 → —
UCK35,45 —
68730 — Hinge Assy, Front Door, Lower RH
68720-0C010 Hinge Assy, Front Door, Lower RH
2000-09 → 2004-08 ended
UCK35,45 —
68720-0C010 Hinge Assy, Front Door, Lower RH
2004-08 → —
UCK35,45 —
68740 — Hinge Assy, Front Door, Lower LH
68710-0C010 Hinge Assy, Front Door, Lower LH
2000-09 → 2004-08 ended
UCK35,45 —
68710-0C010 Hinge Assy, Front Door, Lower LH
2004-08 → —
UCK35,45 —
69801 — Regulator Sub-assy, Front Door Window, RH
69801-0C020 Regulator Sub-assy, Front Door Window, RH
2000-09 → 2004-08 ended
UCK35,45 —
69801-0C020 Regulator Sub-assy, Front Door Window, RH
2004-08 → —
UCK35,45 —
69802 — Regulator Sub-assy, Front Door Window, LH
69802-0C020 Regulator Sub-assy, Front Door Window, LH
2000-09 → 2004-08 ended
UCK35,45 —
69802-0C020 Regulator Sub-assy, Front Door Window, LH
2004-08 → —
UCK35,45 —
69855A — Cover, Door Window Regulator Gear
69855-20010 Cover, Door Window Regulator Gear
2000-09 → 2004-08 ended
UCK35,45 —
69855-20010 Cover, Door Window Regulator Gear
2004-08 → —
UCK35,45 —
85710D — Motor Assy, Power Window Regulator, RH
85710-34030 Motor Assy, Power Window Regulator, RH
2000-09 → 2004-08 ended
UCK35,45 —
85710-34030 Motor Assy, Power Window Regulator, RH
2004-08 → —
UCK35,45 —
85720C — Motor Assy, Power Window Regulator, LH
85720-34030 Motor Assy, Power Window Regulator, LH
2000-09 → 2004-08 ended
UCK35,45 —
85720-34030 Motor Assy, Power Window Regulator, LH
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
