Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

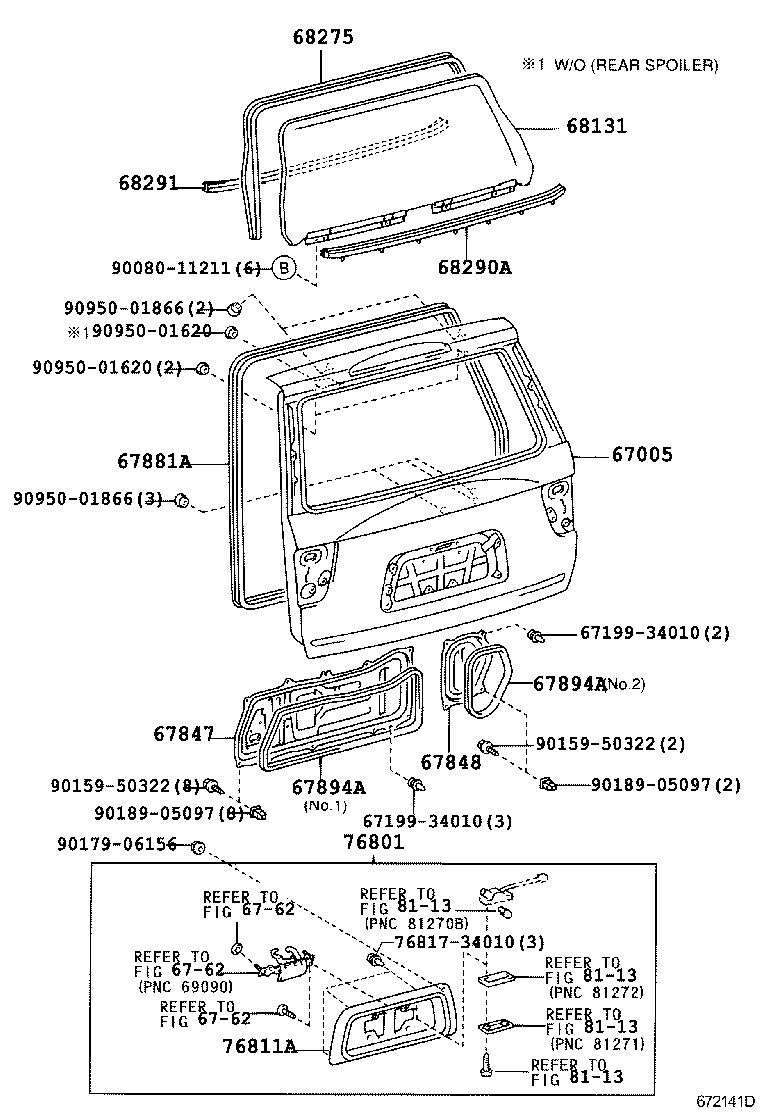

Exploded illustration 672141D 67005 — PANEL SUB-ASSY, BACK DOOR (6 parts) 68131 — GLASS, BACK DOOR (4 parts) 68290A — WEATHERSTRIP ASSY, BACK DOOR GLASS, OUTER (2 parts) 68275 — RUN, BACK DOOR GLASS (2 parts) 68291 — WEATHERSTRIP, BACK DOOR GLASS (2 parts) 9008011211 — not listed in this catalogue 9095001866 — not listed in this catalogue 9095001866 — not listed in this catalogue 67881A — WEATHERSTRIP, BACK DOOR (4 parts) 9095001620 — not listed in this catalogue 9095001620 — not listed in this catalogue 6719934010 — not listed in this catalogue 67894A — PROTECTOR, BACK DOOR PANEL, NO.1 (4 parts) 9015950322 — not listed in this catalogue 9018905097 — not listed in this catalogue 67848 — COVER, BACK DOOR SERVICE HOLE, LH (2 parts) 67847 — COVER, BACK DOOR SERVICE HOLE, RH (2 parts) 67894A — PROTECTOR, BACK DOOR PANEL, NO.1 (4 parts) 76801 — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE (21 parts) 76811A — GARNISH, BACK DOOR, OUTSIDE (21 parts) 6762 — not listed in this catalogue 6762 — not listed in this catalogue 6762 — not listed in this catalogue 8113 — not listed in this catalogue 8113 — not listed in this catalogue 8113 — not listed in this catalogue 8113 — not listed in this catalogue 6719934010 — not listed in this catalogue 9015950322 — not listed in this catalogue 9018905097 — not listed in this catalogue 9017906156 — not listed in this catalogue 7681734010 — not listed in this catalogue
672141D · 12 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
67005 — Panel Sub-assy, Back Door
67005-0C030 note Panel Sub-assy, Back Door
2000-09 → 2004-08 ended
UCK35,45 LIMD —
67005-0C040 Panel Sub-assy, Back Door
2000-09 → 2004-08 ended
UCK35,45 —
67005-0C070 note Panel Sub-assy, Back Door
2004-08 → 2006-01 ended
UCK35,45 LIMD —
67005-0C071 note Panel Sub-assy, Back Door
2006-01 → —
UCK35,45 LIMD —
67005-0C080 Panel Sub-assy, Back Door
2004-08 → 2006-01 ended
UCK35,45 —
67005-0C081 Panel Sub-assy, Back Door
2006-01 → —
UCK35,45 —
67847 — Cover, Back Door Service Hole, RH
67847-0C010 Cover, Back Door Service Hole, RH
2000-09 → 2004-08 ended
UCK35,45 —
67847-0C010 Cover, Back Door Service Hole, RH
2004-08 → —
UCK35,45 —
67848 — Cover, Back Door Service Hole, LH
67848-0C010 Cover, Back Door Service Hole, LH
2000-09 → 2004-08 ended
UCK35,45 —
67848-0C010 Cover, Back Door Service Hole, LH
2004-08 → —
UCK35,45 —
67881A — Weatherstrip, Back Door
67881-0C010 Weatherstrip, Back Door
2000-09 → 2002-12 ended
UCK35,45 —
67881-0C011 Weatherstrip, Back Door
2002-12 → 2004-08 ended
UCK35,45 —
67881-0C011 Weatherstrip, Back Door
2004-08 → 2005-04 ended
UCK35,45 —
67881-0C012 Weatherstrip, Back Door
2005-04 → —
UCK35,45 —
67894A — Protector, Back Door Panel, NO.1
67893-0C020 note Protector, Back Door Panel, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
67894-0C020 note Protector, Back Door Panel, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
67893-0C020 note Protector, Back Door Panel, NO.1
2004-08 → —
UCK35,45 —
67894-0C020 note Protector, Back Door Panel, NO.1
2004-08 → —
UCK35,45 —
68131 — Glass, Back Door
68150-0C010 note Glass, Back Door
2000-09 → 2001-12 ended
UCK35,45 —
68150-0C011 note Glass, Back Door
2001-12 → 2003-12 ended
UCK35,45 —
68150-0C012 note Glass, Back Door
2003-12 → 2004-08 ended
UCK35,45 —
68150-0C012 note Glass, Back Door
2004-08 → —
UCK35,45 —
68275 — Run, Back Door Glass
68275-0C010 Run, Back Door Glass
2000-09 → 2004-08 ended
UCK35,45 —
68275-0C010 Run, Back Door Glass
2004-08 → —
UCK35,45 —
68290A — Weatherstrip Assy, Back Door Glass, Outer
68290-0C010 Weatherstrip Assy, Back Door Glass, Outer
2000-09 → 2004-08 ended
UCK35,45 —
68290-0C010 Weatherstrip Assy, Back Door Glass, Outer
2004-08 → —
UCK35,45 —
68291 — Weatherstrip, Back Door Glass
68291-0C010 Weatherstrip, Back Door Glass
2000-09 → 2004-08 ended
UCK35,45 —
68291-0C010 Weatherstrip, Back Door Glass
2004-08 → —
UCK35,45 —
76801 — Garnish Sub-assy, Back Door, Outside
76801-0C010-A0 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 —
76801-0C010-B0 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2002-09 ended
UCK35,45 —
76801-0C010-B1 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 —
76801-0C010-B2 note Garnish Sub-assy, Back Door, Outside
2002-09 → 2004-08 ended
UCK35,45 —
76801-0C010-C0 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 —
76801-0C010-D0 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2002-09 ended
UCK35,45 SR5 —
76801-0C010-D1 note Garnish Sub-assy, Back Door, Outside
2002-09 → 2004-08 ended
UCK35,45 SR5 —
76801-0C010-E0 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 SR5 —
76801-0C010-E1 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2001-08 ended
UCK35,45 SR5 —
76801-0C010-G0 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 —
76801-0C010-J0 note Garnish Sub-assy, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 SR5 —
76801-0C010-A0 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 —
76801-0C010-A1 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 LIMD —
76801-0C010-A2 note Garnish Sub-assy, Back Door, Outside
2007-01 → —
UCK35,45 —
76801-0C010-B1 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 —
76801-0C010-B2 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 —
76801-0C010-C0 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 —
76801-0C010-D1 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 —
76801-0C010-E0 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 —
76801-0C010-G1 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 —
76801-0C010-J1 note Garnish Sub-assy, Back Door, Outside
2004-08 → —
UCK35,45 —
76811A — Garnish, Back Door, Outside
76811-0C010-A0 note Garnish, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 —
76811-0C010-B0 note Garnish, Back Door, Outside
2000-09 → 2002-09 ended
UCK35,45 —
76811-0C010-B1 note Garnish, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 —
76811-0C010-B2 note Garnish, Back Door, Outside
2002-09 → 2004-08 ended
UCK35,45 —
76811-0C010-C0 note Garnish, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 —
76811-0C010-D0 note Garnish, Back Door, Outside
2000-09 → 2002-09 ended
UCK35,45 SR5 —
76811-0C010-D1 note Garnish, Back Door, Outside
2002-09 → 2004-08 ended
UCK35,45 SR5 —
76811-0C010-E0 note Garnish, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 SR5 —
76811-0C010-E1 note Garnish, Back Door, Outside
2000-09 → 2001-08 ended
UCK35,45 SR5 —
76811-0C010-G0 note Garnish, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 —
76811-0C010-J0 note Garnish, Back Door, Outside
2000-09 → 2004-08 ended
UCK35,45 SR5 —
76811-0C010-A0 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 —
76811-0C010-A1 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 LIMD —
76811-0C010-A2 note Garnish, Back Door, Outside
2007-01 → —
UCK35,45 —
76811-0C010-B1 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 —
76811-0C010-B2 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 —
76811-0C010-C0 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 —
76811-0C010-D1 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 —
76811-0C010-E0 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 —
76811-0C010-G1 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 —
76811-0C010-J1 note Garnish, Back Door, Outside
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
