Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

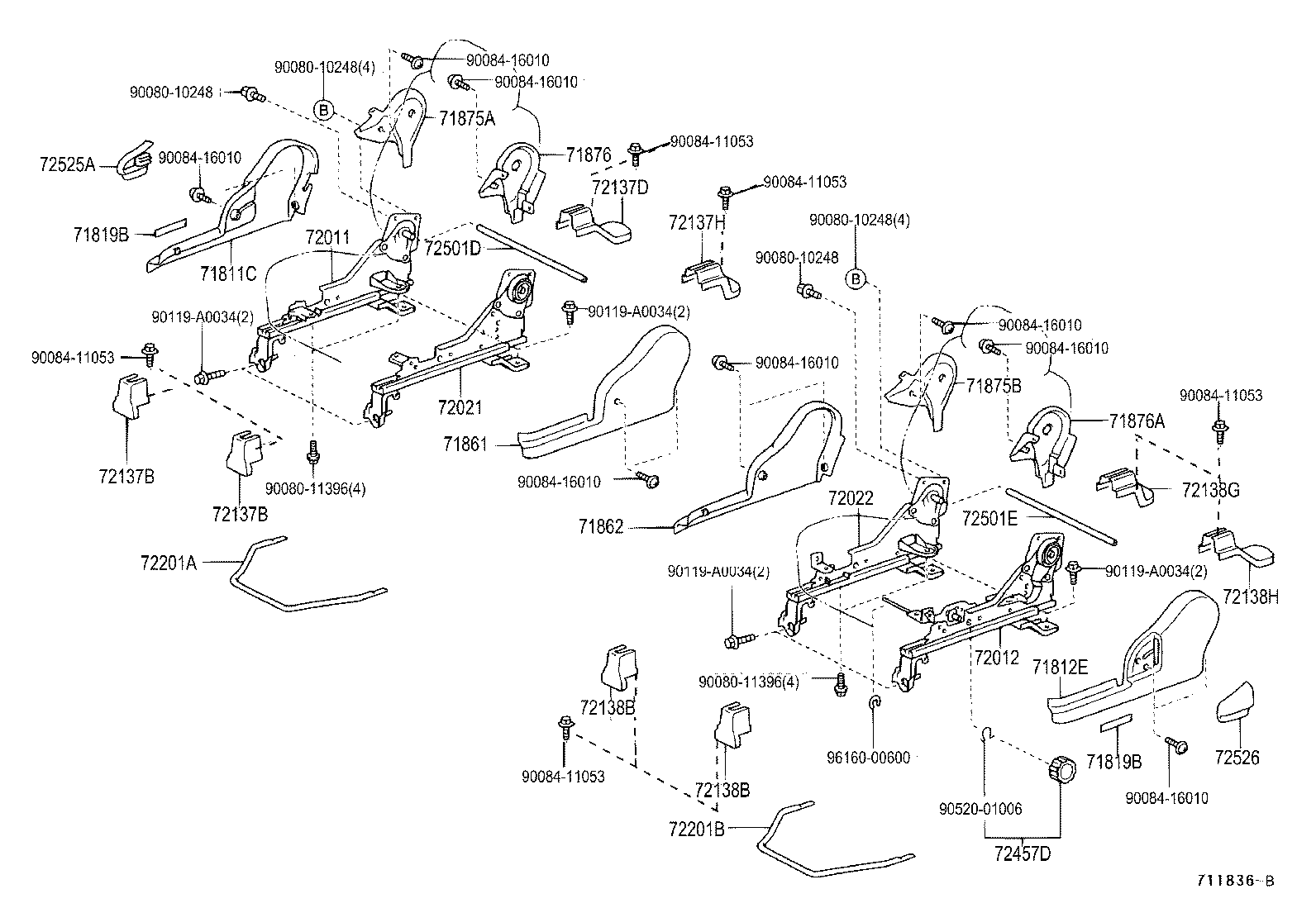

Exploded illustration 711836B 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (10 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (11 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (5 parts) 71811C — COVER, RECLINING ADJUSTER, RH (10 parts) 71812E — COVER, RECLINING ADJUSTER, LH (8 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (8 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (8 parts) 71819B — LABEL, SIDE AIRBAG NAME (2 parts) 71819B — LABEL, SIDE AIRBAG NAME (2 parts) 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (1 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (1 parts) 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (1 parts) 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (1 parts) 72137B — COVER, SEAT TRACK, RH (6 parts) 72137D — COVER, REAR SEAT TRACK, RH (6 parts) 72137B — COVER, SEAT TRACK, RH (6 parts) 72137H — COVER, FRONT SEAT TRACK, RH FRONT OUTER (6 parts) 72138B — COVER, SEAT TRACK, LH (6 parts) 72138B — COVER, SEAT TRACK, LH (6 parts) 72138G — COVER, FRONT SEAT TRACK, LH FRONT INNER (6 parts) 72138H — COVER, FRONT SEAT TRACK, LH REAR INNER (9 parts) 72201A — HANDLE SUB-ASSY, SEAT TRACK RH (1 parts) 72201B — HANDLE SUB-ASSY, SEAT TRACK LH (1 parts) 72501D — PIPE SUB-ASSY, RECLINING CONNECTING, RH (1 parts) 72501E — PIPE SUB-ASSY, RECLINING CONNECTING, LH (1 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (4 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (4 parts) 72457D — KNOB, VERTICAL SEAT ADJUSTER, LH (2 parts) 9052001006 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008010248 — not listed in this catalogue 9008010248 — not listed in this catalogue 90119A0034 — not listed in this catalogue 90119A0034 — not listed in this catalogue 90119A0034 — not listed in this catalogue 90119A0034 — not listed in this catalogue 9008011396 — not listed in this catalogue 9008011396 — not listed in this catalogue 9616000600 — not listed in this catalogue 9008010248 — not listed in this catalogue 9008010248 — not listed in this catalogue 9008411053 — not listed in this catalogue 9008411053 — not listed in this catalogue 9008411053 — not listed in this catalogue 9008411053 — not listed in this catalogue 9008411053 — not listed in this catalogue
711836B · 29 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
123 parts on this figure
Part number Description Fitment Price
71811C — Cover, Reclining Adjuster, RH
71805-0C010-B0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 —
71805-0C010-E0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 —
71805-AC010-B1 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71805-AC010-E1 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71811-0C020-B1 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71811-0C020-E0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71811-0C030-B0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 —
71811-0C030-E0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 —
71811-AA090-B2 note Cover, Reclining Adjuster, RH
2004-08 → —
UCK35,45 SR5 —
71811-AA090-E0 note Cover, Reclining Adjuster, RH
2004-08 → —
UCK35,45 SR5 —
71812E — Cover, Reclining Adjuster, LH
71806-0C010-B0 note Cover, Reclining Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 —
71806-0C010-E0 note Cover, Reclining Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 —
71806-AC010-B1 note Cover, Reclining Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71806-AC010-E1 note Cover, Reclining Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71812-0C010-B1 note Cover, Reclining Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71812-0C010-E0 note Cover, Reclining Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71812-0C030-B0 note Cover, Reclining Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 —
71812-0C030-E0 note Cover, Reclining Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 —
71819B — Label, Side Airbag Name
71819-02010-B4 note Label, Side Airbag Name
2000-09 → 2004-08 ended
UCK35,45 —
71819-02010-E5 note Label, Side Airbag Name
2000-09 → 2004-08 ended
UCK35,45 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-0C020-B1 note Shield, Front Seat Cushion, Inner RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71861-0C020-E0 note Shield, Front Seat Cushion, Inner RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71861-0C030-B0 note Shield, Front Seat Cushion, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
71861-0C030-E0 note Shield, Front Seat Cushion, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
71861-0C060-B0 note Shield, Front Seat Cushion, Inner RH
2004-08 → —
UCK35,45 —
71861-0C060-E0 note Shield, Front Seat Cushion, Inner RH
2004-08 → —
UCK35,45 —
71861-0C070-B0 note Shield, Front Seat Cushion, Inner RH
2004-08 → —
UCK35,45 SR5 —
71861-0C070-E0 note Shield, Front Seat Cushion, Inner RH
2004-08 → —
UCK35,45 SR5 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-0C010-B1 note Shield, Front Seat Cushion, Inner LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71862-0C010-E0 note Shield, Front Seat Cushion, Inner LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71862-0C020-B1 note Shield, Front Seat Cushion, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
71862-0C020-E0 note Shield, Front Seat Cushion, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
71862-0C050-B0 note Shield, Front Seat Cushion, Inner LH
2004-08 → —
UCK35,45 —
71862-0C050-E0 note Shield, Front Seat Cushion, Inner LH
2004-08 → —
UCK35,45 —
71862-0C060-B0 note Shield, Front Seat Cushion, Inner LH
2004-08 → —
UCK35,45 SR5 —
71862-0C060-E0 note Shield, Front Seat Cushion, Inner LH
2004-08 → —
UCK35,45 SR5 —
71875A — Cover, Reclining Adjuster Inside, RH
71875-0C040-B0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
71875-0C040-E0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
71875-0C060-B0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0C060-E0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0E010-B2 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 —
71875-0E010-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → 2006-08 ended
UCK35,45 —
71875-0E010-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71875-0E010-E0 note Cover, Reclining Adjuster Inside, RH
2006-08 → —
UCK35,45 LIMD —
71875-AA050-B3 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71875-AA050-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71875B — Cover, Reclining Adjuster Inside, RH
71875-0C020-B1 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0C020-E0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0C050-B0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
71875-0C050-E0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
71875-AA060 Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-0C030-B1 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71876-0C030-E0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71876-0C050-B0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 —
71876-0C050-E0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 —
71876A — Cover, Reclining Adjuster Inside, LH
71876-0C060-B0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 —
71876-0C060-E0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 —
71876-0C070-B0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71876-0C070-E0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0E020-B3 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71875-0E020-B3 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 LIMD —
71875-0E020-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → 2006-08 ended
UCK35,45 —
71875-0E020-E0 note Cover, Reclining Adjuster Inside, LH
2006-08 → —
UCK35,45 LIMD —
71875-0E020-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71876-AA050-B3 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71876-AA050-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72011-0C050 Adjuster Sub-assy, Front Seat, Outer RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-0C040 Adjuster Sub-assy, Front Seat, Outer LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-0C030 Adjuster Sub-assy, Front Seat, Inner RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-0C040 Adjuster Sub-assy, Front Seat, Inner LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137B — Cover, Seat Track, RH
72137-0C100-B0 note Cover, Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C100-E0 note Cover, Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C120-B0 note Cover, Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C120-E0 note Cover, Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C130-B0 note Cover, Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C130-E0 note Cover, Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 —
72137D — Cover, Rear Seat Track, RH
72137-0C140-B0 note Cover, Rear Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C140-E0 note Cover, Rear Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C160-B0 note Cover, Rear Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C160-E0 note Cover, Rear Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C250-B0 note Cover, Rear Seat Track, RH
2004-08 → 2007-11 ended
UCK35,45 —
72137-0C250-E0 note Cover, Rear Seat Track, RH
2004-08 → 2007-11 ended
UCK35,45 —
72137H — Cover, Front Seat Track, RH Front Outer
72137-0C110-B0 note Cover, Front Seat Track, RH Front Outer
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C110-E0 note Cover, Front Seat Track, RH Front Outer
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C170-B0 note Cover, Front Seat Track, RH Front Outer
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C170-E0 note Cover, Front Seat Track, RH Front Outer
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C290-B0 note Cover, Front Seat Track, RH Front Outer
2004-08 → 2007-11 ended
UCK35,45 —
72137-0C290-E0 note Cover, Front Seat Track, RH Front Outer
2004-08 → 2007-11 ended
UCK35,45 —
72138B — Cover, Seat Track, LH
72137-0C100-B0 note Cover, Seat Track, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C100-E0 note Cover, Seat Track, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C120-B0 note Cover, Seat Track, LH
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C120-E0 note Cover, Seat Track, LH
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C130-B0 note Cover, Seat Track, LH
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C130-E0 note Cover, Seat Track, LH
2000-09 → 2004-08 ended
UCK35,45 —
72138G — Cover, Front Seat Track, LH Front Inner
72137-0C110-B0 note Cover, Front Seat Track, LH Front Inner
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C110-E0 note Cover, Front Seat Track, LH Front Inner
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C160-B0 note Cover, Front Seat Track, LH Front Inner
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C160-E0 note Cover, Front Seat Track, LH Front Inner
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C290-B0 note Cover, Front Seat Track, LH Front Inner
2004-08 → 2007-11 ended
UCK35,45 —
72137-0C290-E0 note Cover, Front Seat Track, LH Front Inner
2004-08 → 2007-11 ended
UCK35,45 —
72138H — Cover, Front Seat Track, LH Rear Inner
72137-0C140-B0 note Cover, Front Seat Track, LH Rear Inner
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C140-E0 note Cover, Front Seat Track, LH Rear Inner
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C170-B0 note Cover, Front Seat Track, LH Rear Inner
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C170-E0 note Cover, Front Seat Track, LH Rear Inner
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C240-B0 note Cover, Front Seat Track, LH Rear Inner
2004-08 → 2007-11 ended
UCK35,45 SR5 —
72137-0C240-E0 note Cover, Front Seat Track, LH Rear Inner
2004-08 → 2006-08 ended
UCK35,45 SR5 —
72137-0C240-E0 note Cover, Front Seat Track, LH Rear Inner
2006-08 → 2007-11 ended
UCK35,45 SR5 —
72137-0C250-B0 note Cover, Front Seat Track, LH Rear Inner
2004-08 → 2007-11 ended
UCK35,45 —
72137-0C250-E0 note Cover, Front Seat Track, LH Rear Inner
2004-08 → 2007-11 ended
UCK35,45 —
72201A — Handle Sub-assy, Seat Track RH
72201-0C010 Handle Sub-assy, Seat Track RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72201B — Handle Sub-assy, Seat Track LH
72201-0C010 Handle Sub-assy, Seat Track LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72457D — Knob, Vertical Seat Adjuster, LH
72457-22020-E4 note Knob, Vertical Seat Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72457-22020-P0 note Knob, Vertical Seat Adjuster, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72501D — Pipe Sub-assy, Reclining Connecting, RH
72345-0C010 Pipe Sub-assy, Reclining Connecting, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72501E — Pipe Sub-assy, Reclining Connecting, LH
72345-0C010 Pipe Sub-assy, Reclining Connecting, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-B8 note Handle, Reclining Adjuster Release, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72525-16010-E2 note Handle, Reclining Adjuster Release, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72525-AA040-B4 note Handle, Reclining Adjuster Release, RH
2004-08 → —
UCK35,45 SR5 —
72525-AA040-E0 note Handle, Reclining Adjuster Release, RH
2004-08 → —
UCK35,45 SR5 —
72526 — Handle, Reclining Adjuster Release, LH
72526-16010-B8 note Handle, Reclining Adjuster Release, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72526-16010-E2 note Handle, Reclining Adjuster Release, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72526-AA030-B4 note Handle, Reclining Adjuster Release, LH
2004-08 → —
UCK35,45 SR5 —
72526-AA030-E0 note Handle, Reclining Adjuster Release, LH
2004-08 → —
UCK35,45 SR5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
