Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

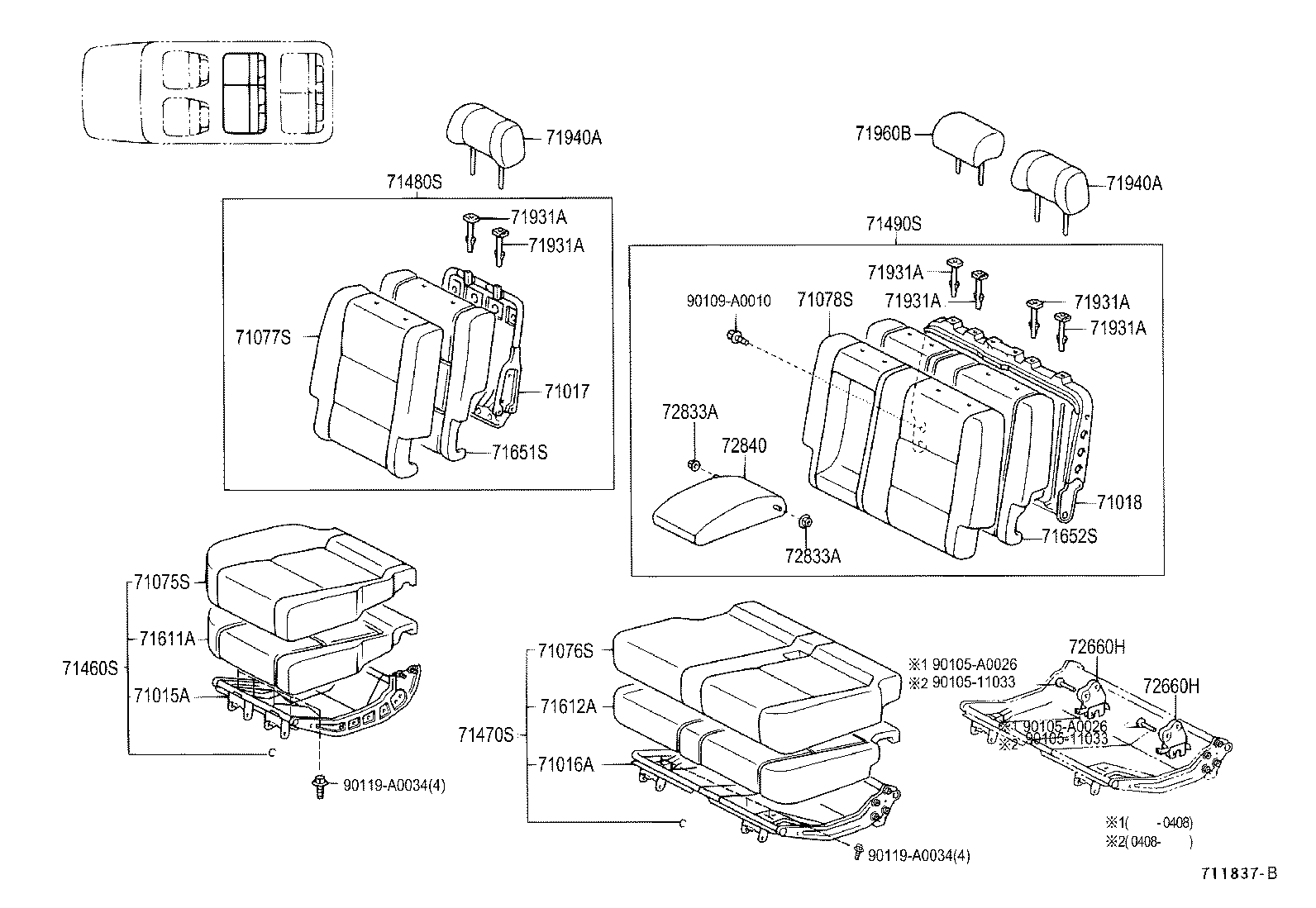

Exploded illustration 711837B 71940A — HEADREST ASSY, REAR SEAT (23 parts) 71940A — HEADREST ASSY, REAR SEAT (23 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (18 parts) 71460S — CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) (4 parts) 71470S — CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) (4 parts) 71480S — BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) (4 parts) 71490S — BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) (4 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (27 parts) 71075S — COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) (30 parts) 71076S — COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) (24 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (22 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (2 parts) 71015A — FRAME SUB-ASSY, REAR SEAT CUSHION, RH (4 parts) 71016A — FRAME SUB-ASSY, REAR SEAT CUSHION, LH (6 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (4 parts) 71612A — PAD, REAR SEAT CUSHION, LH (4 parts) 71611A — PAD, REAR SEAT CUSHION, RH (4 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (4 parts) 71931A — SUPPORT, REAR SEAT HEADREST (18 parts) 71931A — SUPPORT, REAR SEAT HEADREST (18 parts) 71931A — SUPPORT, REAR SEAT HEADREST (18 parts) 71931A — SUPPORT, REAR SEAT HEADREST (18 parts) 71931A — SUPPORT, REAR SEAT HEADREST (18 parts) 71931A — SUPPORT, REAR SEAT HEADREST (18 parts) 72840 — ARMREST ASSY, REAR NO.1 SEAT, LH (12 parts) 72833A — PLATE, SEAT CENTER ARMREST, INNER (2 parts) 72833A — PLATE, SEAT CENTER ARMREST, INNER (2 parts) 72660H — LOCK ASSY, REAR NO.2 SEAT, LH (4 parts) 72660H — LOCK ASSY, REAR NO.2 SEAT, LH (4 parts) 90109A0010 — not listed in this catalogue 90105A0026 — not listed in this catalogue 90105A0026 — not listed in this catalogue 9010511033 — not listed in this catalogue 9010511033 — not listed in this catalogue 90119A0034 — not listed in this catalogue 90119A0034 — not listed in this catalogue
711837B · 30 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
228 parts on this figure
Part number Description Fitment Price
71015A — Frame Sub-assy, Rear Seat Cushion, RH
71015-0C020 Frame Sub-assy, Rear Seat Cushion, RH
2000-09 → 2004-08 ended
UCK35,45 —
71015-0C020 Frame Sub-assy, Rear Seat Cushion, RH
2004-08 → —
UCK35,45 —
71015-0C050 note Frame Sub-assy, Rear Seat Cushion, RH
2005-08 → —
UCK35,45 SR5 —
71015-0C050 note Frame Sub-assy, Rear Seat Cushion, RH
2004-08 → —
UCK35,45 LIMD —
71016A — Frame Sub-assy, Rear Seat Cushion, LH
71016-0C020 Frame Sub-assy, Rear Seat Cushion, LH
2000-09 → 2003-11 ended
UCK35,45 —
71016-0C060 Frame Sub-assy, Rear Seat Cushion, LH
2003-11 → 2004-02 ended
UCK35,45 —
71016-0C080 Frame Sub-assy, Rear Seat Cushion, LH
2004-02 → 2004-08 ended
UCK35,45 —
71016-0C040 note Frame Sub-assy, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 LIMD —
71016-0C040 note Frame Sub-assy, Rear Seat Cushion, LH
2005-08 → —
UCK35,45 SR5 —
71016-0C080 Frame Sub-assy, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
71017 — Frame Sub-assy, Rear Seatback, RH
71017-0C020 Frame Sub-assy, Rear Seatback, RH
2000-09 → 2004-08 ended
UCK35,45 —
71017-0C021 Frame Sub-assy, Rear Seatback, RH
2004-08 → —
UCK35,45 —
71018 — Frame Sub-assy, Rear Seatback, LH
71018-0C010 Frame Sub-assy, Rear Seatback, LH
2000-09 → 2004-08 ended
UCK35,45 —
71018-0C010 Frame Sub-assy, Rear Seatback, LH
2004-08 → —
UCK35,45 —
71018-0C030 note Frame Sub-assy, Rear Seatback, LH
2004-08 → —
UCK35,45 LIMD —
71018-0C030 note Frame Sub-assy, Rear Seatback, LH
2005-08 → —
UCK35,45 SR5 —
71075S — Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075-0C050-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71075-0C050-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71075-0C060-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71075-0C060-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71075-0C060-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71075-0C060-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71075-0C060-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71075-0C060-B2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71075-0C060-E3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71075-0C060-E3 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71075-0C060-E4 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71075-0C120-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71075-0C120-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-06 → —
UCK35,45 SR5 —
71075-0C120-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71075-0C120-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-06 → —
UCK35,45 SR5 —
71075-0C160-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71075-0C160-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C160-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C160-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71075-0C160-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C210-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2005-08 → 2006-08 ended
UCK35,45 SR5 —
71075-0C210-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C210-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2005-08 → 2006-08 ended
UCK35,45 SR5 —
71075-0C210-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C300-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C300-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C310-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C310-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C310-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71075-0C310-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076S — Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71076-0C040-B0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71076-0C040-E0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71076-0C050-B0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71076-0C050-E0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71076-0C110-B2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71076-0C110-B2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-06 → —
UCK35,45 SR5 —
71076-0C110-E2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71076-0C110-E2 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-06 → —
UCK35,45 SR5 —
71076-0C130-B4 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 —
71076-0C130-E4 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 —
71076-0C150-B3 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71076-0C150-B4 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C150-E3 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71076-0C150-E4 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C210-B0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2005-08 → 2006-08 ended
UCK35,45 SR5 —
71076-0C210-B1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C210-E0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2005-08 → 2006-08 ended
UCK35,45 SR5 —
71076-0C210-E1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C300-B1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C300-E1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C310-B1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C310-B1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C310-E1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71076-0C310-E1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-0C040-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71077-0C040-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71077-0C050-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71077-0C050-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71077-0C050-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71077-0C050-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71077-0C050-B2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71077-0C050-E2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71077-0C050-E2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71077-0C050-E3 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71077-0C130-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71077-0C130-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-06 → —
UCK35,45 SR5 —
71077-0C130-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71077-0C130-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-06 → —
UCK35,45 SR5 —
71077-0C180-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71077-0C180-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077-0C180-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077-0C180-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71077-0C180-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077-0C200-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2005-08 → 2006-08 ended
UCK35,45 SR5 —
71077-0C200-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077-0C200-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2005-08 → 2006-08 ended
UCK35,45 SR5 —
71077-0C200-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077-0C290-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077-0C290-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077-0C300-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71077-0C300-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-0C010-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71078-0C010-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71078-0C020-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71078-0C020-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71078-0C030-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 —
71078-0C030-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 —
71078-0C080-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71078-0C080-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-06 → —
UCK35,45 SR5 —
71078-0C080-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71078-0C080-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-06 → —
UCK35,45 SR5 —
71078-0C100-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71078-0C100-B2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71078-0C100-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71078-0C100-E2 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71078-0C120-B0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2005-08 → 2006-08 ended
UCK35,45 SR5 —
71078-0C120-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71078-0C120-E0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2005-08 → 2006-08 ended
UCK35,45 SR5 —
71078-0C120-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71078-0C190-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71078-0C190-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71078-0C200-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71078-0C200-E1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71460S — Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71460-0C040-B0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71460-0C040-E0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71460-0C050-B0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71460-0C050-E0 note Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71470S — Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71470-0C040-B0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71470-0C040-E0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71470-0C050-B0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71470-0C050-E0 note Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71480S — Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480-0C040-B0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71480-0C040-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71480-0C050-B0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71480-0C050-E0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71490S — Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490-0C010-B0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71490-0C010-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71490-0C020-B0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71490-0C020-E0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71611A — Pad, Rear Seat Cushion, RH
71611-0C010 Pad, Rear Seat Cushion, RH
2000-09 → 2004-08 ended
UCK35,45 —
71611-0C010 Pad, Rear Seat Cushion, RH
2004-08 → —
UCK35,45 —
71611-0C030 note Pad, Rear Seat Cushion, RH
2004-08 → —
UCK35,45 LIMD —
71611-0C030 note Pad, Rear Seat Cushion, RH
2005-08 → —
UCK35,45 SR5 —
71612A — Pad, Rear Seat Cushion, LH
71612-0C010 Pad, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
71612-0C010 Pad, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
71612-0C030 note Pad, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 LIMD —
71612-0C030 note Pad, Rear Seat Cushion, LH
2005-08 → —
UCK35,45 SR5 —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-0C030 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71651-0C030 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 —
71651-0C070 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2005-08 → —
UCK35,45 SR5 —
71651-0C070 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-0C020 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71652-0C020 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 —
71652-0C040 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71652-0C040 note Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2005-08 → —
UCK35,45 SR5 —
71931A — Support, Rear Seat Headrest
71930-0C010-B1 note Support, Rear Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71930-0C010-E0 note Support, Rear Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71931-0C010-B1 note Support, Rear Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71931-0C010-E0 note Support, Rear Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71930-0C010-B1 note Support, Rear Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71930-0C010-B1 note Support, Rear Seat Headrest
2004-08 → —
UCK35,45 —
71930-0C010-B1 note Support, Rear Seat Headrest
2005-08 → —
UCK35,45 SR5 —
71930-0C010-E1 note Support, Rear Seat Headrest
2004-08 → —
UCK35,45 —
71930-0C010-E1 note Support, Rear Seat Headrest
2005-08 → —
UCK35,45 SR5 —
71930-0C010-E1 note Support, Rear Seat Headrest
2005-08 → —
UCK35,45 SR5 —
71930-0C010-E1 note Support, Rear Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71931-0C010-B1 note Support, Rear Seat Headrest
2004-08 → —
UCK35,45 —
71931-0C010-B1 note Support, Rear Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71931-0C010-B1 note Support, Rear Seat Headrest
2005-08 → —
UCK35,45 SR5 —
71931-0C010-E1 note Support, Rear Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71931-0C010-E1 note Support, Rear Seat Headrest
2004-08 → —
UCK35,45 —
71931-0C010-E1 note Support, Rear Seat Headrest
2005-08 → —
UCK35,45 SR5 —
71931-0C010-E1 note Support, Rear Seat Headrest
2005-08 → —
UCK35,45 SR5 —
71940A — Headrest Assy, Rear Seat
71940-0C040-B0 note Headrest Assy, Rear Seat
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71940-0C040-E0 note Headrest Assy, Rear Seat
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71940-0C050-B0 note Headrest Assy, Rear Seat
2000-09 → 2004-08 ended
UCK35,45 —
71940-0C050-E0 note Headrest Assy, Rear Seat
2000-09 → 2004-08 ended
UCK35,45 —
71940-0C050-B0 note Headrest Assy, Rear Seat
2004-08 → —
UCK35,45 LIMD —
71940-0C050-B0 note Headrest Assy, Rear Seat
2004-08 → —
UCK35,45 SR5 —
71940-0C050-B0 note Headrest Assy, Rear Seat
2006-06 → —
UCK35,45 SR5 —
71940-0C050-B2 note Headrest Assy, Rear Seat
2004-08 → —
UCK35,45 SR5 —
71940-0C050-E2 note Headrest Assy, Rear Seat
2004-08 → —
UCK35,45 —
71940-0C050-E3 note Headrest Assy, Rear Seat
2006-06 → —
UCK35,45 SR5 —
71940-0C050-E3 note Headrest Assy, Rear Seat
2004-08 → —
UCK35,45 LIMD —
71940-0C050-E3 note Headrest Assy, Rear Seat
2004-08 → —
UCK35,45 SR5 —
71940-0C110-B0 note Headrest Assy, Rear Seat
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71940-0C110-B0 note Headrest Assy, Rear Seat
2006-08 → —
UCK35,45 SR5 —
71940-0C110-B0 note Headrest Assy, Rear Seat
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71940-0C110-B1 note Headrest Assy, Rear Seat
2006-08 → —
UCK35,45 SR5 —
71940-0C110-B1 note Headrest Assy, Rear Seat
2006-08 → —
UCK35,45 SR5 —
71940-0C110-E0 note Headrest Assy, Rear Seat
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71940-0C110-E0 note Headrest Assy, Rear Seat
2004-08 → —
UCK35,45 SR5 —
71940-0C110-E1 note Headrest Assy, Rear Seat
2006-08 → —
UCK35,45 SR5 —
71940-0C110-E1 note Headrest Assy, Rear Seat
2006-08 → —
UCK35,45 SR5 —
71940-0C280-B1 note Headrest Assy, Rear Seat
2006-08 → —
UCK35,45 SR5 —
71940-0C280-E1 note Headrest Assy, Rear Seat
2006-08 → —
UCK35,45 SR5 —
71960B — Headrest Assy, Rear Seat, Center
71960-0C010-B0 note Headrest Assy, Rear Seat, Center
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71960-0C010-E0 note Headrest Assy, Rear Seat, Center
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71960-0C020-B0 note Headrest Assy, Rear Seat, Center
2000-09 → 2004-08 ended
UCK35,45 —
71960-0C020-E0 note Headrest Assy, Rear Seat, Center
2000-09 → 2004-08 ended
UCK35,45 —
71960-0C020-B0 note Headrest Assy, Rear Seat, Center
2004-08 → —
UCK35,45 LIMD —
71960-0C020-B0 note Headrest Assy, Rear Seat, Center
2004-08 → —
UCK35,45 SR5 —
71960-0C020-B1 note Headrest Assy, Rear Seat, Center
2004-08 → —
UCK35,45 SR5 —
71960-0C020-E2 note Headrest Assy, Rear Seat, Center
2004-08 → —
UCK35,45 SR5 —
71960-0C020-E2 note Headrest Assy, Rear Seat, Center
2004-08 → —
UCK35,45 LIMD —
71960-0C020-E3 note Headrest Assy, Rear Seat, Center
2004-08 → —
UCK35,45 SR5 —
71960-0C090-B0 note Headrest Assy, Rear Seat, Center
2006-08 → —
UCK35,45 SR5 —
71960-0C090-B0 note Headrest Assy, Rear Seat, Center
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71960-0C090-B1 note Headrest Assy, Rear Seat, Center
2006-08 → —
UCK35,45 SR5 —
71960-0C090-B1 note Headrest Assy, Rear Seat, Center
2006-08 → —
UCK35,45 SR5 —
71960-0C090-E0 note Headrest Assy, Rear Seat, Center
2004-08 → —
UCK35,45 SR5 —
71960-0C090-E1 note Headrest Assy, Rear Seat, Center
2006-08 → —
UCK35,45 SR5 —
71960-0C190-B1 note Headrest Assy, Rear Seat, Center
2006-08 → —
UCK35,45 SR5 —
71960-0C190-E1 note Headrest Assy, Rear Seat, Center
2006-08 → —
UCK35,45 SR5 —
72660H — Lock Assy, Rear NO.2 Seat, LH
72660-0C020 Lock Assy, Rear NO.2 Seat, LH
2000-09 → 2004-08 ended
UCK35,45 —
72650-0C060 note Lock Assy, Rear NO.2 Seat, LH
2004-08 → —
UCK35,45 LIMD —
72650-0C060 note Lock Assy, Rear NO.2 Seat, LH
2005-08 → —
UCK35,45 SR5 —
72660-0C020 Lock Assy, Rear NO.2 Seat, LH
2004-08 → —
UCK35,45 —
72833A — Plate, Seat Center Armrest, Inner
72833-0C030 Plate, Seat Center Armrest, Inner
2000-09 → 2004-08 ended
UCK35,45 —
72833-0C030 Plate, Seat Center Armrest, Inner
2004-08 → —
UCK35,45 —
72840 — Armrest Assy, Rear NO.1 Seat, LH
72830-0C040-B1 note Armrest Assy, Rear NO.1 Seat, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72830-0C040-E1 note Armrest Assy, Rear NO.1 Seat, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72830-0C050-B1 note Armrest Assy, Rear NO.1 Seat, LH
2000-09 → 2004-08 ended
UCK35,45 —
72830-0C050-E1 note Armrest Assy, Rear NO.1 Seat, LH
2000-09 → 2004-08 ended
UCK35,45 —
72830-0C050-B2 note Armrest Assy, Rear NO.1 Seat, LH
2004-08 → —
UCK35,45 —
72830-0C050-E2 note Armrest Assy, Rear NO.1 Seat, LH
2004-08 → —
UCK35,45 —
72830-0C130-B0 note Armrest Assy, Rear NO.1 Seat, LH
2004-08 → 2006-08 ended
UCK35,45 SR5 —
72830-0C130-B1 note Armrest Assy, Rear NO.1 Seat, LH
2006-08 → —
UCK35,45 SR5 —
72830-0C130-E0 note Armrest Assy, Rear NO.1 Seat, LH
2004-08 → 2006-08 ended
UCK35,45 SR5 —
72830-0C130-E1 note Armrest Assy, Rear NO.1 Seat, LH
2006-08 → —
UCK35,45 SR5 —
72830-0C260-B1 note Armrest Assy, Rear NO.1 Seat, LH
2006-08 → —
UCK35,45 SR5 —
72830-0C260-E1 note Armrest Assy, Rear NO.1 Seat, LH
2006-08 → —
UCK35,45 SR5 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
