Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

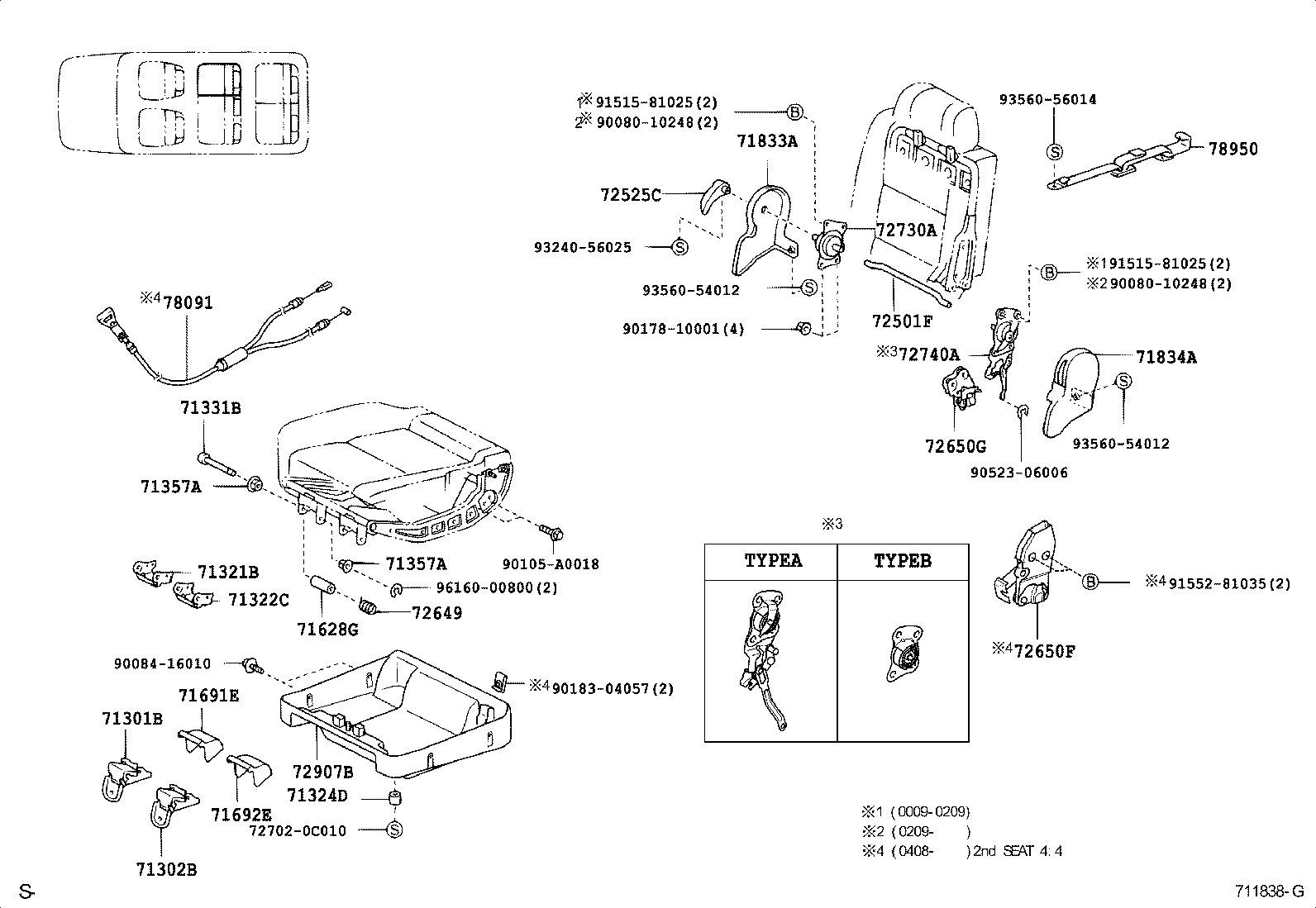

Exploded illustration 711838H 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (6 parts) 71834A — COVER, REAR SEAT RECLINING, NO.1 LH (4 parts) 71331B — PIN, REAR SEAT HINGE, RH (2 parts) 71324D — CUSHION, REAR SEAT, RH (2 parts) 71302B — HINGE SUB-ASSY, REAR NO.1 SEAT, LH (2 parts) 71301B — HINGE SUB-ASSY, REAR NO.1 SEAT, RH (2 parts) 71321B — HINGE, REAR SEAT CUSHION, RH (2 parts) 71322C — HINGE, REAR SEAT CUSHION, LH (2 parts) 71357A — PLATE, REAR SEAT HINGE SET, RH (2 parts) 90105A0018 — not listed in this catalogue 71357A — PLATE, REAR SEAT HINGE SET, RH (2 parts) 71691E — COVER, REAR SEAT CUSHION HINGE, NO.1 (4 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (4 parts) 71628G — SPACER, REAR SEAT CUSHION, RH (2 parts) 72525C — HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH (10 parts) 72501F — PIPE SUB-ASSY, RECLINING CONNECTING (4 parts) 72649 — SPRING, REAR SEAT CUSHION SUPPORT (2 parts) 72650G — LOCK ASSY, REAR NO.2 SEAT, RH (4 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (6 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (5 parts) 72907B — COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH (19 parts) 78950 — BAND ASSY, FOLD SEAT STOPPER, NO.1 (4 parts) 9008416010 — not listed in this catalogue 9616000800 — not listed in this catalogue 9018304057 — not listed in this catalogue 727020C010 — not listed in this catalogue 9324056025 — not listed in this catalogue 9356054012 — not listed in this catalogue 9356056014 — not listed in this catalogue 9356054012 — not listed in this catalogue 9008010248 — not listed in this catalogue 9052306006 — not listed in this catalogue 9017810001 — not listed in this catalogue 9151581025 — not listed in this catalogue 9008010248 — not listed in this catalogue 9151581025 — not listed in this catalogue 9155281035 — not listed in this catalogue 78091 — CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL (4 parts) 72650F — LOCK ASSY, REAR SEAT, RH (3 parts)
711838H · 23 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
71301B — Hinge Sub-assy, Rear NO.1 Seat, RH
71301-0C010 Hinge Sub-assy, Rear NO.1 Seat, RH
2000-09 → 2004-08 ended
UCK35,45 —
71301-0C010 Hinge Sub-assy, Rear NO.1 Seat, RH
2004-08 → —
UCK35,45 —
71302B — Hinge Sub-assy, Rear NO.1 Seat, LH
71301-0C010 Hinge Sub-assy, Rear NO.1 Seat, LH
2000-09 → 2004-08 ended
UCK35,45 —
71301-0C010 Hinge Sub-assy, Rear NO.1 Seat, LH
2004-08 → —
UCK35,45 —
71321B — Hinge, Rear Seat Cushion, RH
71321-0C040 Hinge, Rear Seat Cushion, RH
2000-09 → 2004-08 ended
UCK35,45 —
71321-0C040 Hinge, Rear Seat Cushion, RH
2004-08 → —
UCK35,45 —
71322C — Hinge, Rear Seat Cushion, LH
71322-0C030 Hinge, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
71322-0C030 Hinge, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
71324D — Cushion, Rear Seat, RH
71324-0C010 Cushion, Rear Seat, RH
2000-09 → 2004-08 ended
UCK35,45 —
71324-0C010 Cushion, Rear Seat, RH
2004-08 → —
UCK35,45 —
71331B — Pin, Rear Seat Hinge, RH
71331-0C020 Pin, Rear Seat Hinge, RH
2000-09 → 2004-08 ended
UCK35,45 —
71331-0C020 Pin, Rear Seat Hinge, RH
2004-08 → —
UCK35,45 —
71357A — Plate, Rear Seat Hinge Set, RH
71357-0C010 Plate, Rear Seat Hinge Set, RH
2000-09 → 2004-08 ended
UCK35,45 —
71357-0C010 Plate, Rear Seat Hinge Set, RH
2004-08 → —
UCK35,45 —
71628G — Spacer, Rear Seat Cushion, RH
71628-0C010 Spacer, Rear Seat Cushion, RH
2000-09 → 2004-08 ended
UCK35,45 —
71628-0C010 Spacer, Rear Seat Cushion, RH
2004-08 → —
UCK35,45 —
71691E — Cover, Rear Seat Cushion Hinge, NO.1
71691-0C020-B0 note Cover, Rear Seat Cushion Hinge, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
71691-0C020-E0 note Cover, Rear Seat Cushion Hinge, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
71691-0C020-B0 note Cover, Rear Seat Cushion Hinge, NO.1
2004-08 → —
UCK35,45 —
71691-0C020-E1 note Cover, Rear Seat Cushion Hinge, NO.1
2004-08 → —
UCK35,45 —
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-0C010-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
71692-0C010-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
71692-0C010-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2004-08 → —
UCK35,45 —
71692-0C010-E1 note Cover, Rear Seat Cushion Hinge, NO.2
2004-08 → —
UCK35,45 —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-0C010-B0 note Cover, Rear Seat Reclining, NO.1 RH
2000-09 → 2002-09 ended
UCK35,45 —
71833-0C010-E0 note Cover, Rear Seat Reclining, NO.1 RH
2000-09 → 2002-09 ended
UCK35,45 —
71833-0C011-B0 note Cover, Rear Seat Reclining, NO.1 RH
2002-09 → 2004-08 ended
UCK35,45 —
71833-0C011-E0 note Cover, Rear Seat Reclining, NO.1 RH
2002-09 → 2004-08 ended
UCK35,45 —
71833-0C011-B0 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 —
71833-0C011-E1 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 —
71834A — Cover, Rear Seat Reclining, NO.1 LH
71834-0C010-B0 note Cover, Rear Seat Reclining, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
71834-0C010-E0 note Cover, Rear Seat Reclining, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
71834-0C010-B0 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 —
71834-0C010-E1 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 —
72501F — Pipe Sub-assy, Reclining Connecting
72501-0C040 Pipe Sub-assy, Reclining Connecting
2000-09 → 2004-08 ended
UCK35,45 —
72501-0C040 Pipe Sub-assy, Reclining Connecting
2004-08 → —
UCK35,45 —
72501-0C040 note Pipe Sub-assy, Reclining Connecting
2004-08 → —
UCK35,45 LIMD —
72501-0C040 note Pipe Sub-assy, Reclining Connecting
2006-06 → —
UCK35,45 SR5 —
72525C — Handle, Reclining Adjuster Release, NO.1 RH
72525-0C020-B0 note Handle, Reclining Adjuster Release, NO.1 RH
2000-09 → 2002-09 ended
UCK35,45 —
72525-0C020-E0 note Handle, Reclining Adjuster Release, NO.1 RH
2000-09 → 2002-09 ended
UCK35,45 —
72525-0C021-B0 note Handle, Reclining Adjuster Release, NO.1 RH
2002-09 → 2004-08 ended
UCK35,45 —
72525-0C021-E0 note Handle, Reclining Adjuster Release, NO.1 RH
2002-09 → 2004-08 ended
UCK35,45 —
72525-0C020-B0 note Handle, Reclining Adjuster Release, NO.1 RH
2004-08 → —
UCK35,45 LIMD —
72525-0C020-B0 note Handle, Reclining Adjuster Release, NO.1 RH
2005-08 → —
UCK35,45 SR5 —
72525-0C020-E2 note Handle, Reclining Adjuster Release, NO.1 RH
2005-08 → —
UCK35,45 SR5 —
72525-0C020-E2 note Handle, Reclining Adjuster Release, NO.1 RH
2004-08 → —
UCK35,45 LIMD —
72525-0C021-B0 note Handle, Reclining Adjuster Release, NO.1 RH
2004-08 → —
UCK35,45 —
72525-0C021-E2 note Handle, Reclining Adjuster Release, NO.1 RH
2004-08 → —
UCK35,45 —
72649 — Spring, Rear Seat Cushion Support
72649-0C010 Spring, Rear Seat Cushion Support
2000-09 → 2004-08 ended
UCK35,45 —
72649-0C010 Spring, Rear Seat Cushion Support
2004-08 → —
UCK35,45 —
72650F — Lock Assy, Rear Seat, RH
72650-0C051 Lock Assy, Rear Seat, RH
2004-08 → —
UCK35,45 LIMD —
72650-0C051 Lock Assy, Rear Seat, RH
2005-08 → —
UCK35,45 SR5 —
72650-0C051 note Lock Assy, Rear Seat, RH
2006-06 → —
UCK35,45 SR5 —
72650G — Lock Assy, Rear NO.2 Seat, RH
72650-0C020 Lock Assy, Rear NO.2 Seat, RH
2000-09 → 2004-08 ended
UCK35,45 —
72650-0C020 Lock Assy, Rear NO.2 Seat, RH
2004-08 → —
UCK35,45 —
72650-0C040 note Lock Assy, Rear NO.2 Seat, RH
2004-08 → —
UCK35,45 LIMD —
72650-0C040 note Lock Assy, Rear NO.2 Seat, RH
2005-08 → —
UCK35,45 SR5 —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-0C050 Adjuster Assy, Rear Seat Reclining, RH
2000-09 → 2002-09 ended
UCK35,45 —
72730-0C051 Adjuster Assy, Rear Seat Reclining, RH
2002-09 → 2004-08 ended
UCK35,45 —
72730-0C051 Adjuster Assy, Rear Seat Reclining, RH
2004-08 → —
UCK35,45 —
72730-0C060 note Adjuster Assy, Rear Seat Reclining, RH
2004-08 → —
UCK35,45 LIMD —
72730-0C060 note Adjuster Assy, Rear Seat Reclining, RH
2005-08 → —
UCK35,45 SR5 —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-0C050 note Adjuster Assy, Rear Seat Reclining, LH
2000-09 → 2004-08 ended
UCK35,45 —
72740-34010 note Adjuster Assy, Rear Seat Reclining, LH
2000-09 → 2004-08 ended
UCK35,45 —
72740-0C050 note Adjuster Assy, Rear Seat Reclining, LH
2004-08 → —
UCK35,45 —
72740-0C080 Adjuster Assy, Rear Seat Reclining, LH
2004-08 → —
UCK35,45 LIMD —
72740-0C080 note Adjuster Assy, Rear Seat Reclining, LH
2005-08 → —
UCK35,45 SR5 —
72740-34010 note Adjuster Assy, Rear Seat Reclining, LH
2004-08 → —
UCK35,45 —
72907B — Cover Sub-assy, Rear Seat Cushion Under, RH
72907-0C010-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C010-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C020-B0 note Cover Sub-assy, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C020-E0 note Cover Sub-assy, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C010-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 —
72907-0C010-E2 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 —
72907-0C040-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72907-0C040-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2005-08 → —
UCK35,45 SR5 —
72907-0C040-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72907-0C040-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72907-0C040-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2005-08 → —
UCK35,45 SR5 —
72907-0C040-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2005-08 → —
UCK35,45 SR5 —
72908-0C020-B0 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72908-0C020-B0 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908-0C020-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908-0C020-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908-0C020-E2 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72908-0C020-E2 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908-0C020-E3 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
78091 — Cable Sub-assy, Fold Seat Lock Control
78091-0C020-B0 note Cable Sub-assy, Fold Seat Lock Control
2004-08 → —
UCK35,45 LIMD —
78091-0C020-B0 note Cable Sub-assy, Fold Seat Lock Control
2005-08 → —
UCK35,45 SR5 —
78091-0C020-E0 note Cable Sub-assy, Fold Seat Lock Control
2004-08 → —
UCK35,45 LIMD —
78091-0C020-E0 note Cable Sub-assy, Fold Seat Lock Control
2005-08 → —
UCK35,45 SR5 —
78950 — Band Assy, Fold Seat Stopper, NO.1
78950-0C010-B0 note Band Assy, Fold Seat Stopper, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
78950-0C010-E0 note Band Assy, Fold Seat Stopper, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
78950-0C010-B2 note Band Assy, Fold Seat Stopper, NO.1
2004-08 → —
UCK35,45 —
78950-0C010-E2 note Band Assy, Fold Seat Stopper, NO.1
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
