Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

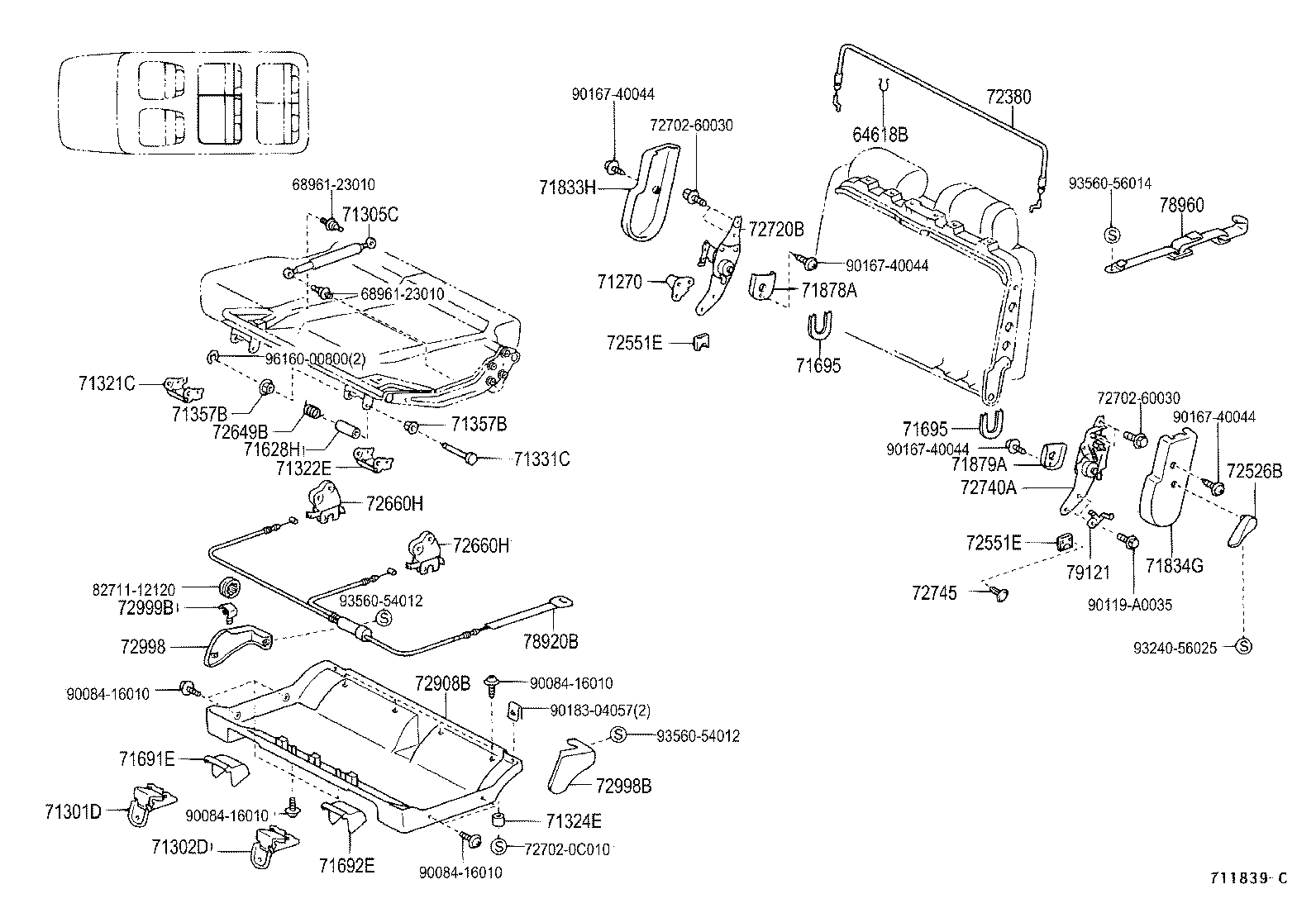

Exploded illustration 711839C 64618B — CLAMP, BACK DOOR LOCK CONTROL CABLE (2 parts) 71270 — BRACKET ASSY, SEAT, INNER RH (2 parts) 71302D — HINGE SUB-ASSY, REAR SEAT, LH (2 parts) 71301D — HINGE SUB-ASSY, REAR SEAT, RH (4 parts) 71321C — HINGE, REAR SEAT CUSHION (4 parts) 71322E — HINGE, REAR SEAT CUSHION, LH (4 parts) 9356054012 — not listed in this catalogue 71357B — PLATE, REAR SEAT HINGE SET, LH (2 parts) 71357B — PLATE, REAR SEAT HINGE SET, LH (2 parts) 71331C — PIN, REAR SEAT HINGE, LH (2 parts) 71305C — STAY SUB-ASSY, REAR SEAT (2 parts) 6896123010 — not listed in this catalogue 6896123010 — not listed in this catalogue 7270260030 — not listed in this catalogue 71324E — CUSHION, REAR SEAT, LH (2 parts) 71695 — PROTECTOR, REAR SEATBACK (2 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (4 parts) 71691E — COVER, REAR SEAT CUSHION HINGE, NO.1 (4 parts) 71695 — PROTECTOR, REAR SEATBACK (2 parts) 71834G — COVER, REAR SEAT RECLINING, NO.1 LH (8 parts) 71833H — COVER, REAR SEAT RECLINING, NO.1 RH (8 parts) 71628H — SPACER, REAR SEAT CUSHION, LH (2 parts) 71878A — COVER, REAR SEAT RECLINING, INNER RH (4 parts) 72380 — CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 (2 parts) 72551E — COVER, RECLINING HINGE, RH (4 parts) 72720B — ADJUSTER ASSY, REAR SEATBACK, INNER LH (2 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (6 parts) 72526B — HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH (4 parts) 71879A — COVER, REAR SEAT RECLINING, INNER LH (4 parts) 72908B — COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH (15 parts) 72998 — COVER, REAR SEAT CUSHION, LH (4 parts) 72999B — COVER, REAR SEAT CUSHION SIDE, LH (4 parts) 72998B — COVER, REAR SEAT CUSHION, LH (4 parts) 72660H — LOCK ASSY, REAR NO.2 SEAT, LH (4 parts) 72660H — LOCK ASSY, REAR NO.2 SEAT, LH (4 parts) 72649B — SPRING, REAR SEAT CUSHION SUPPORT (2 parts) 78920B — CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH (4 parts) 78960 — BAND ASSY, FOLD SEAT STOPPER, NO.2 (4 parts) 79121 — BRACKET, NO.1 SEAT CUSHION (2 parts) 72745 — PIN, REAR SEAT RECLINING HINGE (6 parts) 72551E — COVER, RECLINING HINGE, RH (4 parts) 7270260030 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 8271112120 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 727020C010 — not listed in this catalogue 9018304057 — not listed in this catalogue 9356054012 — not listed in this catalogue 9616000800 — not listed in this catalogue 9324056025 — not listed in this catalogue 9356056014 — not listed in this catalogue 90119A0035 — not listed in this catalogue
711839C · 37 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
129 parts on this figure
Part number Description Fitment Price
64618B — Clamp, Back Door Lock Control Cable
64618-22020 Clamp, Back Door Lock Control Cable
2000-09 → 2004-08 ended
UCK35,45 —
64618-22020 Clamp, Back Door Lock Control Cable
2004-08 → —
UCK35,45 —
71270 — Bracket Assy, Seat, Inner RH
71270-0C010 Bracket Assy, Seat, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
71270-0C010 Bracket Assy, Seat, Inner RH
2004-08 → —
UCK35,45 —
71301D — Hinge Sub-assy, Rear Seat, RH
71301-0C020 Hinge Sub-assy, Rear Seat, RH
2000-09 → 2004-08 ended
UCK35,45 —
71301-0C020 Hinge Sub-assy, Rear Seat, RH
2004-08 → —
UCK35,45 —
71301-0C030 note Hinge Sub-assy, Rear Seat, RH
2004-08 → —
UCK35,45 LIMD —
71301-0C030 note Hinge Sub-assy, Rear Seat, RH
2005-08 → —
UCK35,45 SR5 —
71302D — Hinge Sub-assy, Rear Seat, LH
71301-0C020 Hinge Sub-assy, Rear Seat, LH
2000-09 → 2004-08 ended
UCK35,45 —
71301-0C020 Hinge Sub-assy, Rear Seat, LH
2004-08 → —
UCK35,45 —
71305C — Stay Sub-assy, Rear Seat
71305-34020 Stay Sub-assy, Rear Seat
2000-09 → 2004-08 ended
UCK35,45 —
71305-34020 Stay Sub-assy, Rear Seat
2004-08 → —
UCK35,45 —
71321C — Hinge, Rear Seat Cushion
71321-0C050 Hinge, Rear Seat Cushion
2000-09 → 2004-08 ended
UCK35,45 —
71321-0C040 note Hinge, Rear Seat Cushion
2004-08 → —
UCK35,45 LIMD —
71321-0C040 note Hinge, Rear Seat Cushion
2005-08 → —
UCK35,45 SR5 —
71321-0C050 Hinge, Rear Seat Cushion
2004-08 → —
UCK35,45 —
71322E — Hinge, Rear Seat Cushion, LH
71322-0C040 Hinge, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
71322-0C030 note Hinge, Rear Seat Cushion, LH
2005-08 → —
UCK35,45 SR5 —
71322-0C030 note Hinge, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 LIMD —
71322-0C040 Hinge, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
71324E — Cushion, Rear Seat, LH
71324-0C010 Cushion, Rear Seat, LH
2000-09 → 2004-08 ended
UCK35,45 —
71324-0C010 Cushion, Rear Seat, LH
2004-08 → —
UCK35,45 —
71331C — Pin, Rear Seat Hinge, LH
71331-0C020 Pin, Rear Seat Hinge, LH
2000-09 → 2004-08 ended
UCK35,45 —
71331-0C020 Pin, Rear Seat Hinge, LH
2004-08 → —
UCK35,45 —
71357B — Plate, Rear Seat Hinge Set, LH
71357-0C010 Plate, Rear Seat Hinge Set, LH
2000-09 → 2004-08 ended
UCK35,45 —
71357-0C010 Plate, Rear Seat Hinge Set, LH
2004-08 → —
UCK35,45 —
71628H — Spacer, Rear Seat Cushion, LH
71628-0C010 Spacer, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
71628-0C010 Spacer, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
71691E — Cover, Rear Seat Cushion Hinge, NO.1
71691-0C020-B0 note Cover, Rear Seat Cushion Hinge, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
71691-0C020-E0 note Cover, Rear Seat Cushion Hinge, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
71691-0C020-B0 note Cover, Rear Seat Cushion Hinge, NO.1
2004-08 → —
UCK35,45 —
71691-0C020-E1 note Cover, Rear Seat Cushion Hinge, NO.1
2004-08 → —
UCK35,45 —
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-0C010-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
71692-0C010-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
71692-0C010-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2004-08 → —
UCK35,45 —
71692-0C010-E1 note Cover, Rear Seat Cushion Hinge, NO.2
2004-08 → —
UCK35,45 —
71695 — Protector, Rear Seatback
71695-0C010 Protector, Rear Seatback
2000-09 → 2004-08 ended
UCK35,45 —
71695-0C010 Protector, Rear Seatback
2004-08 → —
UCK35,45 —
71833H — Cover, Rear Seat Reclining, NO.1 RH
71833-0C020-B0 note Cover, Rear Seat Reclining, NO.1 RH
2000-09 → 2004-08 ended
UCK35,45 —
71833-0C020-E0 note Cover, Rear Seat Reclining, NO.1 RH
2000-09 → 2004-08 ended
UCK35,45 —
71833-0C020-B0 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 —
71833-0C020-E1 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 —
71833-0C030-B0 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 LIMD —
71833-0C030-B0 note Cover, Rear Seat Reclining, NO.1 RH
2005-08 → —
UCK35,45 SR5 —
71833-0C030-E0 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 LIMD —
71833-0C030-E0 note Cover, Rear Seat Reclining, NO.1 RH
2005-08 → —
UCK35,45 SR5 —
71834G — Cover, Rear Seat Reclining, NO.1 LH
71834-0C020-B0 note Cover, Rear Seat Reclining, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
71834-0C020-E0 note Cover, Rear Seat Reclining, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
71834-0C020-B0 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 —
71834-0C020-E1 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 —
71834-0C030-B0 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 LIMD —
71834-0C030-B0 note Cover, Rear Seat Reclining, NO.1 LH
2005-08 → —
UCK35,45 SR5 —
71834-0C030-E0 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 LIMD —
71834-0C030-E0 note Cover, Rear Seat Reclining, NO.1 LH
2005-08 → —
UCK35,45 SR5 —
71878A — Cover, Rear Seat Reclining, Inner RH
71878-0C010-B0 note Cover, Rear Seat Reclining, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
71878-0C010-E0 note Cover, Rear Seat Reclining, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
71878-0C010-B0 note Cover, Rear Seat Reclining, Inner RH
2004-08 → —
UCK35,45 —
71878-0C010-E1 note Cover, Rear Seat Reclining, Inner RH
2004-08 → —
UCK35,45 —
71879A — Cover, Rear Seat Reclining, Inner LH
71879-0C010-B0 note Cover, Rear Seat Reclining, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
71879-0C010-E0 note Cover, Rear Seat Reclining, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
71879-0C010-B0 note Cover, Rear Seat Reclining, Inner LH
2004-08 → —
UCK35,45 —
71879-0C010-E1 note Cover, Rear Seat Reclining, Inner LH
2004-08 → —
UCK35,45 —
72380 — Cable Assy, Seat Adjuster Control, NO.2
72380-0C010 Cable Assy, Seat Adjuster Control, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
72380-0C010 Cable Assy, Seat Adjuster Control, NO.2
2004-08 → —
UCK35,45 —
72526B — Handle, Reclining Adjuster Release, NO.1 LH
72526-0C010-B0 note Handle, Reclining Adjuster Release, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
72526-0C010-E0 note Handle, Reclining Adjuster Release, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
72526-0C010-B0 note Handle, Reclining Adjuster Release, NO.1 LH
2004-08 → —
UCK35,45 —
72526-0C010-E2 note Handle, Reclining Adjuster Release, NO.1 LH
2004-08 → —
UCK35,45 —
72551E — Cover, Reclining Hinge, RH
72551-0C020-B0 note Cover, Reclining Hinge, RH
2000-09 → 2004-08 ended
UCK35,45 —
72551-0C020-E0 note Cover, Reclining Hinge, RH
2000-09 → 2004-08 ended
UCK35,45 —
72551-0C020-B0 note Cover, Reclining Hinge, RH
2004-08 → —
UCK35,45 —
72551-0C020-E1 note Cover, Reclining Hinge, RH
2004-08 → —
UCK35,45 —
72649B — Spring, Rear Seat Cushion Support
72649-0C010 Spring, Rear Seat Cushion Support
2000-09 → 2004-08 ended
UCK35,45 —
72649-0C010 Spring, Rear Seat Cushion Support
2004-08 → —
UCK35,45 —
72660H — Lock Assy, Rear NO.2 Seat, LH
72660-0C020 Lock Assy, Rear NO.2 Seat, LH
2000-09 → 2004-08 ended
UCK35,45 —
72650-0C060 note Lock Assy, Rear NO.2 Seat, LH
2004-08 → —
UCK35,45 LIMD —
72650-0C060 note Lock Assy, Rear NO.2 Seat, LH
2005-08 → —
UCK35,45 SR5 —
72660-0C020 Lock Assy, Rear NO.2 Seat, LH
2004-08 → —
UCK35,45 —
72720B — Adjuster Assy, Rear Seatback, Inner LH
72720-34010 Adjuster Assy, Rear Seatback, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
72720-34010 Adjuster Assy, Rear Seatback, Inner LH
2004-08 → —
UCK35,45 —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-0C050 note Adjuster Assy, Rear Seat Reclining, LH
2000-09 → 2004-08 ended
UCK35,45 —
72740-34010 note Adjuster Assy, Rear Seat Reclining, LH
2000-09 → 2004-08 ended
UCK35,45 —
72740-0C050 note Adjuster Assy, Rear Seat Reclining, LH
2004-08 → —
UCK35,45 —
72740-0C080 Adjuster Assy, Rear Seat Reclining, LH
2004-08 → —
UCK35,45 LIMD —
72740-0C080 note Adjuster Assy, Rear Seat Reclining, LH
2005-08 → —
UCK35,45 SR5 —
72740-34010 note Adjuster Assy, Rear Seat Reclining, LH
2004-08 → —
UCK35,45 —
72745 — Pin, Rear Seat Reclining Hinge
72745-60050-B1 note Pin, Rear Seat Reclining Hinge
2000-09 → 2004-08 ended
UCK35,45 —
72745-60050-E0 note Pin, Rear Seat Reclining Hinge
2000-09 → 2004-08 ended
UCK35,45 —
72745-60050-B1 note Pin, Rear Seat Reclining Hinge
2004-08 → 2005-01 ended
UCK35,45 —
72745-60050-B1 note Pin, Rear Seat Reclining Hinge
2005-01 → —
UCK35,45 —
72745-60050-E1 note Pin, Rear Seat Reclining Hinge
2004-08 → 2005-01 ended
UCK35,45 —
72745-60050-E1 note Pin, Rear Seat Reclining Hinge
2005-01 → —
UCK35,45 —
72908B — Cover Sub-assy, Rear Seat Cush Under, LH
72908-0C010-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C010-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C020-E0 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C020-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C020-E2 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C020-E2 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C050-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C050-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2005-08 → —
UCK35,45 SR5 —
72907-0C050-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C050-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2005-08 → —
UCK35,45 SR5 —
72908-0C010-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 —
72908-0C010-E3 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 —
72998 — Cover, Rear Seat Cushion, LH
72995-0C030-B0 note Cover, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
72995-0C030-E0 note Cover, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
72995-0C030-B0 note Cover, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
72995-0C030-E1 note Cover, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
72998B — Cover, Rear Seat Cushion, LH
72998-0C020-B0 note Cover, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
72998-0C020-E0 note Cover, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
72998-0C020-B0 note Cover, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
72998-0C020-E1 note Cover, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
72999B — Cover, Rear Seat Cushion Side, LH
72999-0C020-B0 note Cover, Rear Seat Cushion Side, LH
2000-09 → 2004-08 ended
UCK35,45 —
72999-0C020-E0 note Cover, Rear Seat Cushion Side, LH
2000-09 → 2004-08 ended
UCK35,45 —
72999-0C020-B0 note Cover, Rear Seat Cushion Side, LH
2004-08 → —
UCK35,45 —
72999-0C020-E1 note Cover, Rear Seat Cushion Side, LH
2004-08 → —
UCK35,45 —
78920B — Cable Assy, Fold Seat Lock Control, NO.1 LH
78910-0C010-B1 note Cable Assy, Fold Seat Lock Control, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
78910-0C010-E1 note Cable Assy, Fold Seat Lock Control, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
78910-0C010-B1 note Cable Assy, Fold Seat Lock Control, NO.1 LH
2004-08 → —
UCK35,45 —
78910-0C010-E3 note Cable Assy, Fold Seat Lock Control, NO.1 LH
2004-08 → —
UCK35,45 —
78960 — Band Assy, Fold Seat Stopper, NO.2
78950-0C010-B0 note Band Assy, Fold Seat Stopper, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
78950-0C010-E0 note Band Assy, Fold Seat Stopper, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
78950-0C010-B2 note Band Assy, Fold Seat Stopper, NO.2
2004-08 → —
UCK35,45 —
78950-0C010-E2 note Band Assy, Fold Seat Stopper, NO.2
2004-08 → —
UCK35,45 —
79121 — Bracket, NO.1 Seat Cushion
79121-0C010 Bracket, NO.1 Seat Cushion
2000-09 → 2004-08 ended
UCK35,45 —
79121-0C010 Bracket, NO.1 Seat Cushion
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
