Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

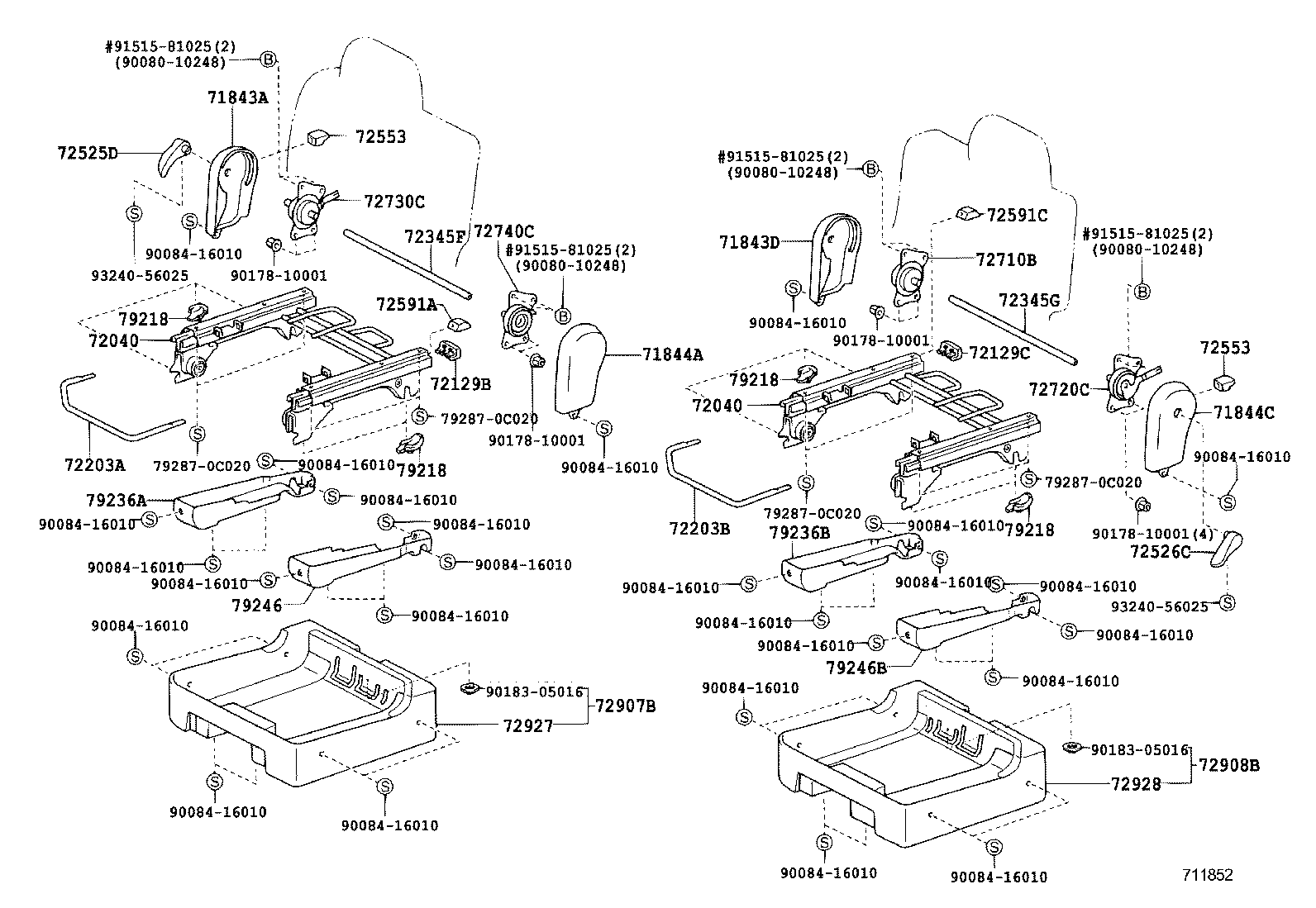

Exploded illustration 711852D 71843A — COVER, REAR SEAT RECLINING, NO.2 RH (4 parts) 72040 — ADJUSTER ASSY, REAR NO.2 SEAT (2 parts) 72203A — HANDLE SUB-ASSY, REAR SEAT TRACK, RH (2 parts) 72345F — PIPE, RECLINING CONNECTING, RH (2 parts) 72129B — PROTECTOR, SEAT TRACK LOWER RAIL (2 parts) 72553 — COVER, RECLINING PEDAL (2 parts) 72525D — HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH (4 parts) 72740C — ADJUSTER ASSY, NO.2 SEAT RECLINING, LH (2 parts) 72730C — ADJUSTER ASSY, NO.2 SEAT RECLINING, RH (2 parts) 79236A — COVER, NO.2 SEAT LEG (4 parts) 79218 — BRACKET, NO.2 SEAT LEG (4 parts) 79218 — BRACKET, NO.2 SEAT LEG (4 parts) 72591A — LEVER, RECLINING REMOTE CONTROL (2 parts) 71844A — COVER, REAR SEAT RECLINING, NO.2 LH (4 parts) 79218 — BRACKET, NO.2 SEAT LEG (4 parts) 79218 — BRACKET, NO.2 SEAT LEG (4 parts) 72553 — COVER, RECLINING PEDAL (2 parts) 72040 — ADJUSTER ASSY, REAR NO.2 SEAT (2 parts) 72129C — PROTECTOR, SEAT TRACK LOWER RAIL, NO.3 (2 parts) 71844C — COVER, REAR SEAT RECLINING, NO.2 LH (4 parts) 71843D — COVER, REAR SEAT RECLINING, NO.2 RH (4 parts) 72203B — HANDLE SUB-ASSY, REAR SEAT TRACK, LH (2 parts) 72720C — ADJUSTER ASSY, NO.1 SEAT RECLINING, LH (2 parts) 72345G — PIPE, RECLINING CONNECTING, LH (2 parts) 72710B — ADJUSTER ASSY, REAR SEATBACK, INNER RH (2 parts) 72591C — LEVER, RECLINING REMOTE CONTROL, LH (2 parts) 79236B — COVER, NO.2 SEAT LEG, LH (4 parts) 79246B — COVER, NO.2 SEAT LEG, B (4 parts) 72526C — HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH (4 parts) 72908B — COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH (15 parts) 72907B — COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH (19 parts) 72927 — COVER, REAR SEAT CUSHION UNDER, RH (4 parts) 72928 — COVER, REAR SEAT CUSHION UNDER, LH (4 parts) 79246 — COVER, NO.2 SEAT LEG, NO.1 (4 parts) 792870C020 — not listed in this catalogue 792870C020 — not listed in this catalogue 792870C020 — not listed in this catalogue 792870C020 — not listed in this catalogue 9017810001 — not listed in this catalogue 9017810001 — not listed in this catalogue 9017810001 — not listed in this catalogue 9324056025 — not listed in this catalogue 9018305016 — not listed in this catalogue 9018305016 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9324056025 — not listed in this catalogue 9017810001 — not listed in this catalogue
711852D · 34 callouts, 38 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
114 parts on this figure
Part number Description Fitment Price
71843A — Cover, Rear Seat Reclining, NO.2 RH
71843-0C010-B0 note Cover, Rear Seat Reclining, NO.2 RH
2000-09 → 2004-08 ended
UCK35,45 —
71843-0C010-E0 note Cover, Rear Seat Reclining, NO.2 RH
2000-09 → 2004-08 ended
UCK35,45 —
71843-0C010-B0 note Cover, Rear Seat Reclining, NO.2 RH
2004-08 → —
UCK35,45 —
71843-0C010-E1 note Cover, Rear Seat Reclining, NO.2 RH
2004-08 → —
UCK35,45 —
71843D — Cover, Rear Seat Reclining, NO.2 RH
71843-0C020-B0 note Cover, Rear Seat Reclining, NO.2 RH
2000-09 → 2004-08 ended
UCK35,45 —
71843-0C020-E0 note Cover, Rear Seat Reclining, NO.2 RH
2000-09 → 2004-08 ended
UCK35,45 —
71843-0C020-B0 note Cover, Rear Seat Reclining, NO.2 RH
2004-08 → —
UCK35,45 —
71843-0C020-E1 note Cover, Rear Seat Reclining, NO.2 RH
2004-08 → —
UCK35,45 —
71844A — Cover, Rear Seat Reclining, NO.2 LH
71844-0C010-B0 note Cover, Rear Seat Reclining, NO.2 LH
2000-09 → 2004-08 ended
UCK35,45 —
71844-0C010-E0 note Cover, Rear Seat Reclining, NO.2 LH
2000-09 → 2004-08 ended
UCK35,45 —
71844-0C010-B0 note Cover, Rear Seat Reclining, NO.2 LH
2004-08 → —
UCK35,45 —
71844-0C010-E1 note Cover, Rear Seat Reclining, NO.2 LH
2004-08 → —
UCK35,45 —
71844C — Cover, Rear Seat Reclining, NO.2 LH
71844-0C020-B0 note Cover, Rear Seat Reclining, NO.2 LH
2000-09 → 2004-08 ended
UCK35,45 —
71844-0C020-E0 note Cover, Rear Seat Reclining, NO.2 LH
2000-09 → 2004-08 ended
UCK35,45 —
71844-0C020-B0 note Cover, Rear Seat Reclining, NO.2 LH
2004-08 → —
UCK35,45 —
71844-0C020-E1 note Cover, Rear Seat Reclining, NO.2 LH
2004-08 → —
UCK35,45 —
72040 — Adjuster Assy, Rear NO.2 Seat
72040-0C010 Adjuster Assy, Rear NO.2 Seat
2000-09 → 2004-08 ended
UCK35,45 —
72040-0C010 Adjuster Assy, Rear NO.2 Seat
2004-08 → —
UCK35,45 —
72129B — Protector, Seat Track Lower Rail
72129-08010 Protector, Seat Track Lower Rail
2000-09 → 2004-08 ended
UCK35,45 —
72129-08010 Protector, Seat Track Lower Rail
2004-08 → —
UCK35,45 —
72129C — Protector, Seat Track Lower Rail, NO.3
72129-08010 Protector, Seat Track Lower Rail, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
72129-08010 Protector, Seat Track Lower Rail, NO.3
2004-08 → —
UCK35,45 —
72203A — Handle Sub-assy, Rear Seat Track, RH
72203-0C010 Handle Sub-assy, Rear Seat Track, RH
2000-09 → 2004-08 ended
UCK35,45 —
72203-0C010 Handle Sub-assy, Rear Seat Track, RH
2004-08 → —
UCK35,45 —
72203B — Handle Sub-assy, Rear Seat Track, LH
72203-0C010 Handle Sub-assy, Rear Seat Track, LH
2000-09 → 2004-08 ended
UCK35,45 —
72203-0C010 Handle Sub-assy, Rear Seat Track, LH
2004-08 → —
UCK35,45 —
72345F — Pipe, Reclining Connecting, RH
72501-0C030 Pipe, Reclining Connecting, RH
2000-09 → 2004-08 ended
UCK35,45 —
72501-0C030 Pipe, Reclining Connecting, RH
2004-08 → —
UCK35,45 —
72345G — Pipe, Reclining Connecting, LH
72501-0C030 Pipe, Reclining Connecting, LH
2000-09 → 2004-08 ended
UCK35,45 —
72501-0C030 Pipe, Reclining Connecting, LH
2004-08 → —
UCK35,45 —
72525D — Handle, Reclining Adjuster Release, NO.2 RH
72525-0C020-B0 note Handle, Reclining Adjuster Release, NO.2 RH
2000-09 → 2004-08 ended
UCK35,45 —
72525-0C020-E0 note Handle, Reclining Adjuster Release, NO.2 RH
2000-09 → 2004-08 ended
UCK35,45 —
72525-0C020-B0 note Handle, Reclining Adjuster Release, NO.2 RH
2004-08 → —
UCK35,45 —
72525-0C020-E2 note Handle, Reclining Adjuster Release, NO.2 RH
2004-08 → —
UCK35,45 —
72526C — Handle, Reclining Adjuster Release, NO.2 LH
72526-0C010-B0 note Handle, Reclining Adjuster Release, NO.2 LH
2000-09 → 2004-08 ended
UCK35,45 —
72526-0C010-E0 note Handle, Reclining Adjuster Release, NO.2 LH
2000-09 → 2004-08 ended
UCK35,45 —
72526-0C010-B0 note Handle, Reclining Adjuster Release, NO.2 LH
2004-08 → —
UCK35,45 —
72526-0C010-E2 note Handle, Reclining Adjuster Release, NO.2 LH
2004-08 → —
UCK35,45 —
72553 — Cover, Reclining Pedal
72553-0C030 Cover, Reclining Pedal
2000-09 → 2004-08 ended
UCK35,45 —
72553-0C030 Cover, Reclining Pedal
2004-08 → —
UCK35,45 —
72591A — Lever, Reclining Remote Control
72591-0C010 Lever, Reclining Remote Control
2000-09 → 2004-08 ended
UCK35,45 —
72591-0C010 Lever, Reclining Remote Control
2004-08 → —
UCK35,45 —
72591C — Lever, Reclining Remote Control, LH
72591-0C010 Lever, Reclining Remote Control, LH
2000-09 → 2004-08 ended
UCK35,45 —
72591-0C010 Lever, Reclining Remote Control, LH
2004-08 → —
UCK35,45 —
72710B — Adjuster Assy, Rear Seatback, Inner RH
72730-0C020 Adjuster Assy, Rear Seatback, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
72730-0C020 Adjuster Assy, Rear Seatback, Inner RH
2004-08 → —
UCK35,45 —
72720C — Adjuster Assy, NO.1 Seat Reclining, LH
72740-0C020 Adjuster Assy, NO.1 Seat Reclining, LH
2000-09 → 2004-08 ended
UCK35,45 —
72740-0C020 Adjuster Assy, NO.1 Seat Reclining, LH
2004-08 → —
UCK35,45 —
72730C — Adjuster Assy, NO.2 Seat Reclining, RH
72730-0C010 Adjuster Assy, NO.2 Seat Reclining, RH
2000-09 → 2004-08 ended
UCK35,45 —
72730-0C010 Adjuster Assy, NO.2 Seat Reclining, RH
2004-08 → —
UCK35,45 —
72740C — Adjuster Assy, NO.2 Seat Reclining, LH
72740-0C010 Adjuster Assy, NO.2 Seat Reclining, LH
2000-09 → 2004-08 ended
UCK35,45 —
72740-0C010 Adjuster Assy, NO.2 Seat Reclining, LH
2004-08 → —
UCK35,45 —
72907B — Cover Sub-assy, Rear Seat Cushion Under, RH
72907-0C010-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C010-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C020-B0 note Cover Sub-assy, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C020-E0 note Cover Sub-assy, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C010-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 —
72907-0C010-E2 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 —
72907-0C040-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72907-0C040-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2005-08 → —
UCK35,45 SR5 —
72907-0C040-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72907-0C040-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2005-08 → —
UCK35,45 SR5 —
72907-0C040-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2005-08 → —
UCK35,45 SR5 —
72907-0C040-E1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72908-0C020-B0 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908-0C020-B0 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72908-0C020-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908-0C020-B1 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908-0C020-E2 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 LIMD —
72908-0C020-E2 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908-0C020-E3 note Cover Sub-assy, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 SR5 —
72908B — Cover Sub-assy, Rear Seat Cush Under, LH
72908-0C010-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C010-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C020-E0 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C020-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C020-E2 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C020-E2 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C050-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C050-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2005-08 → —
UCK35,45 SR5 —
72907-0C050-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C050-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2005-08 → —
UCK35,45 SR5 —
72908-0C010-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 —
72908-0C010-E3 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 —
72927 — Cover, Rear Seat Cushion Under, RH
72927-0C010-B0 note Cover, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72927-0C010-E0 note Cover, Rear Seat Cushion Under, RH
2000-09 → 2004-08 ended
UCK35,45 —
72928-0C020-B0 note Cover, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 —
72928-0C020-E1 note Cover, Rear Seat Cushion Under, RH
2004-08 → —
UCK35,45 —
72928 — Cover, Rear Seat Cushion Under, LH
72928-0C020-B0 note Cover, Rear Seat Cushion Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72928-0C020-E0 note Cover, Rear Seat Cushion Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72927-0C010-B0 note Cover, Rear Seat Cushion Under, LH
2004-08 → —
UCK35,45 —
72927-0C010-E1 note Cover, Rear Seat Cushion Under, LH
2004-08 → —
UCK35,45 —
79218 — Bracket, NO.2 Seat Leg
79218-0C010 note Bracket, NO.2 Seat Leg
2000-09 → 2004-08 ended
UCK35,45 —
79228-0C010 note Bracket, NO.2 Seat Leg
2000-09 → 2004-08 ended
UCK35,45 —
79218-0C010 note Bracket, NO.2 Seat Leg
2004-08 → —
UCK35,45 —
79228-0C010 note Bracket, NO.2 Seat Leg
2004-08 → —
UCK35,45 —
79236A — Cover, NO.2 Seat Leg
79236-08010-B1 note Cover, NO.2 Seat Leg
2000-09 → 2004-08 ended
UCK35,45 —
79236-08010-E0 note Cover, NO.2 Seat Leg
2000-09 → 2004-08 ended
UCK35,45 —
79236-08010-B1 note Cover, NO.2 Seat Leg
2004-08 → —
UCK35,45 —
79236-08010-E1 note Cover, NO.2 Seat Leg
2004-08 → —
UCK35,45 —
79236B — Cover, NO.2 Seat Leg, LH
79236-08010-B1 note Cover, NO.2 Seat Leg, LH
2000-09 → 2004-08 ended
UCK35,45 —
79236-08010-E0 note Cover, NO.2 Seat Leg, LH
2000-09 → 2004-08 ended
UCK35,45 —
79236-08010-B1 note Cover, NO.2 Seat Leg, LH
2004-08 → —
UCK35,45 —
79236-08010-E1 note Cover, NO.2 Seat Leg, LH
2004-08 → —
UCK35,45 —
79246 — Cover, NO.2 Seat Leg, NO.1
79246-08010-B1 note Cover, NO.2 Seat Leg, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
79246-08010-E0 note Cover, NO.2 Seat Leg, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
79246-08010-B1 note Cover, NO.2 Seat Leg, NO.1
2004-08 → —
UCK35,45 —
79246-08010-E1 note Cover, NO.2 Seat Leg, NO.1
2004-08 → —
UCK35,45 —
79246B — Cover, NO.2 Seat Leg, B
79246-08010-B1 note Cover, NO.2 Seat Leg, B
2000-09 → 2004-08 ended
UCK35,45 —
79246-08010-E0 note Cover, NO.2 Seat Leg, B
2000-09 → 2004-08 ended
UCK35,45 —
79246-08010-B1 note Cover, NO.2 Seat Leg, B
2004-08 → —
UCK35,45 —
79246-08010-E1 note Cover, NO.2 Seat Leg, B
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
