Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

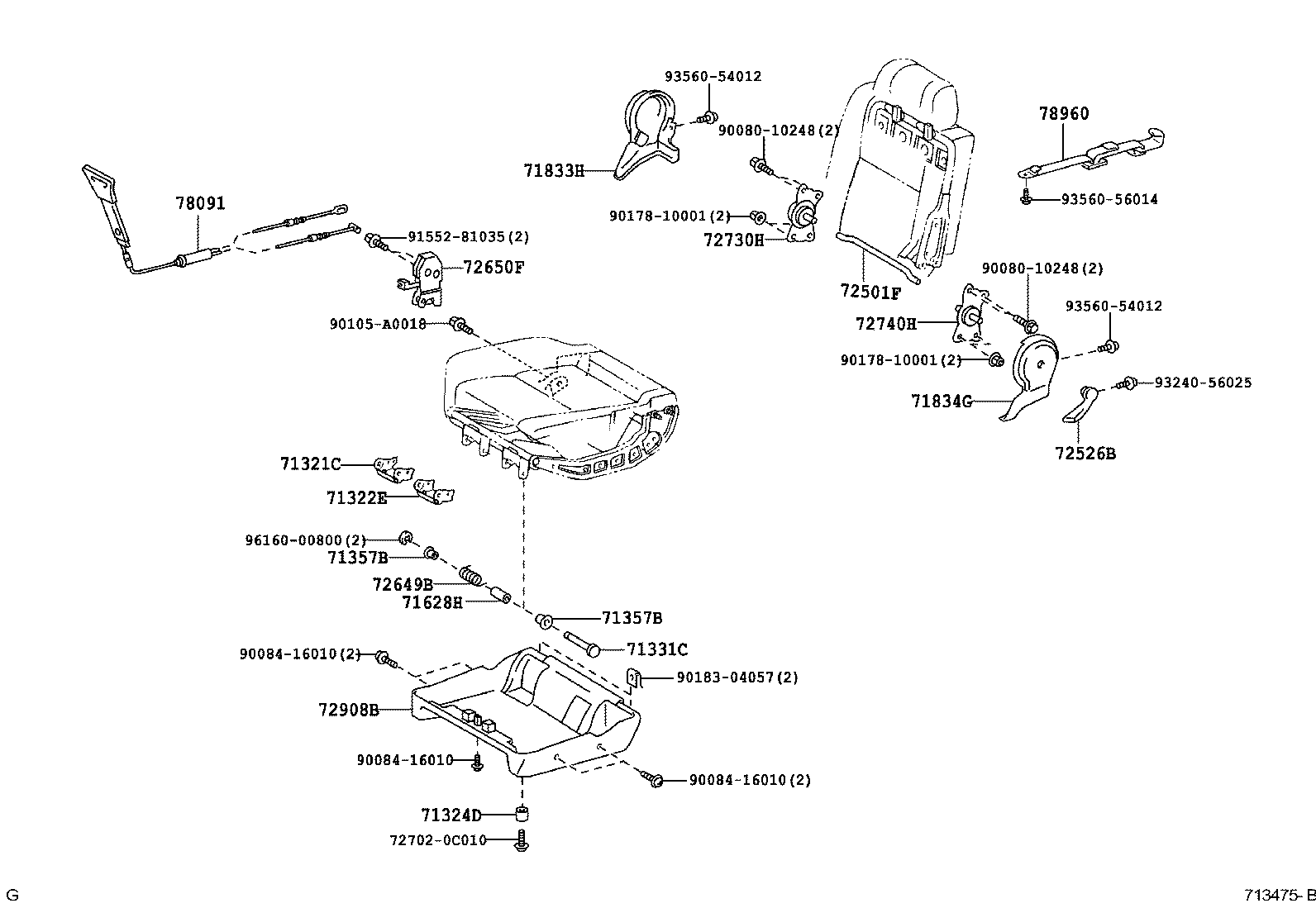

Exploded illustration 713475B 71321C — HINGE, REAR SEAT CUSHION (4 parts) 78091 — CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL (4 parts) 72650F — LOCK ASSY, REAR SEAT, RH (3 parts) 72730H — ADJUSTER ASSY, REAR SEAT RECLINING, RH (2 parts) 72740H — ADJUSTER ASSY, REAR SEAT RECLINING, LH (2 parts) 71834G — COVER, REAR SEAT RECLINING, NO.1 LH (8 parts) 72526B — HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH (4 parts) 78960 — BAND ASSY, FOLD SEAT STOPPER, NO.2 (4 parts) 71833H — COVER, REAR SEAT RECLINING, NO.1 RH (8 parts) 9155281035 — not listed in this catalogue 90105A0018 — not listed in this catalogue 9017810001 — not listed in this catalogue 9017810001 — not listed in this catalogue 9008010248 — not listed in this catalogue 9008010248 — not listed in this catalogue 9356054012 — not listed in this catalogue 9356054012 — not listed in this catalogue 9324056025 — not listed in this catalogue 9356056014 — not listed in this catalogue 9616000800 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 9008416010 — not listed in this catalogue 727020C010 — not listed in this catalogue 9018304057 — not listed in this catalogue 71322E — HINGE, REAR SEAT CUSHION, LH (4 parts) 71357B — PLATE, REAR SEAT HINGE SET, LH (2 parts) 72649B — SPRING, REAR SEAT CUSHION SUPPORT (2 parts) 71628H — SPACER, REAR SEAT CUSHION, LH (2 parts) 71324D — CUSHION, REAR SEAT, RH (2 parts) 72908B — COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH (15 parts) 71357B — PLATE, REAR SEAT HINGE SET, LH (2 parts) 71331C — PIN, REAR SEAT HINGE, LH (2 parts) 72501F — PIPE SUB-ASSY, RECLINING CONNECTING (4 parts)
713475B · 18 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
71321C — Hinge, Rear Seat Cushion
71321-0C050 Hinge, Rear Seat Cushion
2000-09 → 2004-08 ended
UCK35,45 —
71321-0C040 note Hinge, Rear Seat Cushion
2004-08 → —
UCK35,45 LIMD —
71321-0C040 note Hinge, Rear Seat Cushion
2005-08 → —
UCK35,45 SR5 —
71321-0C050 Hinge, Rear Seat Cushion
2004-08 → —
UCK35,45 —
71322E — Hinge, Rear Seat Cushion, LH
71322-0C040 Hinge, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
71322-0C030 note Hinge, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 LIMD —
71322-0C030 note Hinge, Rear Seat Cushion, LH
2005-08 → —
UCK35,45 SR5 —
71322-0C040 Hinge, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
71324D — Cushion, Rear Seat, RH
71324-0C010 Cushion, Rear Seat, RH
2000-09 → 2004-08 ended
UCK35,45 —
71324-0C010 Cushion, Rear Seat, RH
2004-08 → —
UCK35,45 —
71331C — Pin, Rear Seat Hinge, LH
71331-0C020 Pin, Rear Seat Hinge, LH
2000-09 → 2004-08 ended
UCK35,45 —
71331-0C020 Pin, Rear Seat Hinge, LH
2004-08 → —
UCK35,45 —
71357B — Plate, Rear Seat Hinge Set, LH
71357-0C010 Plate, Rear Seat Hinge Set, LH
2000-09 → 2004-08 ended
UCK35,45 —
71357-0C010 Plate, Rear Seat Hinge Set, LH
2004-08 → —
UCK35,45 —
71628H — Spacer, Rear Seat Cushion, LH
71628-0C010 Spacer, Rear Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
71628-0C010 Spacer, Rear Seat Cushion, LH
2004-08 → —
UCK35,45 —
71833H — Cover, Rear Seat Reclining, NO.1 RH
71833-0C020-B0 note Cover, Rear Seat Reclining, NO.1 RH
2000-09 → 2004-08 ended
UCK35,45 —
71833-0C020-E0 note Cover, Rear Seat Reclining, NO.1 RH
2000-09 → 2004-08 ended
UCK35,45 —
71833-0C020-B0 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 —
71833-0C020-E1 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 —
71833-0C030-B0 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 LIMD —
71833-0C030-B0 note Cover, Rear Seat Reclining, NO.1 RH
2005-08 → —
UCK35,45 SR5 —
71833-0C030-E0 note Cover, Rear Seat Reclining, NO.1 RH
2004-08 → —
UCK35,45 LIMD —
71833-0C030-E0 note Cover, Rear Seat Reclining, NO.1 RH
2005-08 → —
UCK35,45 SR5 —
71834G — Cover, Rear Seat Reclining, NO.1 LH
71834-0C020-B0 note Cover, Rear Seat Reclining, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
71834-0C020-E0 note Cover, Rear Seat Reclining, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
71834-0C020-B0 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 —
71834-0C020-E1 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 —
71834-0C030-B0 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 LIMD —
71834-0C030-B0 note Cover, Rear Seat Reclining, NO.1 LH
2005-08 → —
UCK35,45 SR5 —
71834-0C030-E0 note Cover, Rear Seat Reclining, NO.1 LH
2004-08 → —
UCK35,45 LIMD —
71834-0C030-E0 note Cover, Rear Seat Reclining, NO.1 LH
2005-08 → —
UCK35,45 SR5 —
72501F — Pipe Sub-assy, Reclining Connecting
72501-0C040 Pipe Sub-assy, Reclining Connecting
2000-09 → 2004-08 ended
UCK35,45 —
72501-0C040 Pipe Sub-assy, Reclining Connecting
2004-08 → —
UCK35,45 —
72501-0C040 note Pipe Sub-assy, Reclining Connecting
2004-08 → —
UCK35,45 LIMD —
72501-0C040 note Pipe Sub-assy, Reclining Connecting
2006-06 → —
UCK35,45 SR5 —
72526B — Handle, Reclining Adjuster Release, NO.1 LH
72526-0C010-B0 note Handle, Reclining Adjuster Release, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
72526-0C010-E0 note Handle, Reclining Adjuster Release, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 —
72526-0C010-B0 note Handle, Reclining Adjuster Release, NO.1 LH
2004-08 → —
UCK35,45 —
72526-0C010-E2 note Handle, Reclining Adjuster Release, NO.1 LH
2004-08 → —
UCK35,45 —
72649B — Spring, Rear Seat Cushion Support
72649-0C010 Spring, Rear Seat Cushion Support
2000-09 → 2004-08 ended
UCK35,45 —
72649-0C010 Spring, Rear Seat Cushion Support
2004-08 → —
UCK35,45 —
72650F — Lock Assy, Rear Seat, RH
72650-0C051 Lock Assy, Rear Seat, RH
2004-08 → —
UCK35,45 LIMD —
72650-0C051 Lock Assy, Rear Seat, RH
2005-08 → —
UCK35,45 SR5 —
72650-0C051 note Lock Assy, Rear Seat, RH
2006-06 → —
UCK35,45 SR5 —
72730H — Adjuster Assy, Rear Seat Reclining, RH
72730-0C070 Adjuster Assy, Rear Seat Reclining, RH
2004-08 → —
UCK35,45 LIMD —
72730-0C070 note Adjuster Assy, Rear Seat Reclining, RH
2005-08 → —
UCK35,45 SR5 —
72740H — Adjuster Assy, Rear Seat Reclining, LH
72740-0C090 Adjuster Assy, Rear Seat Reclining, LH
2004-08 → —
UCK35,45 LIMD —
72740-0C090 note Adjuster Assy, Rear Seat Reclining, LH
2005-08 → —
UCK35,45 SR5 —
72908B — Cover Sub-assy, Rear Seat Cush Under, LH
72908-0C010-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C010-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72908-0C020-E0 note Cover Sub-assy, Rear Seat Cush Under, LH
2000-09 → 2004-08 ended
UCK35,45 —
72907-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C020-B0 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C020-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C020-E2 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C020-E2 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 SR5 —
72907-0C050-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72907-0C050-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2005-08 → —
UCK35,45 SR5 —
72907-0C050-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2005-08 → —
UCK35,45 SR5 —
72907-0C050-E1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 LIMD —
72908-0C010-B1 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 —
72908-0C010-E3 note Cover Sub-assy, Rear Seat Cush Under, LH
2004-08 → —
UCK35,45 —
78091 — Cable Sub-assy, Fold Seat Lock Control
78091-0C020-B0 note Cable Sub-assy, Fold Seat Lock Control
2004-08 → —
UCK35,45 LIMD —
78091-0C020-B0 note Cable Sub-assy, Fold Seat Lock Control
2005-08 → —
UCK35,45 SR5 —
78091-0C020-E0 note Cable Sub-assy, Fold Seat Lock Control
2004-08 → —
UCK35,45 LIMD —
78091-0C020-E0 note Cable Sub-assy, Fold Seat Lock Control
2005-08 → —
UCK35,45 SR5 —
78960 — Band Assy, Fold Seat Stopper, NO.2
78950-0C010-B0 note Band Assy, Fold Seat Stopper, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
78950-0C010-E0 note Band Assy, Fold Seat Stopper, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
78950-0C010-B2 note Band Assy, Fold Seat Stopper, NO.2
2004-08 → —
UCK35,45 —
78950-0C010-E2 note Band Assy, Fold Seat Stopper, NO.2
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
