Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

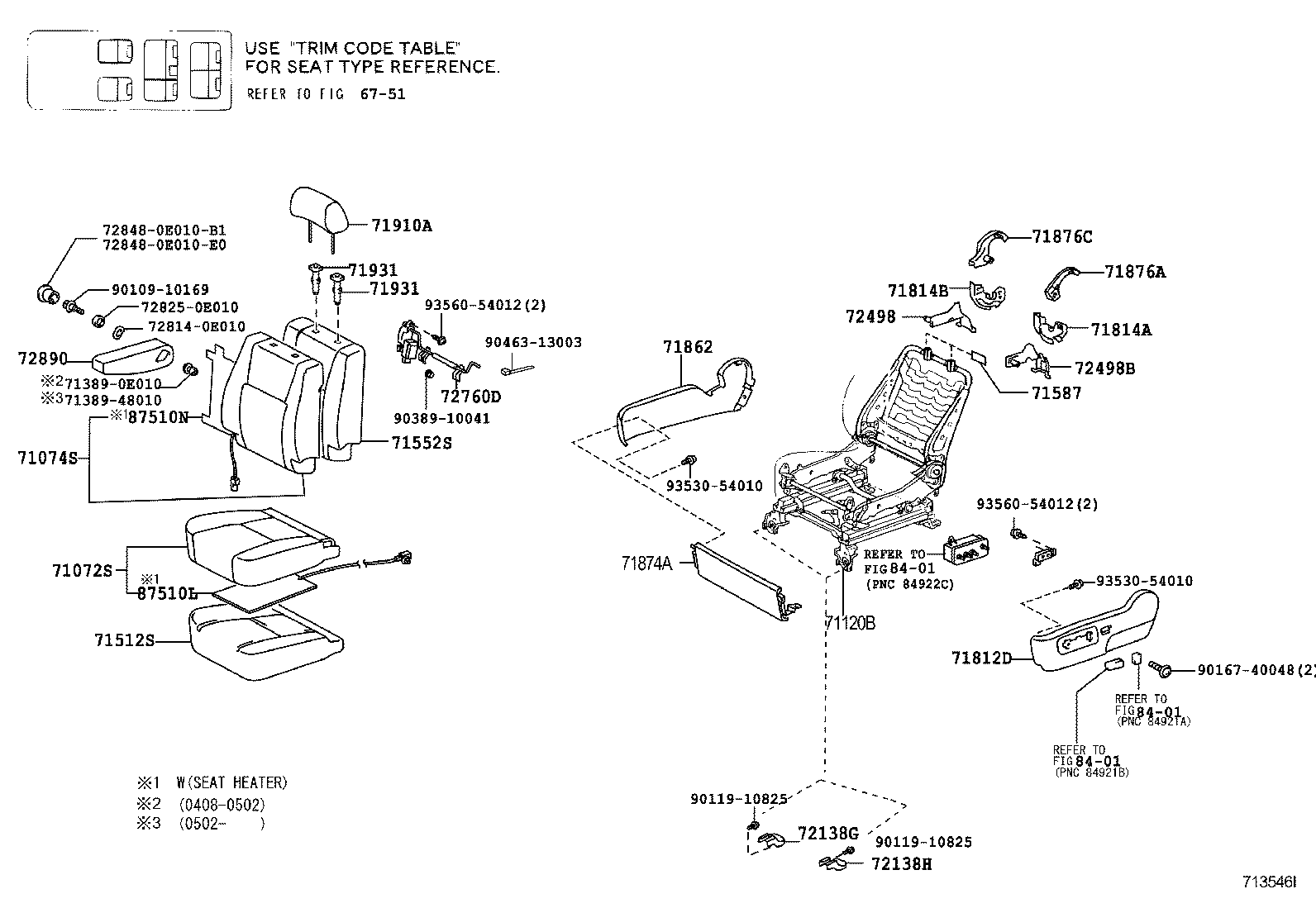

Exploded illustration 713546I 71587 — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 713890E010 — not listed in this catalogue 7138948010 — not listed in this catalogue 728480E010B1 — not listed in this catalogue 728480E010E0 — not listed in this catalogue 9016740048 — not listed in this catalogue 9353054010 — not listed in this catalogue 9353054010 — not listed in this catalogue 72498 — COVER, VERTICAL ADJUSTER BRACKET (1 parts) 71814B — SHIELD, FRONT SEATBACK, LH (1 parts) 71814A — SHIELD, FRONT SEATBACK, LH (1 parts) 72498B — COVER, VERTICAL ADJUSTER BRACKET, OUTER (1 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (11 parts) 71876C — COVER, RECLINING ADJUSTER INSIDE, LH (6 parts) 72138H — COVER, FRONT SEAT TRACK, LH REAR INNER (9 parts) 72138G — COVER, FRONT SEAT TRACK, LH FRONT INNER (6 parts) 9356054012 — not listed in this catalogue 9011910825 — not listed in this catalogue 9011910825 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (8 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (4 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9046313003 — not listed in this catalogue 8401 — not listed in this catalogue 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71910A — HEADREST ASSY, FRONT SEAT (13 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (12 parts) 72890 — ARMREST ASSY, SEAT, C LH (12 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (33 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (12 parts) 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (2 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (3 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (26 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (2 parts) 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (2 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (2 parts) 9356054012 — not listed in this catalogue 9038910041 — not listed in this catalogue 728250E010 — not listed in this catalogue 9010910169 — not listed in this catalogue 728140E010 — not listed in this catalogue 71120B — FRAME ASSY, FRONT SEAT W/ADJUSTER, LH (5 parts) 6751 — not listed in this catalogue
713546I · 24 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
164 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-0C060-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71072-0C060-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71072-0C070-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71072-0C070-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71072-0C080-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71072-0C080-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71072-0C090-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71072-0C090-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71072-0C140-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71072-0C140-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71072-0C140-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71072-0C140-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71072-0C150-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71072-0C150-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71072-0C150-E0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71072-0C150-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71072-0C160-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71072-0C160-E5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71072-0C170-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71072-0C170-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71072-0C170-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71072-0C170-E3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71072-0C340-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71072-0C340-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71072-0C350-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71072-0C350-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-0C060-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71074-0C060-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71074-0C070-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71074-0C070-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71074-0C080-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71074-0C080-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71074-0C090-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71074-0C090-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71074-0C100-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71074-0C100-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71074-0C110-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71074-0C110-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71074-0C180-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71074-0C180-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71074-0C190-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71074-0C190-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71074-0C190-E0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71074-0C190-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71074-0C200-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71074-0C200-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71074-0C210-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71074-0C210-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71074-0C220-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 LIMD —
71074-0C220-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71074-0C220-E2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 —
71074-0C220-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 LIMD —
71074-0C220-E4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71074-0C230-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71074-0C230-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71074-0C230-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71074-0C230-E3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71074-0C570-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71074-0C570-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71120B — Frame Assy, Front Seat W/Adjuster, LH
71120-0C010 Frame Assy, Front Seat W/Adjuster, LH
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71120-0C020 note Frame Assy, Front Seat W/Adjuster, LH
2004-08 → 2007-11 ended
UCK35,45 SR5 —
71120-0C030 note Frame Assy, Front Seat W/Adjuster, LH
2004-08 → 2006-08 ended
UCK35,45 —
71120-0C040 note Frame Assy, Front Seat W/Adjuster, LH
2004-08 → 2006-12 ended
UCK35,45 —
71120-0C041 note Frame Assy, Front Seat W/Adjuster, LH
2007-01 → 2007-11 ended
UCK35,45 —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-0C010 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71512-0C020 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-0C060 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71552-0C080 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 —
71552-0C090 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2004-08 → 2007-11 ended
UCK35,45 —
71587 — Protector, Front Seatback Edge
71587-0C010 note Protector, Front Seatback Edge
2005-06 → —
UCK35,45 —
71587-0C010 Protector, Front Seatback Edge
2005-06 → —
UCK35,45 —
71812D — Shield, Front Seat Cushion, LH
71812-0C050-B0 note Shield, Front Seat Cushion, LH
2004-08 → —
UCK35,45 —
71812-0C050-E0 note Shield, Front Seat Cushion, LH
2004-08 → —
UCK35,45 —
71812-AA140-B3 note Shield, Front Seat Cushion, LH
2004-08 → —
UCK35,45 SR5 —
71812-AA140-E1 note Shield, Front Seat Cushion, LH
2004-08 → —
UCK35,45 SR5 —
71814A — Shield, Front Seatback, LH
71814-0E020 Shield, Front Seatback, LH
2004-08 → —
UCK35,45 —
71814B — Shield, Front Seatback, LH
71813-0E020 Shield, Front Seatback, LH
2004-08 → —
UCK35,45 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-0C010-B1 note Shield, Front Seat Cushion, Inner LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71862-0C010-E0 note Shield, Front Seat Cushion, Inner LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71862-0C020-B1 note Shield, Front Seat Cushion, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
71862-0C020-E0 note Shield, Front Seat Cushion, Inner LH
2000-09 → 2004-08 ended
UCK35,45 —
71862-0C050-B0 note Shield, Front Seat Cushion, Inner LH
2004-08 → —
UCK35,45 —
71862-0C050-E0 note Shield, Front Seat Cushion, Inner LH
2004-08 → —
UCK35,45 —
71862-0C060-B0 note Shield, Front Seat Cushion, Inner LH
2004-08 → —
UCK35,45 SR5 —
71862-0C060-E0 note Shield, Front Seat Cushion, Inner LH
2004-08 → —
UCK35,45 SR5 —
71874A — Shield, Front Seat Cushion, Lower LH
71873-0C050-B0 note Shield, Front Seat Cushion, Lower LH
2004-08 → —
UCK35,45 —
71873-0C050-E0 note Shield, Front Seat Cushion, Lower LH
2004-08 → —
UCK35,45 —
71876A — Cover, Reclining Adjuster Inside, LH
71876-0C060-B0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 —
71876-0C060-E0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 —
71876-0C070-B0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71876-0C070-E0 note Cover, Reclining Adjuster Inside, LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0E020-B3 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 LIMD —
71875-0E020-B3 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71875-0E020-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → 2006-08 ended
UCK35,45 —
71875-0E020-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71875-0E020-E0 note Cover, Reclining Adjuster Inside, LH
2006-08 → —
UCK35,45 LIMD —
71876-AA050-B3 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71876-AA050-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71876C — Cover, Reclining Adjuster Inside, LH
71875-AA050-B3 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71875-AA050-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71876-AA090-B2 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 —
71876-AA090-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → 2006-08 ended
UCK35,45 —
71876-AA090-E0 note Cover, Reclining Adjuster Inside, LH
2004-08 → —
UCK35,45 SR5 —
71876-AA090-E0 note Cover, Reclining Adjuster Inside, LH
2006-08 → —
UCK35,45 LIMD —
71910A — Headrest Assy, Front Seat
71910-0C040-B0 note Headrest Assy, Front Seat
2000-09 → 2004-08 ended
UCK35,45 —
71910-0C040-E0 note Headrest Assy, Front Seat
2000-09 → 2004-08 ended
UCK35,45 —
71910-0C060-B0 note Headrest Assy, Front Seat
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71910-0C060-E0 note Headrest Assy, Front Seat
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71910-0C131-B1 note Headrest Assy, Front Seat
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71910-0C131-B1 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71910-0C131-B2 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71910-0C131-E0 note Headrest Assy, Front Seat
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71910-0C131-E1 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71910-0C141-B0 note Headrest Assy, Front Seat
2004-08 → —
UCK35,45 —
71910-0C141-E2 note Headrest Assy, Front Seat
2004-08 → —
UCK35,45 —
71910-0C320-B1 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71910-0C320-E1 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71931 — Support, Front Seat Headrest
71930-0C010-B1 note Support, Front Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71930-0C010-E0 note Support, Front Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71931-0C010-B1 note Support, Front Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71931-0C010-E0 note Support, Front Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71930-42020-B1 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71930-42020-B1 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 —
71930-42020-E0 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71930-42020-E0 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 —
71931-42020-B1 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71931-42020-B1 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 —
71931-42020-E0 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71931-42020-E0 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 —
72138G — Cover, Front Seat Track, LH Front Inner
72137-0C110-B0 note Cover, Front Seat Track, LH Front Inner
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C110-E0 note Cover, Front Seat Track, LH Front Inner
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C160-B0 note Cover, Front Seat Track, LH Front Inner
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C160-E0 note Cover, Front Seat Track, LH Front Inner
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C290-B0 note Cover, Front Seat Track, LH Front Inner
2004-08 → 2007-11 ended
UCK35,45 —
72137-0C290-E0 note Cover, Front Seat Track, LH Front Inner
2004-08 → 2007-11 ended
UCK35,45 —
72138H — Cover, Front Seat Track, LH Rear Inner
72137-0C140-B0 note Cover, Front Seat Track, LH Rear Inner
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C140-E0 note Cover, Front Seat Track, LH Rear Inner
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72137-0C170-B0 note Cover, Front Seat Track, LH Rear Inner
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C170-E0 note Cover, Front Seat Track, LH Rear Inner
2000-09 → 2004-08 ended
UCK35,45 —
72137-0C240-B0 note Cover, Front Seat Track, LH Rear Inner
2004-08 → 2007-11 ended
UCK35,45 SR5 —
72137-0C240-E0 note Cover, Front Seat Track, LH Rear Inner
2004-08 → 2006-08 ended
UCK35,45 SR5 —
72137-0C240-E0 note Cover, Front Seat Track, LH Rear Inner
2006-08 → 2007-11 ended
UCK35,45 SR5 —
72137-0C250-B0 note Cover, Front Seat Track, LH Rear Inner
2004-08 → 2007-11 ended
UCK35,45 —
72137-0C250-E0 note Cover, Front Seat Track, LH Rear Inner
2004-08 → 2007-11 ended
UCK35,45 —
72498 — Cover, Vertical Adjuster Bracket
72498-58010 Cover, Vertical Adjuster Bracket
2004-08 → —
UCK35,45 —
72498B — Cover, Vertical Adjuster Bracket, Outer
72497-58010 Cover, Vertical Adjuster Bracket, Outer
2004-08 → —
UCK35,45 —
72760D — Adjuster Assy, Lumbar Support, LH
72760-0C010 Adjuster Assy, Lumbar Support, LH
2000-09 → 2004-08 ended
UCK35,45 —
72760-0C030 Adjuster Assy, Lumbar Support, LH
2004-08 → —
UCK35,45 —
72890 — Armrest Assy, Seat, C LH
72820-0C040-B0 note Armrest Assy, Seat, C LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72820-0C040-E0 note Armrest Assy, Seat, C LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72820-0C050-B0 note Armrest Assy, Seat, C LH
2000-09 → 2004-08 ended
UCK35,45 —
72820-0C050-E0 note Armrest Assy, Seat, C LH
2000-09 → 2004-08 ended
UCK35,45 —
72820-0C090-B3 note Armrest Assy, Seat, C LH
2004-08 → —
UCK35,45 SR5 —
72820-0C090-E3 note Armrest Assy, Seat, C LH
2004-08 → —
UCK35,45 SR5 —
72820-0C100-B4 note Armrest Assy, Seat, C LH
2004-08 → —
UCK35,45 —
72820-0C100-E3 note Armrest Assy, Seat, C LH
2004-08 → —
UCK35,45 LIMD —
72820-0C100-E4 note Armrest Assy, Seat, C LH
2004-08 → —
UCK35,45 SR5 —
72820-0C100-E8 note Armrest Assy, Seat, C LH
2004-08 → —
UCK35,45 —
72820-0C150-B0 note Armrest Assy, Seat, C LH
2006-08 → —
UCK35,45 SR5 —
72820-0C150-E0 note Armrest Assy, Seat, C LH
2006-08 → —
UCK35,45 SR5 —
87510L — Heater Assy, Front Seat Cushion, LH
87510-34010 Heater Assy, Front Seat Cushion, LH
2000-09 → 2004-08 ended
UCK35,45 —
87510-0C010 Heater Assy, Front Seat Cushion, LH
2004-08 → —
UCK35,45 —
87510N — Heater Assy, Front Seatback, LH
87510-34020 Heater Assy, Front Seatback, LH
2000-09 → 2004-08 ended
UCK35,45 —
87510-0C020 Heater Assy, Front Seatback, LH
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
