Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

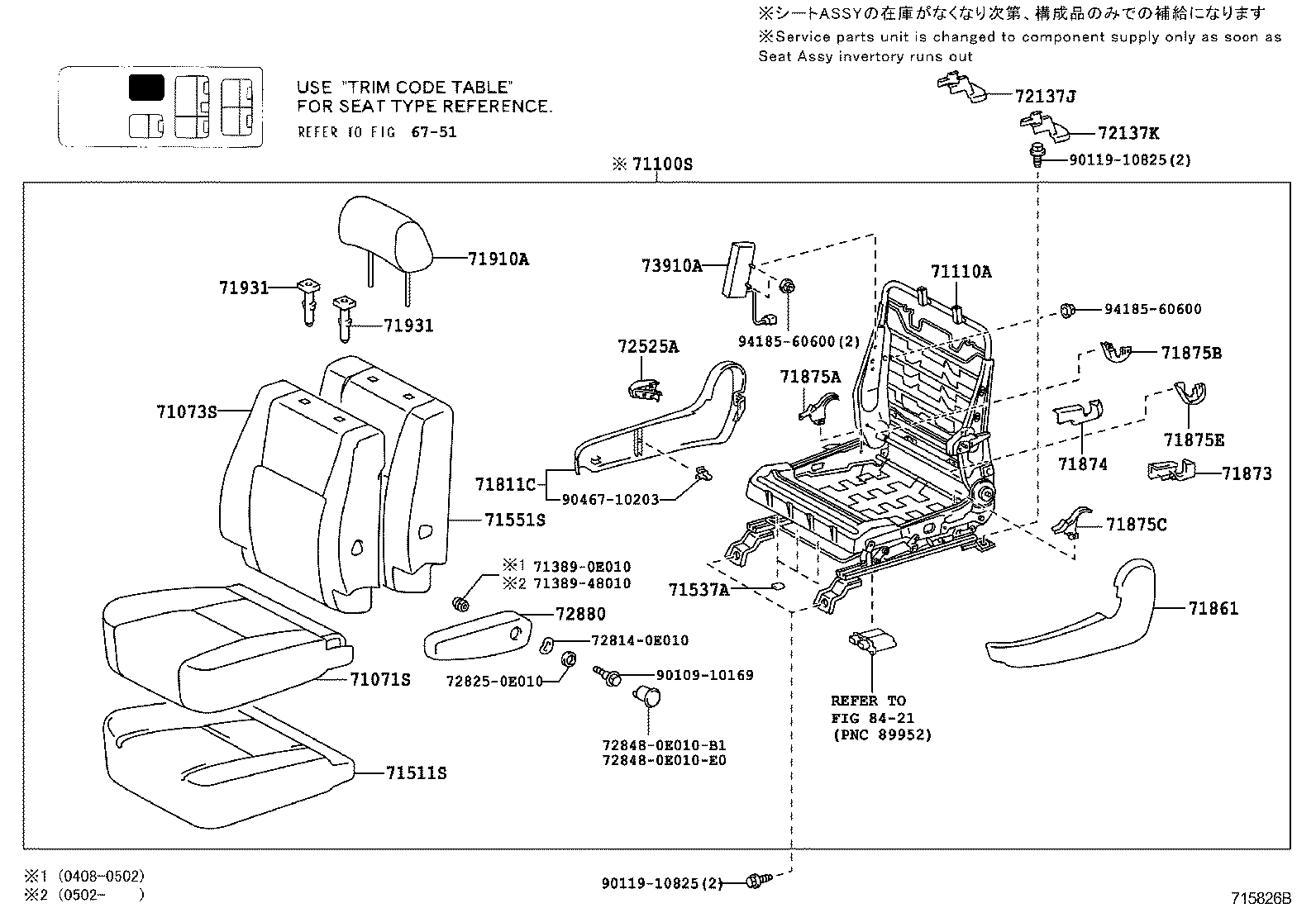

Exploded illustration 715826B 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (32 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (2 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (3 parts) 72880 — ARMREST ASSY, SEAT, C RH (12 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (26 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (7 parts) 728140E010 — not listed in this catalogue 8421 — not listed in this catalogue 9010910169 — not listed in this catalogue 728480E010B1 — not listed in this catalogue 728480E010E0 — not listed in this catalogue 728250E010 — not listed in this catalogue 713890E010 — not listed in this catalogue 7138948010 — not listed in this catalogue 6751 — not listed in this catalogue 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (10 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (5 parts) 71110A — FRAME ASSY, FRONT SEAT W/ADJUSTER, RH (5 parts) 71875C — COVER, RECLINING ADJUSTER INSIDE, RH (6 parts) 71875E — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (4 parts) 71811C — COVER, RECLINING ADJUSTER, RH (10 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (8 parts) 9011910825 — not listed in this catalogue 9011910825 — not listed in this catalogue 72137K — COVER, FRONT SEAT TRACK, RH REAR INNER (3 parts) 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (3 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (1 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (3 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (3 parts) 9046710203 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 71910A — HEADREST ASSY, FRONT SEAT (13 parts) 71100S — SEAT ASSY, FRONT RH (16 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (12 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (12 parts)
715826B · 23 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
185 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-0C090-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71071-0C090-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71071-0C100-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71071-0C100-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71071-0C110-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71071-0C110-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71071-0C120-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71071-0C120-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71071-0C220-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71071-0C220-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71071-0C220-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71071-0C220-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71071-0C230-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71071-0C230-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71071-0C230-E0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71071-0C230-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71071-0C240-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71071-0C240-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71071-0C250-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71071-0C250-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71071-0C250-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71071-0C250-E2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71071-0C540-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71071-0C540-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71071-0C550-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71071-0C550-E1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-0C080-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71073-0C080-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71073-0C090-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71073-0C090-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71073-0C100-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71073-0C100-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71073-0C110-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71073-0C110-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71073-0C120-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71073-0C120-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71073-0C130-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71073-0C130-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71073-0C230-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71073-0C230-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71073-0C240-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71073-0C240-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71073-0C240-E0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71073-0C240-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71073-0C250-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71073-0C250-E4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71073-0C260-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71073-0C260-E4 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71073-0C270-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71073-0C270-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 LIMD —
71073-0C270-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 LIMD —
71073-0C270-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71073-0C280-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71073-0C280-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71073-0C280-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71073-0C280-E3 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 LIMD —
71073-0C750-B1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71073-0C750-E1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2006-08 → —
UCK35,45 SR5 —
71100S — Seat Assy, Front RH
71100-0C250-B6 note Seat Assy, Front RH
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71100-0C250-B7 note Seat Assy, Front RH
2006-08 → —
UCK35,45 SR5 —
71100-0C250-E6 note Seat Assy, Front RH
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71100-0C250-E7 note Seat Assy, Front RH
2006-08 → —
UCK35,45 SR5 —
71100-0C270-B4 note Seat Assy, Front RH
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71100-0C270-B5 note Seat Assy, Front RH
2006-08 → —
UCK35,45 SR5 —
71100-0C270-E4 note Seat Assy, Front RH
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71100-0C270-E5 note Seat Assy, Front RH
2006-08 → —
UCK35,45 SR5 —
71100-0C290-B5 note Seat Assy, Front RH
2004-08 → —
UCK35,45 —
71100-0C290-E6 note Seat Assy, Front RH
2004-08 → —
UCK35,45 —
71100-0C310-B4 note Seat Assy, Front RH
2004-08 → —
UCK35,45 SR5 —
71100-0C310-E4 note Seat Assy, Front RH
2004-08 → —
UCK35,45 SR5 —
71100-0CA90-B1 note Seat Assy, Front RH
2006-08 → —
UCK35,45 SR5 —
71100-0CA90-E1 note Seat Assy, Front RH
2006-08 → —
UCK35,45 SR5 —
71100-0CB10-B1 note Seat Assy, Front RH
2006-08 → —
UCK35,45 SR5 —
71100-0CB10-E1 note Seat Assy, Front RH
2006-08 → —
UCK35,45 SR5 —
71110A — Frame Assy, Front Seat W/Adjuster, RH
71110-0C010 Frame Assy, Front Seat W/Adjuster, RH
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71110-0C020 note Frame Assy, Front Seat W/Adjuster, RH
2004-08 → 2007-11 ended
UCK35,45 SR5 —
71110-0C030 note Frame Assy, Front Seat W/Adjuster, RH
2004-08 → 2006-08 ended
UCK35,45 —
71110-0C040 note Frame Assy, Front Seat W/Adjuster, RH
2004-08 → 2006-12 ended
UCK35,45 —
71110-0C041 note Frame Assy, Front Seat W/Adjuster, RH
2007-01 → 2007-11 ended
UCK35,45 —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71051-0C080 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71051-0C090 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71051-0C100 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71511-0C090 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71511-0C100 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71511-0C130 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 SR5 —
71511-0C140 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2004-08 → —
UCK35,45 —
71537A — Protector, Front Seat Cushion
71537-AA020 Protector, Front Seat Cushion
2004-08 → —
UCK35,45 SR5 —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-0C040 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2000-09 → 2004-08 ended
UCK35,45 —
71551-0C090 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2006-08 ended
UCK35,45 —
71551-0C100 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2004-08 → 2007-11 ended
UCK35,45 —
71811C — Cover, Reclining Adjuster, RH
71805-0C010-B0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 —
71805-0C010-E0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 —
71805-AC010-B1 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71805-AC010-E1 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71811-0C020-B1 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71811-0C020-E0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71811-0C030-B0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 —
71811-0C030-E0 note Cover, Reclining Adjuster, RH
2000-09 → 2004-08 ended
UCK35,45 —
71811-AA090-B2 note Cover, Reclining Adjuster, RH
2004-08 → —
UCK35,45 SR5 —
71811-AA090-E0 note Cover, Reclining Adjuster, RH
2004-08 → —
UCK35,45 SR5 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-0C020-B1 note Shield, Front Seat Cushion, Inner RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71861-0C020-E0 note Shield, Front Seat Cushion, Inner RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71861-0C030-B0 note Shield, Front Seat Cushion, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
71861-0C030-E0 note Shield, Front Seat Cushion, Inner RH
2000-09 → 2004-08 ended
UCK35,45 —
71861-0C060-B0 note Shield, Front Seat Cushion, Inner RH
2004-08 → —
UCK35,45 —
71861-0C060-E0 note Shield, Front Seat Cushion, Inner RH
2004-08 → —
UCK35,45 —
71861-0C070-B0 note Shield, Front Seat Cushion, Inner RH
2004-08 → —
UCK35,45 SR5 —
71861-0C070-E0 note Shield, Front Seat Cushion, Inner RH
2004-08 → —
UCK35,45 SR5 —
71873 — Shield, Front Seat Cushion, Lower RH
71873-0C020-B0 note Shield, Front Seat Cushion, Lower RH
2000-09 → 2004-08 ended
UCK35,45 —
71873-0C020-E0 note Shield, Front Seat Cushion, Lower RH
2000-09 → 2004-08 ended
UCK35,45 —
71873-58020 Shield, Front Seat Cushion, Lower RH
2004-08 → —
UCK35,45 SR5 —
71874 — Shield, Front Seat Cushion, Lower LH
71874-0C010-B1 note Shield, Front Seat Cushion, Lower LH
2000-09 → 2004-08 ended
UCK35,45 —
71874-0C010-E0 note Shield, Front Seat Cushion, Lower LH
2000-09 → 2004-08 ended
UCK35,45 —
71874-58010 Shield, Front Seat Cushion, Lower LH
2004-08 → —
UCK35,45 SR5 —
71875A — Cover, Reclining Adjuster Inside, RH
71875-0C040-B0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
71875-0C040-E0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
71875-0C060-B0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0C060-E0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0E010-B2 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 —
71875-0E010-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71875-0E010-E0 note Cover, Reclining Adjuster Inside, RH
2006-08 → —
UCK35,45 LIMD —
71875-0E010-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → 2006-08 ended
UCK35,45 —
71875-AA050-B3 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71875-AA050-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71875B — Cover, Reclining Adjuster Inside, RH
71875-0C020-B1 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0C020-E0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71875-0C050-B0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
71875-0C050-E0 note Cover, Reclining Adjuster Inside, RH
2000-09 → 2004-08 ended
UCK35,45 —
71875-AA060 Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71875C — Cover, Reclining Adjuster Inside, RH
71875-AA090-B1 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 —
71875-AA090-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → 2006-08 ended
UCK35,45 —
71875-AA090-E0 note Cover, Reclining Adjuster Inside, RH
2006-08 → —
UCK35,45 LIMD —
71875-AA090-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71876-AA050-B3 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71876-AA050-E0 note Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71875E — Cover, Reclining Adjuster Inside, RH
71876-AA060 Cover, Reclining Adjuster Inside, RH
2004-08 → —
UCK35,45 SR5 —
71910A — Headrest Assy, Front Seat
71910-0C040-B0 note Headrest Assy, Front Seat
2000-09 → 2004-08 ended
UCK35,45 —
71910-0C040-E0 note Headrest Assy, Front Seat
2000-09 → 2004-08 ended
UCK35,45 —
71910-0C060-B0 note Headrest Assy, Front Seat
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71910-0C060-E0 note Headrest Assy, Front Seat
2000-09 → 2004-08 ended
UCK35,45 SR5 —
71910-0C131-B1 note Headrest Assy, Front Seat
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71910-0C131-B1 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71910-0C131-B2 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71910-0C131-E0 note Headrest Assy, Front Seat
2004-08 → 2006-08 ended
UCK35,45 SR5 —
71910-0C131-E1 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71910-0C141-B0 note Headrest Assy, Front Seat
2004-08 → —
UCK35,45 —
71910-0C141-E2 note Headrest Assy, Front Seat
2004-08 → —
UCK35,45 —
71910-0C320-B1 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71910-0C320-E1 note Headrest Assy, Front Seat
2006-08 → —
UCK35,45 SR5 —
71931 — Support, Front Seat Headrest
71930-0C010-B1 note Support, Front Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71930-0C010-E0 note Support, Front Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71931-0C010-B1 note Support, Front Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71931-0C010-E0 note Support, Front Seat Headrest
2000-09 → 2004-08 ended
UCK35,45 —
71930-42020-B1 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71930-42020-B1 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 —
71930-42020-E0 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71930-42020-E0 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 —
71931-42020-B1 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71931-42020-B1 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 —
71931-42020-E0 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 LIMD —
71931-42020-E0 note Support, Front Seat Headrest
2004-08 → —
UCK35,45 —
72137J — Cover, Front Seat Track, RH Rear Outer
72137-0C240-B0 note Cover, Front Seat Track, RH Rear Outer
2004-08 → 2007-11 ended
UCK35,45 SR5 —
72137-0C240-E0 note Cover, Front Seat Track, RH Rear Outer
2006-08 → 2007-11 ended
UCK35,45 SR5 —
72137-0C240-E0 note Cover, Front Seat Track, RH Rear Outer
2004-08 → 2006-08 ended
UCK35,45 SR5 —
72137K — Cover, Front Seat Track, RH Rear Inner
72137-0C240-B0 note Cover, Front Seat Track, RH Rear Inner
2004-08 → 2007-11 ended
UCK35,45 SR5 —
72137-0C240-E0 note Cover, Front Seat Track, RH Rear Inner
2004-08 → 2006-08 ended
UCK35,45 SR5 —
72137-0C240-E0 note Cover, Front Seat Track, RH Rear Inner
2006-08 → 2007-11 ended
UCK35,45 SR5 —
72525A — Handle, Reclining Adjuster Release, RH
72525-16010-B8 note Handle, Reclining Adjuster Release, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72525-16010-E2 note Handle, Reclining Adjuster Release, RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72525-AA040-B4 note Handle, Reclining Adjuster Release, RH
2004-08 → —
UCK35,45 SR5 —
72525-AA040-E0 note Handle, Reclining Adjuster Release, RH
2004-08 → —
UCK35,45 SR5 —
72880 — Armrest Assy, Seat, C RH
72810-0C090-B0 note Armrest Assy, Seat, C RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72810-0C090-E0 note Armrest Assy, Seat, C RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
72810-0C100-B0 note Armrest Assy, Seat, C RH
2000-09 → 2004-08 ended
UCK35,45 —
72810-0C100-E0 note Armrest Assy, Seat, C RH
2000-09 → 2004-08 ended
UCK35,45 —
72810-0C170-B3 note Armrest Assy, Seat, C RH
2004-08 → —
UCK35,45 SR5 —
72810-0C170-E3 note Armrest Assy, Seat, C RH
2004-08 → —
UCK35,45 SR5 —
72810-0C180-B4 note Armrest Assy, Seat, C RH
2004-08 → —
UCK35,45 —
72810-0C180-E3 note Armrest Assy, Seat, C RH
2004-08 → —
UCK35,45 LIMD —
72810-0C180-E4 note Armrest Assy, Seat, C RH
2004-08 → —
UCK35,45 SR5 —
72810-0C180-E8 note Armrest Assy, Seat, C RH
2004-08 → —
UCK35,45 —
72810-0C260-B0 note Armrest Assy, Seat, C RH
2006-08 → —
UCK35,45 SR5 —
72810-0C260-E0 note Armrest Assy, Seat, C RH
2006-08 → —
UCK35,45 SR5 —
73910A — Airbag Assy, Front Seat, RH
73910-0C010 Airbag Assy, Front Seat, RH
2004-08 → 2006-04 ended
UCK35,45 —
73910-0C011 Airbag Assy, Front Seat, RH
2006-05 → 2007-11 ended
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
