Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

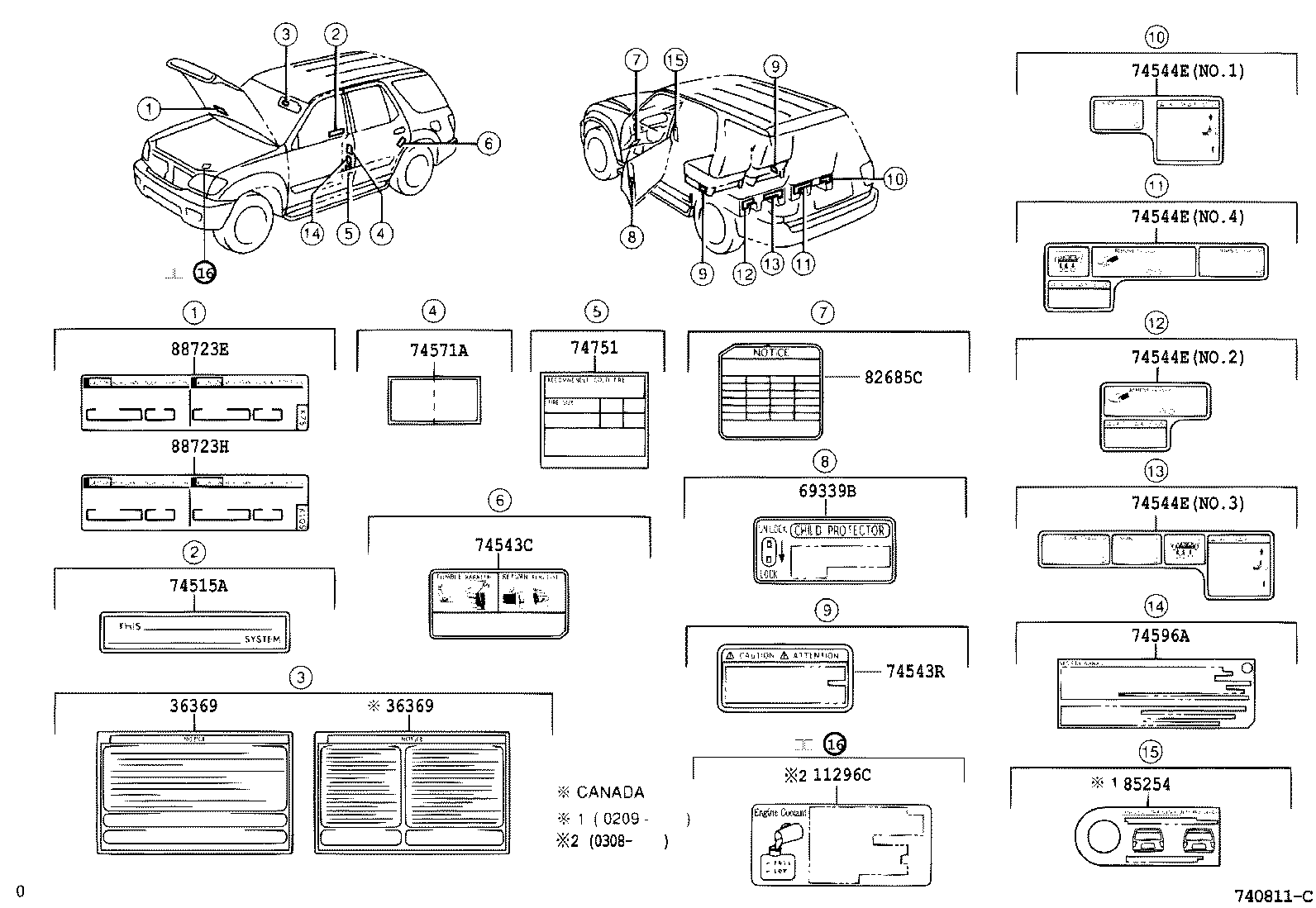

Exploded illustration 740811C 74544E — LABEL, REAR NO.2 SEAT INFORMATION (26 parts) 88723E — LABEL, COOLER SERVICE CAUTION (2 parts) 88723H — LABEL, COOLER SERVICE CAUTION (2 parts) 74515A — PLATE, THEFT WARNING (3 parts) 36369 — LABEL, TRANSFER INFORMATION (6 parts) 36369 — LABEL, TRANSFER INFORMATION (6 parts) 74543C — LABEL, REAR SEAT INFORMATION (2 parts) 74751 — LABEL, TIRE PRESSURE INFORMATION (5 parts) 74571A — FILM, LABEL COVER (2 parts) 82685C — PLATE, CAUTION (3 parts) 69339B — PLATE, CHILD PROTECTOR LOCK CAUTION (2 parts) 74544E — LABEL, REAR NO.2 SEAT INFORMATION (26 parts) 74544E — LABEL, REAR NO.2 SEAT INFORMATION (26 parts) 85254 — LABEL, REAR WIPER INFORMATION (3 parts) 74596A — LABEL, SIDE AIRBAG CAUTION (2 parts) 74544E — LABEL, REAR NO.2 SEAT INFORMATION (26 parts) 74543R — LABEL, REAR SEAT CAUTION (2 parts) 11296C — LABEL, ENGINE SERVICE INFORMATION (2 parts)
740811C · 18 callouts Full size ↗
62 parts on this figure
Part number Description Fitment Price
11296C — Label, Engine Service Information
11296-27020 Label, Engine Service Information
2003-08 → 2004-08 ended
2UZFE UCK35,45 —
11296-27020 Label, Engine Service Information
2004-08 → 2007-08 ended
2UZFE UCK35,45 —
36369 — Label, Transfer Information
36369-34030 Label, Transfer Information
2000-09 → 2002-09 ended
UCK45 4HC —
36369-34040 note Label, Transfer Information
2000-09 → 2002-09 ended
UCK45 4HC —
36369-35490 Label, Transfer Information
2002-09 → 2004-08 ended
UCK45 —
36369-35500 note Label, Transfer Information
2002-09 → 2004-08 ended
UCK45 —
36369-35550 note Label, Transfer Information
2004-08 → —
UCK45 —
36369-35570 Label, Transfer Information
2004-08 → —
UCK45 —
69339B — Plate, Child Protector Lock Caution
69339-03010 Plate, Child Protector Lock Caution
2000-09 → 2004-08 ended
UCK35,45 —
69339-03010 Plate, Child Protector Lock Caution
2004-08 → —
UCK35,45 —
74515A — Plate, Theft Warning
74515-08010 Plate, Theft Warning
2003-03 → 2004-08 ended
UCK35,45 —
74515-14010 Plate, Theft Warning
2000-09 → 2003-03 ended
UCK35,45 4HC —
74515-08010 Plate, Theft Warning
2004-08 → —
UCK35,45 —
74543C — Label, Rear Seat Information
74543-0C010 Label, Rear Seat Information
2000-09 → 2004-08 ended
UCK35,45 —
74543-0C010 Label, Rear Seat Information
2004-08 → —
UCK35,45 —
74543R — Label, Rear Seat Caution
74543-08010 Label, Rear Seat Caution
2000-09 → 2004-08 ended
UCK35,45 —
74543-08010 Label, Rear Seat Caution
2004-08 → —
UCK35,45 —
74544E — Label, Rear NO.2 Seat Information
74544-08020-B1 note Label, Rear NO.2 Seat Information
2000-09 → 2002-02 ended
UCK35,45 —
74544-08020-E0 note Label, Rear NO.2 Seat Information
2000-09 → 2002-01 ended
UCK35,45 —
74544-08050-B1 note Label, Rear NO.2 Seat Information
2000-09 → 2002-02 ended
UCK35,45 —
74544-08050-E0 note Label, Rear NO.2 Seat Information
2000-09 → 2002-01 ended
UCK35,45 —
74544-0C010 note Label, Rear NO.2 Seat Information
2002-01 → 2002-02 ended
UCK35,45 —
74544-0C010-B0 note Label, Rear NO.2 Seat Information
2000-09 → 2002-01 ended
UCK35,45 —
74544-0C010-E0 note Label, Rear NO.2 Seat Information
2000-09 → 2002-01 ended
UCK35,45 —
74544-0C020 note Label, Rear NO.2 Seat Information
2002-01 → 2002-02 ended
UCK35,45 —
74544-0C020-B0 note Label, Rear NO.2 Seat Information
2000-09 → 2002-01 ended
UCK35,45 —
74544-0C020-E0 note Label, Rear NO.2 Seat Information
2000-09 → 2002-01 ended
UCK35,45 —
74544-0C030-B0 note Label, Rear NO.2 Seat Information
2002-02 → 2004-08 ended
UCK35,45 —
74544-0C030-E0 note Label, Rear NO.2 Seat Information
2002-02 → 2004-08 ended
UCK35,45 —
74544-0C040-B0 note Label, Rear NO.2 Seat Information
2002-02 → 2004-08 ended
UCK35,45 —
74544-0C040-E0 note Label, Rear NO.2 Seat Information
2002-02 → 2004-08 ended
UCK35,45 —
74544-0C050-B0 note Label, Rear NO.2 Seat Information
2002-02 → 2004-08 ended
UCK35,45 —
74544-0C050-E0 note Label, Rear NO.2 Seat Information
2002-02 → 2004-08 ended
UCK35,45 —
74544-0C060-B0 note Label, Rear NO.2 Seat Information
2002-02 → 2004-08 ended
UCK35,45 —
74544-0C060-E0 note Label, Rear NO.2 Seat Information
2002-02 → 2004-08 ended
UCK35,45 —
74544-0C040-B0 note Label, Rear NO.2 Seat Information
2004-08 → —
UCK35,45 —
74544-0C040-E1 note Label, Rear NO.2 Seat Information
2004-08 → —
UCK35,45 —
74544-0C050-B0 note Label, Rear NO.2 Seat Information
2004-08 → —
UCK35,45 —
74544-0C050-E1 note Label, Rear NO.2 Seat Information
2004-08 → —
UCK35,45 —
74544-0C070-B0 note Label, Rear NO.2 Seat Information
2004-08 → —
UCK35,45 —
74544-0C070-E0 note Label, Rear NO.2 Seat Information
2004-08 → —
UCK35,45 —
74544-0C080-B0 note Label, Rear NO.2 Seat Information
2004-08 → —
UCK35,45 —
74544-0C080-E0 note Label, Rear NO.2 Seat Information
2004-08 → —
UCK35,45 —
74571A — Film, Label Cover
74571-28020 Film, Label Cover
2000-09 → 2001-05 ended
UCK35,45 4HC —
74571-35020 Film, Label Cover
2001-05 → 2004-08 ended
UCK35,45 —
74596A — Label, Side Airbag Caution
74596-02010 Label, Side Airbag Caution
2000-09 → 2004-08 ended
UCK35,45 —
74596-02010 Label, Side Airbag Caution
2004-08 → —
UCK35,45 —
74751 — Label, Tire Pressure Information
42661-0C040 Label, Tire Pressure Information
2000-09 → 2002-09 ended
UCK35 4HC SR5 —
42661-0C050 Label, Tire Pressure Information
2000-09 → 2002-09 ended
UCK45 4HC;UCK35 4HC LIMD —
42661-0C080 note Label, Tire Pressure Information
2002-09 → 2004-08 ended
UCK35,45 LIMD —
42661-0C090 note Label, Tire Pressure Information
2002-09 → 2004-08 ended
UCK45 SR5 —
42661-0C100 note Label, Tire Pressure Information
2002-09 → 2004-08 ended
UCK35 SR5 —
82685C — Plate, Caution
82683-0C020 Plate, Caution
2000-09 → 2002-09 ended
UCK35,45 4HC —
82683-0C021 Plate, Caution
2002-09 → 2004-08 ended
UCK35,45 —
82683-0C021 Plate, Caution
2004-08 → —
UCK35,45 —
85254 — Label, Rear Wiper Information
85254-34010 Label, Rear Wiper Information
2002-09 → 2003-08 ended
UCK35,45 4HC —
85254-34020 Label, Rear Wiper Information
2003-08 → 2004-08 ended
UCK35,45 —
85254-34020 Label, Rear Wiper Information
2004-08 → —
UCK35,45 —
88723E — Label, Cooler Service Caution
88723-0C030 Label, Cooler Service Caution
2000-09 → 2004-08 ended
UCK35,45 SR5 —
88723-0C030 Label, Cooler Service Caution
2004-08 → —
UCK35,45 SR5 —
88723H — Label, Cooler Service Caution
88723-0C040 Label, Cooler Service Caution
2000-09 → 2004-08 ended
UCK35,45 —
88723-0C040 Label, Cooler Service Caution
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
