Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

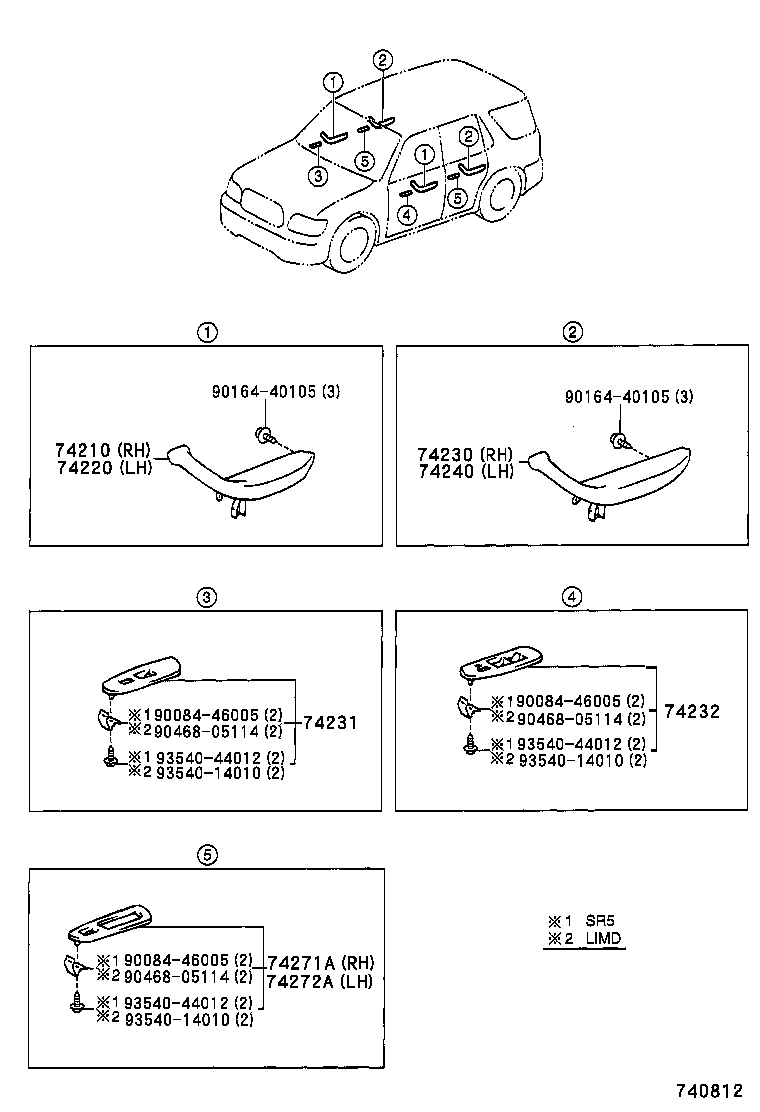

Exploded illustration 740812 9016440105 — not listed in this catalogue 9016440105 — not listed in this catalogue 74210 — ARMREST ASSY, FRONT, RH (6 parts) 74230 — ARMREST ASSY, REAR, RH (4 parts) 74220 — ARMREST ASSY, FRONT, LH (6 parts) 74240 — ARMREST ASSY, REAR, LH (4 parts) 9008446005 — not listed in this catalogue 74232 — PANEL, FRONT ARMREST BASE, UPPER LH (9 parts) 9008446005 — not listed in this catalogue 9046805114 — not listed in this catalogue 74231 — PANEL, FRONT ARMREST BASE, UPPER RH (9 parts) 9046805114 — not listed in this catalogue 9354044012 — not listed in this catalogue 9354044012 — not listed in this catalogue 9354014010 — not listed in this catalogue 9354014010 — not listed in this catalogue 9008446005 — not listed in this catalogue 74271A — PANEL, REAR DOOR ARMREST BASE, UPPER RH (9 parts) 9046805114 — not listed in this catalogue 74272A — PANEL, REAR DOOR ARMREST BASE, UPPER LH (9 parts) 9354044012 — not listed in this catalogue 9354014010 — not listed in this catalogue
740812 · 8 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
74210 — Armrest Assy, Front, RH
74210-0C010-B0 note Armrest Assy, Front, RH
2000-09 → 2004-01 ended
UCK35,45 —
74210-0C010-E0 note Armrest Assy, Front, RH
2000-09 → 2004-01 ended
UCK35,45 —
74210-0C011-B0 note Armrest Assy, Front, RH
2004-08 → —
UCK35,45 —
74210-0C011-B0 note Armrest Assy, Front, RH
2004-01 → 2004-08 ended
UCK35,45 —
74210-0C011-E0 note Armrest Assy, Front, RH
2004-01 → 2004-08 ended
UCK35,45 —
74210-0C011-E2 note Armrest Assy, Front, RH
2004-08 → —
UCK35,45 —
74220 — Armrest Assy, Front, LH
74220-0C010-B0 note Armrest Assy, Front, LH
2000-09 → 2004-01 ended
UCK35,45 —
74220-0C010-E0 note Armrest Assy, Front, LH
2000-09 → 2004-01 ended
UCK35,45 —
74220-0C011-B0 note Armrest Assy, Front, LH
2004-01 → 2004-08 ended
UCK35,45 —
74220-0C011-B0 note Armrest Assy, Front, LH
2004-08 → —
UCK35,45 —
74220-0C011-E0 note Armrest Assy, Front, LH
2004-01 → 2004-08 ended
UCK35,45 —
74220-0C011-E2 note Armrest Assy, Front, LH
2004-08 → —
UCK35,45 —
74230 — Armrest Assy, Rear, RH
74250-0C020-B0 note Armrest Assy, Rear, RH
2000-09 → 2004-08 ended
UCK35,45 —
74250-0C020-B0 note Armrest Assy, Rear, RH
2004-08 → —
UCK35,45 —
74250-0C020-E0 note Armrest Assy, Rear, RH
2000-09 → 2004-08 ended
UCK35,45 —
74250-0C020-E1 note Armrest Assy, Rear, RH
2004-08 → —
UCK35,45 —
74231 — Panel, Front Armrest Base, Upper RH
74201-0C030-B1 note Panel, Front Armrest Base, Upper RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
74201-0C030-E1 note Panel, Front Armrest Base, Upper RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
74201-34010 Panel, Front Armrest Base, Upper RH
2000-09 → 2001-08 ended
UCK35,45 LIMD —
74201-34011-B1 note Panel, Front Armrest Base, Upper RH
2001-08 → 2004-08 ended
UCK35,45 LIMD —
74201-34011-E1 note Panel, Front Armrest Base, Upper RH
2001-08 → 2004-08 ended
UCK35,45 LIMD —
74201-0C030-B1 note Panel, Front Armrest Base, Upper RH
2004-08 → —
UCK35,45 SR5 —
74201-0C030-E2 note Panel, Front Armrest Base, Upper RH
2004-08 → —
UCK35,45 SR5 —
74201-0C060 Panel, Front Armrest Base, Upper RH
2004-08 → —
UCK35,45 LIMD —
74201-34011-B1 note Panel, Front Armrest Base, Upper RH
2004-08 → —
UCK35,45 LIMD —
74232 — Panel, Front Armrest Base, Upper LH
74202-0C030-B1 note Panel, Front Armrest Base, Upper LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
74202-0C030-E1 note Panel, Front Armrest Base, Upper LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
74202-34010 Panel, Front Armrest Base, Upper LH
2000-09 → 2001-08 ended
UCK35,45 LIMD —
74202-34011-B1 note Panel, Front Armrest Base, Upper LH
2001-08 → 2004-08 ended
UCK35,45 LIMD —
74202-34011-E1 note Panel, Front Armrest Base, Upper LH
2001-08 → 2004-08 ended
UCK35,45 LIMD —
74202-0C030-B1 note Panel, Front Armrest Base, Upper LH
2004-08 → —
UCK35,45 SR5 —
74202-0C030-E2 note Panel, Front Armrest Base, Upper LH
2004-08 → —
UCK35,45 SR5 —
74202-0C060 Panel, Front Armrest Base, Upper LH
2004-08 → —
UCK35,45 LIMD —
74202-34011-B1 note Panel, Front Armrest Base, Upper LH
2004-08 → —
UCK35,45 LIMD —
74240 — Armrest Assy, Rear, LH
74260-0C020-B0 note Armrest Assy, Rear, LH
2000-09 → 2004-08 ended
UCK35,45 —
74260-0C020-B0 note Armrest Assy, Rear, LH
2004-08 → —
UCK35,45 —
74260-0C020-E0 note Armrest Assy, Rear, LH
2000-09 → 2004-08 ended
UCK35,45 —
74260-0C020-E1 note Armrest Assy, Rear, LH
2004-08 → —
UCK35,45 —
74271A — Panel, Rear Door Armrest Base, Upper RH
74203-0C010-B1 note Panel, Rear Door Armrest Base, Upper RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
74203-0C010-E1 note Panel, Rear Door Armrest Base, Upper RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
74203-34010 Panel, Rear Door Armrest Base, Upper RH
2000-09 → 2001-08 ended
UCK35,45 LIMD —
74203-34011-B1 note Panel, Rear Door Armrest Base, Upper RH
2001-08 → 2004-08 ended
UCK35,45 LIMD —
74203-34011-E1 note Panel, Rear Door Armrest Base, Upper RH
2001-08 → 2004-08 ended
UCK35,45 LIMD —
74203-0C010-B1 note Panel, Rear Door Armrest Base, Upper RH
2004-08 → —
UCK35,45 SR5 —
74203-0C010-E2 note Panel, Rear Door Armrest Base, Upper RH
2004-08 → —
UCK35,45 SR5 —
74203-0C040 Panel, Rear Door Armrest Base, Upper RH
2004-08 → —
UCK35,45 LIMD —
74203-34011-B1 note Panel, Rear Door Armrest Base, Upper RH
2004-08 → —
UCK35,45 LIMD —
74272A — Panel, Rear Door Armrest Base, Upper LH
74204-0C010-B1 note Panel, Rear Door Armrest Base, Upper LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
74204-0C010-E1 note Panel, Rear Door Armrest Base, Upper LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
74204-34010 Panel, Rear Door Armrest Base, Upper LH
2000-09 → 2001-08 ended
UCK35,45 LIMD —
74204-34011-B1 note Panel, Rear Door Armrest Base, Upper LH
2001-08 → 2004-08 ended
UCK35,45 LIMD —
74204-34011-E1 note Panel, Rear Door Armrest Base, Upper LH
2001-08 → 2004-08 ended
UCK35,45 LIMD —
74204-0C010-B1 note Panel, Rear Door Armrest Base, Upper LH
2004-08 → —
UCK35,45 SR5 —
74204-0C010-E2 note Panel, Rear Door Armrest Base, Upper LH
2004-08 → —
UCK35,45 SR5 —
74204-0C040 Panel, Rear Door Armrest Base, Upper LH
2004-08 → —
UCK35,45 LIMD —
74204-34011-B1 note Panel, Rear Door Armrest Base, Upper LH
2004-08 → —
UCK35,45 LIMD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
