Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

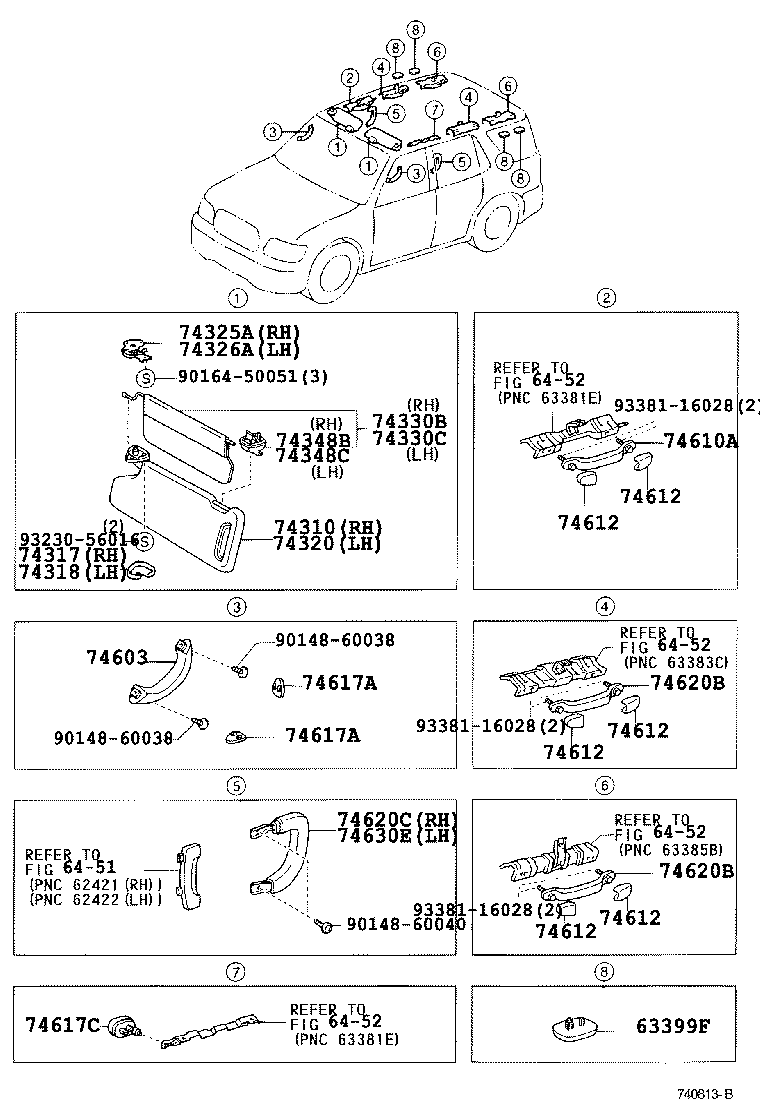

Exploded illustration 740813B 74603 — GRIP SUB-ASSY, ASSIST, FRONT (4 parts) 74617A — PLUG, ASSIST GRIP (8 parts) 74617A — PLUG, ASSIST GRIP (8 parts) 74612 — COVER, ASSIST GRIP (6 parts) 74612 — COVER, ASSIST GRIP (6 parts) 74612 — COVER, ASSIST GRIP (6 parts) 74612 — COVER, ASSIST GRIP (6 parts) 74612 — COVER, ASSIST GRIP (6 parts) 74612 — COVER, ASSIST GRIP (6 parts) 74610A — GRIP SUB-ASSY, ASSIST (4 parts) 74620B — GRIP ASSY, ASSIST, REAR (6 parts) 74620B — GRIP ASSY, ASSIST, REAR (6 parts) 63399F — CLIP, ROOF HEADLINING (2 parts) 6452 — not listed in this catalogue 6452 — not listed in this catalogue 6452 — not listed in this catalogue 74620C — GRIP ASSY, ASSIST, REAR RH (4 parts) 74630E — GRIP ASSY, ASSIST, REAR LH (4 parts) 74617C — PLUG, ASSIST GRIP (4 parts) 6451 — not listed in this catalogue 9014860040 — not listed in this catalogue 9014860038 — not listed in this catalogue 9014860038 — not listed in this catalogue 74310 — VISOR ASSY, RH (14 parts) 74320 — VISOR ASSY, LH (14 parts) 74317 — COVER, VISOR BRACKET, RH (4 parts) 74318 — COVER, VISOR BRACKET, LH (4 parts) 74348B — HOLDER, VISOR, RH (4 parts) 74348C — HOLDER, VISOR, LH (4 parts) 74330B — VISOR ASSY, RH (6 parts) 74330C — VISOR ASSY, LH (6 parts) 9016450051 — not listed in this catalogue 9323056016 — not listed in this catalogue 74325A — SUPPORT, FRONT VISOR, NO.1 (2 parts) 74326A — SUPPORT, FRONT VISOR, NO.2 (2 parts) 6452 — not listed in this catalogue 9338116028 — not listed in this catalogue 9338116028 — not listed in this catalogue 9338116028 — not listed in this catalogue
740813B · 26 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
102 parts on this figure
Part number Description Fitment Price
63399F — Clip, Roof Headlining
63399-0C010-B0 note Clip, Roof Headlining
2000-09 → 2004-08 ended
UCK35,45 —
63399-0C010-E0 note Clip, Roof Headlining
2000-09 → 2004-08 ended
UCK35,45 —
74310 — Visor Assy, RH
74310-0C010-B0 note Visor Assy, RH
2000-09 → 2004-02 ended
UCK35,45 SR5 —
74310-0C010-B0 note Visor Assy, RH
2004-02 → 2004-08 ended
UCK35,45 SR5 —
74310-0C010-E0 note Visor Assy, RH
2000-09 → 2004-02 ended
UCK35,45 SR5 —
74310-0C010-E0 note Visor Assy, RH
2004-02 → 2004-08 ended
UCK35,45 SR5 —
74310-0C020-B0 note Visor Assy, RH
2000-09 → 2001-09 ended
UCK35,45 LIMD —
74310-0C020-E0 note Visor Assy, RH
2000-09 → 2001-09 ended
UCK35,45 LIMD —
74310-0C021-B0 note Visor Assy, RH
2001-09 → 2004-02 ended
UCK35,45 LIMD —
74310-0C021-B0 note Visor Assy, RH
2004-02 → 2004-08 ended
UCK35,45 LIMD —
74310-0C021-E0 note Visor Assy, RH
2001-09 → 2004-02 ended
UCK35,45 LIMD —
74310-0C021-E0 note Visor Assy, RH
2004-02 → 2004-08 ended
UCK35,45 LIMD —
74310-0C030-B4 note Visor Assy, RH
2004-08 → —
UCK35,45 SR5 —
74310-0C030-E2 note Visor Assy, RH
2004-08 → —
UCK35,45 SR5 —
74310-0C040-B4 note Visor Assy, RH
2004-08 → —
UCK35,45 LIMD —
74310-0C040-E2 note Visor Assy, RH
2004-08 → —
UCK35,45 LIMD —
74317 — Cover, Visor Bracket, RH
74317-0C010-B0 note Cover, Visor Bracket, RH
2000-09 → 2004-08 ended
UCK35,45 —
74317-0C010-E0 note Cover, Visor Bracket, RH
2000-09 → 2004-08 ended
UCK35,45 —
74317-0C010-B0 note Cover, Visor Bracket, RH
2004-08 → —
UCK35,45 —
74317-0C010-E1 note Cover, Visor Bracket, RH
2004-08 → —
UCK35,45 —
74318 — Cover, Visor Bracket, LH
74318-0C010-B0 note Cover, Visor Bracket, LH
2000-09 → 2004-08 ended
UCK35,45 —
74318-0C010-E0 note Cover, Visor Bracket, LH
2000-09 → 2004-08 ended
UCK35,45 —
74318-0C010-B0 note Cover, Visor Bracket, LH
2004-08 → —
UCK35,45 —
74318-0C010-E1 note Cover, Visor Bracket, LH
2004-08 → —
UCK35,45 —
74320 — Visor Assy, LH
74320-0C010-B0 note Visor Assy, LH
2000-09 → 2004-02 ended
UCK35,45 SR5 —
74320-0C010-B0 note Visor Assy, LH
2004-02 → 2004-08 ended
UCK35,45 SR5 —
74320-0C010-E0 note Visor Assy, LH
2000-09 → 2004-02 ended
UCK35,45 SR5 —
74320-0C010-E0 note Visor Assy, LH
2004-02 → 2004-08 ended
UCK35,45 SR5 —
74320-0C020-B0 note Visor Assy, LH
2000-09 → 2001-09 ended
UCK35,45 LIMD —
74320-0C020-E0 note Visor Assy, LH
2000-09 → 2001-09 ended
UCK35,45 LIMD —
74320-0C021-B0 note Visor Assy, LH
2001-09 → 2004-02 ended
UCK35,45 LIMD —
74320-0C021-B0 note Visor Assy, LH
2004-02 → 2004-08 ended
UCK35,45 LIMD —
74320-0C021-E0 note Visor Assy, LH
2004-02 → 2004-08 ended
UCK35,45 LIMD —
74320-0C021-E0 note Visor Assy, LH
2001-09 → 2004-02 ended
UCK35,45 LIMD —
74320-0C030-B4 note Visor Assy, LH
2004-08 → —
UCK35,45 SR5 —
74320-0C030-E2 note Visor Assy, LH
2004-08 → —
UCK35,45 SR5 —
74320-0C040-B4 note Visor Assy, LH
2004-08 → —
UCK35,45 LIMD —
74320-0C040-E2 note Visor Assy, LH
2004-08 → —
UCK35,45 LIMD —
74325A — Support, Front Visor, NO.1
74325-0C020 Support, Front Visor, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
74325-0C020 Support, Front Visor, NO.1
2004-08 → —
UCK35,45 —
74326A — Support, Front Visor, NO.2
74326-0C020 Support, Front Visor, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
74326-0C020 Support, Front Visor, NO.2
2004-08 → —
UCK35,45 —
74330B — Visor Assy, RH
74330-0C010-B0 note Visor Assy, RH
2000-09 → 2004-02 ended
UCK35,45 LIMD —
74330-0C010-B0 note Visor Assy, RH
2004-02 → 2004-08 ended
UCK35,45 LIMD —
74330-0C010-E0 note Visor Assy, RH
2000-09 → 2004-02 ended
UCK35,45 LIMD —
74330-0C010-E0 note Visor Assy, RH
2004-02 → 2004-08 ended
UCK35,45 LIMD —
74330-0C010-B7 note Visor Assy, RH
2004-08 → —
UCK35,45 LIMD —
74330-0C010-E6 note Visor Assy, RH
2004-08 → —
UCK35,45 LIMD —
74330C — Visor Assy, LH
74330-0C020-B0 note Visor Assy, LH
2000-09 → 2004-02 ended
UCK35,45 LIMD —
74330-0C020-B0 note Visor Assy, LH
2004-02 → 2004-08 ended
UCK35,45 LIMD —
74330-0C020-E0 note Visor Assy, LH
2004-02 → 2004-08 ended
UCK35,45 LIMD —
74330-0C020-E0 note Visor Assy, LH
2000-09 → 2004-02 ended
UCK35,45 LIMD —
74330-0C020-B7 note Visor Assy, LH
2004-08 → —
UCK35,45 LIMD —
74330-0C020-E6 note Visor Assy, LH
2004-08 → —
UCK35,45 LIMD —
74348B — Holder, Visor, RH
74348-0C010-B0 note Holder, Visor, RH
2000-09 → 2004-08 ended
UCK35,45 —
74348-0C010-E0 note Holder, Visor, RH
2000-09 → 2004-08 ended
UCK35,45 —
74348-0C010-B0 note Holder, Visor, RH
2004-08 → —
UCK35,45 —
74348-0C010-E1 note Holder, Visor, RH
2004-08 → —
UCK35,45 —
74348C — Holder, Visor, LH
74348-0C020-B0 note Holder, Visor, LH
2000-09 → 2004-08 ended
UCK35,45 —
74348-0C020-E0 note Holder, Visor, LH
2000-09 → 2004-08 ended
UCK35,45 —
74348-0C020-B0 note Holder, Visor, LH
2004-08 → —
UCK35,45 —
74348-0C020-E1 note Holder, Visor, LH
2004-08 → —
UCK35,45 —
74603 — Grip Sub-assy, Assist, Front
74610-0C050-B0 note Grip Sub-assy, Assist, Front
2000-09 → 2004-08 ended
UCK35,45 —
74610-0C050-E0 note Grip Sub-assy, Assist, Front
2000-09 → 2004-08 ended
UCK35,45 —
74610-0C050-B0 note Grip Sub-assy, Assist, Front
2004-08 → —
UCK35,45 —
74610-0C050-E1 note Grip Sub-assy, Assist, Front
2004-08 → —
UCK35,45 —
74610A — Grip Sub-assy, Assist
74610-0C060-B0 note Grip Sub-assy, Assist
2000-09 → 2004-08 ended
UCK35,45 —
74610-0C060-E0 note Grip Sub-assy, Assist
2000-09 → 2004-08 ended
UCK35,45 —
74610-0C060-B0 note Grip Sub-assy, Assist
2004-08 → —
UCK35,45 —
74610-0C060-E1 note Grip Sub-assy, Assist
2004-08 → —
UCK35,45 —
74612 — Cover, Assist Grip
74612-0C080-B0 note Cover, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74612-0C080-B0 note Cover, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74612-0C080-E0 note Cover, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74612-0C080-E0 note Cover, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74612-0C080-B0 note Cover, Assist Grip
2004-08 → —
UCK35,45 —
74612-0C080-E1 note Cover, Assist Grip
2004-08 → —
UCK35,45 —
74617A — Plug, Assist Grip
74617-0C040-B0 note Plug, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74617-0C040-E0 note Plug, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74617-0C050-B0 note Plug, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74617-0C050-E0 note Plug, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74617-0C040-B0 note Plug, Assist Grip
2004-08 → —
UCK35,45 —
74617-0C040-E1 note Plug, Assist Grip
2004-08 → —
UCK35,45 —
74617-0C050-B0 note Plug, Assist Grip
2004-08 → —
UCK35,45 —
74617-0C050-E1 note Plug, Assist Grip
2004-08 → —
UCK35,45 —
74617C — Plug, Assist Grip
74617-0C060-B0 note Plug, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74617-0C060-E0 note Plug, Assist Grip
2000-09 → 2004-08 ended
UCK35,45 —
74617-0C060-B0 note Plug, Assist Grip
2004-08 → —
UCK35,45 —
74617-0C060-E1 note Plug, Assist Grip
2004-08 → —
UCK35,45 —
74620B — Grip Assy, Assist, Rear
74610-0C070-B0 note Grip Assy, Assist, Rear
2000-09 → 2004-08 ended
UCK35,45 —
74610-0C070-B0 note Grip Assy, Assist, Rear
2000-09 → 2004-08 ended
UCK35,45 —
74610-0C070-E0 note Grip Assy, Assist, Rear
2000-09 → 2004-08 ended
UCK35,45 —
74610-0C070-E0 note Grip Assy, Assist, Rear
2000-09 → 2004-08 ended
UCK35,45 —
74610-0C070-B0 note Grip Assy, Assist, Rear
2004-08 → —
UCK35,45 —
74610-0C070-E1 note Grip Assy, Assist, Rear
2004-08 → —
UCK35,45 —
74620C — Grip Assy, Assist, Rear RH
74620-0C010-B0 note Grip Assy, Assist, Rear RH
2000-09 → 2004-08 ended
UCK35,45 —
74620-0C010-E0 note Grip Assy, Assist, Rear RH
2000-09 → 2004-08 ended
UCK35,45 —
74620-0C010-B0 note Grip Assy, Assist, Rear RH
2004-08 → —
UCK35,45 —
74620-0C010-E1 note Grip Assy, Assist, Rear RH
2004-08 → —
UCK35,45 —
74630E — Grip Assy, Assist, Rear LH
74630-0C030-B0 note Grip Assy, Assist, Rear LH
2000-09 → 2004-08 ended
UCK35,45 —
74630-0C030-E0 note Grip Assy, Assist, Rear LH
2000-09 → 2004-08 ended
UCK35,45 —
74630-0C030-B0 note Grip Assy, Assist, Rear LH
2004-08 → —
UCK35,45 —
74630-0C030-E1 note Grip Assy, Assist, Rear LH
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
