Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

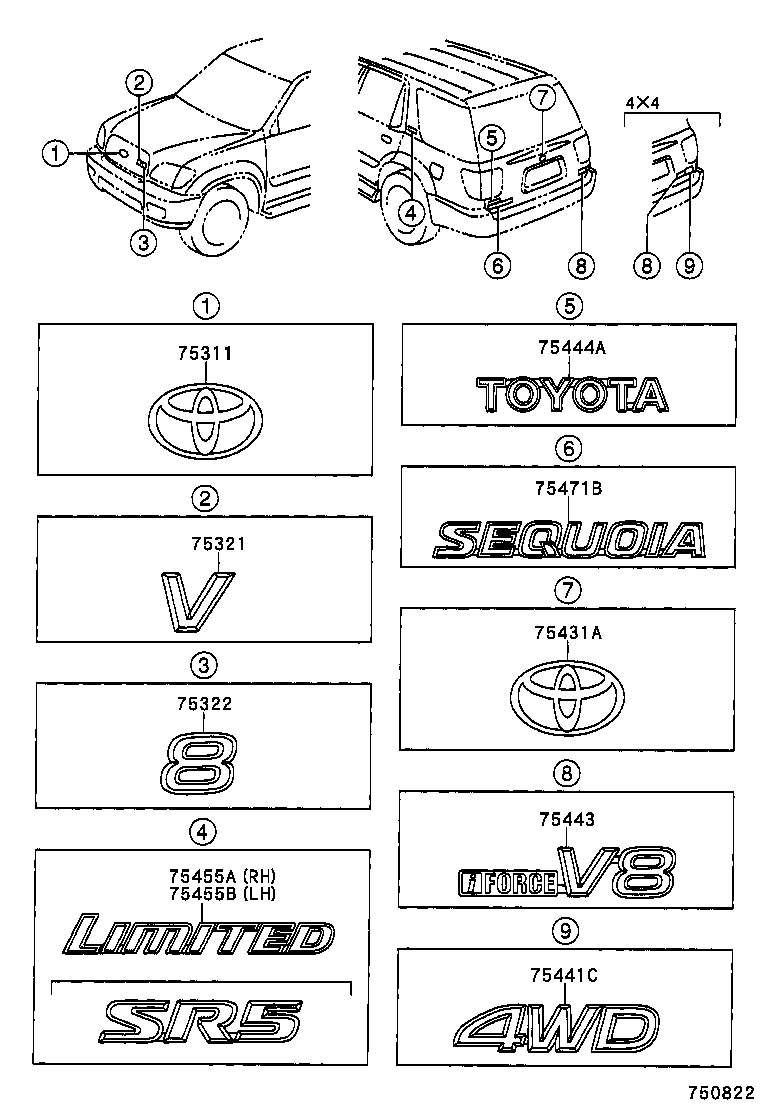

Exploded illustration 750822 75444A — PLATE, BACK DOOR NAME, NO.4 (2 parts) 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (2 parts) 75471B — PLATE, REAR BODY NAME, NO.1 (2 parts) 75321 — PLATE, RADIATOR GRILLE OR FRONT PANEL NAME (2 parts) 75431A — EMBLEM, BACK DOOR, NO.1 (2 parts) 75322 — RETAINER, RADIATOR GRILLE NAME PLATE (2 parts) 75443 — PLATE, BACK DOOR NAME, NO.3 (2 parts) 75455A — MARK, ROOF SIDE, NO.1 RH (4 parts) 75455B — MARK, ROOF SIDE, NO.1 LH (4 parts) 75441C — PLATE, BACK DOOR NAME (2 parts)
750822 · 10 callouts Full size ↗
24 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75311-0C010 Emblem, Radiator Grille (OR FRONT PANEL)
2000-09 → 2004-08 ended
UCK35,45 —
75311-0C020 Emblem, Radiator Grille (OR FRONT PANEL)
2004-08 → —
UCK35,45 —
75321 — Plate, Radiator Grille OR Front Panel Name
75321-0C010 note Plate, Radiator Grille OR Front Panel Name
2000-09 → 2004-08 ended
UCK35,45 —
75321-0C010 note Plate, Radiator Grille OR Front Panel Name
2004-08 → —
UCK35,45 —
75322 — Retainer, Radiator Grille Name Plate
75322-0C010 Retainer, Radiator Grille Name Plate
2000-09 → 2004-08 ended
UCK35,45 —
75322-0C010 Retainer, Radiator Grille Name Plate
2004-08 → —
UCK35,45 —
75431A — Emblem, Back Door, NO.1
75431-0C010 Emblem, Back Door, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
75431-0C010 Emblem, Back Door, NO.1
2004-08 → —
UCK35,45 —
75441C — Plate, Back Door Name
75441-0C010 note Plate, Back Door Name
2000-09 → 2004-08 ended
UCK45 —
75441-0C010 note Plate, Back Door Name
2004-08 → —
UCK45 —
75443 — Plate, Back Door Name, NO.3
75443-34010 note Plate, Back Door Name, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
75443-34010 note Plate, Back Door Name, NO.3
2004-08 → —
UCK35,45 —
75444A — Plate, Back Door Name, NO.4
75444-08010 note Plate, Back Door Name, NO.4
2000-09 → 2004-08 ended
UCK35,45 —
75444-08010 note Plate, Back Door Name, NO.4
2004-08 → —
UCK35,45 —
75455A — Mark, Roof Side, NO.1 RH
75455-0C030 Mark, Roof Side, NO.1 RH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
75455-0C040 Mark, Roof Side, NO.1 RH
2000-09 → 2004-08 ended
UCK35,45 LIMD —
75455-0C030 Mark, Roof Side, NO.1 RH
2004-08 → —
UCK35,45 SR5 —
75455-0C040 Mark, Roof Side, NO.1 RH
2004-08 → —
UCK35,45 LIMD —
75455B — Mark, Roof Side, NO.1 LH
75455-0C030 Mark, Roof Side, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 SR5 —
75455-0C040 Mark, Roof Side, NO.1 LH
2000-09 → 2004-08 ended
UCK35,45 LIMD —
75455-0C030 Mark, Roof Side, NO.1 LH
2004-08 → —
UCK35,45 SR5 —
75455-0C040 Mark, Roof Side, NO.1 LH
2004-08 → —
UCK35,45 LIMD —
75471B — Plate, Rear Body Name, NO.1
75471-0C020 Plate, Rear Body Name, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
75471-0C020 Plate, Rear Body Name, NO.1
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
