Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

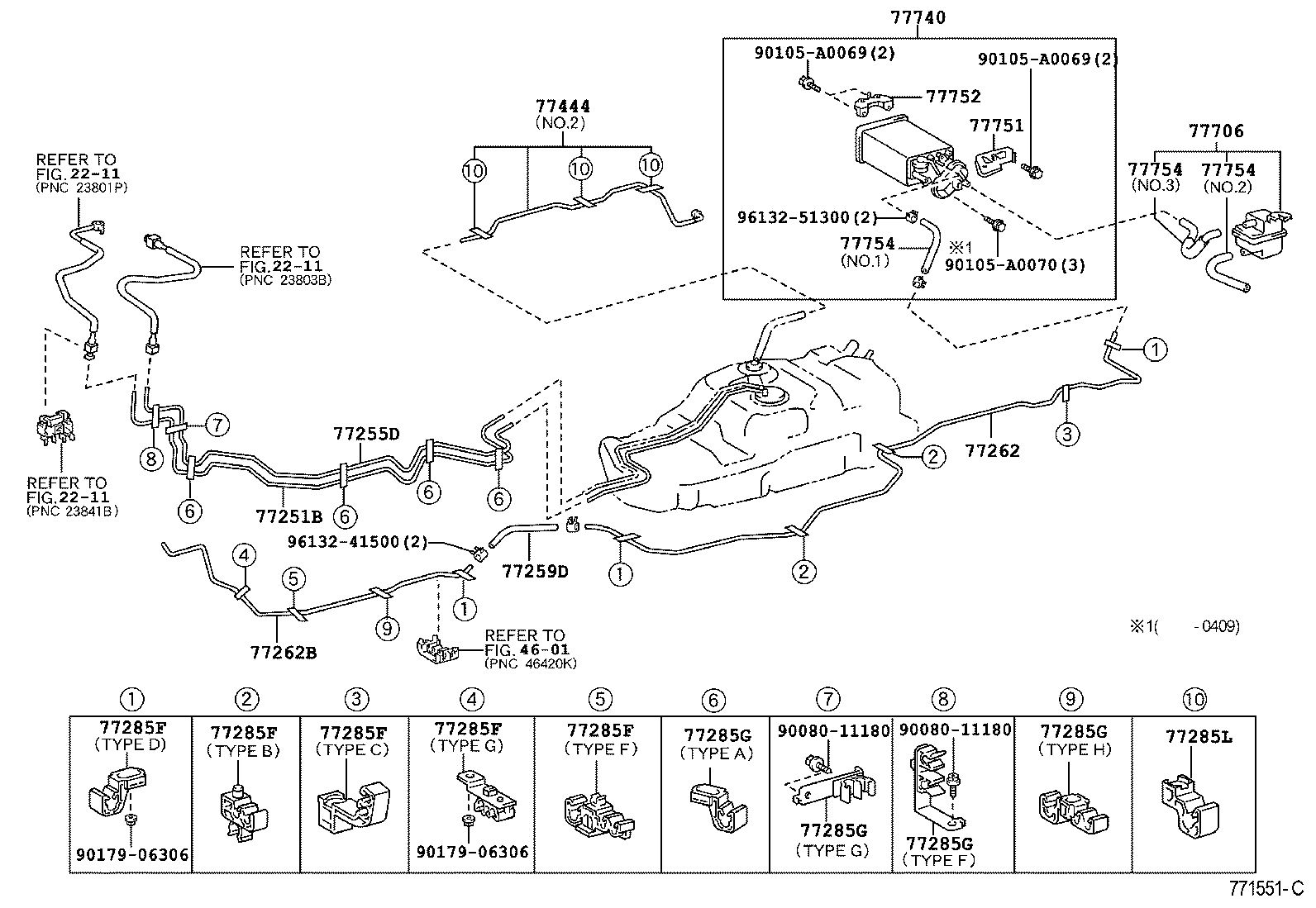

Exploded illustration 771551C 77251B — TUBE, FUEL MAIN (2 parts) 77255D — TUBE, FUEL RETURN (2 parts) 77259D — HOSE, FUEL, NO.1 (2 parts) 77262 — TUBE, FUEL EMISSION, NO.2 (2 parts) 77262B — TUBE, FUEL TANK TO CANISTER, NO.2 (2 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (11 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (11 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (11 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (11 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (11 parts) 77285G — CLAMP, FUEL TUBE, NO.1 (9 parts) 77285G — CLAMP, FUEL TUBE, NO.1 (9 parts) 77285G — CLAMP, FUEL TUBE, NO.1 (9 parts) 77285G — CLAMP, FUEL TUBE, NO.1 (9 parts) 77285L — CLAMP, FUEL TUBE, NO.1 (1 parts) 77444 — HOSE, FUEL TANK VENT (2 parts) 77706 — FILTER SUB-ASSY, CHARCOAL CANISTER (1 parts) 77740 — CANISTER ASSY, CHARCOAL (2 parts) 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (4 parts) 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (4 parts) 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (4 parts) 9008011180 — not listed in this catalogue 9008011180 — not listed in this catalogue 9017906306 — not listed in this catalogue 9017906306 — not listed in this catalogue 9613251300 — not listed in this catalogue 90105A0069 — not listed in this catalogue 90105A0069 — not listed in this catalogue 90105A0070 — not listed in this catalogue 9613241500 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 4601 — not listed in this catalogue 77751 — BRACKET, CHARCOAL CANISTER BASE (2 parts) 77752 — BRACKET, CHARCOAL CANISTER SUPPORT (2 parts)
771551C · 23 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-0C030 Tube, Fuel Main
2000-09 → 2004-08 ended
UCK35,45 —
77251-0C040 Tube, Fuel Main
2004-08 → —
UCK35,45 —
77255D — Tube, Fuel Return
77255-0C030 Tube, Fuel Return
2000-09 → 2004-08 ended
UCK35,45 —
77255-0C070 Tube, Fuel Return
2004-08 → —
UCK35,45 —
77259D — Hose, Fuel, NO.1
77259-0C130 Hose, Fuel, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77259-0C130 Hose, Fuel, NO.1
2004-08 → —
UCK35,45 —
77262 — Tube, Fuel Emission, NO.2
77262-0C020 Tube, Fuel Emission, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
77262-0C080 Tube, Fuel Emission, NO.2
2004-08 → —
UCK35,45 —
77262B — Tube, Fuel Tank TO Canister, NO.2
77262-0C030 Tube, Fuel Tank TO Canister, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
77262-0C070 Tube, Fuel Tank TO Canister, NO.2
2004-08 → —
UCK35,45 —
77285F — Clamp, Fuel Tube, NO.1
77285-34020 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34140 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34150 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34160 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34240 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34250 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34150 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285-34160 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285-34230 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285-34240 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285-34250 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285G — Clamp, Fuel Tube, NO.1
77285-34031 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34060 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34080 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34190 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-34200 note Clamp, Fuel Tube, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77285-0C010 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285-0C020 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285-34031 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285-34220 note Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77285L — Clamp, Fuel Tube, NO.1
77285-0C030 Clamp, Fuel Tube, NO.1
2004-08 → —
UCK35,45 —
77444 — Hose, Fuel Tank Vent
77404-04020 note Hose, Fuel Tank Vent
2004-08 → —
UCK35,45 —
77404-0C030 note Hose, Fuel Tank Vent
2004-08 → —
UCK35,45 —
77706 — Filter Sub-assy, Charcoal Canister
77706-0C020 Filter Sub-assy, Charcoal Canister
2004-08 → —
UCK35,45 —
77740 — Canister Assy, Charcoal
77740-0C011 Canister Assy, Charcoal
2000-09 → 2004-08 ended
UCK35,45 —
77740-0C030 Canister Assy, Charcoal
2004-08 → —
UCK35,45 —
77751 — Bracket, Charcoal Canister Base
77751-0C010 Bracket, Charcoal Canister Base
2000-09 → 2004-08 ended
UCK35,45 —
77751-0C030 Bracket, Charcoal Canister Base
2004-08 → —
UCK35,45 —
77752 — Bracket, Charcoal Canister Support
77752-0C010 Bracket, Charcoal Canister Support
2000-09 → 2004-08 ended
UCK35,45 —
77752-0C030 Bracket, Charcoal Canister Support
2004-08 → —
UCK35,45 —
77754 — Hose, Charcoal Canister Outlet, NO.1
77754-0C020 note Hose, Charcoal Canister Outlet, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
77754-0C050 note Hose, Charcoal Canister Outlet, NO.1
2004-08 → —
UCK35,45 —
77754-0C060 note Hose, Charcoal Canister Outlet, NO.1
2004-08 → —
UCK35,45 —
77754-0C070 note Hose, Charcoal Canister Outlet, NO.1
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
