Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

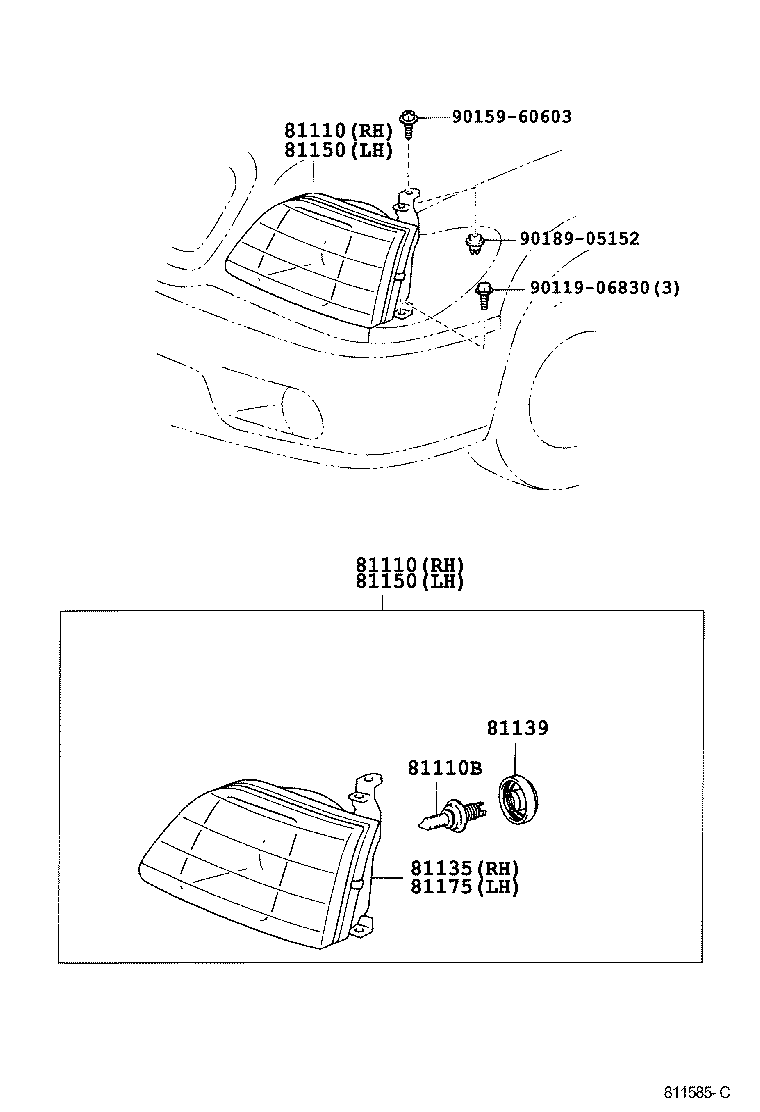

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81110 — Headlamp Assy, RH | ||||
| 81110-0C020 |
Headlamp Assy, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81110-0C030 |
Headlamp Assy, RH
2004-08 → 2007-09
ended
|
UCK35,45 | — | |
| 81110-0C031 |
Headlamp Assy, RH
2007-10 → —
|
UCK35,45 | — | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 note |
Bulb(FOR HEADLAMP, NO.1)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90981-13058 note |
Bulb(FOR HEADLAMP, NO.1)
2004-08 → 2007-11
ended
|
UCK35,45 | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-0C020 |
Unit Assy, Headlamp, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81130-0C030 |
Unit Assy, Headlamp, RH
2004-08 → 2007-10
ended
|
UCK35,45 | — | |
| 81130-0C031 |
Unit Assy, Headlamp, RH
2007-10 → 2007-11
ended
|
UCK35,45 | — | |
| 81139 — Cover, Headlamp Socket | ||||
| 81139-0C020 |
Cover, Headlamp Socket
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90075-65002 |
Cover, Headlamp Socket
2004-08 → 2007-11
ended
|
UCK35,45 | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-0C020 |
Headlamp Assy, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81150-0C030 |
Headlamp Assy, LH
2004-08 → 2007-09
ended
|
UCK35,45 | — | |
| 81150-0C031 |
Headlamp Assy, LH
2007-10 → —
|
UCK35,45 | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-0C020 |
Unit Assy, Headlamp, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81170-0C030 |
Unit Assy, Headlamp, LH
2004-08 → 2007-10
ended
|
UCK35,45 | — | |
| 81170-0C031 |
Unit Assy, Headlamp, LH
2007-10 → 2007-11
ended
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
