Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

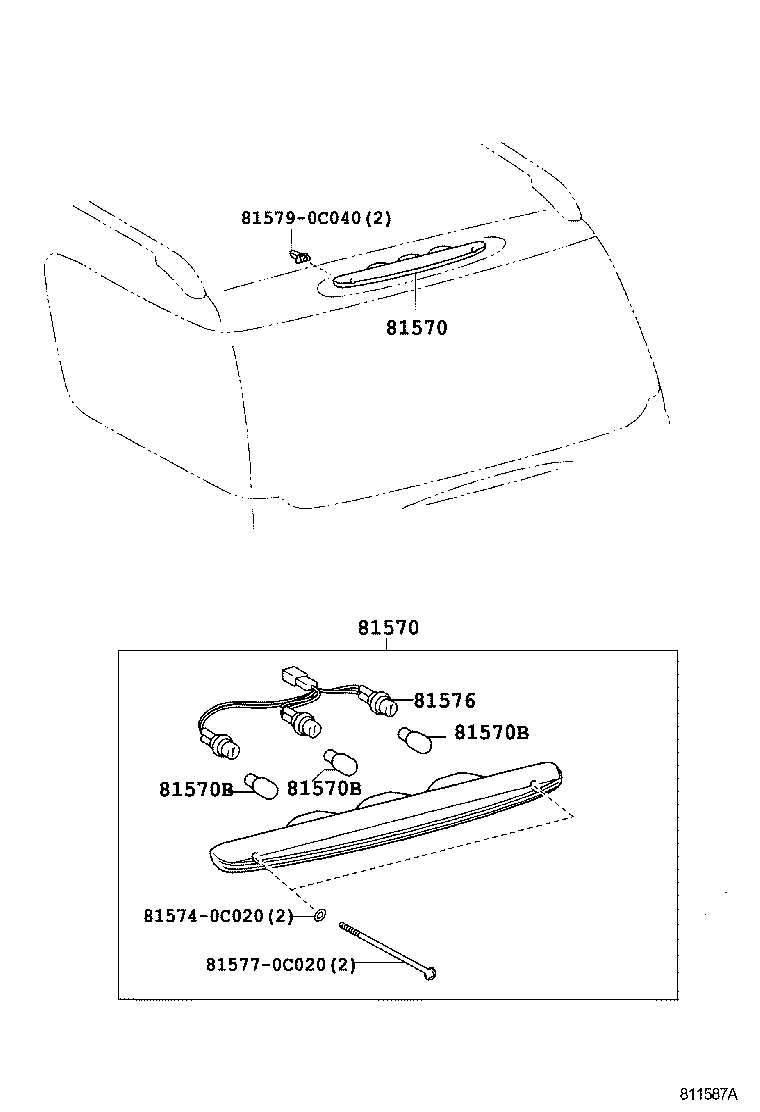

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-06060 note |
Lamp Assy, Center Stop
2000-09 → 2004-08
ended
|
UCK35,45 LIMD | — | |
| 81570-0C020 |
Lamp Assy, Center Stop
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81570-06060 note |
Lamp Assy, Center Stop
2004-08 → —
|
UCK35,45 LIMD | — | |
| 81570-0C020 |
Lamp Assy, Center Stop
2004-08 → —
|
UCK35,45 | — | |
| 81570B — Bulb (FOR CENTER STOP LAMP) | ||||
| 90080-81095 note |
Bulb (FOR CENTER STOP LAMP)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90080-81095 note |
Bulb (FOR CENTER STOP LAMP)
2004-08 → —
|
UCK35,45 | — | |
| 81576 — Socket & Wire, Center Stop Lamp | ||||
| 81576-0C020 |
Socket & Wire, Center Stop Lamp
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81576-0C020 |
Socket & Wire, Center Stop Lamp
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
