Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

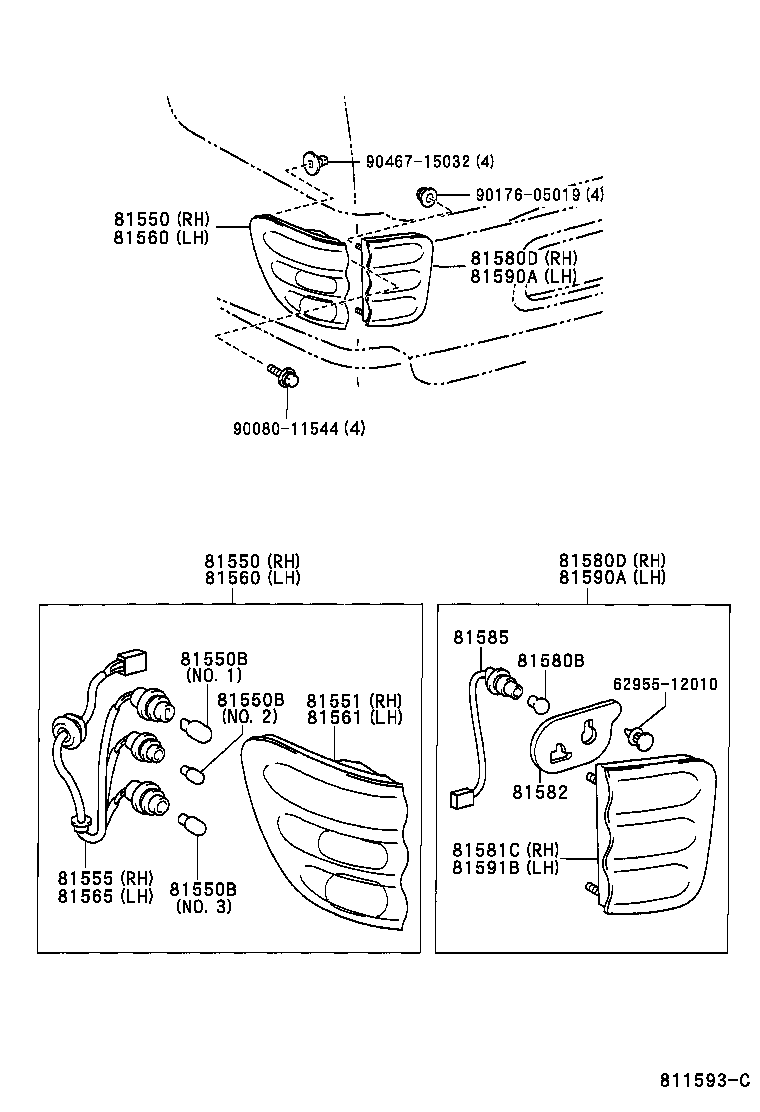

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81550 — Lamp Assy, Rear Combination, RH | ||||
| 81550-0C020 |
Lamp Assy, Rear Combination, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81550-0C050 |
Lamp Assy, Rear Combination, RH
2004-08 → —
|
UCK35,45 | — | |
| 81550B — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 90981-11059 note |
Bulb(FOR REAR COMBINATION LAMP)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90981-13043 note |
Bulb(FOR REAR COMBINATION LAMP)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90981-13044 note |
Bulb(FOR REAR COMBINATION LAMP)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90981-13044 note |
Bulb(FOR REAR COMBINATION LAMP)
2004-08 → 2007-11
ended
|
UCK35,45 | — | |
| 90981-15011 note |
Bulb(FOR REAR COMBINATION LAMP)
2004-08 → 2007-11
ended
|
UCK35,45 | — | |
| 81551 — Lens, Rear Combination Lamp, RH | ||||
| 81551-0C020 |
Lens, Rear Combination Lamp, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 81555-0C020 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81555-0C050 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
2004-08 → —
|
UCK35,45 | — | |
| 81560 — Lamp Assy, Rear Combination, LH | ||||
| 81560-0C020 |
Lamp Assy, Rear Combination, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81560-0C050 |
Lamp Assy, Rear Combination, LH
2004-08 → —
|
UCK35,45 | — | |
| 81561 — Lens, Rear Combination Lamp, LH | ||||
| 81561-0C020 |
Lens, Rear Combination Lamp, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 81555-0C020 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81555-0C050 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
2004-08 → —
|
UCK35,45 | — | |
| 81580B — Bulb (FOR REAR LAMP) | ||||
| 90080-81012 note |
Bulb (FOR REAR LAMP)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90080-81012 note |
Bulb (FOR REAR LAMP)
2004-08 → —
|
UCK35,45 | — | |
| 90081-81006 note |
Bulb (FOR REAR LAMP)
2004-08 → —
|
UCK35,45 | — | |
| 90981-11059 note |
Bulb (FOR REAR LAMP)
2004-08 → —
|
UCK35,45 | — | |
| 81580D — Lamp Assy, Rear, RH | ||||
| 81580-0C010 |
Lamp Assy, Rear, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81580-0C020 |
Lamp Assy, Rear, RH
2004-08 → —
|
UCK35,45 | — | |
| 81581C — Lens And Body, Rear Lamp, RH | ||||
| 81581-0C010 |
Lens And Body, Rear Lamp, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81582 — Gasket, Rear Lamp | ||||
| 81582-0C010 |
Gasket, Rear Lamp
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81585 — Socket & Wire, Rear Lamp | ||||
| 81585-0C010 |
Socket & Wire, Rear Lamp
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81585-0C020 note |
Socket & Wire, Rear Lamp
2004-08 → —
|
UCK35,45 | — | |
| 81595-0C020 note |
Socket & Wire, Rear Lamp
2004-08 → —
|
UCK35,45 | — | |
| 81590A — Lamp Assy, Rear, LH | ||||
| 81590-0C010 |
Lamp Assy, Rear, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81590-0C020 |
Lamp Assy, Rear, LH
2004-08 → —
|
UCK35,45 | — | |
| 81591B — Lens And Body, Rear Lamp, LH | ||||
| 81591-0C010 |
Lens And Body, Rear Lamp, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
