Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

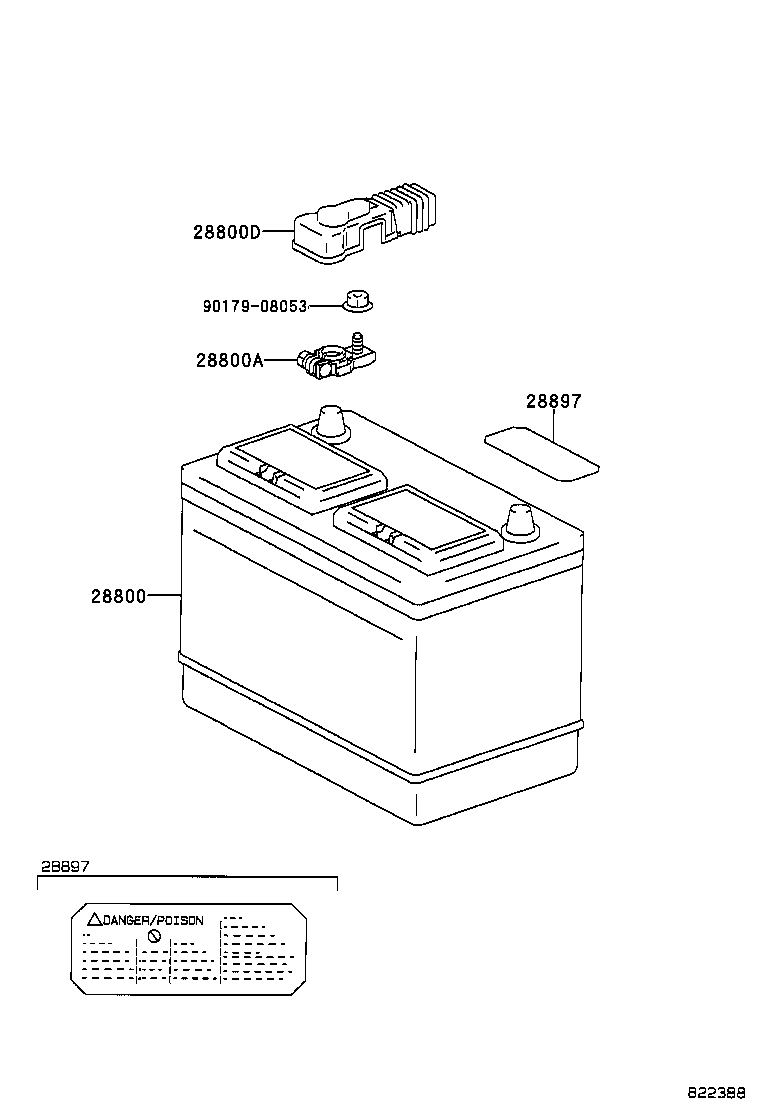

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-0F010 note |
Battery
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 28800-0F020 note |
Battery
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 28800-AA041 note |
Battery
2000-09 → 2001-08
ended
|
2UZFE UCK35,45 4HC | — | |
| 28800-0F010 note |
Battery
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 28800-0F020 note |
Battery
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05035 |
Terminal, Battery Positive
2000-09 → 2002-09
ended
|
2UZFE UCK35,45 4HC | — | |
| 90982-05054 |
Terminal, Battery Positive
2002-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 90982-05054 |
Terminal, Battery Positive
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-35020 |
Cover, Connector(FOR BATTERY TERMINAL)
2000-09 → 2004-08
ended
|
2UZFE UCK35,45 | — | |
| 82821-35020 |
Cover, Connector(FOR BATTERY TERMINAL)
2004-08 → —
|
2UZFE UCK35,45 | — | |
| 28897 — Plate, Battery Caution | ||||
| 28897-AA010 |
Plate, Battery Caution
2000-09 → 2004-08
ended
|
2UZFE UCK45 | — | |
| 28897-AA010 |
Plate, Battery Caution
2004-08 → 2007-04
ended
|
2UZFE UCK45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
