Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

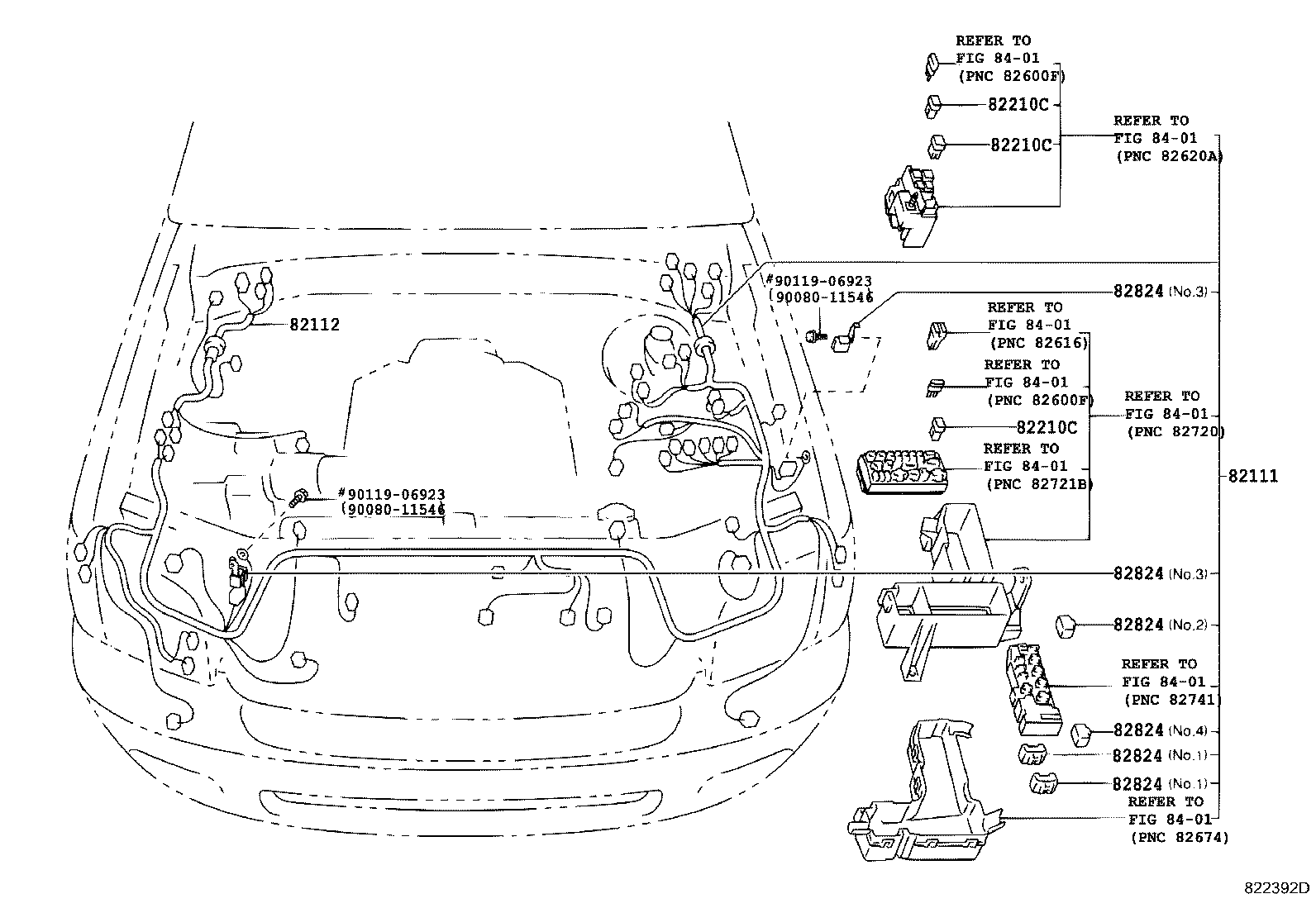

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82111 — Wire, Engine Room Main | ||||
| 82111-0C120 |
Wire, Engine Room Main
2000-09 → 2001-05
ended
|
UCK35,45 4HC | — | |
| 82111-0C121 |
Wire, Engine Room Main
2001-05 → 2001-11
ended
|
UCK35,45 4HC | — | |
| 82111-0C122 |
Wire, Engine Room Main
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82111-0C130 note |
Wire, Engine Room Main
2000-09 → 2001-11
ended
|
UCK35,45 4HC | — | |
| 82111-0C131 note |
Wire, Engine Room Main
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82111-YY010 |
Wire, Engine Room Main
2001-11 → 2002-09
ended
|
UCK35,45 4HC | — | |
| 82111-YY020 note |
Wire, Engine Room Main
2001-11 → 2002-09
ended
|
UCK35,45 4HC | — | |
| 82111-0C123 |
Wire, Engine Room Main
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 82111-0C124 |
Wire, Engine Room Main
2004-09 → 2005-08
ended
|
UCK35,45 | — | |
| 82111-0C125 |
Wire, Engine Room Main
2005-08 → 2005-10
ended
|
UCK35,45 | — | |
| 82111-0C126 |
Wire, Engine Room Main
2005-10 → —
|
UCK35,45 | — | |
| 82111-0C132 note |
Wire, Engine Room Main
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 82111-0C133 note |
Wire, Engine Room Main
2004-09 → 2005-08
ended
|
UCK35,45 | — | |
| 82111-0C134 note |
Wire, Engine Room Main
2005-08 → 2005-10
ended
|
UCK35,45 | — | |
| 82111-0C135 note |
Wire, Engine Room Main
2005-10 → —
|
UCK35,45 | — | |
| 82112 — Wire, Engine Room, NO.2 | ||||
| 82112-0C020 |
Wire, Engine Room, NO.2
2000-09 → 2002-09
ended
|
UCK35,45 4HC | — | |
| 82210C — Fusible Link | ||||
| 90982-08202 note |
Fusible Link
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90982-08254 note |
Fusible Link
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90982-08283 note |
Fusible Link
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90982-08284 note |
Fusible Link
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90982-08286 note |
Fusible Link
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90982-08283 note |
Fusible Link
2004-08 → —
|
UCK35,45 | — | |
| 90982-08284 note |
Fusible Link
2004-08 → —
|
UCK35,45 | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-20110 note |
Connector, Wiring Harness
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82824-22080 note |
Connector, Wiring Harness
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82824-48020 note |
Connector, Wiring Harness
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82824-50110 note |
Connector, Wiring Harness
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82824-20110 note |
Connector, Wiring Harness
2004-08 → —
|
UCK35,45 | — | |
| 82824-22070 note |
Connector, Wiring Harness
2004-08 → —
|
UCK35,45 | — | |
| 82824-22080 note |
Connector, Wiring Harness
2004-08 → —
|
UCK35,45 | — | |
| 82824-48020 note |
Connector, Wiring Harness
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
