Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

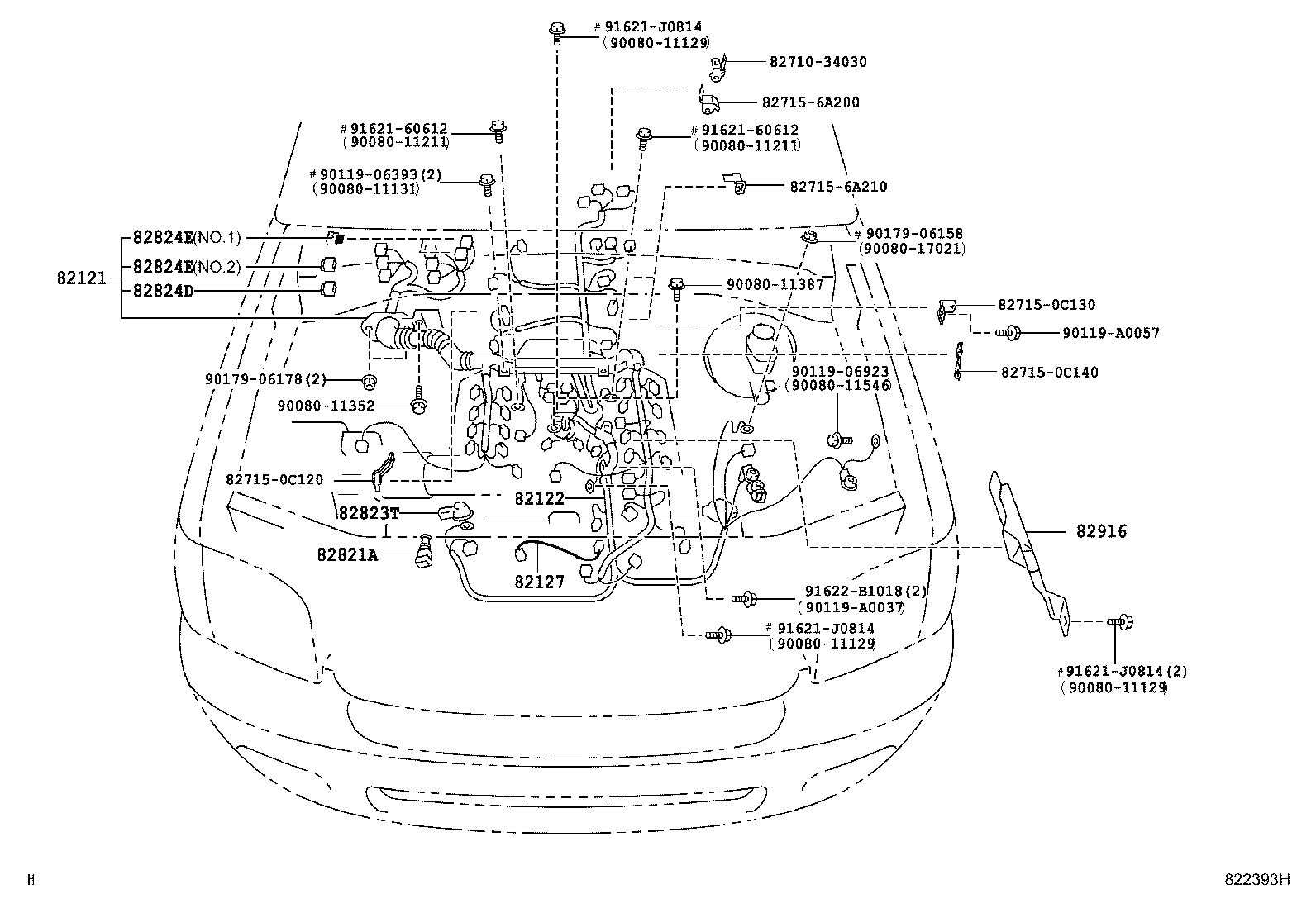

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-34340 |
Wire, Engine
2000-09 → 2002-09
ended
|
UCK45 4HC | — | |
| 82121-34341 |
Wire, Engine
2002-09 → 2004-08
ended
|
UCK45 | — | |
| 82121-34350 |
Wire, Engine
2000-09 → 2002-09
ended
|
UCK35 4HC | — | |
| 82121-34351 |
Wire, Engine
2002-09 → 2004-08
ended
|
UCK35 | — | |
| 82121-34342 |
Wire, Engine
2004-08 → 2004-12
ended
|
UCK45 | — | |
| 82121-34343 |
Wire, Engine
2004-12 → —
|
UCK45 | — | |
| 82121-34352 |
Wire, Engine
2004-08 → 2004-12
ended
|
UCK35 | — | |
| 82121-34353 |
Wire, Engine
2004-12 → —
|
UCK35 | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-34020 |
Wire, Engine, NO.2
2000-09 → 2002-09
ended
|
UCK45 4HC | — | |
| 82122-34021 |
Wire, Engine, NO.2
2002-09 → 2004-08
ended
|
UCK45 | — | |
| 82122-34090 |
Wire, Engine, NO.2
2000-09 → 2002-09
ended
|
UCK35 4HC | — | |
| 82122-34091 |
Wire, Engine, NO.2
2002-09 → 2004-08
ended
|
UCK35 | — | |
| 82122-34022 |
Wire, Engine, NO.2
2004-08 → —
|
UCK45 | — | |
| 82122-34092 |
Wire, Engine, NO.2
2004-08 → —
|
UCK35 | — | |
| 82127 — Wire, Differential | ||||
| 82127-0C010 |
Wire, Differential
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 82127-0C010 |
Wire, Differential
2004-08 → —
|
UCK45 | — | |
| 82821A — Cover, Connector | ||||
| 82821-20370 |
Cover, Connector
2004-08 → —
|
UCK35,45 | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-0C010 |
Cap, Alternator Terminal
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82823-22050 |
Cap, Alternator Terminal
2000-09 → 2002-09
ended
|
UCK35,45 4HC | — | |
| 82823-0C010 |
Cap, Alternator Terminal
2004-08 → 2007-11
ended
|
UCK35,45 | — | |
| 82824D — Connector, Wiring Harness | ||||
| 82824-30220 |
Connector, Wiring Harness
2004-08 → —
|
UCK35 | — | |
| 82824E — Connector, Wiring Harness | ||||
| 82824-30130 |
Connector, Wiring Harness
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 82824-30130 note |
Connector, Wiring Harness
2004-08 → —
|
UCK45 | — | |
| 82824-30220 note |
Connector, Wiring Harness
2004-08 → —
|
UCK45 | — | |
| 82916 — Insulator, Wiring Harness Heat, NO.2 | ||||
| 82916-0C011 note |
Insulator, Wiring Harness Heat, NO.2
2003-05 → 2004-08
ended
|
UCK35,45 | — | |
| 82916-34010 |
Insulator, Wiring Harness Heat, NO.2
2000-09 → 2003-05
ended
|
UCK35,45 | — | |
| 82916-34010 note |
Insulator, Wiring Harness Heat, NO.2
2003-05 → 2004-08
ended
|
UCK35,45 | — | |
| 82916-0C020 |
Insulator, Wiring Harness Heat, NO.2
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
