Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

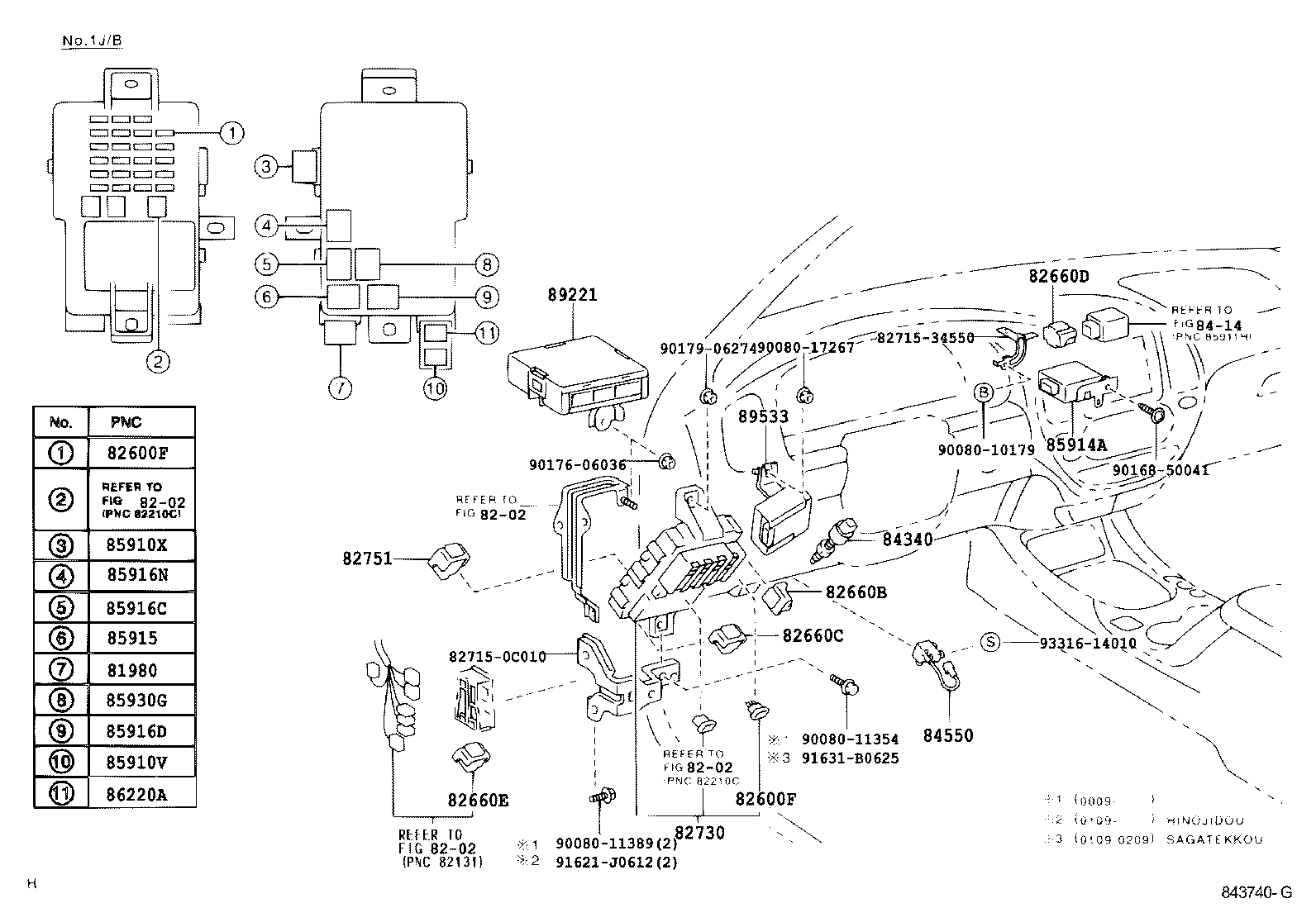

Exploded illustration 843740J 82600F — FUSE, FUSE BLOCK (12 parts) 8202 — not listed in this catalogue 85910X — RELAY, HEATER MIRROR (2 parts) 85915 — RELAY, MAIN (2 parts) 81980 — FLASHER ASSY, TURN SIGNAL (2 parts) 85916C — RELAY, BACK UP LAMP (4 parts) 85916N — RELAY, TAILLAMP (3 parts) 85930G — RELAY, ACC (4 parts) 85916D — RELAY, FOG LAMP (5 parts) 85910V — RELAY, SEAT HEATER (2 parts) 86220A — RELAY, INVERTER (2 parts) 8202 — not listed in this catalogue 827150C010 — not listed in this catalogue 9017606036 — not listed in this catalogue 89533 — COMPUTER, 4 WHEEL DRIVE CONTROL (3 parts) 82660B — BLOCK ASSY, RELAY (4 parts) 82660C — BLOCK ASSY, RELAY (2 parts) 84340 — SWITCH ASSY, STOP LAMP (2 parts) 85914A — RELAY, MOTOR ANTENNA CONTROL (4 parts) 9008010179 — not listed in this catalogue 9331614010 — not listed in this catalogue 84550 — SWITCH ASSY, PARKING BRAKE (2 parts) 9008011354 — not listed in this catalogue 91631B0625 — not listed in this catalogue 82600F — FUSE, FUSE BLOCK (12 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue 9008011389 — not listed in this catalogue 91621J0612 — not listed in this catalogue 82660E — BLOCK ASSY, RELAY (2 parts) 82751 — BLOCK, DRIVER SIDE RELAY (4 parts) 9017906274 — not listed in this catalogue 9008017267 — not listed in this catalogue 8271534550 — not listed in this catalogue 82660D — BLOCK ASSY, RELAY (2 parts) 9016850041 — not listed in this catalogue 8414 — not listed in this catalogue 89221 — COMPUTER, MULTIPLEX NETWORK BODY (12 parts) 82730 — BLOCK ASSY, INSTRUMENT PANEL JUNCTION (3 parts)
843740J · 22 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
78 parts on this figure
Part number Description Fitment Price
81980 — Flasher Assy, Turn Signal
81980-34020 Flasher Assy, Turn Signal
2000-09 → 2004-08 ended
UCK35,45 —
81980-34020 Flasher Assy, Turn Signal
2004-08 → —
UCK35,45 —
82600F — Fuse, Fuse Block
90080-82020 note Fuse, Fuse Block
2000-09 → 2004-08 ended
UCK35,45 —
90080-82021 note Fuse, Fuse Block
2000-09 → 2004-08 ended
UCK35,45 —
90080-82022 note Fuse, Fuse Block
2000-09 → 2004-08 ended
UCK35,45 —
90080-82023 note Fuse, Fuse Block
2000-09 → 2004-08 ended
UCK35,45 —
90080-82024 note Fuse, Fuse Block
2000-09 → 2004-08 ended
UCK35,45 —
90080-82033 note Fuse, Fuse Block
2000-09 → 2004-08 ended
UCK35,45 —
90080-82020 note Fuse, Fuse Block
2004-08 → —
UCK35,45 —
90080-82021 note Fuse, Fuse Block
2004-08 → —
UCK35,45 —
90080-82022 note Fuse, Fuse Block
2004-08 → —
UCK35,45 —
90080-82023 note Fuse, Fuse Block
2004-08 → —
UCK35,45 —
90080-82024 note Fuse, Fuse Block
2004-08 → —
UCK35,45 —
90080-82033 note Fuse, Fuse Block
2004-08 → —
UCK35,45 —
82660B — Block Assy, Relay
82660-20340 Block Assy, Relay
2000-09 → 2004-08 ended
UCK35,45 —
82660-20340 Block Assy, Relay
2004-08 → 2006-07 ended
UCK35,45 —
82660-20340 Block Assy, Relay
2006-08 → 2007-07 ended
UCK35,45 —
82660-20340 Block Assy, Relay
2007-08 → —
UCK35,45 —
82660C — Block Assy, Relay
82660-20340 Block Assy, Relay
2000-09 → 2004-08 ended
UCK35,45 —
82660-20340 Block Assy, Relay
2004-08 → —
UCK35,45 —
82660D — Block Assy, Relay
82660-0C010 Block Assy, Relay
2000-09 → 2004-08 ended
UCK35,45 —
82660-0C010 Block Assy, Relay
2004-08 → —
UCK35,45 —
82660E — Block Assy, Relay
82660-53010 Block Assy, Relay
2002-09 → 2004-08 ended
UCK35,45 —
82660-53010 Block Assy, Relay
2004-08 → —
UCK35,45 —
82730 — Block Assy, Instrument Panel Junction
82730-0C030 Block Assy, Instrument Panel Junction
2000-09 → 2002-09 ended
UCK35,45 —
82730-0C031 Block Assy, Instrument Panel Junction
2002-09 → 2004-08 ended
UCK35,45 —
82730-0C032 Block Assy, Instrument Panel Junction
2004-08 → —
UCK35,45 —
82751 — Block, Driver Side Relay
82751-0C020 Block, Driver Side Relay
2002-09 → 2004-08 ended
UCK35,45 —
82751-0C020 Block, Driver Side Relay
2004-08 → 2006-07 ended
UCK35,45 —
82751-0C020 Block, Driver Side Relay
2006-08 → 2007-07 ended
UCK35,45 —
82751-0C020 Block, Driver Side Relay
2007-08 → —
UCK35,45 —
84340 — Switch Assy, Stop Lamp
84340-34010 Switch Assy, Stop Lamp
2000-09 → 2004-08 ended
UCK35,45 —
84340-34010 Switch Assy, Stop Lamp
2004-08 → —
UCK35,45 —
84550 — Switch Assy, Parking Brake
84550-34030 Switch Assy, Parking Brake
2000-09 → 2004-08 ended
UCK35,45 —
84550-34030 Switch Assy, Parking Brake
2004-08 → —
UCK35,45 —
85910V — Relay, Seat Heater
90084-98031 Relay, Seat Heater
2000-09 → 2004-08 ended
UCK35,45 —
90080-87026 Relay, Seat Heater
2004-08 → —
UCK35,45 —
85910X — Relay, Heater Mirror
90084-98031 Relay, Heater Mirror
2000-09 → 2004-08 ended
UCK35,45 —
90080-87026 Relay, Heater Mirror
2004-08 → —
UCK35,45 —
85914A — Relay, Motor Antenna Control
85914-AF010 Relay, Motor Antenna Control
2000-09 → 2001-07 ended
UCK35,45 —
85914-AF011 Relay, Motor Antenna Control
2001-07 → 2001-08 ended
UCK35,45 —
85914-AF012 Relay, Motor Antenna Control
2001-08 → 2004-08 ended
UCK35,45 —
85914-AF020 note Relay, Motor Antenna Control
2003-06 → 2004-08 ended
UCK45 —
85915 — Relay, Main
90084-98031 Relay, Main
2000-09 → 2004-08 ended
UCK35,45 —
90080-87026 Relay, Main
2004-08 → —
UCK35,45 —
85916C — Relay, Back UP Lamp
90084-98031 note Relay, Back UP Lamp
2000-09 → 2004-08 ended
UCK35,45 —
90987-02012 note Relay, Back UP Lamp
2000-09 → 2004-08 ended
UCK35,45 —
90080-87026 note Relay, Back UP Lamp
2004-08 → —
UCK35,45 —
90987-02027 note Relay, Back UP Lamp
2004-08 → —
UCK35,45 —
85916D — Relay, Fog Lamp
90084-98031 note Relay, Fog Lamp
2001-08 → 2004-08 ended
UCK35,45 SR5 —
90084-98031 note Relay, Fog Lamp
2000-09 → 2004-08 ended
UCK35,45 LIMD —
90987-02012 note Relay, Fog Lamp
2000-09 → 2004-08 ended
UCK35,45 LIMD —
90987-02012 note Relay, Fog Lamp
2001-08 → 2004-08 ended
UCK35,45 SR5 —
90080-87026 Relay, Fog Lamp
2004-08 → —
UCK35,45 —
85916N — Relay, Taillamp
90084-98031 note Relay, Taillamp
2000-09 → 2004-08 ended
UCK35,45 —
90987-02012 note Relay, Taillamp
2000-09 → 2004-08 ended
UCK35,45 —
90080-87026 Relay, Taillamp
2004-08 → —
UCK35,45 —
85930G — Relay, Acc
90084-98031 Relay, Acc
2000-09 → 2004-08 ended
UCK35,45 —
90987-04004 note Relay, Acc
2002-09 → 2004-08 ended
UCK35,45 —
90080-87026 Relay, Acc
2004-08 → —
UCK35,45 —
90084-98032 note Relay, Acc
2004-08 → —
UCK35,45 —
86220A — Relay, Inverter
90084-98031 Relay, Inverter
2002-09 → 2004-08 ended
UCK35,45 —
90080-87026 Relay, Inverter
2004-08 → —
UCK35,45 —
89221 — Computer, Multiplex Network Body
89221-0C010 Computer, Multiplex Network Body
2000-09 → 2001-08 ended
UCK35,45 —
89221-0C011 Computer, Multiplex Network Body
2001-08 → 2002-10 ended
UCK35,45 —
89221-0C012 Computer, Multiplex Network Body
2002-10 → 2004-08 ended
UCK35,45 —
89221-0C020 note Computer, Multiplex Network Body
2000-09 → 2001-08 ended
UCK35,45 —
89221-0C021 note Computer, Multiplex Network Body
2001-08 → 2002-10 ended
UCK35,45 —
89221-0C022 note Computer, Multiplex Network Body
2002-10 → 2004-08 ended
UCK35,45 —
89221-0C070 Computer, Multiplex Network Body
2004-08 → 2004-09 ended
UCK35,45 —
89221-0C071 Computer, Multiplex Network Body
2004-10 → 2005-09 ended
UCK35,45 —
89221-0C072 Computer, Multiplex Network Body
2005-09 → —
UCK35,45 —
89221-0C080 note Computer, Multiplex Network Body
2004-08 → 2004-09 ended
UCK35,45 —
89221-0C081 note Computer, Multiplex Network Body
2004-10 → 2005-09 ended
UCK35,45 —
89221-0C082 note Computer, Multiplex Network Body
2005-09 → —
UCK35,45 —
89533 — Computer, 4 Wheel Drive Control
89533-34020 Computer, 4 Wheel Drive Control
2000-09 → 2002-09 ended
UCK45 —
89533-34040 Computer, 4 Wheel Drive Control
2002-09 → 2004-08 ended
UCK45 —
89533-34060 Computer, 4 Wheel Drive Control
2004-08 → —
UCK45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
