Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

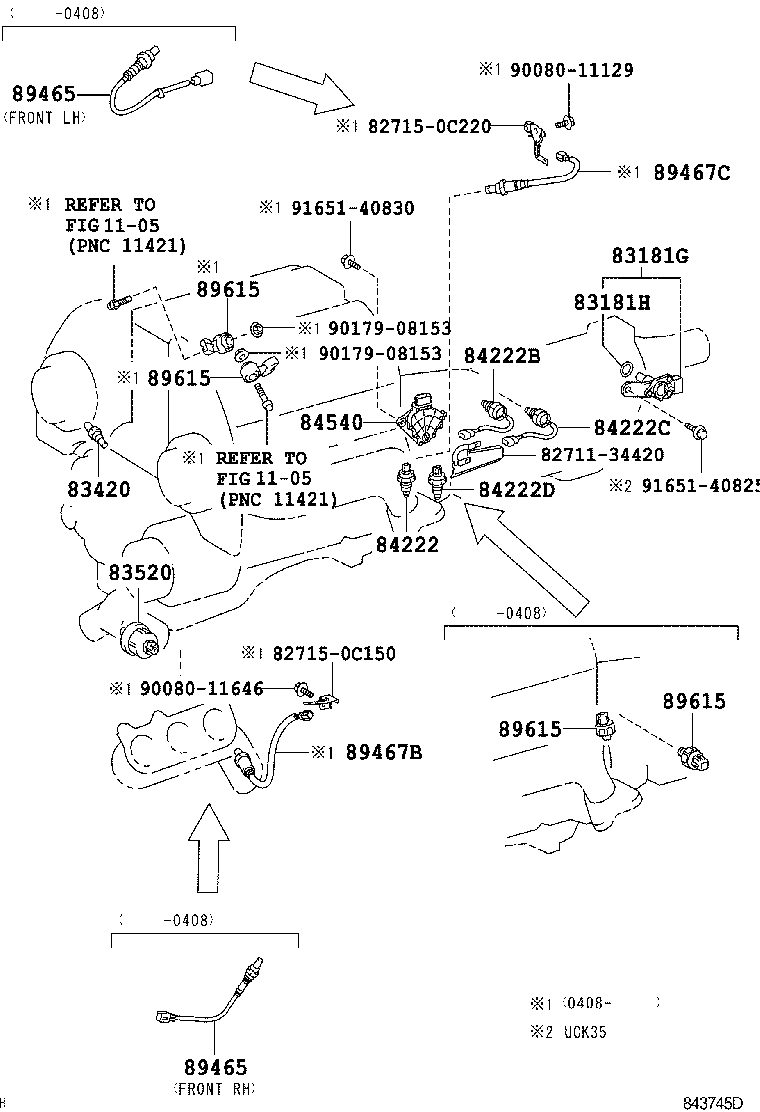

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83181G — Sensor, Speedometer | ||||
| 83181-12020 |
Sensor, Speedometer
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 83181-35070 |
Sensor, Speedometer
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 83181-12020 |
Sensor, Speedometer
2004-08 → —
|
UCK45 | — | |
| 83181-35070 |
Sensor, Speedometer
2004-08 → —
|
UCK35 | — | |
| 83181H — Ring, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
Ring, O (FOR SPEEDOMETER SENSOR)
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 96711-24030 |
Ring, O (FOR SPEEDOMETER SENSOR)
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 90301-18004 |
Ring, O (FOR SPEEDOMETER SENSOR)
2004-08 → —
|
UCK35 | — | |
| 96711-24030 |
Ring, O (FOR SPEEDOMETER SENSOR)
2004-08 → —
|
UCK45 | — | |
| 83420 — Gage Assy, Water Temperature Sender | ||||
| 83420-20040 |
Gage Assy, Water Temperature Sender
2003-08 → 2004-08
ended
|
UCK35,45 | — | |
| 83520 — Gage Assy,Oil Pressure Sender | ||||
| 83520-34020 |
Gage Assy,Oil Pressure Sender
2003-09 → 2004-08
ended
|
UCK35,45 | — | |
| 83520-35020 |
Gage Assy,Oil Pressure Sender
2000-09 → 2003-09
ended
|
UCK35,45 | — | |
| 83520-34020 |
Gage Assy,Oil Pressure Sender
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 83520-60050 |
Gage Assy,Oil Pressure Sender
2004-09 → —
|
UCK35,45 | — | |
| 84222 — Switch, Transfer Indicator, NO.1 | ||||
| 84222-12010 |
Switch, Transfer Indicator, NO.1
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 84222B — Switch, Transfer Indicator, NO.2 | ||||
| 84222-35080 |
Switch, Transfer Indicator, NO.2
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 84222C — Switch, Transfer Indicator, NO.3 | ||||
| 84222-35090 |
Switch, Transfer Indicator, NO.3
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 84222D — Switch, Transfer Indicator, NO.4 | ||||
| 84222-35120 |
Switch, Transfer Indicator, NO.4
2000-09 → 2001-12
ended
|
UCK45 | — | |
| 84222-35121 |
Switch, Transfer Indicator, NO.4
2001-12 → 2004-08
ended
|
UCK45 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-30320 |
Switch Assy, Neutral Start
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 84540-04010 |
Switch Assy, Neutral Start
2004-08 → —
|
UCK35,45 | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-09300 note |
Sensor, Oxygen
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 89465-09310 note |
Sensor, Oxygen
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 89465-09320 note |
Sensor, Oxygen
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 89465-0C140 note |
Sensor, Oxygen
2003-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89465-0C150 note |
Sensor, Oxygen
2003-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89465-34120 note |
Sensor, Oxygen
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89465-34130 note |
Sensor, Oxygen
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89465-0C160 |
Sensor, Oxygen
2004-08 → —
|
UCK35,45 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-0C010 |
Sensor, Air Fuel Ratio
2004-08 → —
|
UCK35,45 | — | |
| 89467C — Sensor, Air Fuel Ratio, NO.2 | ||||
| 89467-0C010 |
Sensor, Air Fuel Ratio, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-52010 |
Sensor, Knock Control
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89615-20090 |
Sensor, Knock Control
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
