Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

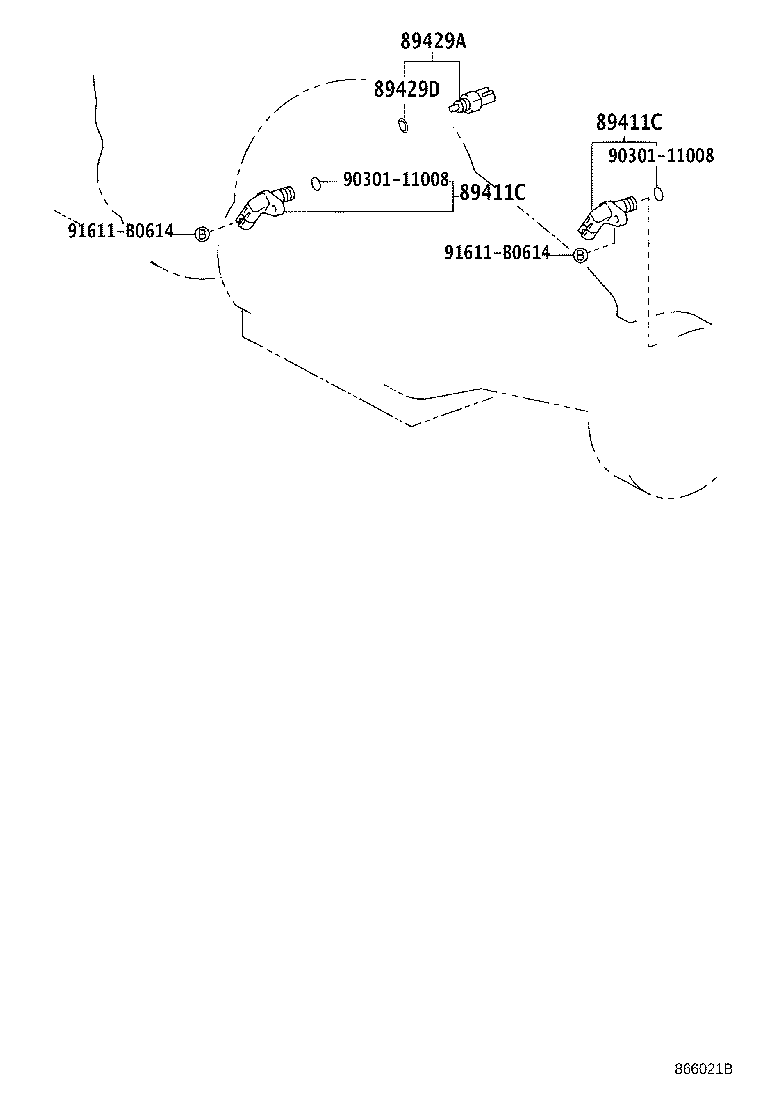

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89411C — Sensor, Speed | ||||
| 89411-50010 |
Sensor, Speed
2000-09 → 2004-08
ended
|
UCK35 | — | |
| 89411-50010 |
Sensor, Speed
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 89429A — Sensor, Temperature | ||||
| 89429-34010 |
Sensor, Temperature
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89429D — Ring, O(FOR TEMPERATURE SENSOR) | ||||
| 90301-11006 |
Ring, O(FOR TEMPERATURE SENSOR)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
