Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

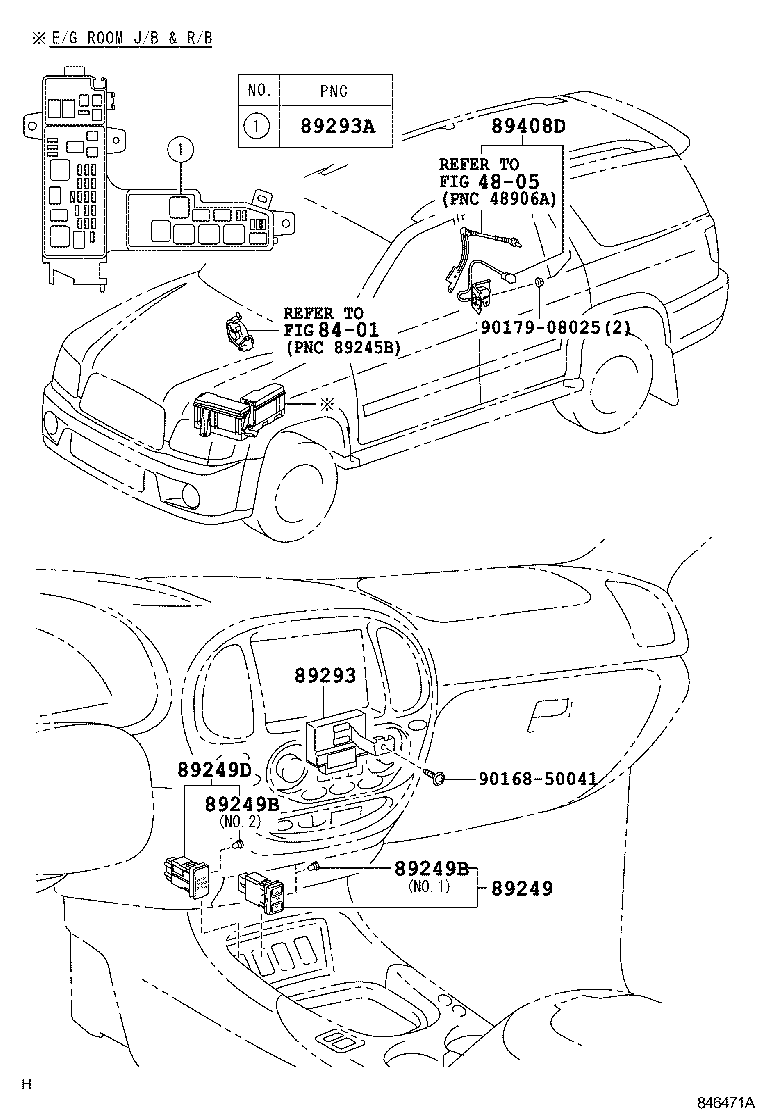

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89249 — Switch, Absorber Control | ||||
| 89249-0C010 |
Switch, Absorber Control
2004-08 → —
|
UCK35,45 | — | |
| 89249B — Bulb, Absorber Control Switch | ||||
| 90010-01039 note |
Bulb, Absorber Control Switch
2004-08 → —
|
UCK35,45 | — | |
| 90011-01060 note |
Bulb, Absorber Control Switch
2004-08 → —
|
UCK35,45 | — | |
| 89249D — Switch, Absorber Control NO.2 | ||||
| 89249-0C020 |
Switch, Absorber Control NO.2
2004-08 → —
|
UCK35,45 | — | |
| 89293 — Computer, Suspension Control | ||||
| 89293-34010 |
Computer, Suspension Control
2004-08 → —
|
UCK35,45 | — | |
| 89293A — Relay, Suspension Control | ||||
| 90080-87024 |
Relay, Suspension Control
2004-08 → —
|
UCK35,45 | — | |
| 89408D — Sensor Sub-assy, Height Control, Rear LH | ||||
| 89408-34010 |
Sensor Sub-assy, Height Control, Rear LH
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
