Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

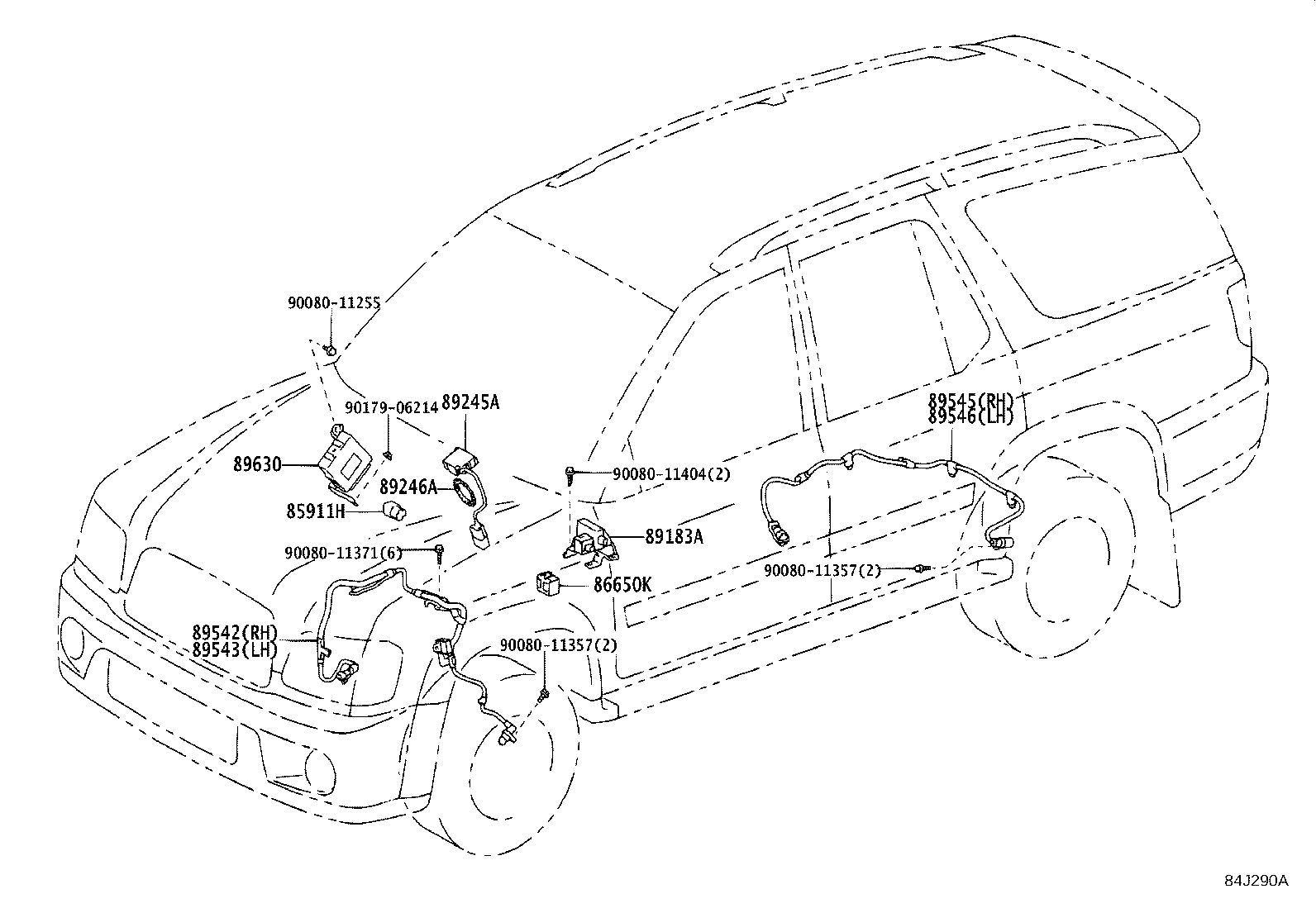

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85911H — Relay, Inhibit | ||||
| 90987-03003 |
Relay, Inhibit
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90987-03003 |
Relay, Inhibit
2004-08 → —
|
UCK35,45 | — | |
| 86650K — Buzzer Assy, Skid Control | ||||
| 86650-26070 |
Buzzer Assy, Skid Control
2000-09 → 2002-09
ended
|
UCK35,45 4HC | — | |
| 86652-51010 |
Buzzer Assy, Skid Control
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86652-51010 |
Buzzer Assy, Skid Control
2004-08 → —
|
UCK35,45 | — | |
| 89183A — Sensor, Yawrate | ||||
| 89180-0C010 note |
Sensor, Yawrate
2000-09 → 2002-09
ended
|
UCK35,45 4HC | — | |
| 89180-0C020 note |
Sensor, Yawrate
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89180-0C030 |
Sensor, Yawrate
2004-08 → —
|
UCK35,45 | — | |
| 89245A — Sensor, Steering | ||||
| 89245-0C010 note |
Sensor, Steering
2000-09 → 2002-09
ended
|
UCK35,45 | — | |
| 89245-34010 note |
Sensor, Steering
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89245-34010 |
Sensor, Steering
2004-08 → —
|
UCK35,45 | — | |
| 89246A — Disc, Sensor Steering | ||||
| 89246-0C010 |
Disc, Sensor Steering
2000-09 → 2002-09
ended
|
UCK35,45 | — | |
| 89246-34010 |
Disc, Sensor Steering
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89246-34010 |
Disc, Sensor Steering
2004-08 → —
|
UCK35,45 | — | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-0C010 |
Sensor, Speed, Front RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89542-0C010 |
Sensor, Speed, Front RH
2004-08 → —
|
UCK35,45 | — | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-0C010 |
Sensor, Speed, Front LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89543-0C010 |
Sensor, Speed, Front LH
2004-08 → —
|
UCK35,45 | — | |
| 89545 — Sensor, Speed, Rear RH | ||||
| 89545-0C010 |
Sensor, Speed, Rear RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89545-0C020 |
Sensor, Speed, Rear RH
2004-08 → —
|
UCK35,45 | — | |
| 89546 — Sensor, Speed, Rear LH | ||||
| 89546-0C010 |
Sensor, Speed, Rear LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 89546-0C020 |
Sensor, Speed, Rear LH
2004-08 → —
|
UCK35,45 | — | |
| 89630 — Computer Assy, Translate | ||||
| 89630-0C010 note |
Computer Assy, Translate
2002-09 → 2003-05
ended
|
UCK35,45 4HC | — | |
| 89630-0C011 |
Computer Assy, Translate
2003-05 → 2004-08
ended
|
UCK35,45 | — | |
| 89630-34010 note |
Computer Assy, Translate
2000-09 → 2002-09
ended
|
UCK35,45 4HC | — | |
| 89630-0C020 |
Computer Assy, Translate
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
