Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

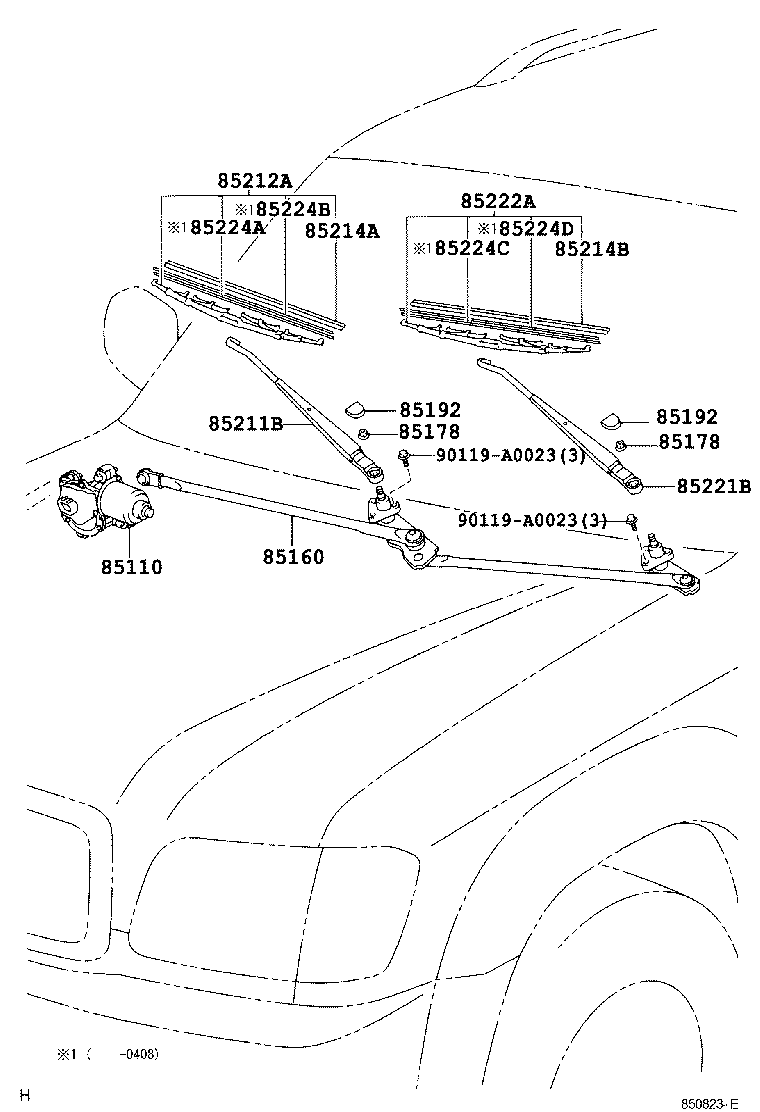

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-0C010 |
Motor Assy, Windshield Wiper
2000-09 → 2001-08
ended
|
UCK35,45 4HC | — | |
| 85110-0C020 note |
Motor Assy, Windshield Wiper
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85110-0C020 |
Motor Assy, Windshield Wiper
2004-08 → —
|
UCK35,45 | — | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-0C040 |
Link Assy, Windshield Wiper
2000-09 → 2001-08
ended
|
UCK35,45 4HC | — | |
| 85150-0C050 note |
Link Assy, Windshield Wiper
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85150-0C060 note |
Link Assy, Windshield Wiper
2000-09 → 2004-08
ended
|
UCK45 | — | |
| 85150-0C050 note |
Link Assy, Windshield Wiper
2004-08 → —
|
UCK35,45 | — | |
| 85150-0C060 note |
Link Assy, Windshield Wiper
2004-08 → —
|
UCK45 | — | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
Nut (FOR FRONT WIPER ARM SETTING)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90179-08113 |
Nut (FOR FRONT WIPER ARM SETTING)
2004-08 → —
|
UCK35,45 | — | |
| 85192 — Cover, Windshield Wiper Arm | ||||
| 85192-12800 |
Cover, Windshield Wiper Arm
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85192-12800 |
Cover, Windshield Wiper Arm
2004-08 → —
|
UCK35,45 | — | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-0C010 |
Arm, Front Wiper, RH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85211-0C010 |
Arm, Front Wiper, RH
2004-08 → —
|
UCK35,45 | — | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-0C010 |
Blade, FR Wiper, RH
2000-09 → 2003-09
ended
|
UCK35,45 4HC | — | |
| 85212-0C011 |
Blade, FR Wiper, RH
2003-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85212-0C011 |
Blade, FR Wiper, RH
2004-08 → 2006-06
ended
|
UCK35,45 | — | |
| 85212-0C012 |
Blade, FR Wiper, RH
2006-07 → —
|
UCK35,45 | — | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-0C010 |
Rubber, Wiper, RH
2000-09 → 2003-08
ended
|
UCK35,45 | — | |
| 85214-0C011 |
Rubber, Wiper, RH
2003-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85214-0C011 |
Rubber, Wiper, RH
2004-08 → 2006-06
ended
|
UCK35,45 | — | |
| 85214-0C012 |
Rubber, Wiper, RH
2006-07 → —
|
UCK35,45 | — | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-0C010 |
Rubber, Wiper, LH
2000-09 → 2003-08
ended
|
UCK35,45 | — | |
| 85214-0C011 |
Rubber, Wiper, LH
2003-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85214-0C011 |
Rubber, Wiper, LH
2004-08 → 2006-06
ended
|
UCK35,45 | — | |
| 85214-0C012 |
Rubber, Wiper, LH
2006-07 → —
|
UCK35,45 | — | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-0C010 |
Arm, Front Wiper, LH
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85221-0C010 |
Arm, Front Wiper, LH
2004-08 → —
|
UCK35,45 | — | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-0C010 |
Blade, FR Wiper, LH
2000-09 → 2003-09
ended
|
UCK35,45 4HC | — | |
| 85222-0C011 |
Blade, FR Wiper, LH
2003-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85222-0C011 |
Blade, FR Wiper, LH
2004-08 → 2006-06
ended
|
UCK35,45 | — | |
| 85222-0C012 |
Blade, FR Wiper, LH
2006-07 → —
|
UCK35,45 | — | |
| 85224A — Plate, Wiper Rubber Backing, NO.1 | ||||
| 85224-AA030 |
Plate, Wiper Rubber Backing, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85224B — Plate, Wiper Rubber Backing, NO.2 | ||||
| 85224-AA030 |
Plate, Wiper Rubber Backing, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85224C — Plate, Wiper Rubber Backing, NO.3 | ||||
| 85224-0C010 |
Plate, Wiper Rubber Backing, NO.3
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 85224D — Plate, Wiper Rubber Backing, NO.4 | ||||
| 85224-0C010 |
Plate, Wiper Rubber Backing, NO.4
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
