Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

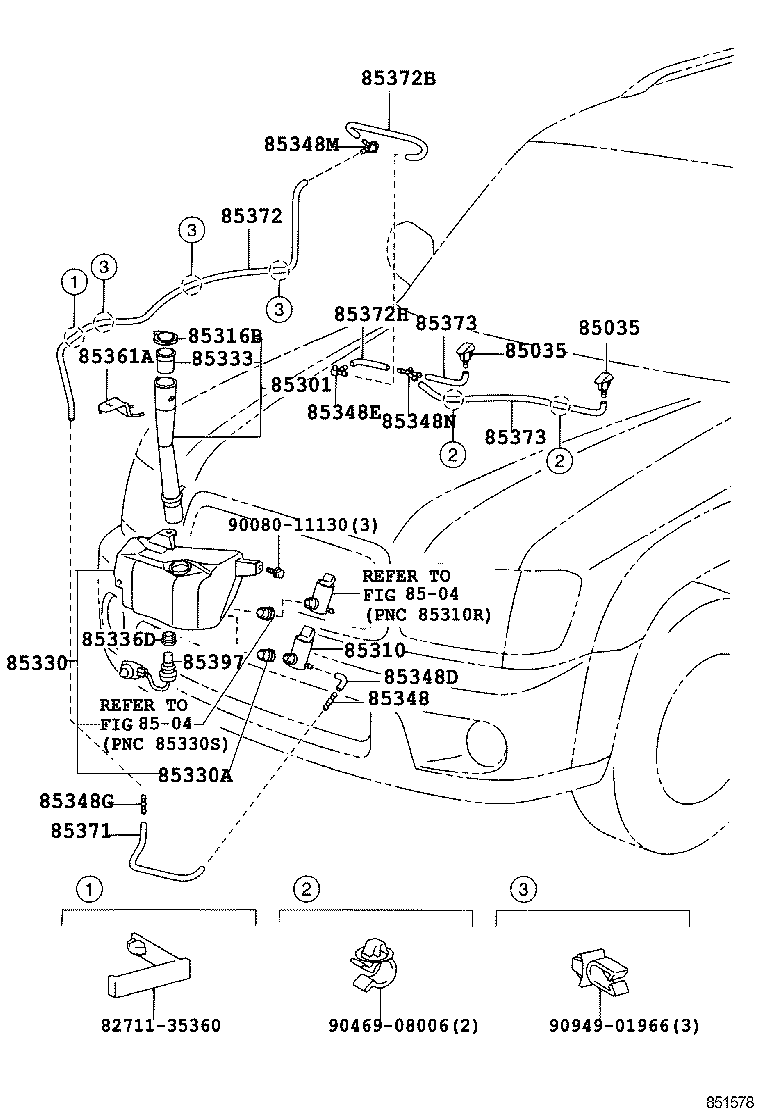

Exploded illustration 851578B 85372B — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 (2 parts) 85348M — JOINT, WINDSHIELD WASHER HOSE, NO.3 (2 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (2 parts) 85361A — BRACKET, WINDSHIELD WASHER, NO.1 (2 parts) 85316B — CAP, WASHER, INLET (2 parts) 85333 — FILTER, WINDSHIELD WASHER JAR (2 parts) 85301 — INLET SUB-ASSY, WASHER (2 parts) 85372H — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 (2 parts) 85348E — JOINT, WINDSHIELD WASHER ELBOW, NO.2 (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (2 parts) 85348N — JOINT, WINDSHIELD WASHER HOSE, NO.4 (2 parts) 85035 — NOZZLE SUB-ASSY, WASHER (4 parts) 85035 — NOZZLE SUB-ASSY, WASHER (4 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (2 parts) 9094901966 — not listed in this catalogue 9046908006 — not listed in this catalogue 8271135360 — not listed in this catalogue 85371 — HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) (2 parts) 85348G — JOINT, WINDSHIELD WASHER HOSE, NO.2 (4 parts) 85397 — SWITCH ASSY,LEVEL WARNING (2 parts) 85330A — BUSH, WINDSHIELD WASHER JAR (2 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (2 parts) 85348D — JOINT, WINDSHIELD WASHER ELBOW, NO.1 (4 parts) 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (5 parts) 9008011130 — not listed in this catalogue 85330 — JAR ASSY, WINDSHIELD WASHER (2 parts) 8504 — not listed in this catalogue 8504 — not listed in this catalogue 85336D — PACKING, WINDSHIELD WASHER JAR (1 parts)
851578B · 23 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
85035 — Nozzle Sub-assy, Washer
85381-0C010 Nozzle Sub-assy, Washer
2000-09 → 2001-11 ended
UCK35,45 —
85381-34020 note Nozzle Sub-assy, Washer
2000-09 → 2001-11 ended
UCK45 —
85381-52180 Nozzle Sub-assy, Washer
2001-11 → 2004-08 ended
UCK35,45 —
85381-34030 Nozzle Sub-assy, Washer
2004-08 → —
UCK35,45 —
85301 — Inlet Sub-assy, Washer
85301-0C020 Inlet Sub-assy, Washer
2000-09 → 2004-08 ended
UCK35,45 —
85301-0C020 Inlet Sub-assy, Washer
2004-08 → —
UCK35,45 —
85310 — Motor And Pump Assy, Windshield Washer
85330-0C020 Motor And Pump Assy, Windshield Washer
2000-09 → 2004-08 ended
UCK35,45 —
85330-0C020 Motor And Pump Assy, Windshield Washer
2004-08 → 2004-09 ended
UCK35,45 —
85330-0C020 Motor And Pump Assy, Windshield Washer
2005-09 → 2005-11 ended
UCK35,45 —
85330-34010 Motor And Pump Assy, Windshield Washer
2004-09 → 2005-09 ended
UCK35,45 —
85330-34010 Motor And Pump Assy, Windshield Washer
2005-12 → —
UCK35,45 —
85316B — Cap, Washer, Inlet
85386-0C010 Cap, Washer, Inlet
2000-09 → 2004-08 ended
UCK35,45 —
85386-0C010 Cap, Washer, Inlet
2004-08 → —
UCK35,45 —
85330 — Jar Assy, Windshield Washer
85315-0C040 Jar Assy, Windshield Washer
2000-09 → 2004-08 ended
UCK35,45 —
85315-0C040 Jar Assy, Windshield Washer
2004-08 → —
UCK35,45 —
85330A — Bush, Windshield Washer Jar
90068-32002 Bush, Windshield Washer Jar
2000-09 → 2004-08 ended
UCK35,45 —
90068-32002 Bush, Windshield Washer Jar
2004-08 → —
UCK35,45 —
85333 — Filter, Windshield Washer Jar
85333-20010 Filter, Windshield Washer Jar
2000-09 → 2004-08 ended
UCK35,45 —
85333-20010 Filter, Windshield Washer Jar
2004-08 → —
UCK35,45 —
85336D — Packing, Windshield Washer Jar
85336-0C030 Packing, Windshield Washer Jar
2004-08 → —
UCK35,45 —
85348 — Joint, Windshield Washer Hose, NO.1
85349-89122 Joint, Windshield Washer Hose, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
85349-89122 Joint, Windshield Washer Hose, NO.1
2004-09 → 2005-09 ended
UCK35,45 —
85348D — Joint, Windshield Washer Elbow, NO.1
85355-14481 Joint, Windshield Washer Elbow, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
85355-14481 Joint, Windshield Washer Elbow, NO.1
2005-09 → —
UCK35,45 —
85355-14481 Joint, Windshield Washer Elbow, NO.1
2004-08 → 2004-09 ended
UCK35,45 —
85355-14481 Joint, Windshield Washer Elbow, NO.1
2004-09 → 2005-09 ended
UCK35,45 —
85348E — Joint, Windshield Washer Elbow, NO.2
85377-32220 Joint, Windshield Washer Elbow, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
85377-32220 Joint, Windshield Washer Elbow, NO.2
2004-08 → —
UCK35,45 —
85348G — Joint, Windshield Washer Hose, NO.2
85349-89122 Joint, Windshield Washer Hose, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
85349-89122 Joint, Windshield Washer Hose, NO.2
2004-08 → 2004-09 ended
UCK35,45 —
85349-89122 Joint, Windshield Washer Hose, NO.2
2004-09 → 2005-09 ended
UCK35,45 —
85349-89122 Joint, Windshield Washer Hose, NO.2
2005-09 → —
UCK35,45 —
85348M — Joint, Windshield Washer Hose, NO.3
85377-34010 Joint, Windshield Washer Hose, NO.3
2000-09 → 2004-08 ended
UCK35,45 —
85377-34010 Joint, Windshield Washer Hose, NO.3
2004-08 → —
UCK35,45 —
85348N — Joint, Windshield Washer Hose, NO.4
85378-2B160 Joint, Windshield Washer Hose, NO.4
2000-09 → 2004-08 ended
UCK35,45 —
85378-2B160 Joint, Windshield Washer Hose, NO.4
2004-08 → —
UCK35,45 —
85361A — Bracket, Windshield Washer, NO.1
85361-0C020 Bracket, Windshield Washer, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
85361-0C020 Bracket, Windshield Washer, NO.1
2004-08 → —
UCK35,45 —
85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT)
90068-33011 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2000-09 → 2004-08 ended
UCK35,45 —
90068-33017 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2004-08 → —
UCK35,45 —
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
90068-33017 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2000-09 → 2004-08 ended
UCK35,45 —
90068-33017 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2004-08 → —
UCK35,45 —
85372B — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
90068-33011 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2000-09 → 2004-08 ended
UCK35,45 —
90068-33017 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2004-08 → —
UCK35,45 —
85372H — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
90068-33011 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
2000-09 → 2004-08 ended
UCK35,45 —
90068-33017 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
2004-08 → —
UCK35,45 —
85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE)
90068-33011 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2000-09 → 2004-08 ended
UCK35,45 —
90068-33017 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2004-08 → —
UCK35,45 —
85397 — Switch Assy,Level Warning
85397-0C030 Switch Assy,Level Warning
2000-09 → 2004-08 ended
UCK35,45 —
85397-0C030 Switch Assy,Level Warning
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
