Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

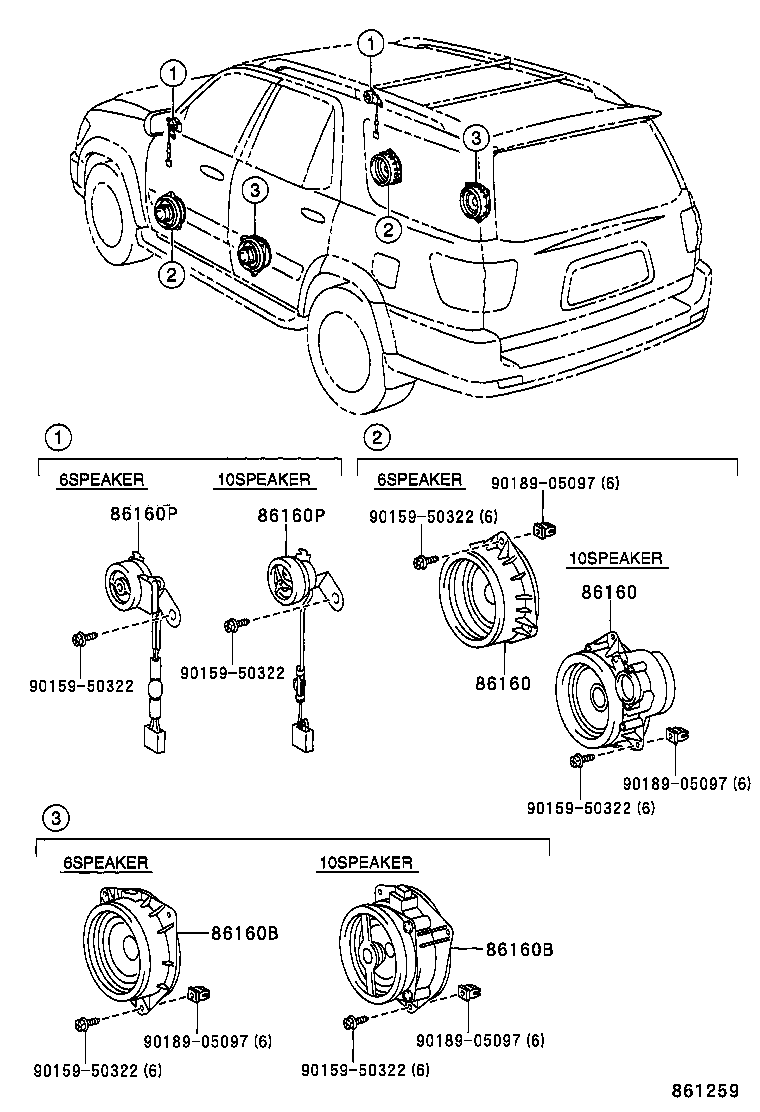

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-AF030 note |
Speaker Assy, Front NO.1
2000-09 → 2004-08
ended
|
UCK35,45 SR5 | — | |
| 86160-AF060 note |
Speaker Assy, Front NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86160-AF070 note |
Speaker Assy, Front NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86160-AF030 note |
Speaker Assy, Front NO.1
2004-08 → —
|
UCK35,45 SR5 | — | |
| 86160-AF060 note |
Speaker Assy, Front NO.1
2004-08 → —
|
UCK35,45 | — | |
| 86160-AF070 note |
Speaker Assy, Front NO.1
2004-08 → —
|
UCK35,45 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-AF080 note |
Speaker Assy, Rear
2000-09 → 2004-08
ended
|
UCK35,45 SR5 | — | |
| 86160-AF090 note |
Speaker Assy, Rear
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86160-AF080 note |
Speaker Assy, Rear
2004-08 → —
|
UCK35,45 SR5 | — | |
| 86160-AF090 note |
Speaker Assy, Rear
2004-08 → —
|
UCK35,45 | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-AF010 note |
Speaker Assy, Front NO.2
2000-09 → 2004-08
ended
|
UCK35,45 SR5 | — | |
| 86160-AF020 note |
Speaker Assy, Front NO.2
2000-09 → 2004-08
ended
|
UCK35,45 SR5 | — | |
| 86160-AF040 note |
Speaker Assy, Front NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86160-AF050 note |
Speaker Assy, Front NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86160-AF010 note |
Speaker Assy, Front NO.2
2004-08 → —
|
UCK35,45 SR5 | — | |
| 86160-AF020 note |
Speaker Assy, Front NO.2
2004-08 → —
|
UCK35,45 SR5 | — | |
| 86160-AF040 note |
Speaker Assy, Front NO.2
2004-08 → —
|
UCK35,45 | — | |
| 86160-AF050 note |
Speaker Assy, Front NO.2
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
