Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

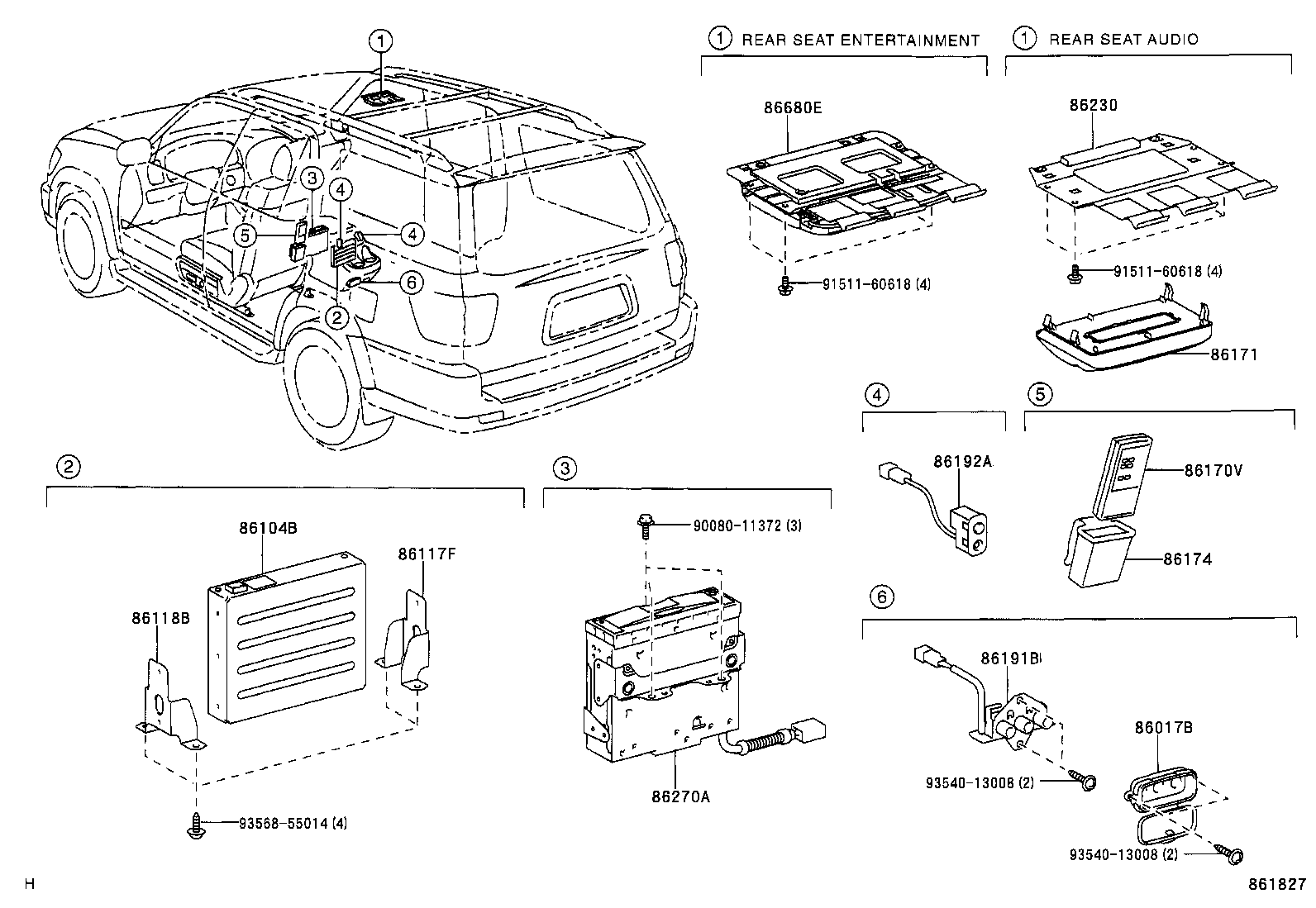

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86017B — Parts Set, Video | ||||
| 86017-34010-B0 note |
Parts Set, Video
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86017-34010-E0 note |
Parts Set, Video
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86017-34010-B0 note |
Parts Set, Video
2004-08 → —
|
UCK35,45 | — | |
| 86017-34010-E1 note |
Parts Set, Video
2004-08 → —
|
UCK35,45 | — | |
| 86104B — Controller Sub-assy, Multi-display | ||||
| 86104-34011 |
Controller Sub-assy, Multi-display
2002-09 → 2003-02
ended
|
UCK35,45 4HC | — | |
| 86104-45010 |
Controller Sub-assy, Multi-display
2003-02 → 2004-08
ended
|
UCK35,45 | — | |
| 86104-45010 |
Controller Sub-assy, Multi-display
2004-08 → —
|
UCK35,45 | — | |
| 86104-48010 note |
Controller Sub-assy, Multi-display
2004-08 → —
|
UCK35,45 | — | |
| 86117F — Bracket, Multi-display Controller, A | ||||
| 86117-34010 |
Bracket, Multi-display Controller, A
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86117-34010 |
Bracket, Multi-display Controller, A
2004-08 → —
|
UCK35,45 | — | |
| 86118B — Bracket, Multi-display Controller, B | ||||
| 86118-34010 |
Bracket, Multi-display Controller, B
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86118-34010 |
Bracket, Multi-display Controller, B
2004-08 → —
|
UCK35,45 | — | |
| 86170V — Controller Assy, Remote | ||||
| 86170-34010 note |
Controller Assy, Remote
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86170-34020 note |
Controller Assy, Remote
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86170-34010 note |
Controller Assy, Remote
2004-08 → —
|
UCK35,45 | — | |
| 86170-34020 note |
Controller Assy, Remote
2004-08 → —
|
UCK35,45 | — | |
| 86171 — Base, Radio Remote Control | ||||
| 86171-34010-B0 note |
Base, Radio Remote Control
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86171-34010-E0 note |
Base, Radio Remote Control
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86171-34010-B0 note |
Base, Radio Remote Control
2004-08 → —
|
UCK35,45 | — | |
| 86171-34010-E1 note |
Base, Radio Remote Control
2004-08 → —
|
UCK35,45 | — | |
| 86174 — Case, Switch & Volume | ||||
| 86174-34010-B0 note |
Case, Switch & Volume
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86174-34010-E0 note |
Case, Switch & Volume
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86174-34010-B0 note |
Case, Switch & Volume
2004-08 → —
|
UCK35,45 | — | |
| 86174-34010-E1 note |
Case, Switch & Volume
2004-08 → —
|
UCK35,45 | — | |
| 86191B — Terminal, Video(VIDEO ADAPTER) | ||||
| 86191-34010 |
Terminal, Video(VIDEO ADAPTER)
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86191-34010 |
Terminal, Video(VIDEO ADAPTER)
2004-08 → —
|
UCK35,45 | — | |
| 86192A — Terminal, Headphone | ||||
| 86192-34010-B0 note |
Terminal, Headphone
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86192-34010-E0 note |
Terminal, Headphone
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86192-34010-B0 note |
Terminal, Headphone
2004-08 → —
|
UCK35,45 | — | |
| 86192-34010-E1 note |
Terminal, Headphone
2004-08 → —
|
UCK35,45 | — | |
| 86230 — Controller Assy, Stereo Component | ||||
| 86230-34010-B0 note |
Controller Assy, Stereo Component
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86230-34010-E0 note |
Controller Assy, Stereo Component
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86230-34010-B0 note |
Controller Assy, Stereo Component
2004-08 → —
|
UCK35,45 | — | |
| 86230-34010-E1 note |
Controller Assy, Stereo Component
2004-08 → —
|
UCK35,45 | — | |
| 86270A — Disc Player Assy | ||||
| 86270-34010 |
Disc Player Assy
2002-09 → 2003-02
ended
|
UCK35,45 4HC | — | |
| 86270-34011 |
Disc Player Assy
2003-02 → 2004-08
ended
|
UCK35,45 | — | |
| 86270-34011 |
Disc Player Assy
2004-08 → —
|
UCK35,45 | — | |
| 86680E — Display Assy, Television | ||||
| 86680-34011-B0 note |
Display Assy, Television
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86680-34011-E0 note |
Display Assy, Television
2002-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86680-34011-B0 note |
Display Assy, Television
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 86680-34011-E1 note |
Display Assy, Television
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 86680-34012-B0 note |
Display Assy, Television
2004-09 → —
|
UCK35,45 | — | |
| 86680-34012-E1 note |
Display Assy, Television
2004-09 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
