Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

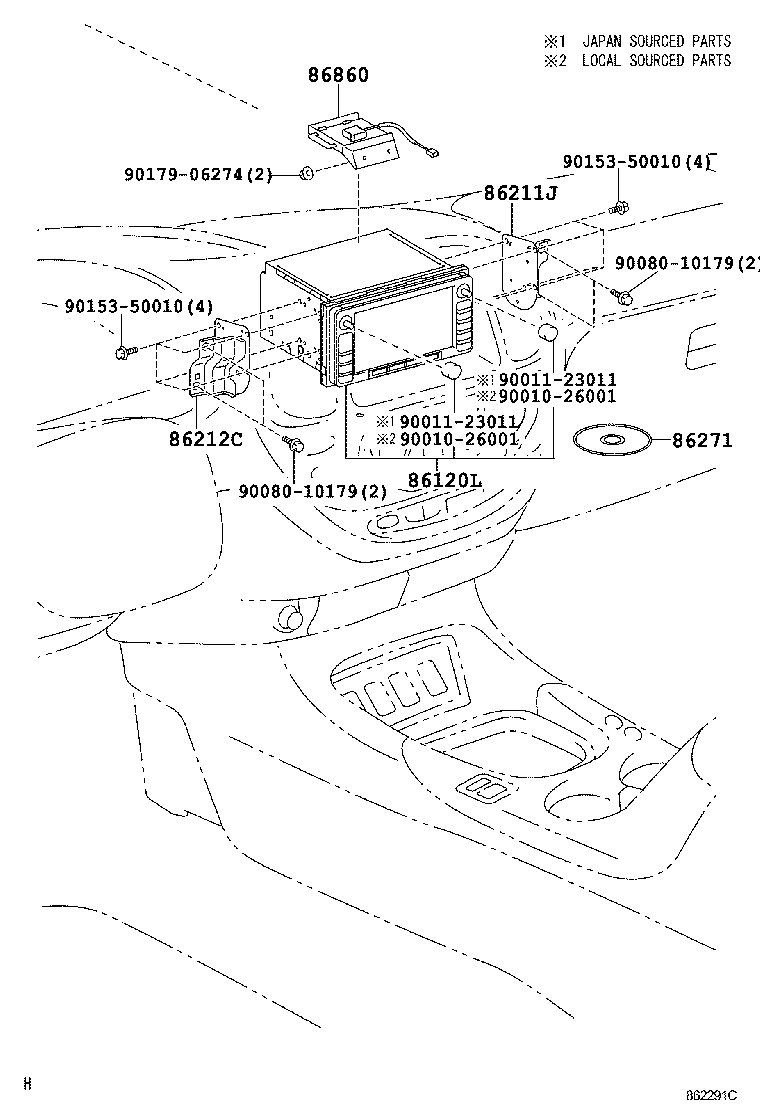

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120L — Receiver Assy, Navigation | ||||
| 86120-0C160 note |
Receiver Assy, Navigation
2005-02 → 2005-09
ended
|
UCK35,45 | — | |
| 86120-0C160 note |
Receiver Assy, Navigation
2005-10 → 2006-08
ended
|
UCK35,45 | — | |
| 86120-0C160 note |
Receiver Assy, Navigation
2007-08 → —
|
UCK35,45 | — | |
| 86120-0C160 note |
Receiver Assy, Navigation
2006-09 → 2007-07
ended
|
UCK35,45 | — | |
| 86120-34030 note |
Receiver Assy, Navigation
2004-10 → 2005-09
ended
|
UCK35,45 | — | |
| 86120-34030 note |
Receiver Assy, Navigation
2007-08 → —
|
UCK35,45 | — | |
| 86120-34030 note |
Receiver Assy, Navigation
2006-09 → 2007-07
ended
|
UCK35,45 | — | |
| 86120-34030 note |
Receiver Assy, Navigation
2005-10 → 2006-08
ended
|
UCK35,45 | — | |
| 86120-34030 note |
Receiver Assy, Navigation
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-0C020 |
Bracket, Radio Receiver, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-0C020 |
Bracket, Radio Receiver, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 86271 — Disc, Disc Player | ||||
| 86271-33043 |
Disc, Disc Player
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 86271-33044 |
Disc, Disc Player
2004-10 → 2005-09
ended
|
UCK35,45 | — | |
| 86271-33045 |
Disc, Disc Player
2005-10 → 2006-08
ended
|
UCK35,45 | — | |
| 86271-33046 |
Disc, Disc Player
2006-09 → 2007-07
ended
|
UCK35,45 | — | |
| 86271-33047 |
Disc, Disc Player
2007-08 → —
|
UCK35,45 | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-34010 |
Antenna Assy, Navigation
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
