Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

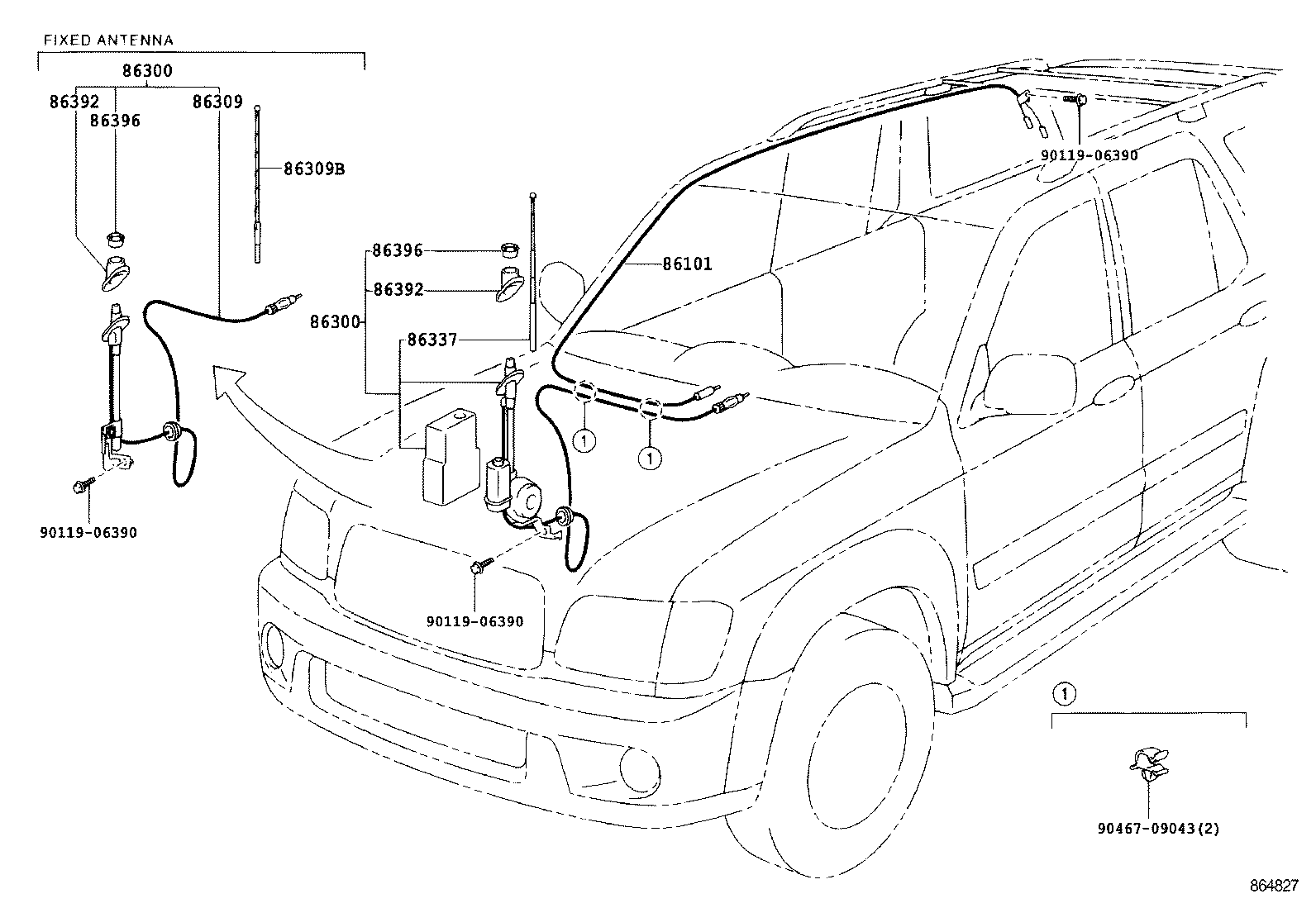

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-AF010 |
Cord Sub-assy, Antenna
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86101-0C010 |
Cord Sub-assy, Antenna
2004-08 → —
|
UCK35,45 | — | |
| 86300 — Antenna Assy, W/Holder | ||||
| 86300-AF010 note |
Antenna Assy, W/Holder
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86300-AF020 note |
Antenna Assy, W/Holder
2002-09 → 2004-08
ended
|
UCK45 | — | |
| 86300-0C020 |
Antenna Assy, W/Holder
2004-08 → —
|
UCK35,45 | — | |
| 86309 — Pole Sub-assy, Pillar Antenna | ||||
| 86309-AF020 |
Pole Sub-assy, Pillar Antenna
2002-09 → 2004-08
ended
|
UCK45 | — | |
| 86309B — Pole Sub-assy, Pull Top Antenna | ||||
| 86309-AA040 |
Pole Sub-assy, Pull Top Antenna
2002-09 → 2004-08
ended
|
UCK45 | — | |
| 86337 — Rod & Pipe, Sealed W/Cable | ||||
| 86337-AF010 |
Rod & Pipe, Sealed W/Cable
2000-09 → 2002-04
ended
|
UCK35,45 4HC | — | |
| 86337-AF011 |
Rod & Pipe, Sealed W/Cable
2002-04 → 2004-08
ended
|
UCK35,45 | — | |
| 86392 — Ornament, Antenna | ||||
| 86392-AF010 |
Ornament, Antenna
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 86396 — Nut, Antenna | ||||
| 86396-06010 |
Nut, Antenna
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
