Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

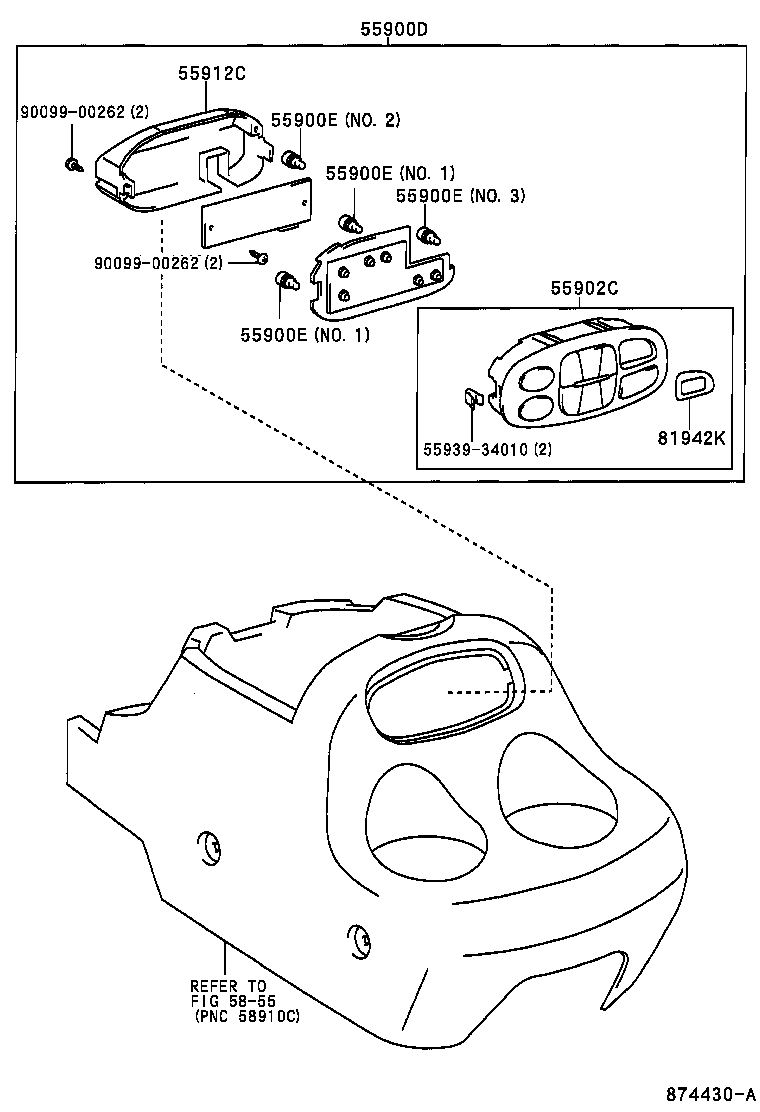

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55900D — Control Assy, Air Conditioner, NO.2 | ||||
| 55900-0C020 |
Control Assy, Air Conditioner, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 SR5 | — | |
| 55900-0C030 |
Control Assy, Air Conditioner, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 LIMD | — | |
| 55900-0C020 |
Control Assy, Air Conditioner, NO.2
2004-08 → 2005-09
ended
|
UCK35,45 SR5 | — | |
| 55900-0C021 |
Control Assy, Air Conditioner, NO.2
2005-09 → —
|
UCK35,45 SR5 | — | |
| 55900-0C030 |
Control Assy, Air Conditioner, NO.2
2004-08 → 2005-09
ended
|
UCK35,45 LIMD | — | |
| 55900-0C031 |
Control Assy, Air Conditioner, NO.2
2005-09 → —
|
UCK35,45 LIMD | — | |
| 55900-0C040 note |
Control Assy, Air Conditioner, NO.2
2004-08 → 2005-09
ended
|
UCK35,45 LIMD | — | |
| 55900-0C041 note |
Control Assy, Air Conditioner, NO.2
2005-09 → —
|
UCK35,45 LIMD | — | |
| 55900E — Bulb, Air Conditioner Control, NO.2 | ||||
| 90011-03011 note |
Bulb, Air Conditioner Control, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90011-03012 note |
Bulb, Air Conditioner Control, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90011-03013 note |
Bulb, Air Conditioner Control, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 90011-03011 note |
Bulb, Air Conditioner Control, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 90011-03012 note |
Bulb, Air Conditioner Control, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 90011-03013 note |
Bulb, Air Conditioner Control, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 55902C — Panel Sub-assy, Air Conditioner | ||||
| 55902-0C010 |
Panel Sub-assy, Air Conditioner
2000-09 → 2004-08
ended
|
UCK35,45 SR5 | — | |
| 55902-0C020 |
Panel Sub-assy, Air Conditioner
2000-09 → 2004-08
ended
|
UCK35,45 LIMD | — | |
| 55902-0C010 |
Panel Sub-assy, Air Conditioner
2004-08 → 2005-09
ended
|
UCK35,45 SR5 | — | |
| 55902-0C011 |
Panel Sub-assy, Air Conditioner
2005-09 → —
|
UCK35,45 SR5 | — | |
| 55902-0C020 |
Panel Sub-assy, Air Conditioner
2004-08 → 2005-09
ended
|
UCK35,45 LIMD | — | |
| 55902-0C021 |
Panel Sub-assy, Air Conditioner
2005-09 → —
|
UCK35,45 LIMD | — | |
| 55902-0C030 note |
Panel Sub-assy, Air Conditioner
2004-08 → 2005-09
ended
|
UCK35,45 LIMD | — | |
| 55902-0C031 note |
Panel Sub-assy, Air Conditioner
2005-09 → —
|
UCK35,45 LIMD | — | |
| 55912C — Housing, Heater Control | ||||
| 55912-0C030 |
Housing, Heater Control
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55912-0C030 |
Housing, Heater Control
2004-08 → —
|
UCK35,45 | — | |
| 81942K — Sheet, Heater Control Name, NO.5 | ||||
| 81942-0C090 |
Sheet, Heater Control Name, NO.5
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 81942-0C090 |
Sheet, Heater Control Name, NO.5
2004-08 → 2005-08
ended
|
UCK35,45 | — | |
| 81942-0C090 |
Sheet, Heater Control Name, NO.5
2005-09 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
