Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

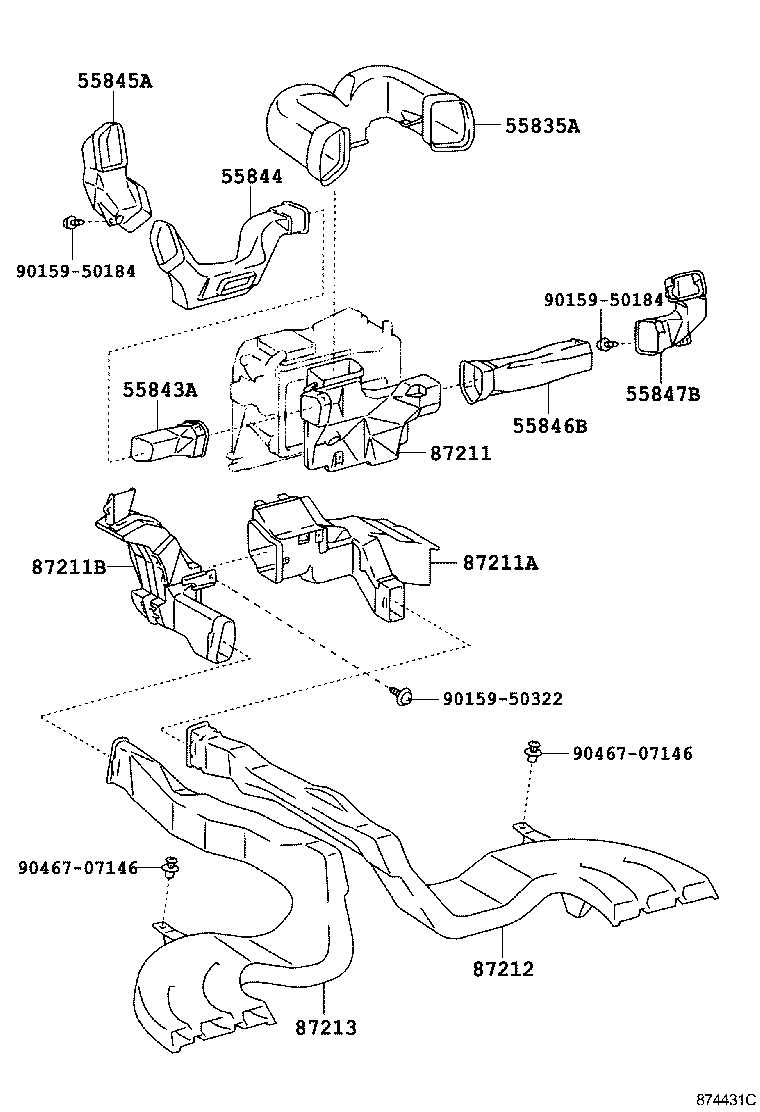

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55835A — Duct, Heater TO Register, Center | ||||
| 55835-0C010 |
Duct, Heater TO Register, Center
2000-09 → 2002-08
ended
|
UCK35,45 4HC | — | |
| 55835-0C020 |
Duct, Heater TO Register, Center
2002-08 → 2004-08
ended
|
UCK35,45 | — | |
| 55835-0C020 |
Duct, Heater TO Register, Center
2004-08 → —
|
UCK35,45 | — | |
| 55843A — Duct, Heater TO Register, NO.1 | ||||
| 55843-0C010 |
Duct, Heater TO Register, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55843-0C010 |
Duct, Heater TO Register, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 55844 — Duct, Heater TO Register, NO.2 | ||||
| 55844-0C020 |
Duct, Heater TO Register, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55844-0C020 |
Duct, Heater TO Register, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 55845A — Duct, Heater TO Register, NO.3 | ||||
| 55845-0C010 |
Duct, Heater TO Register, NO.3
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55845-0C010 |
Duct, Heater TO Register, NO.3
2004-08 → —
|
UCK35,45 | — | |
| 55846B — Duct, Heater TO Register, NO.4 | ||||
| 55846-0C010 |
Duct, Heater TO Register, NO.4
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55846-0C010 |
Duct, Heater TO Register, NO.4
2004-08 → —
|
UCK35,45 | — | |
| 55847B — Duct, Heater TO Register, NO.5 | ||||
| 55847-0C010 |
Duct, Heater TO Register, NO.5
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 55847-0C010 |
Duct, Heater TO Register, NO.5
2004-08 → —
|
UCK35,45 | — | |
| 87211 — Duct, Air, NO.1 | ||||
| 87211-0C070 |
Duct, Air, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87211-0C070 |
Duct, Air, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 87211A — Duct, Air, NO.2 | ||||
| 87211-0C080 |
Duct, Air, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87211-0C080 |
Duct, Air, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 87211B — Duct, Air, NO.3 | ||||
| 87211-0C060 |
Duct, Air, NO.3
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87211-0C060 |
Duct, Air, NO.3
2004-08 → —
|
UCK35,45 | — | |
| 87212 — Duct, Air, Rear NO.1 | ||||
| 87212-0C010 |
Duct, Air, Rear NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87212-0C010 |
Duct, Air, Rear NO.1
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 87212-0C011 |
Duct, Air, Rear NO.1
2004-09 → —
|
UCK35,45 | — | |
| 87213 — Duct, Air, Rear NO.2 | ||||
| 87213-0C010 |
Duct, Air, Rear NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87213-0C010 |
Duct, Air, Rear NO.2
2004-08 → 2004-09
ended
|
UCK35,45 | — | |
| 87213-0C011 |
Duct, Air, Rear NO.2
2004-09 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
