Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

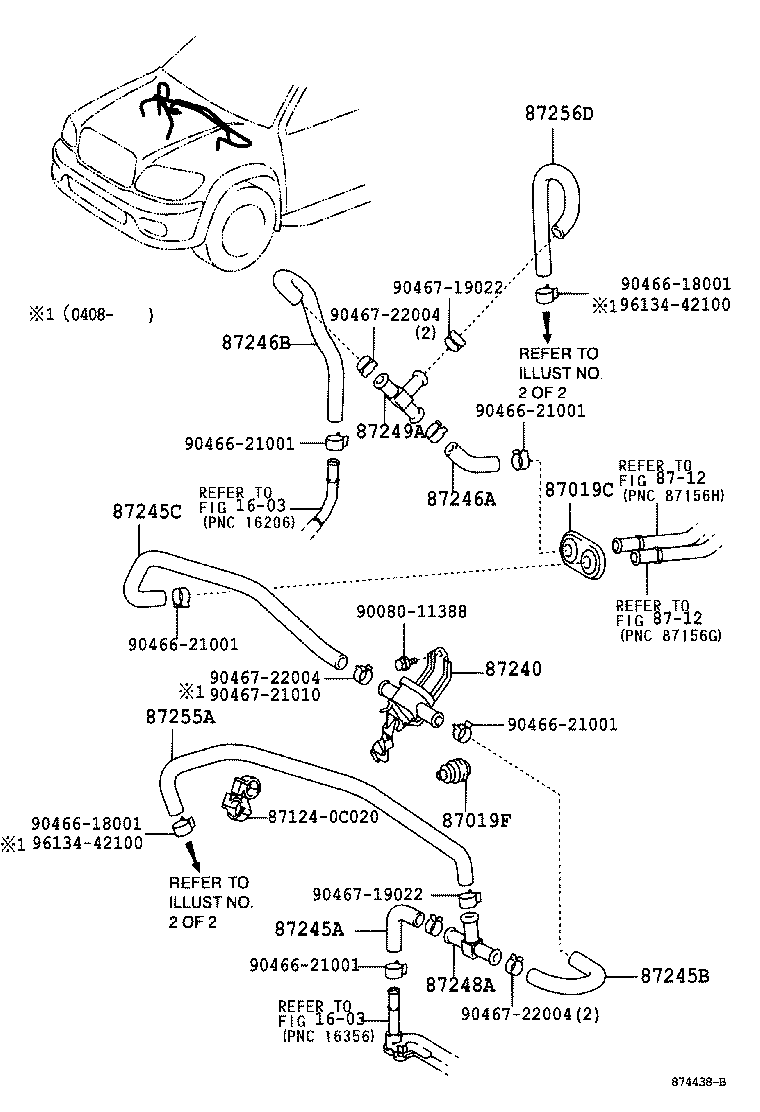

Exploded illustration 874438B 87256D — HOSE, REAR HEATER WATER OUTLET, D (2 parts) 9046618001 — not listed in this catalogue 9046719022 — not listed in this catalogue 9046722004 — not listed in this catalogue 87249A — PIPE, HEATER WATER OUTLET, A (2 parts) 87246B — HOSE, HEATER WATER, OUTLET B (2 parts) 9046621001 — not listed in this catalogue 87245B — HOSE, HEATER WATER, INLET B (2 parts) 87245C — HOSE, HEATER WATER ,INLET C (2 parts) 9046621001 — not listed in this catalogue 9046722004 — not listed in this catalogue 87246A — HOSE, HEATER WATER, OUTLET A (4 parts) 9046621001 — not listed in this catalogue 87019C — GROMMET, HEATER HOSE (3 parts) 87240 — VALVE ASSY, HEATER WATER (2 parts) 9046621001 — not listed in this catalogue 9008011388 — not listed in this catalogue 87019F — GROMMET, HEATER HOSE (2 parts) 871240C020 — not listed in this catalogue 87255A — HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) (2 parts) 9046618001 — not listed in this catalogue 87245A — HOSE, HEATER WATER, INLET A (4 parts) 9046719022 — not listed in this catalogue 9046621001 — not listed in this catalogue 87248A — PIPE, HEATER WATER INLET, A (2 parts) 1603 — not listed in this catalogue 9046722004 — not listed in this catalogue 1603 — not listed in this catalogue 8712 — not listed in this catalogue 8712 — not listed in this catalogue 9613442100 — not listed in this catalogue 9613442100 — not listed in this catalogue
874438B · 12 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
87019C — Grommet, Heater Hose
90080-48068 Grommet, Heater Hose
2001-07 → 2004-08 ended
UCK35,45 —
90480-01405 Grommet, Heater Hose
2000-09 → 2001-07 ended
UCK35,45 4HC —
90080-48068 Grommet, Heater Hose
2004-08 → —
UCK35,45 —
87019F — Grommet, Heater Hose
90480-13033 Grommet, Heater Hose
2000-09 → 2004-08 ended
UCK35,45 —
90480-13033 Grommet, Heater Hose
2004-08 → —
UCK35,45 —
87240 — Valve Assy, Heater Water
87240-0C010 Valve Assy, Heater Water
2000-09 → 2004-08 ended
UCK35,45 —
87240-0C011 Valve Assy, Heater Water
2004-08 → —
UCK35,45 —
87245A — Hose, Heater Water, Inlet A
87245-0C040 Hose, Heater Water, Inlet A
2000-09 → 2004-08 ended
UCK35,45 SR5 —
87245-0C070 note Hose, Heater Water, Inlet A
2000-09 → 2004-08 ended
UCK35,45 —
87245-0C040 Hose, Heater Water, Inlet A
2004-08 → —
UCK35,45 SR5 —
87245-0C070 note Hose, Heater Water, Inlet A
2004-08 → —
UCK35,45 —
87245B — Hose, Heater Water, Inlet B
87245-0C060 Hose, Heater Water, Inlet B
2000-09 → 2004-08 ended
UCK35,45 —
87245-0C060 Hose, Heater Water, Inlet B
2004-08 → —
UCK35,45 —
87245C — Hose, Heater Water ,Inlet C
87245-0C010 Hose, Heater Water ,Inlet C
2000-09 → 2004-08 ended
UCK35,45 —
87245-0C010 Hose, Heater Water ,Inlet C
2004-08 → —
UCK35,45 —
87246A — Hose, Heater Water, Outlet A
87245-0C050 Hose, Heater Water, Outlet A
2000-09 → 2004-08 ended
UCK35,45 SR5 —
87245-0C100 note Hose, Heater Water, Outlet A
2000-09 → 2004-08 ended
UCK35,45 —
87245-0C100 note Hose, Heater Water, Outlet A
2004-08 → —
UCK35,45 —
87245-0C160 Hose, Heater Water, Outlet A
2004-08 → —
UCK35,45 SR5 —
87246B — Hose, Heater Water, Outlet B
87245-0C090 Hose, Heater Water, Outlet B
2000-09 → 2004-08 ended
UCK35,45 —
87245-0C170 Hose, Heater Water, Outlet B
2004-08 → —
UCK35,45 —
87248A — Pipe, Heater Water Inlet, A
87248-60460 Pipe, Heater Water Inlet, A
2000-09 → 2004-08 ended
UCK35,45 —
87248-60460 Pipe, Heater Water Inlet, A
2004-08 → —
UCK35,45 —
87249A — Pipe, Heater Water Outlet, A
87248-60460 Pipe, Heater Water Outlet, A
2000-09 → 2004-08 ended
UCK35,45 —
87248-60460 Pipe, Heater Water Outlet, A
2004-08 → —
UCK35,45 —
87255A — Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87245-0C080 Hose, Rear Heater Water Inlet, A(FROM ENGINE)
2000-09 → 2004-08 ended
UCK35,45 —
87245-0C080 Hose, Rear Heater Water Inlet, A(FROM ENGINE)
2004-08 → —
UCK35,45 —
87256D — Hose, Rear Heater Water Outlet, D
87245-0C110 Hose, Rear Heater Water Outlet, D
2000-09 → 2004-08 ended
UCK35,45 —
87245-0C110 Hose, Rear Heater Water Outlet, D
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
