Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

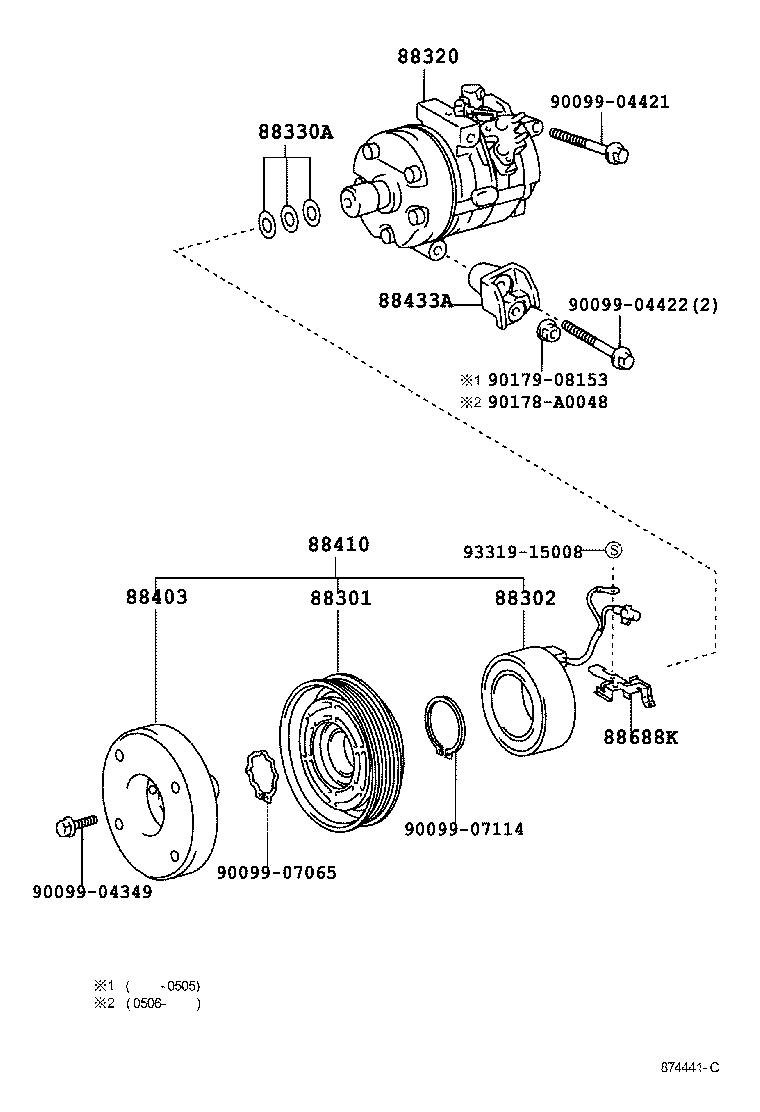

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88301 — Rotor Sub-assy, Magnet Clutch | ||||
| 88412-60070 |
Rotor Sub-assy, Magnet Clutch
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 88412-60070 |
Rotor Sub-assy, Magnet Clutch
2004-08 → 2004-12
ended
|
UCK35,45 | — | |
| 88302 — Stator Sub-assy, Magnet Clutch | ||||
| 88411-2A030 |
Stator Sub-assy, Magnet Clutch
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 88411-2A030 |
Stator Sub-assy, Magnet Clutch
2004-08 → 2004-12
ended
|
UCK35,45 | — | |
| 88320 — Compressor Assy, Cooler | ||||
| 88320-0C100 |
Compressor Assy, Cooler
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 88320-0C100 |
Compressor Assy, Cooler
2004-08 → 2004-12
ended
|
UCK35,45 | — | |
| 88320-0C101 |
Compressor Assy, Cooler
2004-12 → 2007-11
ended
|
UCK35,45 | — | |
| 88330A — Washer (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
Washer (FOR MAGNET CLUTCH)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 88335-14020 |
Washer (FOR MAGNET CLUTCH)
2004-08 → 2007-11
ended
|
UCK35,45 | — | |
| 88403 — Hub Sub-assy, Magnet Clutch | ||||
| 88403-3A020 |
Hub Sub-assy, Magnet Clutch
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 88403-3A020 |
Hub Sub-assy, Magnet Clutch
2004-08 → 2004-12
ended
|
UCK35,45 | — | |
| 88410 — Clutch Assy, Magnet | ||||
| 88410-0C040 |
Clutch Assy, Magnet
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 88410-0C040 |
Clutch Assy, Magnet
2004-08 → 2004-12
ended
|
UCK35,45 | — | |
| 88410-0C050 |
Clutch Assy, Magnet
2004-12 → 2007-11
ended
|
UCK35,45 | — | |
| 88433A — Stay, Compressor | ||||
| 88433-0C010 |
Stay, Compressor
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 88433-0C010 |
Stay, Compressor
2004-08 → 2007-02
ended
|
UCK35,45 | — | |
| 88433-35020 |
Stay, Compressor
2007-03 → —
|
UCK35,45 | — | |
| 88688K — Bracket, Cooler Compressor | ||||
| 88688-0C120 |
Bracket, Cooler Compressor
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 88688-0C120 |
Bracket, Cooler Compressor
2004-08 → 2007-11
ended
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
