Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

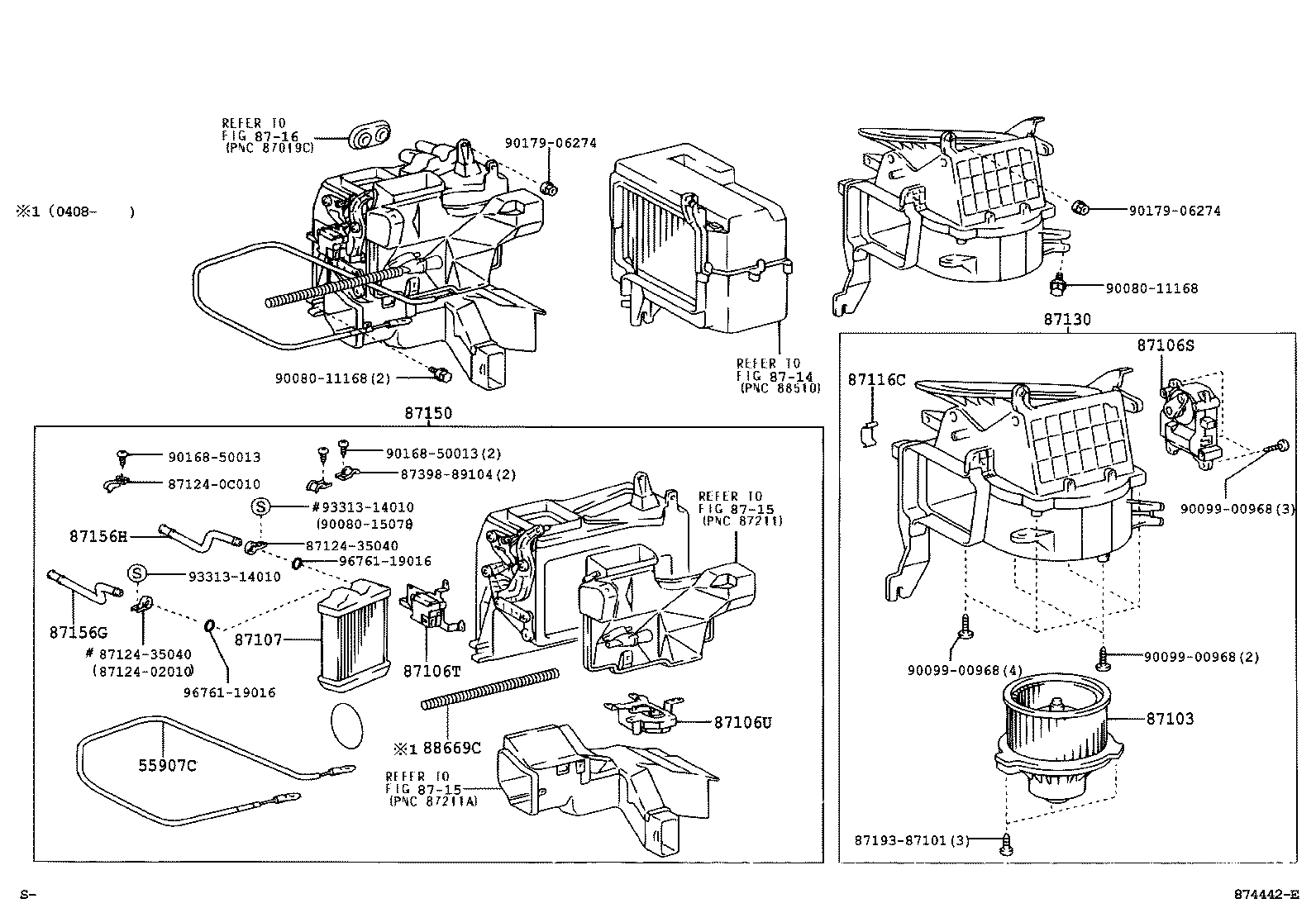

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55907C — Cable Sub-assy, Water Valve Control | ||||
| 87286-0C010 |
Cable Sub-assy, Water Valve Control
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87286-0C010 |
Cable Sub-assy, Water Valve Control
2004-08 → —
|
UCK35,45 | — | |
| 87103 — Motor Sub-assy, Heater Blower, W/Fan | ||||
| 87103-0C020 |
Motor Sub-assy, Heater Blower, W/Fan
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87103-0C020 |
Motor Sub-assy, Heater Blower, W/Fan
2004-08 → 2005-05
ended
|
UCK35,45 | — | |
| 87103-0C022 |
Motor Sub-assy, Heater Blower, W/Fan
2005-06 → —
|
UCK35,45 | — | |
| 87106S — Servo Sub-assy, Damper(FOR RECIRCULATION) | ||||
| 87106-0C020 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87106-0C020 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2004-08 → —
|
UCK35,45 | — | |
| 87106T — Servo Sub-assy, Damper(FOR MODE) | ||||
| 87106-0C030 |
Servo Sub-assy, Damper(FOR MODE)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87106-0C030 |
Servo Sub-assy, Damper(FOR MODE)
2004-08 → —
|
UCK35,45 | — | |
| 87106U — Servo Sub-assy, Damper(FOR AIRMIX) | ||||
| 87106-0C040 |
Servo Sub-assy, Damper(FOR AIRMIX)
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87106-0C040 |
Servo Sub-assy, Damper(FOR AIRMIX)
2004-08 → —
|
UCK35,45 | — | |
| 87107 — Unit Sub-assy, Heater Radiator | ||||
| 87107-0C020 |
Unit Sub-assy, Heater Radiator
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87107-0C020 |
Unit Sub-assy, Heater Radiator
2004-08 → —
|
UCK35,45 | — | |
| 87116C — Spring, Holding (FOR HEATER BLOWER) | ||||
| 87116-04020 |
Spring, Holding (FOR HEATER BLOWER)
2002-08 → 2004-08
ended
|
UCK35,45 | — | |
| 87116-04020 |
Spring, Holding (FOR HEATER BLOWER)
2004-08 → —
|
UCK35,45 | — | |
| 87130 — Blower Assy, Heater, Front | ||||
| 87130-0C020 |
Blower Assy, Heater, Front
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87130-0C020 |
Blower Assy, Heater, Front
2004-08 → —
|
UCK35,45 | — | |
| 87150 — Radiator Assy, Heater | ||||
| 87150-0C020 |
Radiator Assy, Heater
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87150-0C021 |
Radiator Assy, Heater
2004-08 → —
|
UCK35,45 | — | |
| 87156G — Pipe, Heater Water, NO.1 | ||||
| 87156-0C030 |
Pipe, Heater Water, NO.1
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87156-0C030 |
Pipe, Heater Water, NO.1
2004-08 → —
|
UCK35,45 | — | |
| 87156H — Pipe, Heater Water, NO.2 | ||||
| 87156-0C040 |
Pipe, Heater Water, NO.2
2000-09 → 2004-08
ended
|
UCK35,45 | — | |
| 87156-0C040 |
Pipe, Heater Water, NO.2
2004-08 → —
|
UCK35,45 | — | |
| 88669C — Hose, Air | ||||
| 88669-0C020 |
Hose, Air
2004-08 → —
|
UCK35,45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
