Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

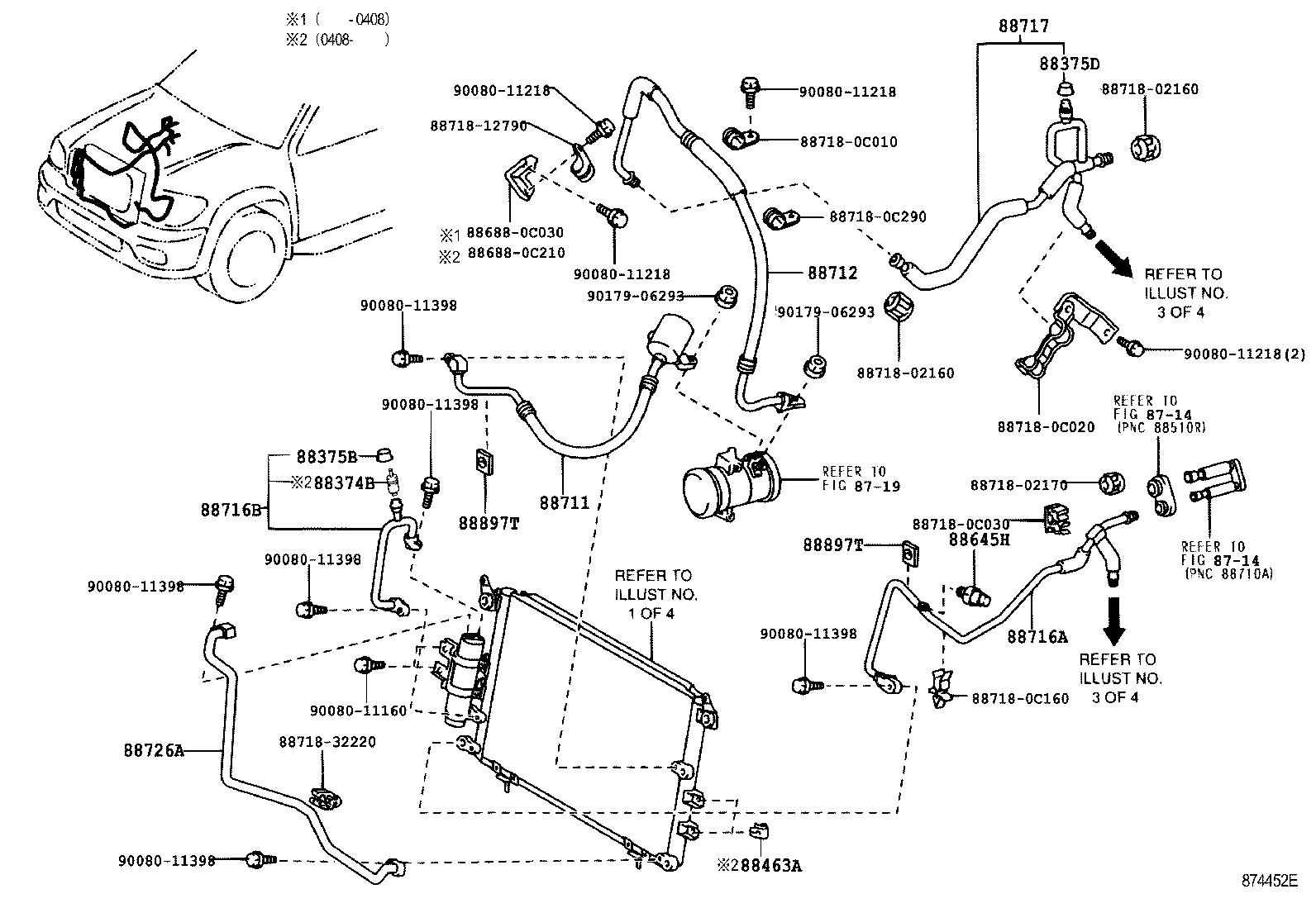

Exploded illustration 874452E 8871802160 — not listed in this catalogue 9008011218 — not listed in this catalogue 8714 — not listed in this catalogue 887180C020 — not listed in this catalogue 8871802170 — not listed in this catalogue 887180C030 — not listed in this catalogue 88645H — SWITCH, PRESSURE NO.1 (5 parts) 88716A — PIPE, COOLER REFRIGERANT LIQUID, A (4 parts) 887180C160 — not listed in this catalogue 88897T — GROMMET, COOLER (2 parts) 9008011398 — not listed in this catalogue 8871832220 — not listed in this catalogue 9008011398 — not listed in this catalogue 88726A — PIPE, COOLER REFRIGERANT LIQUID, A (2 parts) 9008011398 — not listed in this catalogue 9008011398 — not listed in this catalogue 88716B — PIPE, COOLER REFRIGERANT LIQUID, B (2 parts) 9008011398 — not listed in this catalogue 9008011398 — not listed in this catalogue 9008011218 — not listed in this catalogue 8871812790 — not listed in this catalogue 886880C030 — not listed in this catalogue 9008011218 — not listed in this catalogue 9017906293 — not listed in this catalogue 9008011218 — not listed in this catalogue 887180C010 — not listed in this catalogue 887180C290 — not listed in this catalogue 88712 — HOSE, COOLER REFRIGERANT SUCTION, NO.1 (3 parts) 88717 — PIPE, COOLER REFRIGERANT SUCTION, NO.1 (5 parts) 8871802160 — not listed in this catalogue 9017906293 — not listed in this catalogue 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (2 parts) 88897T — GROMMET, COOLER (2 parts) 88375D — CAP, SERVICE VALVE, NO.2 (2 parts) 8714 — not listed in this catalogue 8719 — not listed in this catalogue 886880C210 — not listed in this catalogue 9008011160 — not listed in this catalogue 88375B — CAP, SERVICE VALVE, NO.1 (2 parts) 88374B — VALVE, SERVICE, NO.1 (1 parts) 88463A — BRACKET, COOLER CONDENSER, NO.2 (1 parts)
874452E · 13 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-30010 Valve, Service, NO.1
2004-08 → —
UCK35,45 —
88375B — Cap, Service Valve, NO.1
88375-30280 Cap, Service Valve, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
88375-30280 Cap, Service Valve, NO.1
2004-08 → —
UCK35,45 —
88375D — Cap, Service Valve, NO.2
88375-30290 Cap, Service Valve, NO.2
2000-09 → 2004-08 ended
UCK35,45 —
88375-30290 Cap, Service Valve, NO.2
2004-08 → —
UCK35,45 —
88463A — Bracket, Cooler Condenser, NO.2
88463-35120 Bracket, Cooler Condenser, NO.2
2004-08 → —
UCK35,45 —
88645H — Switch, Pressure NO.1
88645-60030 Switch, Pressure NO.1
2000-09 → 2004-08 ended
UCK35,45 SR5 —
88645-60040 note Switch, Pressure NO.1
2000-09 → 2004-08 ended
UCK35,45 —
88645-17020 note Switch, Pressure NO.1
2004-08 → —
UCK35,45 SR5 —
88645-60030 note Switch, Pressure NO.1
2004-08 → —
UCK35,45 SR5 —
88645-60040 note Switch, Pressure NO.1
2004-08 → —
UCK35,45 —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-0C040 Hose, Cooler Refrigerant Discharge, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
88711-0C100 Hose, Cooler Refrigerant Discharge, NO.1
2004-08 → —
UCK35,45 —
88712 — Hose, Cooler Refrigerant Suction, NO.1
88712-0C030 Hose, Cooler Refrigerant Suction, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
88712-0C030 Hose, Cooler Refrigerant Suction, NO.1
2004-08 → 2004-09 ended
UCK35,45 —
88712-0C070 Hose, Cooler Refrigerant Suction, NO.1
2004-09 → —
UCK35,45 —
88716A — Pipe, Cooler Refrigerant Liquid, A
88716-0C110 Pipe, Cooler Refrigerant Liquid, A
2000-09 → 2004-08 ended
UCK35,45 SR5 —
88716-0C120 note Pipe, Cooler Refrigerant Liquid, A
2000-09 → 2004-08 ended
UCK35,45 —
88716-0C220 Pipe, Cooler Refrigerant Liquid, A
2004-08 → —
UCK35,45 SR5 —
88716-0C230 note Pipe, Cooler Refrigerant Liquid, A
2004-08 → —
UCK35,45 —
88716B — Pipe, Cooler Refrigerant Liquid, B
88716-0C040 Pipe, Cooler Refrigerant Liquid, B
2000-09 → 2004-08 ended
UCK35,45 —
88716-0C240 Pipe, Cooler Refrigerant Liquid, B
2004-08 → —
UCK35,45 —
88717 — Pipe, Cooler Refrigerant Suction, NO.1
88717-0C020 Pipe, Cooler Refrigerant Suction, NO.1
2000-09 → 2004-08 ended
UCK35,45 SR5 —
88717-0C030 note Pipe, Cooler Refrigerant Suction, NO.1
2000-09 → 2002-01 ended
UCK35,45 4HC —
88717-0C091 note Pipe, Cooler Refrigerant Suction, NO.1
2002-01 → 2004-08 ended
UCK35,45 —
88717-0C020 Pipe, Cooler Refrigerant Suction, NO.1
2004-08 → —
UCK35,45 SR5 —
88717-0C091 note Pipe, Cooler Refrigerant Suction, NO.1
2004-08 → —
UCK35,45 —
88726A — Pipe, Cooler Refrigerant Liquid, A
88726-0C010 Pipe, Cooler Refrigerant Liquid, A
2000-09 → 2004-08 ended
UCK35,45 —
88726-0C020 Pipe, Cooler Refrigerant Liquid, A
2004-08 → —
UCK35,45 —
88897T — Grommet, Cooler
88897-0C010 Grommet, Cooler
2000-09 → 2004-08 ended
UCK35,45 —
88897-0C010 Grommet, Cooler
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
