Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

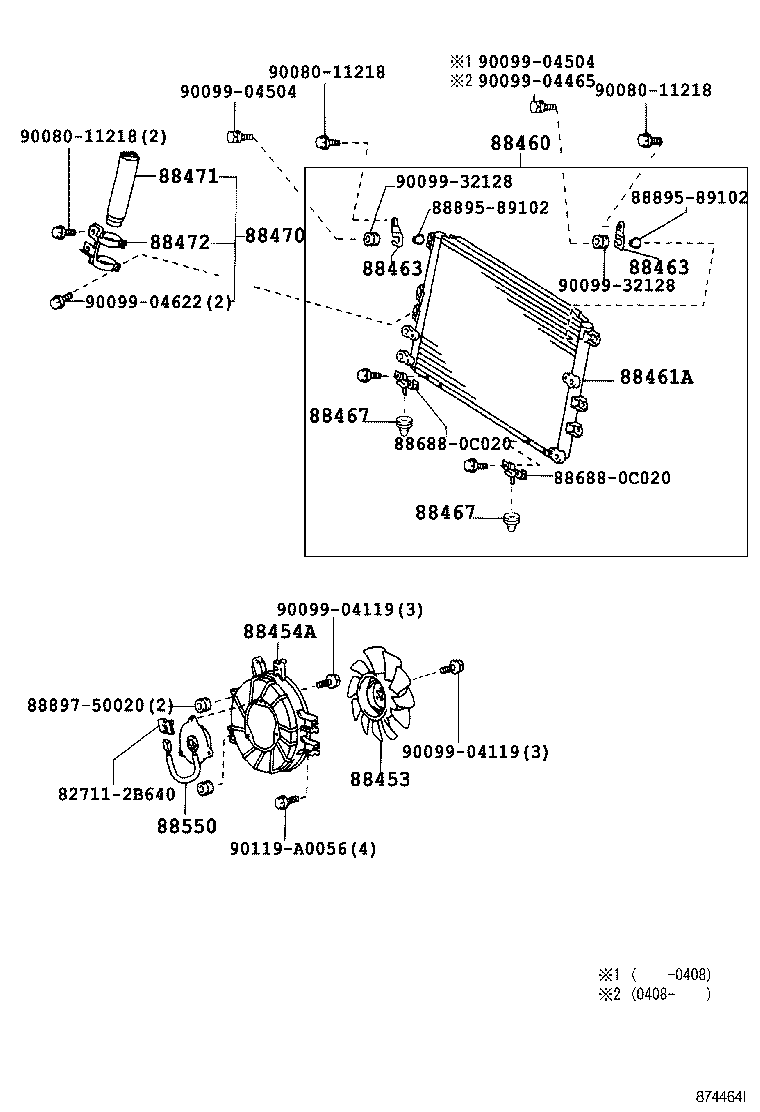

Exploded illustration 874464I 88471 — TANK, RECEIVER AIR CONDITIONER (2 parts) 88472 — BRACKET, RECEIVER TANK, NO.1 (2 parts) 9008011218 — not listed in this catalogue 8889750020 — not listed in this catalogue 9009904119 — not listed in this catalogue 9009904119 — not listed in this catalogue 88470 — RECEIVER & DRYER ASSY, COOLER (3 parts) 88463 — BRACKET, COOLER CONDENSER, NO.1 (2 parts) 9009932128 — not listed in this catalogue 886880C020 — not listed in this catalogue 8889589102 — not listed in this catalogue 9008011218 — not listed in this catalogue 88453 — FAN, COOLING (FOR CONDENSER) (2 parts) 88460 — CONDENSER ASSY, COOLER (2 parts) 88461A — CORE, COOLER CONDENSER (1 parts) 9008011218 — not listed in this catalogue 8889589102 — not listed in this catalogue 88463 — BRACKET, COOLER CONDENSER, NO.1 (2 parts) 9009932128 — not listed in this catalogue 886880C020 — not listed in this catalogue 90119A0056 — not listed in this catalogue 88550 — MOTOR ASSY, BLOWER (FOR CONDENSER) (2 parts) 88454A — SHROUD, FAN (2 parts) 9009904622 — not listed in this catalogue 9009904504 — not listed in this catalogue 9009904504 — not listed in this catalogue 88467 — CUSHION, COOLER CONDENSER, NO.1 (2 parts) 88467 — CUSHION, COOLER CONDENSER, NO.1 (2 parts) 827112B640 — not listed in this catalogue 9009904465 — not listed in this catalogue
874464I · 12 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
88453 — Fan, Cooling (FOR CONDENSER)
88453-0C010 Fan, Cooling (FOR CONDENSER)
2000-09 → 2004-08 ended
UCK35,45 —
88453-0C010 Fan, Cooling (FOR CONDENSER)
2004-08 → —
UCK35,45 —
88454A — Shroud, Fan
88454-0C010 Shroud, Fan
2000-09 → 2004-08 ended
UCK35,45 —
88454-0C020 Shroud, Fan
2004-08 → —
UCK35,45 —
88460 — Condenser Assy, Cooler
88460-0C030 Condenser Assy, Cooler
2000-09 → 2004-08 ended
UCK35,45 —
88460-0C080 Condenser Assy, Cooler
2004-08 → —
UCK35,45 —
88461A — Core, Cooler Condenser
88461-0C020 Core, Cooler Condenser
2000-09 → 2004-08 ended
UCK35,45 —
88463 — Bracket, Cooler Condenser, NO.1
88463-0C010 Bracket, Cooler Condenser, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
88463-0C010 Bracket, Cooler Condenser, NO.1
2004-08 → —
UCK35,45 —
88467 — Cushion, Cooler Condenser, NO.1
88467-32060 Cushion, Cooler Condenser, NO.1
2001-07 → 2004-08 ended
UCK35,45 —
88467-32060 Cushion, Cooler Condenser, NO.1
2004-08 → —
UCK35,45 —
88470 — Receiver & Dryer Assy, Cooler
88470-0C020 Receiver & Dryer Assy, Cooler
2000-09 → 2002-08 ended
UCK35,45 4HC —
88470-0C021 Receiver & Dryer Assy, Cooler
2002-08 → 2004-08 ended
UCK35,45 —
88470-0C021 Receiver & Dryer Assy, Cooler
2004-08 → 2007-11 ended
UCK35,45 —
88471 — Tank, Receiver Air Conditioner
88471-28070 Tank, Receiver Air Conditioner
2000-09 → 2004-08 ended
UCK35,45 —
88471-28070 Tank, Receiver Air Conditioner
2004-08 → 2007-11 ended
UCK35,45 —
88472 — Bracket, Receiver Tank, NO.1
88472-0C020 Bracket, Receiver Tank, NO.1
2000-09 → 2004-08 ended
UCK35,45 —
88472-0C020 Bracket, Receiver Tank, NO.1
2004-08 → 2007-11 ended
UCK35,45 —
88550 — Motor Assy, Blower (FOR CONDENSER)
88550-34010 Motor Assy, Blower (FOR CONDENSER)
2000-09 → 2004-08 ended
UCK35,45 —
88550-34010 Motor Assy, Blower (FOR CONDENSER)
2004-08 → —
UCK35,45 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
