Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05
Fuel Injection System
38 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 16295B | Hose, Water By-pass, NO.7 |
| 16295C | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296B | Hose, Water By-pass, NO.8 |
| 16296C | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22060 | Lever Assy, Throttle W/Sensor |
| 22207 | Cover Sub-assy, Throttle Body |
| 22210Z | Thermostat, Manifold |
| 22271 | Gasket, Throttle Body |
| 22277 | Bracket, Throttle Body Cover |

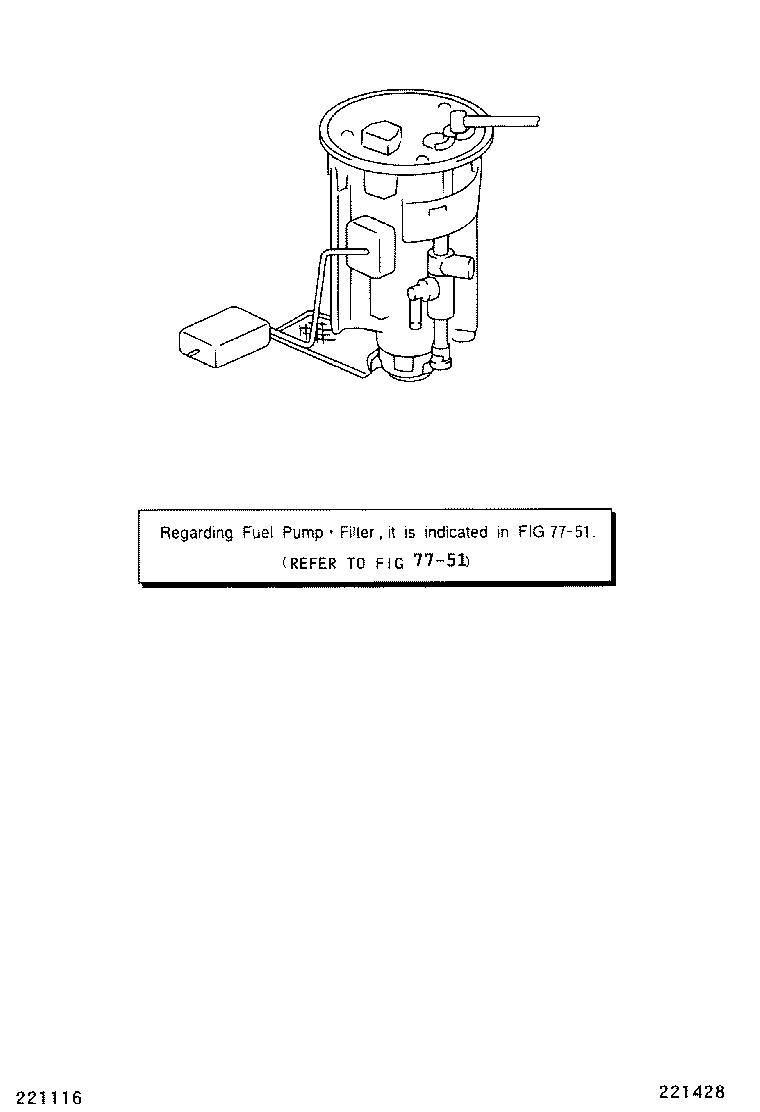

| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23232 | Gasket(FOR FUEL PUMP HOSE) |
| 23233 | Hose, Fuel Pump |
| 23233B | Clip(FOR FUEL PUMP HOSE) |
| 23241 | Support, Fuel Pump Connector |
| 23242 | Gasket, Fuel Pump Connector |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270B | Gasket(FOR PULSATION DAMPER HOSE) |
| 23271F | Hose, Fuel |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23300P | Filter, Fuel(FOR EFI) |
| 23801H | Gasket(FOR FUEL PIPE) |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23803B | Pipe Sub-assy, Fuel, NO.3 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807R | Plug, Fuel Delivary Pipe |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23808 | Pipe Sub-assy, Fuel Delivery, NO.2 |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 89672C | Motor, Throttle Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
