Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

11 part groups · 3 illustrations

Illustrations

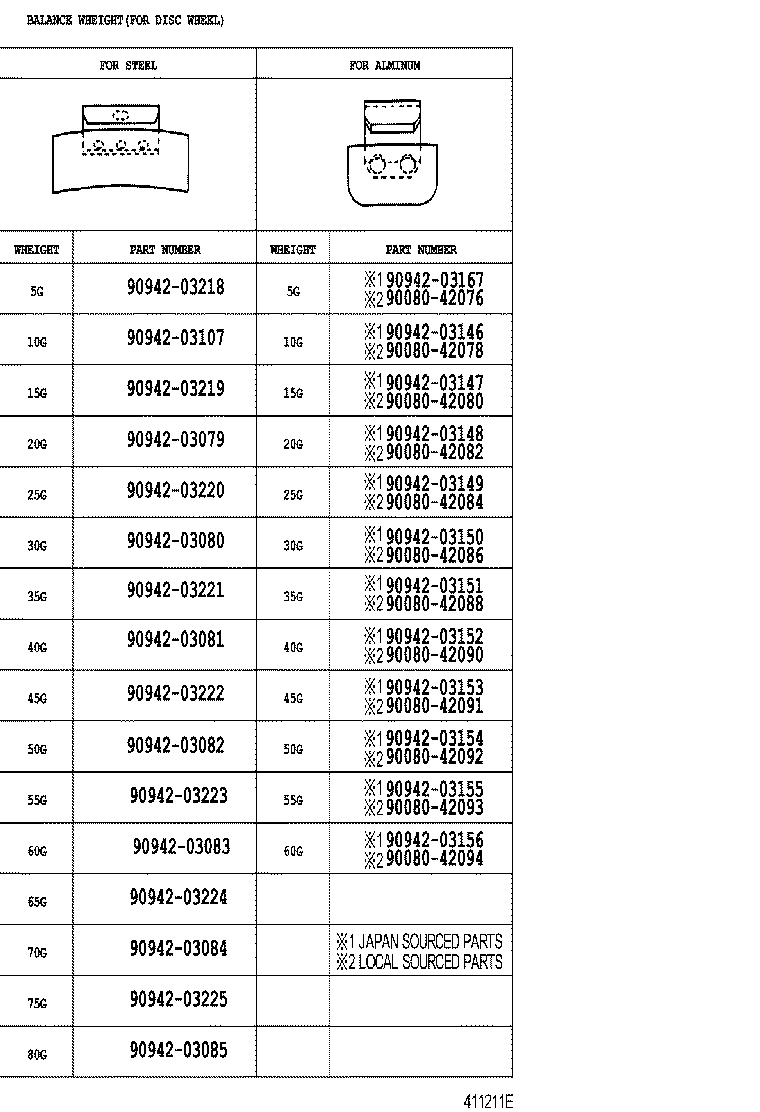

Figure 411209F 411209F 2000-09 → — Figure 411210C 411210C 2000-09 → — Figure 411211F 411211F 2000-09 → —

Part groups

PNCDescription
04423 Fitting Kit, Tire Pressure Monitor OR Balancer Valve
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42607 Valve Sub-assy, Tire Pressure Monitor
42607A Valve Sub-assy, Tire Pressure Monitor (FOR SPARE)
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42611U Cap, Tire Valve
42611W Cap, Tire Valve (FOR SPARE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
