Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05
Wiring & Clamp
63 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82127 | Wire, Differential |
| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164 | Wire, Frame |
| 82165 | Wire, Frame, NO.2 |
| 82166 | Wire, Console Box |
| 82167 | Wire, Seat, NO.1 |
| 82168 | Wire, Seat, NO.2 |
| 82168B | Wire, Seat, NO.2 (SUB WIRE) |
| 82169 | Wire Frame, NO.3 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82188A | Wire, Back Door, NO.3 |
| 82210C | Fusible Link |
| 82345 | Diode |
| 82345A | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666W | Holder, Connector NO.16 |
| 82666X | Holder, Connector NO.17 |
| 82666Y | Holder, Connector NO.18 |
| 82671 | Block, Junction |
| 82671J | Block, Junction, NO.2 |
| 82734 | Block, Center Junction |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82821A | Cover, Connector |
| 82823T | Cap, Alternator Terminal |

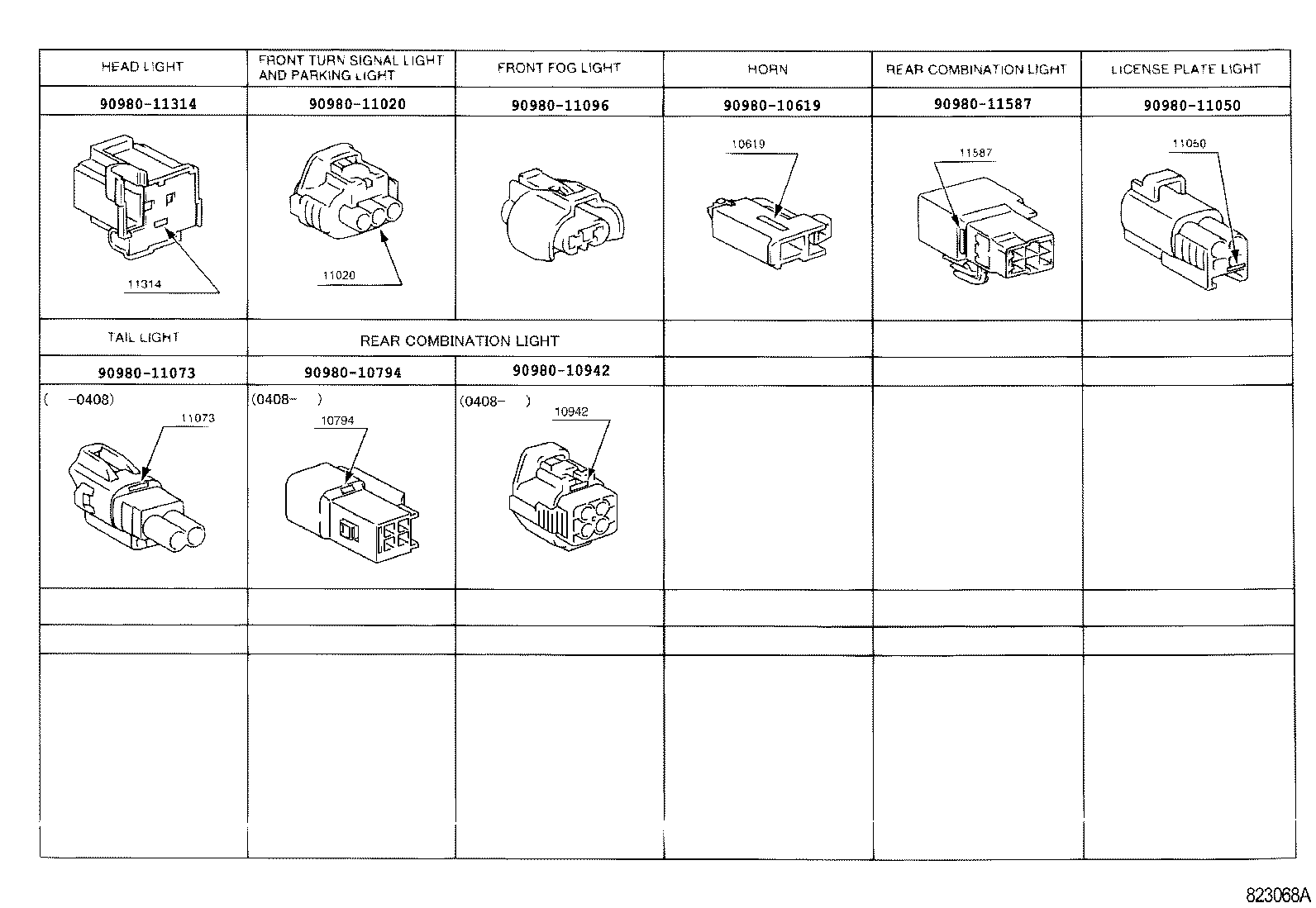

| 82824 | Connector, Wiring Harness |
| 82824D | Connector, Wiring Harness |
| 82824E | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
| 82824G | Connector, Wiring Harness |
| 82824H | Connector, Wiring Harness |
| 82824K | Connector, Wiring Harness |
| 82824M | Connector, Wiring Harness |
| 82824N | Connector, Wiring Harness |
| 82824P | Connector, Wiring Harness |
| 82916 | Insulator, Wiring Harness Heat, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
