Toyota Sequoia

2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

33 part groups · 3 illustrations

Illustrations

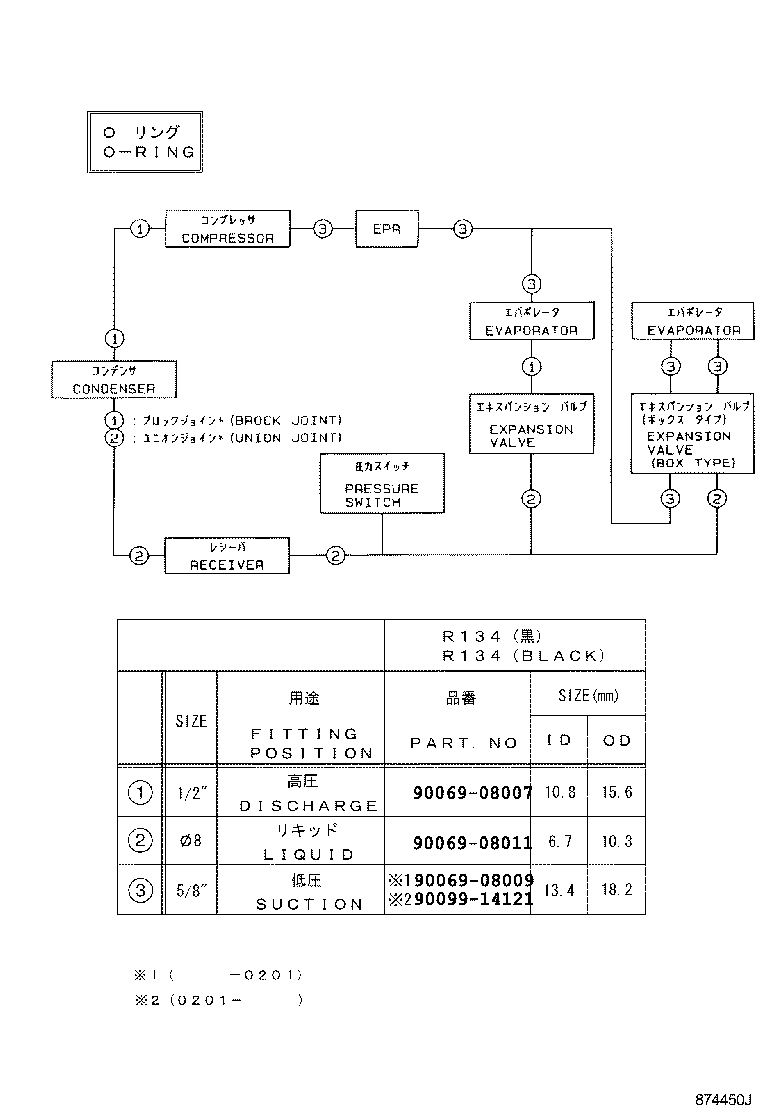

Figure 874446C 874446C 2000-09 → — Figure 874447D 874447D 2000-09 → — Figure 874450J 874450J 2000-09 → —

Part groups

PNCDescription
87030A Unit Assy, Cooling, Rear
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87106D Servo Sub-assy, Damper, NO.1
87107B Unit Sub-assy, Heater Radiator
87116A Spring, Holding (FOR COOLER UNIT CASE)
87156J Pipe, Heater Water Inlet
87156K Pipe, Heater Water Outlet
87165C Control, Blower Motor
87240C Valve Assy, Heater Water
87255M Hose, Rear Heater Water Inlet
87256M Hose, Rear Heater Water Outlet
87484A Wire, Heater
88501 Evaporator Sub-assy, Cooler, NO.1
88501D Evaporator Sub-assy, Cooler, NO.2
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88510R Grommet (FOR COOLER UNIT)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88521 Case, Cooler Unit
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88578W Packing, Cooling Unit, NO.4
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88726J Pipe, Cooler Refrigerant Liquid, J
88750R Transistor Assy, Blower Resistor(REAR)
88892J Cover Sub-assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
