Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05
Heating & Air Conditioning - Control & Air Duct
53 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 55680E | Register Assy, Instrument Panel, NO.4 |
| 55685F | Retainer, Register Blade, NO.4 |
| 55835A | Duct, Heater TO Register, Center |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846B | Duct, Heater TO Register, NO.4 |
| 55847B | Duct, Heater TO Register, NO.5 |
| 55900D | Control Assy, Air Conditioner, NO.2 |
| 55900E | Bulb, Air Conditioner Control, NO.2 |
| 55902C | Panel Sub-assy, Air Conditioner |
| 55905T | Cover, Switch Hole, NO.1 |
| 55905U | Cover, Switch Hole, NO.2 |
| 55912A | Housing, Heater Control |
| 55912C | Housing, Heater Control |
| 55937D | Knob, Center Cluster Module, NO.1 |
| 55937E | Knob, Center Cluster Module, NO.2 |
| 55937F | Knob, Center Cluster Module, NO.3 |
| 55937G | Knob, Center Cluster Module, NO.4 |
| 55937H | Knob, Center Cluster Module, NO.5 |
| 55937J | Knob, Center Cluster Module, NO.6 |
| 55938C | Lens, Center Cluster Module |
| 81942A | Sheet, Heater Control Name, NO.1 |
| 81942B | Sheet, Heater Control Name, NO.2 |
| 81942H | Sheet, Heater Control Name, NO.3 |
| 81942J | Sheet, Heater Control Name, NO.4 |
| 81942K | Sheet, Heater Control Name, NO.5 |
| 81942L | Sheet, Heater Control Name, NO.6 |
| 83911E | Ornament, Clock |
| 84010A | Control & Panel Assy, Integration |
| 84010G | Bulb, Integration Control & Panel |
| 84013A | Panel Sub-assy, Integration |
| 84014E | Board Sub-assy, Printed Wire Integration |
| 84014F | Board Sub-assy, Printed Wire Integration, NO.2 |
| 84014G | Board Sub-assy, Printed Wire Integration, NO.3 |
| 84014H | Board Sub-assy, Printed Wire Integration, NO.4 |
| 84331A | Knob, Hazard Warning Signal Switch |
| 84731B | Bezel, Switch |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |

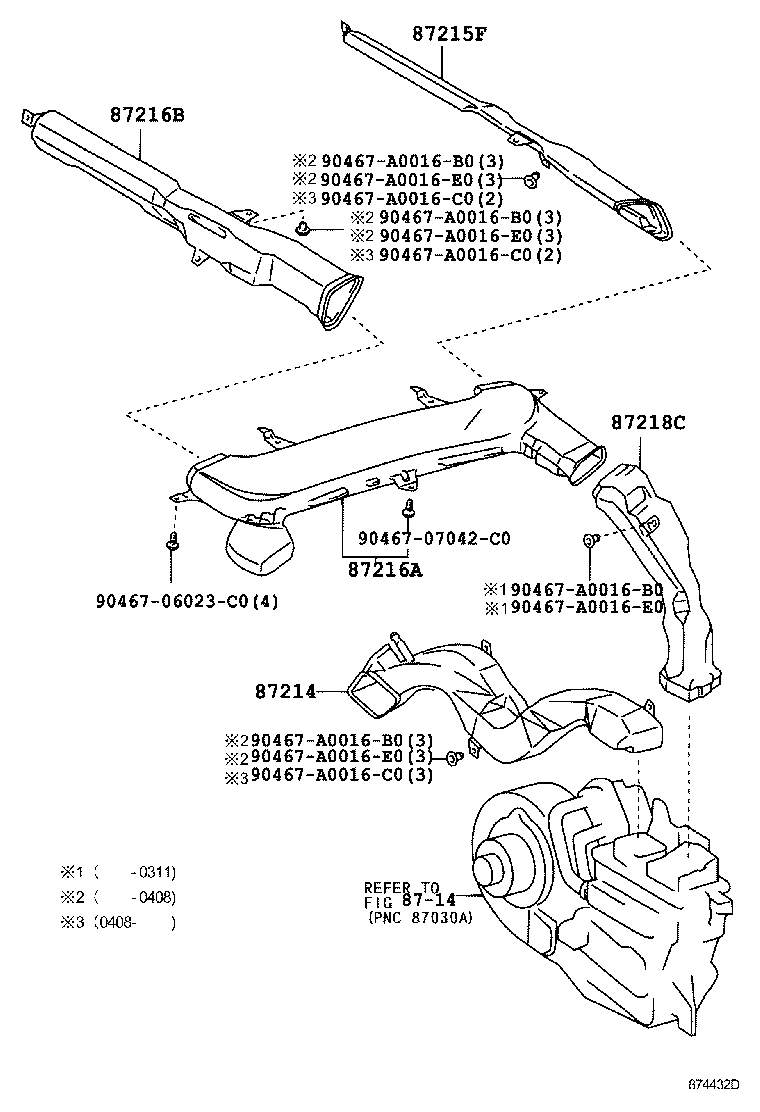

| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214 | Duct, Air, Side NO.1 RH |
| 87215F | Duct, Air, Rear NO.3 |
| 87216A | Duct, Air, Rear NO.5 |
| 87216B | Duct, Air, Rear NO.4 |
| 87218C | Duct, Air, Rear NO.6 |
| 88625C | Thermistor, Cooler |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88650B | Amplifier Assy, Airconditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
