Toyota Sequoia
2000-09 → 2007-11 · chassis UCK35,45 · catalogue 842410 · United States
Discontinued model
Data version 2008-05

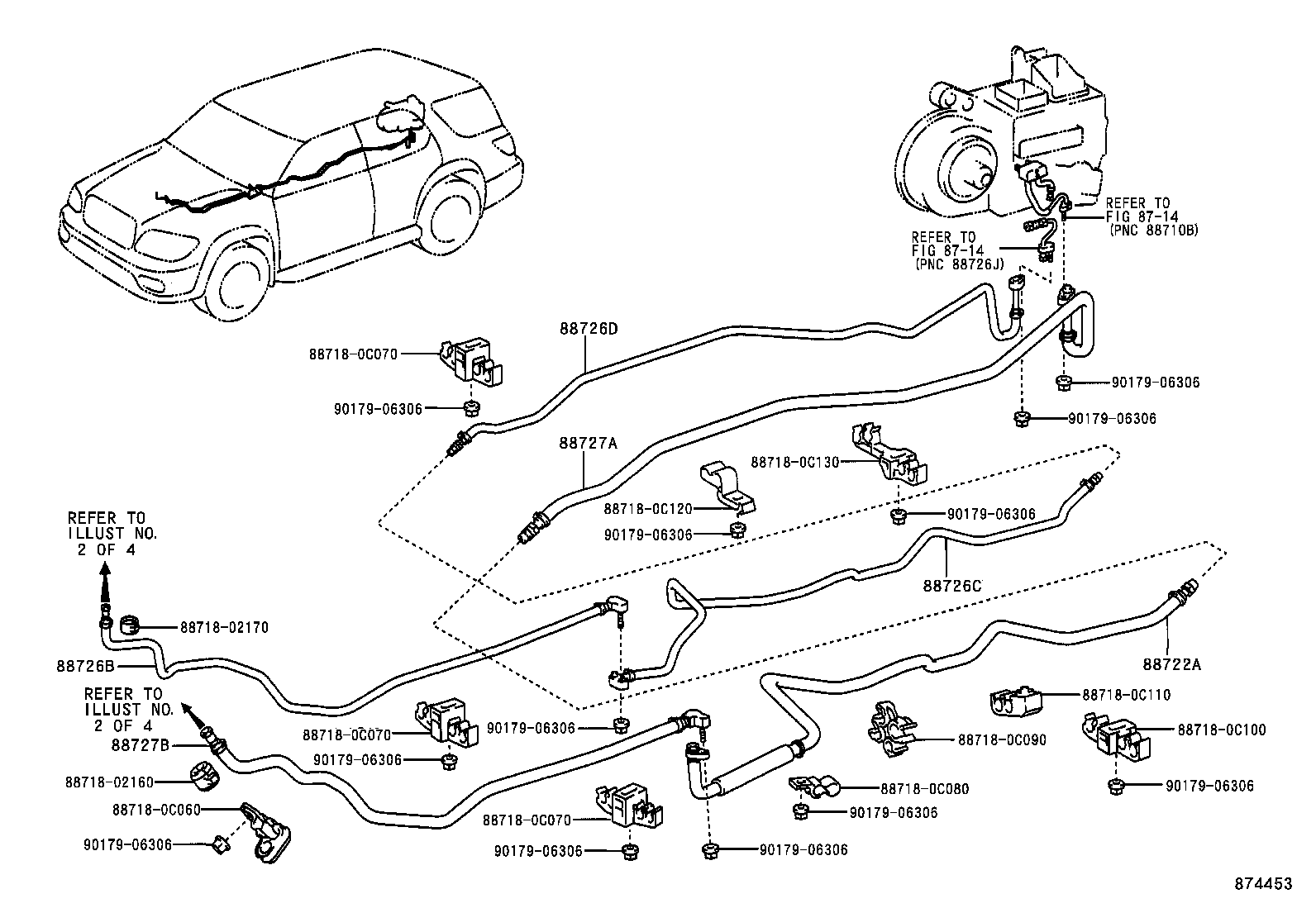

Heating & Air Conditioning - Cooler Piping
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88461A | Core, Cooler Condenser |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88463A | Bracket, Cooler Condenser, NO.2 |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88645H | Switch, Pressure NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88717 | Pipe, Cooler Refrigerant Suction, NO.1 |
| 88722A | Hose, Suction, A |
| 88726A | Pipe, Cooler Refrigerant Liquid, A |
| 88726B | Pipe, Cooler Refrigerant Liquid, B |
| 88726C | Pipe, Cooler Refrigerant Liquid, C |
| 88726D | Pipe, Cooler Refrigerant Liquid, D |
| 88727A | Pipe, Cooler Refrigerant Suction, A |
| 88727B | Pipe, Cooler Refrigerant Suction, B |
| 88897T | Grommet, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
